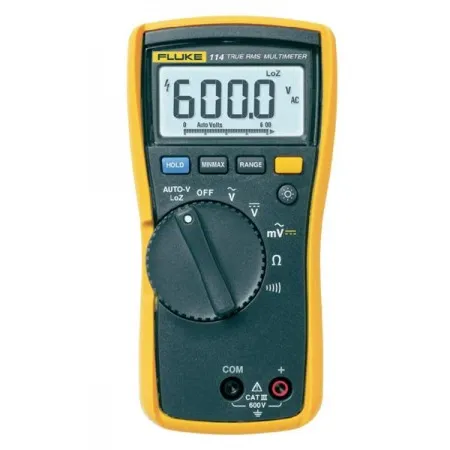

Fluke 114 True RMS Electrical Multimeter with AutoVolt, 600 V

Part Number : 114

Brand :
Fluke

Measure resistance, continuity, frequency, and capacitance with this compact and ergonomic True RMS electrical multimeter. It features AutoVolt, which automatically switches to measure AC or DC voltage, whichever is present. Additionally, this unit is ideal for go/no-go testing.

View all

KWD 54.490

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 114 OffersFeatures AutoVolt automatic AC/DC voltage selection Low input impedance to help prevent false readings due to ghost voltage Large white LED backlight for working in poorly lit areas Measures resistance, continuity, frequency, and capacitance Min/Max/Average with elapsed time to record signal fluctuations Compact ergonomic design for one-handed operation Manual and automatic ranging Safety rates CAT III 600 V Applications Go/no-go testing

Downloads

Fluke_Multimeter_Datasheet_20.pdf

pdf
Download

Specifications

DC Millivolts
Range/resolution: 600.0/0.1 mV Accuracy: ±([% of reading] + [counts]): 0.5% + 2
DC Volts
Range/resolution: 6.000 V/0.001, 60.00 V/0.01, 600.00/0.1 V Accuracy: ±([% of reading] + [counts]): 0.5% + 2
Auto Volts
Range/resolution: 600.0/0.1 V Accuracy: 2.0% + 3 (DC, 45 to 500 Hz), 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts True RMS
Range/resolution: 600.0/0.1 mV Accuracy: 1.0% + 3 (DC, 45 to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
AC Volts True RMS
Range/resolution: 6.000 V/0.001, 60.00 V/0.01, 600.0/0.1 V Accuracy: 1.0% + 3 (DC, 45 to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
Continuity
Range/resolution: 600/1 Ω Accuracy: Beeper on <20 Ω, off >250 Ω detects opens or shorts of 500 µs or longer.
Ohms
Range/resolution: 600.0/0.1 Ω, 6.000/0.001 kΩ, 60.00/0.01 kΩ, 600.0/0.1 kΩ, 6.000/0.001 MΩ Accuracy: 0.9% + 1 Range/resolution: 40.00/0.01 MΩ Accuracy: 5% + 2
Maximum Voltage Between any Terminal and Earth Ground
600 V
Surge Protection
6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Display
Digital: 6000 counts, updates 4 per second
Bar Graph
33 segments, updates 32 per second
Operating Temperature
14 to 122°F (-10 to 50°C)
Storage Temperature
-40 to 140°F (-40 to 60°C)
Battery Type
9 V alkaline, NEDA 1604A/IEC 6LR61
Battery Life
400 hours typical, without backlight
Dimensions
6.57 x 3.31 x 1.82" (167 x 84 x 46 mm)
Weight
1.2 lbs (550 g)
