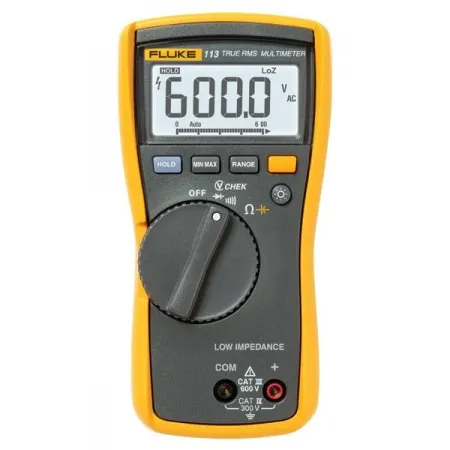

Fluke 113 True RMS Utility Multimeter with VCHECK

Part Number : 113

Brand :
Fluke

An easy-to-use True RMS utility meter, which enables users to quickly and easily perform basic meter set and reconnect testing and possesses the features you need to repair most electrical problems. Additionally, it features VCHEK™ LoZ low impedance measurement function, which lets users simultaneously test voltage or continuity.

View all

KWD 44.190

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 113 OffersFeatures VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity True RMS for accurate AC measurements on non-linear loads A large backlit display allows for easy visibility in low-lit areas Record signal fluctuations using the Min/Max function Diode test for testing general-purpose germanium, silicon, and power diodes Integral holster with probe holders for easy storage Auto and Manual ranging for added user functionality Meets measurement category CAT IV 600 V and Category IV 300 V standards for a higher level of safety The optional TPAK magnetic hanger allows the user hands-free flexibility (sold separately)

Downloads

Fluke_Multimeter_Datasheet_22.pdf

pdf
Download

Specifications

Range
  • 6, 60, 600 V
  • 2 V
  • 600 Ω, 6, 60 kΩ
  • 1000 nF, 10, 100, 9999 µF
Resolution
  • 0.001, 0.01, 0.1 V
  • 0.001 V
  • 0.1 Ω, 0.001, 0.01 kΩ
  • 1 nF, 0.01 µF, 0.1 µF, 1µF
Accuracy
  • DC, 45 to 500 Hz: 2.0% + 3 500 Hz to 1 kHz: 4.0% + 3
  • 2.0% + 3
  • Beeper on <20 Ω, off >250 Ω detects opens or shorts of 500 µs or longer
  • 0.9% + 2 0.9% + 1 0.9% + 1
  • 1.9% + 2 100 to 1000 µF: 1.9% + 2 1000 µF: 5% + 20
Maximum Voltage Between any Terminal and Earth Ground
600 V
Display
3¾-digits, 6000 counts, updates 4/sec
Operating Temperature
14 to 122°F (-10 to 50°C)
Storage Temperature
-22 to 140°F (-40 to 60°C)
Temperature Coefficient
0.1 x (specified accuracy)/°C (<18 or >28°C)
Operating Altitude
6561.7' (2000 m)
Storage Altitude
32808.4' (10,000 m)
Relative Humidity
95% to 86°F (30°C) 75% to 104°F (40°C) 45% to 122°F (50°C)
Battery Type
9 V Alkaline, ANSI 1604A/IEC 6F22
Battery Life
Alkaline: 300 hours typical, without backlight
Shock
3.3' (1 m) drop per IEC 61010–1–2001
Vibration
Per MIL-PRF-28800 for Class 2 instrument
Dimensions
6.58 x 33.5 x 1.81" (167.1 x 85.1 x 46 mm)
Weight
13.0 oz (404 g)
Safety
Complies with ANSI / ISA 82.02.01 (61010–1) 2004, CAN / CSA-C22.2 No 61010-1-04, UL 61010–1 (2004) and IEC / EN 61010–1 2nd Edition for measurement Category IV, 600 V, Pollution Degree 2, EMC EN61326–1
EMI Regulations
Complies with FCC Part 15, Class B
