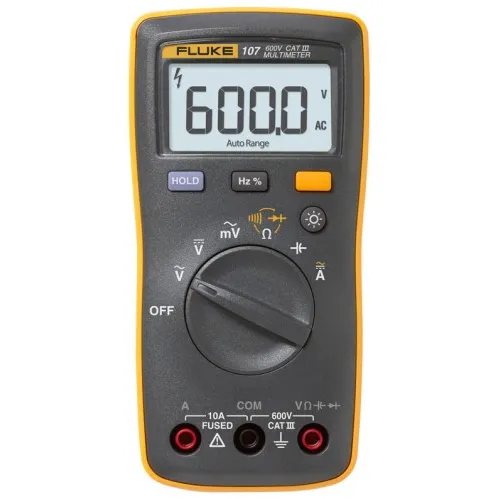

Fluke 107 ESP Palm-Sized Digital Multimeter, CAT III, 600 V

Part Number : 107 ESP

Brand :
Fluke

Comes in a compact, rugged, ergonomic design and is easy-to-use. This palm-sized digital multimeter is ideal for troubleshooting and is small enough to fit in a shirt pocket or work bag.

View all

KWD 39.170

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 107 ESP OffersFeatures Enabled with current and voltage measurement functions, in a compact size Measures resistance & continuity to check for broken wires Data hold and backlit display to keep you working safe and fast Ergonomic and rugged Comfortable grip, only weighs 200g and easy to carry Rugged enclosure and 3.3' (1 m) drop test Full-parameter automatic range test, which is convenient and quick to test; at the same time, it reduces the number of rotations of the wave plate and prolongs the life of the instrument 6000-word large screen LCD backlight display Battery powered, automatic power save mode Data retention feature makes it easier to read measurement results Compliant with IEC61010-1 CATIII 600V overvoltage protection safety standard Complete test functions AC and DC voltage measurement AC and DC current measurement Resistance measurement Capacitance measurement Diode measurement Frequency and duty cycle test and other functions to meet basic electrical maintenance, electrical measurement, and electronic measurement applications Applications Basic electrical maintenance Electrical measurement Electronic measurement

Downloads

Fluke_Multimeter_Datasheet_29.pdf

pdf
Download

Specifications

AC Volts (40 to 500 Hz)
Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 1.0% + 3
DC Volts
  • Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 0.5% + 3
  • Overload protection: 600 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >100 dB at DC, 50 or 60 Hz Normal mode rejection ratio: >45 dB at 50 or 60 Hz
AC Millivolts
  • Range: 600 mV Resolution: 0.1 mV Accuracy: 3.0% + 3
  • Overload protection: 600 mV Input impedance (nominal): >1 M, <100 pF Common mode rejection ratio: >80 dB at 50 or 60 Hz
Diode Test
Range: 2 V Resolution: 0.001 V Accuracy: 10%
Resistance (Ohms)
Range: 400 Ω, 4, 40, 400 kΩ, 4, 40 MΩ Resolution: 0.1 Ω, 0.001, 0.01, 0.1 kΩ, 0.001, 0.01 MΩ Accuracy: 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 1.5% + 3
Capacitance
Range: 50, 500 nF, 5, 50, 500, 1000 µF Resolution: 0.01, 0.1 nF, 0.001, 0.01, 0.1, 1µF Accuracy: 2% + 5, 2% + 5, 5% + 5, 5% + 5, 5% + 5, 5% + 5
Frequency (10 Hz to 100 kHz)
Range: 50, 500 Hz, 5, 50, 100 kHz Resolution: 0.01, 0.1 Hz, 0.001, 0.01, 0.1 kHz Accuracy: 0.1% + 3
Duty Cycle
Range: 0.1 to 99.9% Resolution: 0.1% Accuracy: 1% typical
AC Current (40 to 200 Hz)
Range: 4, 10 A Resolution: 0.001, 0.01 A Accuracy: 1.5% + 3
DC Current (40 to 200 Hz)
Range: 4, 10 A Resolution: 0.001, 0.01 A Accuracy: 1.5% + 3
Backlight
Accuracy: Yes
AC Volts
Overload protection: 600 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >60 dB at DC, 50 or 60 Hz
Maximum Voltage Between any Terminal and Earth Ground
600 V
Display (LCD)
6000 counts, updates 3/sec
Battery Type
2 x AAA Batteries, NEDA 24A, IEC LR03
Battery Life
200 hours minimum
Temperature
Operating: 32 to 104°F (0 to 40°C) Storage: -22 to 140°F (-30 to 60°C)
Operating Humidity: Non-condensing when <50°F (<10°C)
≤90% at 50 to 86°F (10 to 30°C) ≤75% at 50 to 104°F (30 to 40°C)
Operating Humidity, 40 MΩ Range
≤80% at 50 to 86°F (10 to 30°C) ≤70% at 50 to 104°F (30 to 40°C)
Altitude
Operating: 6561.7' (2000 m) Storage: 39,370.1' (12,000 m)
Temperature Coefficient
0.1 X (specified accuracy)/°C (<18 or >28°C)
Fuse Protection for Current Inputs
11 A, 1000 V fast fuse
Dimensions
5.6 x 2.7 x 1.1" (142 x 69 x 28 mm)
Weight
0.44 lb (200 g)
IP Rating
IEC 60529: IP40
Safety
IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment
IEC 61326-1: portable
