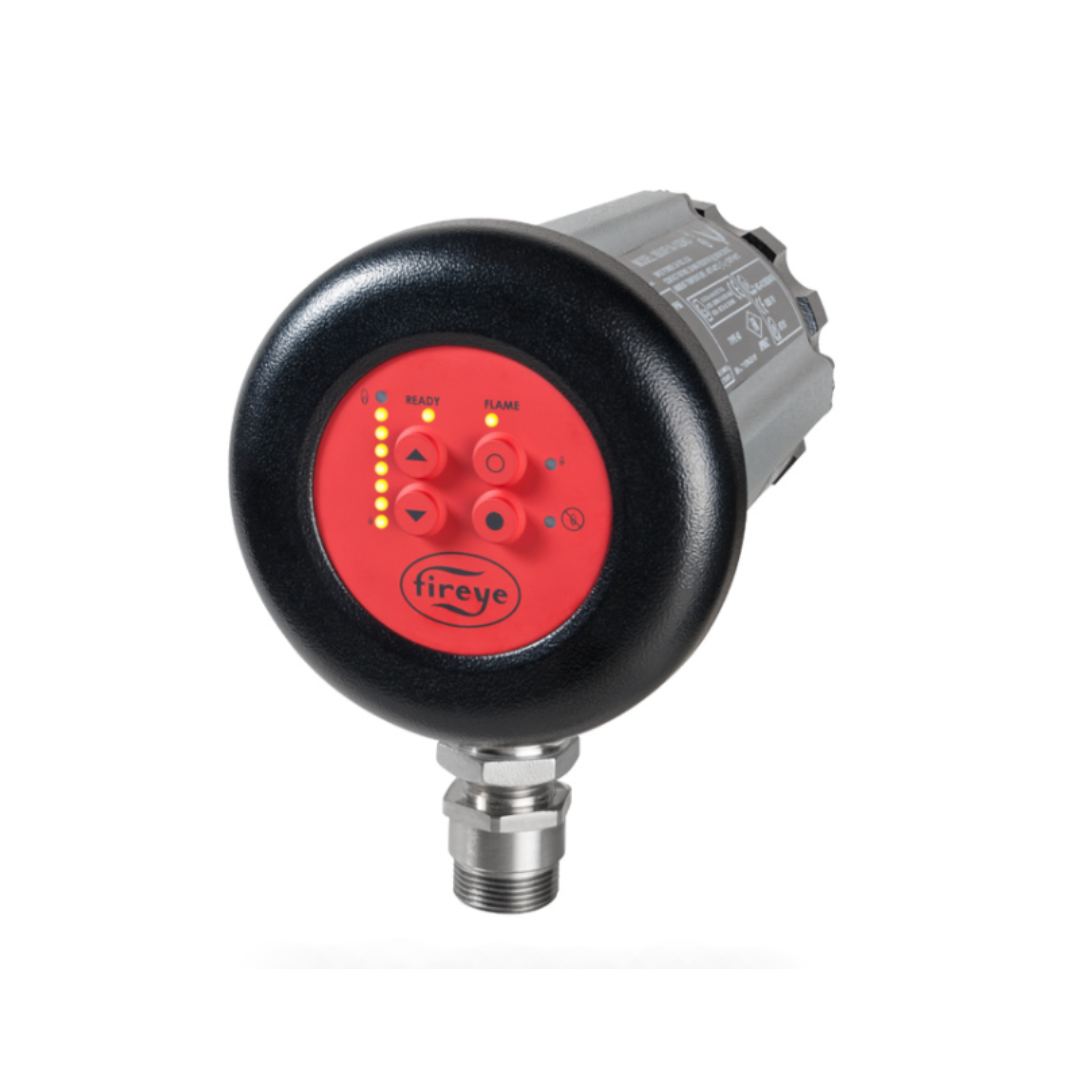

Fireye Phoenix Series II Ultraviolet Self-Checking Flame Scanner, selectable FFRT with quick disconnect cable, 4-20ma Output, 85UVF1A-1QD
Part Number : 85UVF1A-1QD
Brand :
![Fireye]()
Fireye Phoenix 85UVF1A-1QD is a rugged ultraviolet self-checking flame scanner designed for critical burner safety applications. It features a quick-disconnect 8-pin connector, selectable Flame Failure Response Time (FFRT), and a reliable 4-20mA analog output. Ideal for monitoring UV emissions from industrial burners, duct burners and incinerators.
This product is the official replacement for the discontinued model 85UVF1-1QD, offering equivalent functionality and full compatibility with enhanced internal components.
View allKWD 864.000
Description
The Fireye Phoenix Series II 85UVF1A-1QD is a high-performance ultraviolet flame scanner engineered for advanced flame monitoring in industrial combustion systems. Utilizing a solid-state UV detection sensor, this microprocessor-based scanner features built-in self-diagnostics and an internal flame relay, eliminating the need for external amplifiers.
The model operates within a spectral range of 295–340 nm, optimized to detect flame flicker amplitude over a wide frequency spectrum. The scanner automatically learns flame profiles and sets switching thresholds to ensure accurate flame detection, even in dynamic conditions. It supports a selectable FFRT and provides a robust 4-20mA isolated analog signal for flame strength.
Housed in a durable cast aluminum enclosure with IP66/NEMA 4X protection, the scanner connects via an 8-pin quick-disconnect and supports purge air to maintain lens clarity in demanding environments. It is ideal for applications such as duct burners, refinery and waste gas units, Low NOx burners, and incinerators.
Key Features
• Self-checking UV flame detection for enhanced safety
• Built-in flame relay with auto-set thresholds – no external amplifier needed
• Spectral response optimized for UV emissions (295–340 nm)
• 4–20 mA isolated analog output for flame strength monitoring
• Quick-disconnect 8-pin electrical interface for easy installation
• IP66/NEMA 4X rated cast aluminum enclosure for harsh environments
• Selectable FFRT via intuitive keypad interface
• LED indicators for flame signal, status, and diagnostics
• Optional purge air capability to maintain lens clarity
• Suitable for Class I Div 2 hazardous areas
Applications
• Duct burners in HVAC and process heating systems
• Industrial gas and oil burners
• Low NOx burners for emission control
• Waste gas flaring units in refineries and chemical plants
• Incinerators in waste treatment facilities
• Steel plant burners using blast furnace or coke oven gas
• Combustion systems requiring continuous flame verification
Specifications
