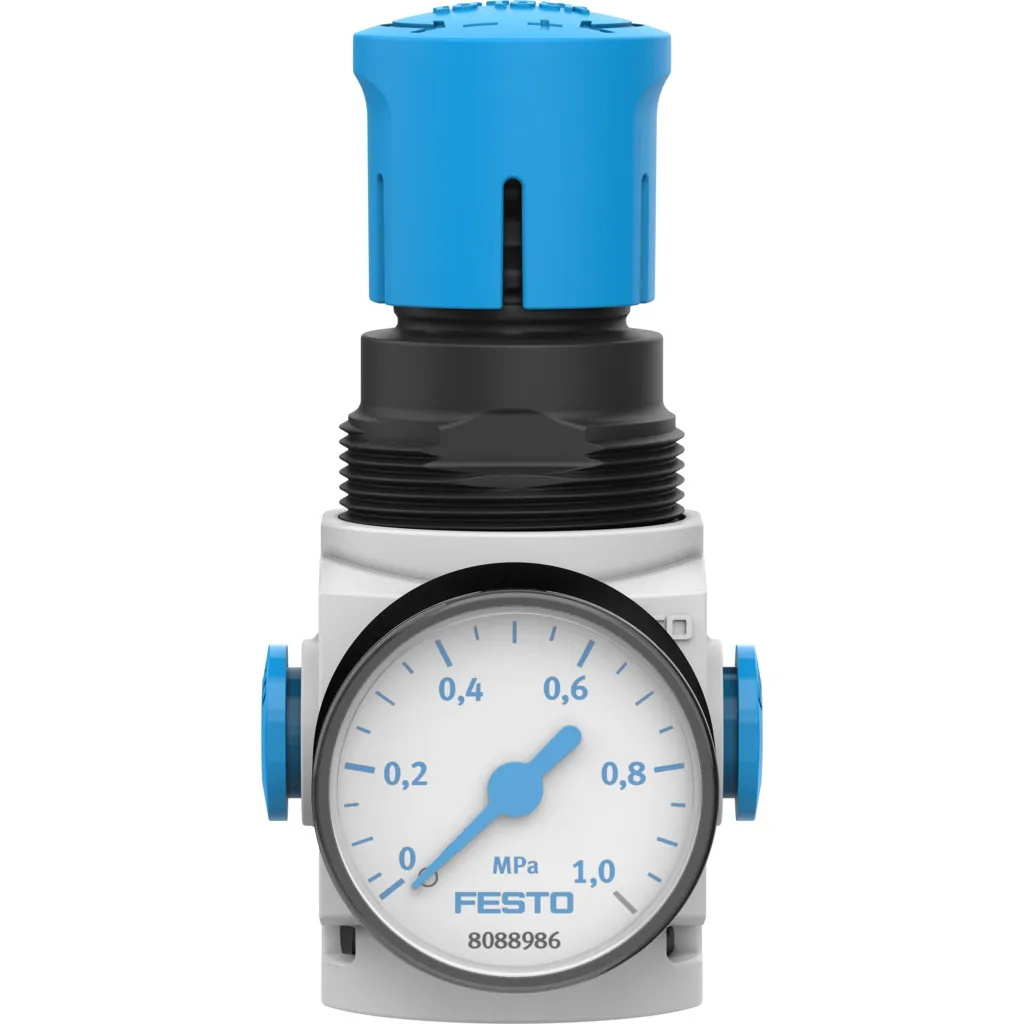

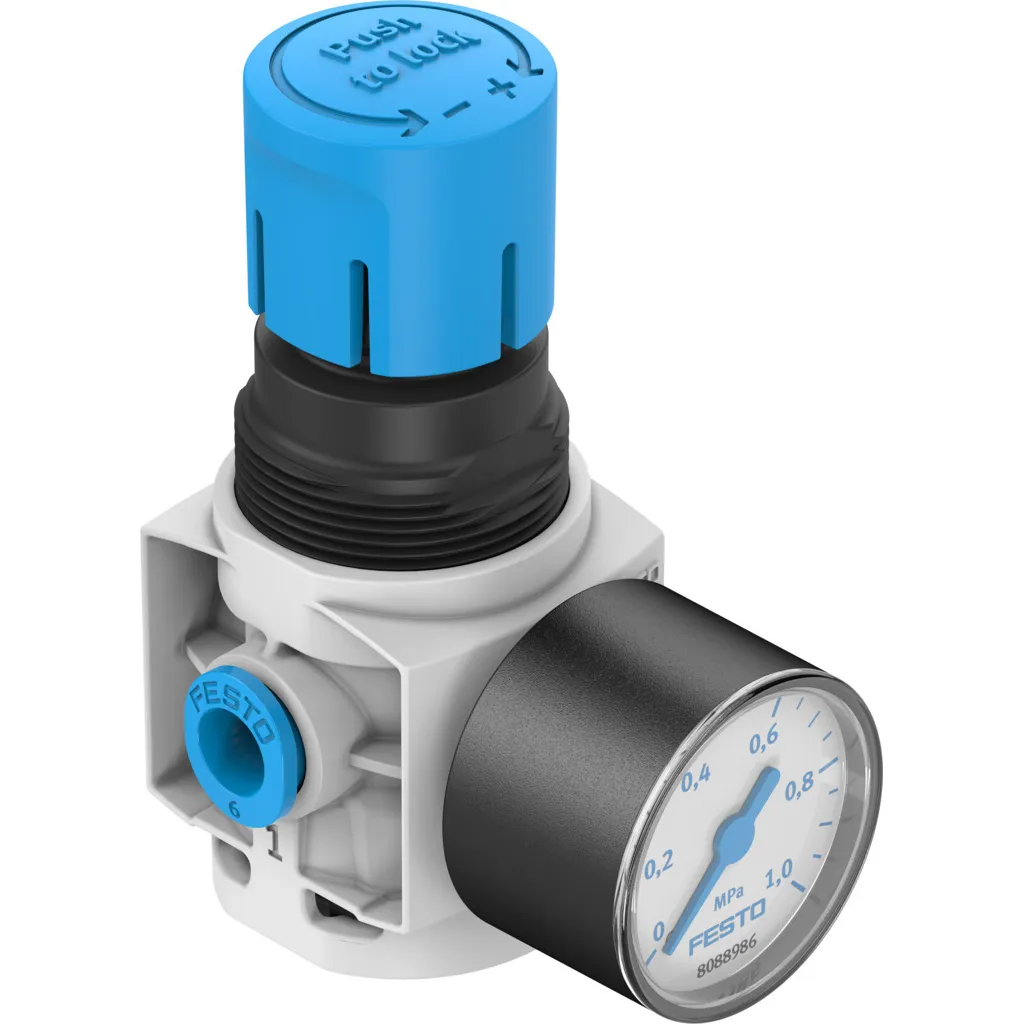

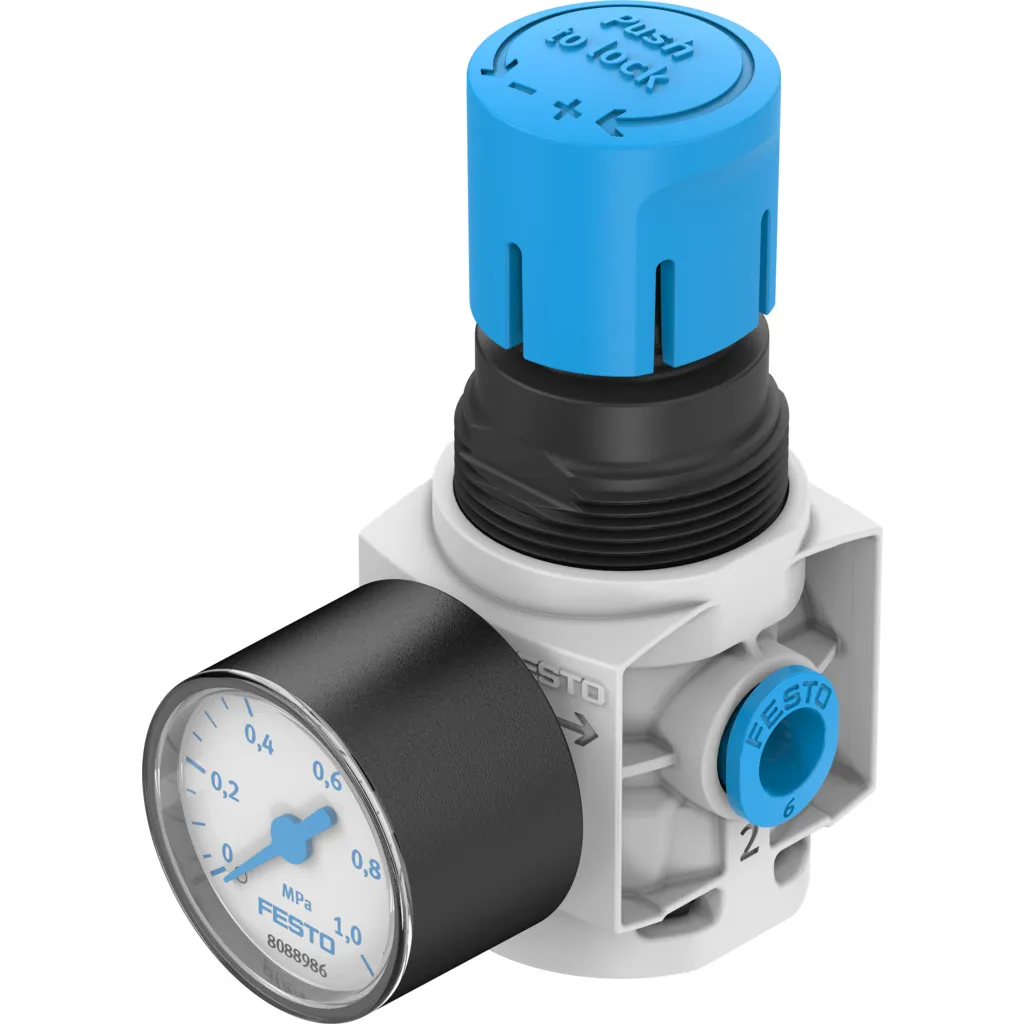

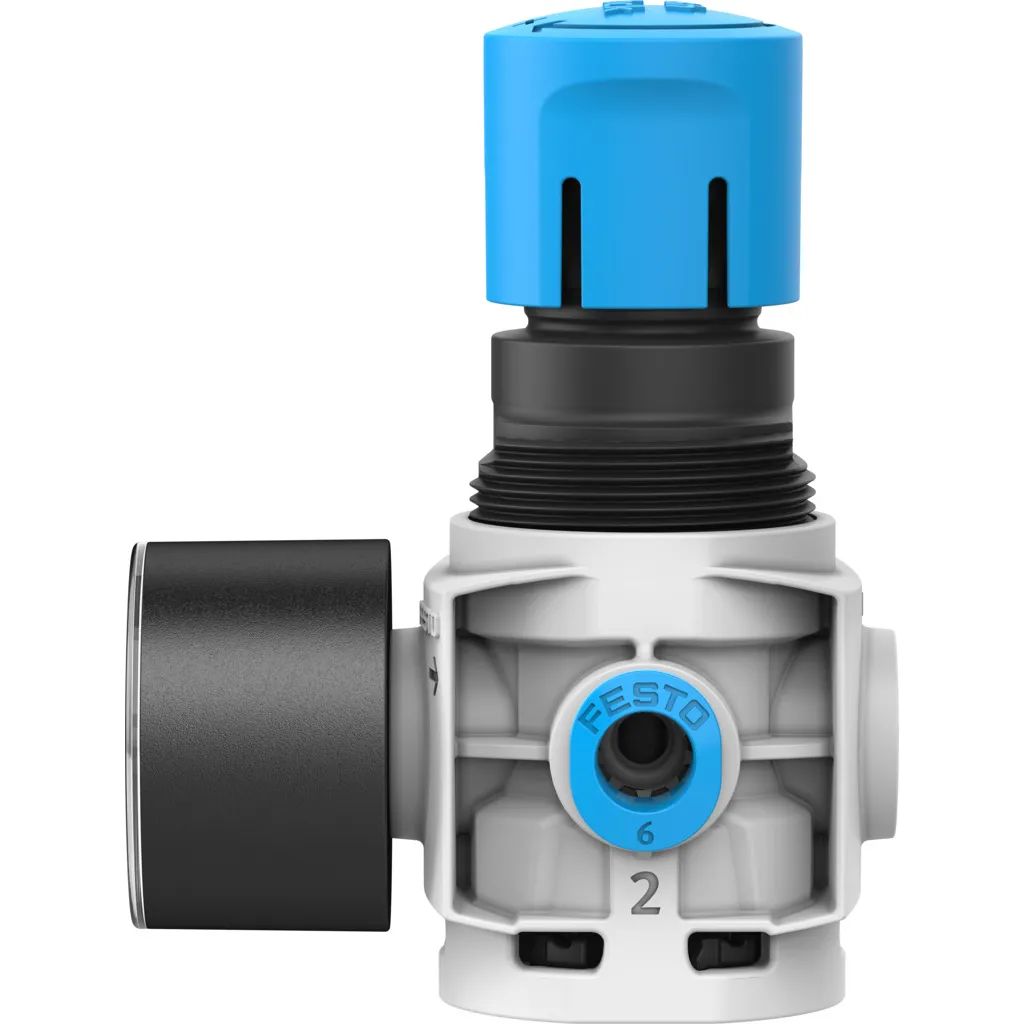

Festo Pressure Regulator, QS6, 0.5 bar to 7 bar, MS2-LR-QS6-D6-AR-MPA-F1A-B

Part Number : MS2-LR-QS6-D6-AR-MPA-F1A-B

Brand :
Festo

The MS2-LR-QS6-D6-AR-MPA-F1A-B regulator is ideal for high-precision pneumatic applications with a QS6 connection.

View all

KWD 17.000

Quantity
Description
Specifications
Downloads
Related products

Description

This Festo regulator features a QS6 connection and adjustable pressure range from 0.5 bar to 7 bar. Built for industrial environments, it combines precision, durability, and compactness for reliable performance.

Product Overview

Compact pressure regulator with QS6 connection for pneumatic systems.

Key Features

1. QS6 connection

2. Pressure range: 0.5 bar to 7 bar

3. Robust and reliable construction

Applications

Industrial pneumatic systems, automation setups, and process industries.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS2-LR-QS6-D6-AR-MPA-F1A-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
2
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Directly actuated diaphragm regulator
Controller function
Output pressure constantWith secondary ventingWith return flow function
Symbol
991558
Displayable units
MPa
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 0.8 MPa
  • 1 bar ... 8 bar
Pressure regulation range
0.5 bar ... 7 bar
Max. pressure hysteresis
  • 0.025 MPa
  • 0.25 bar
  • 3.625 psi
Standard nominal flow rate (standardised to DIN 1343)
350 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 4 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
36.1 g
Type of mounting
Either:Front panel mountingIn-line installationWith accessories
Pneumatic connection, port 1
QS-6
Pneumatic connection, port 2
QS-6
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel
Material housing
PA-reinforced
Material membrane
NBR
Material valve stem
Wrought aluminium alloyNBR
