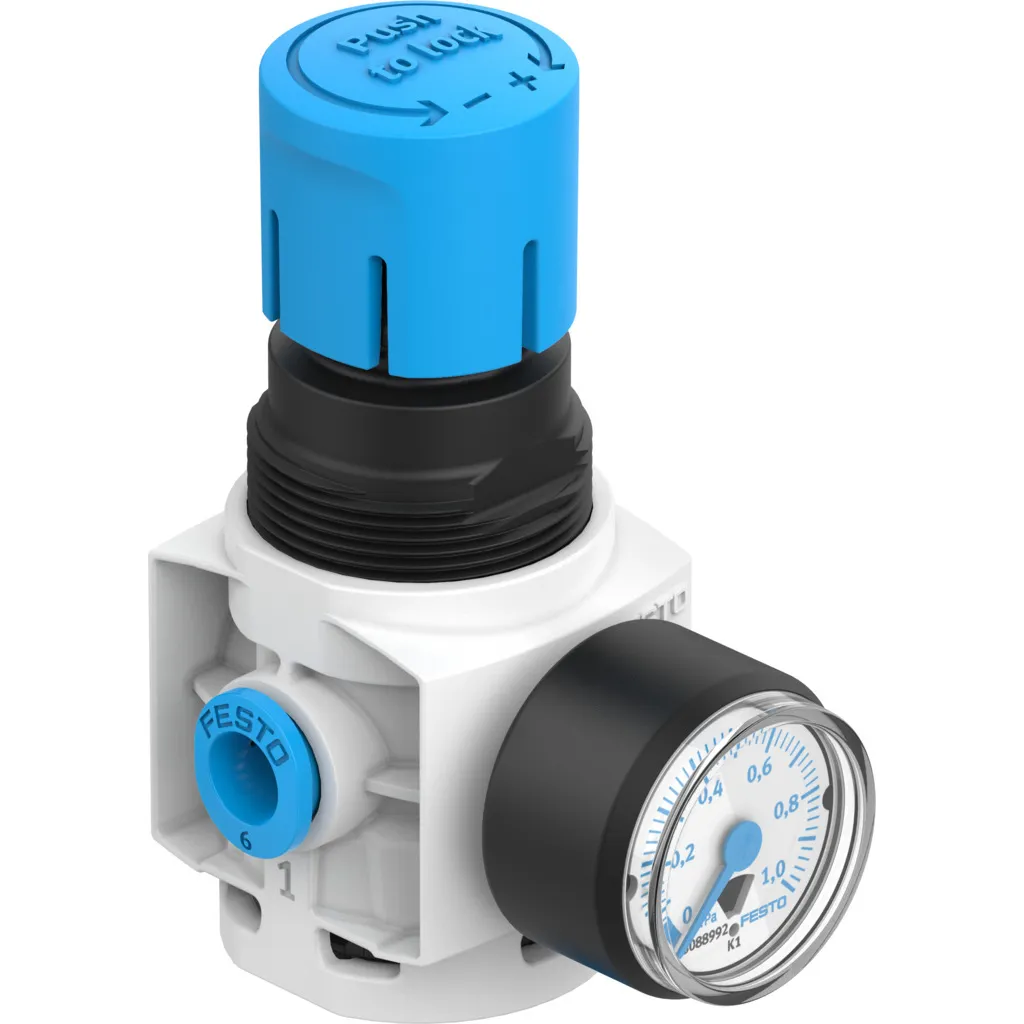

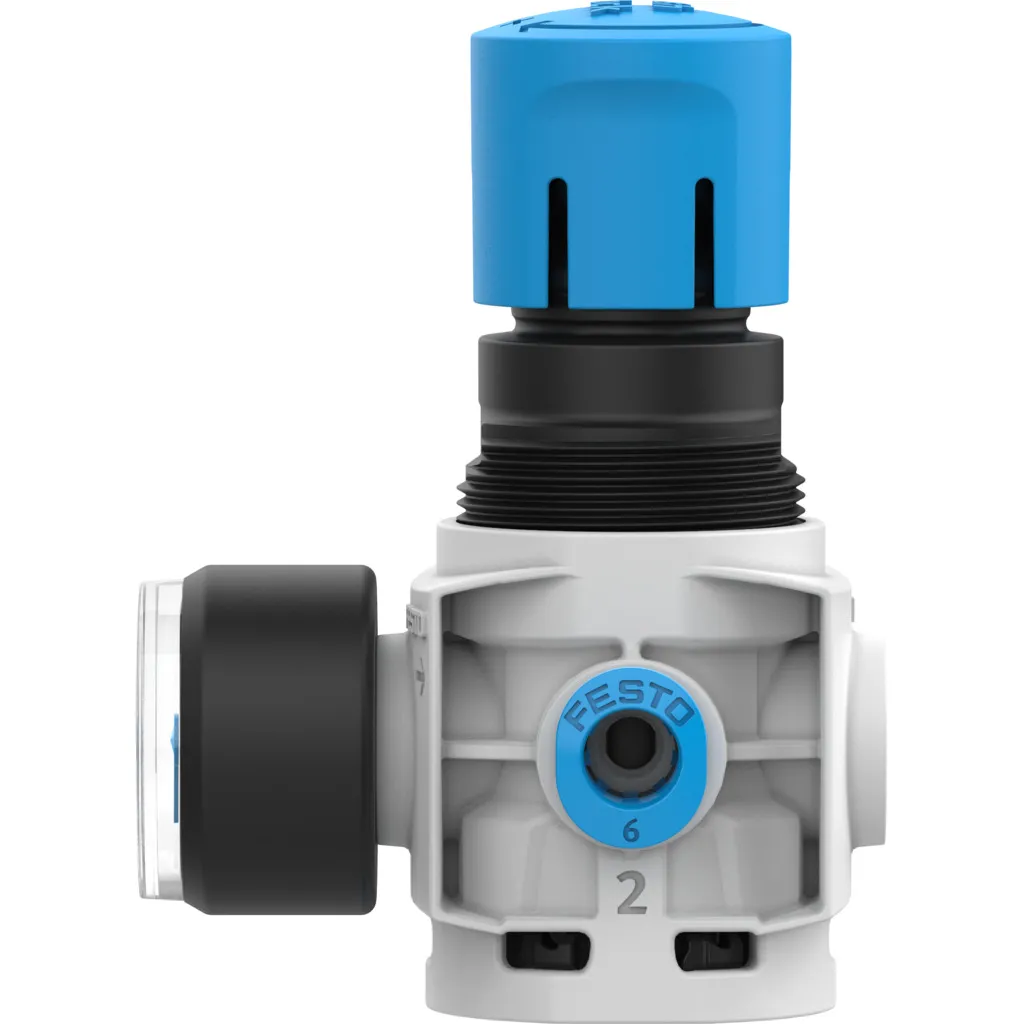

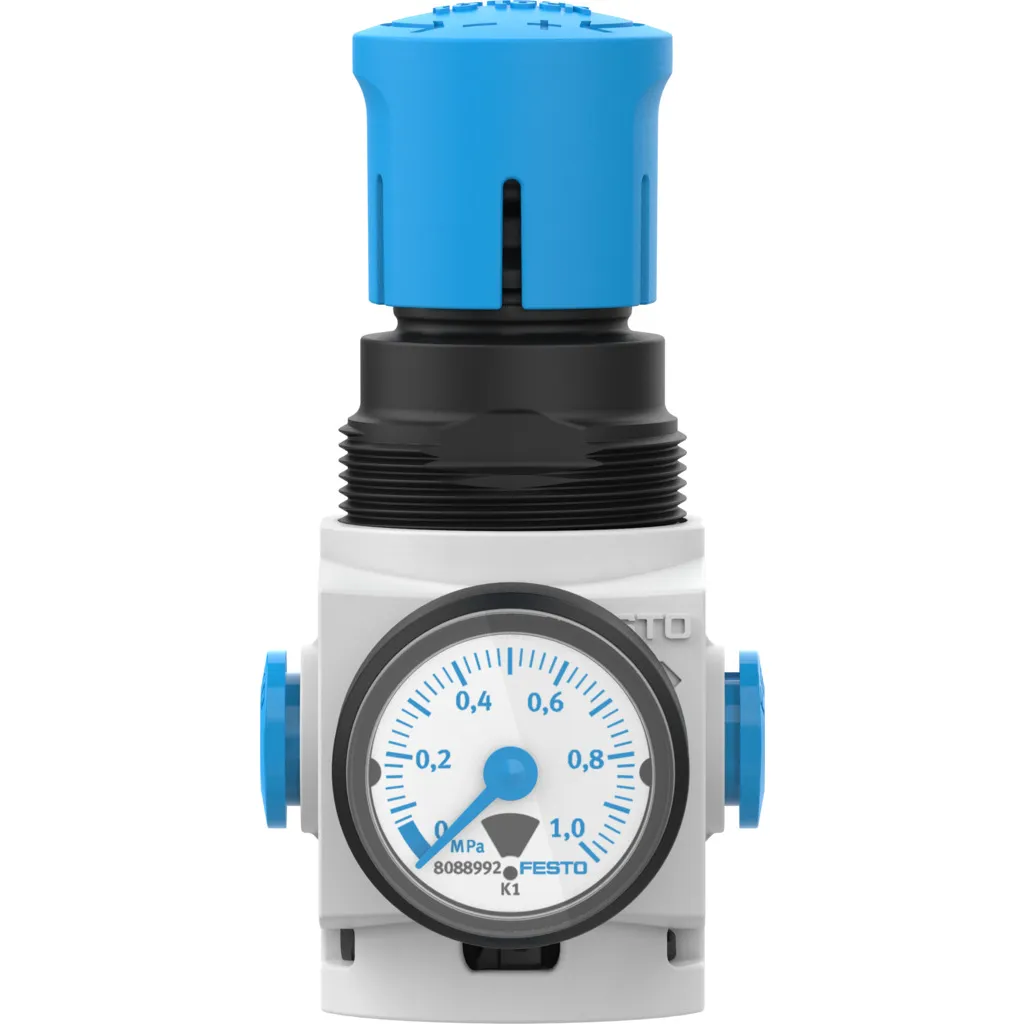

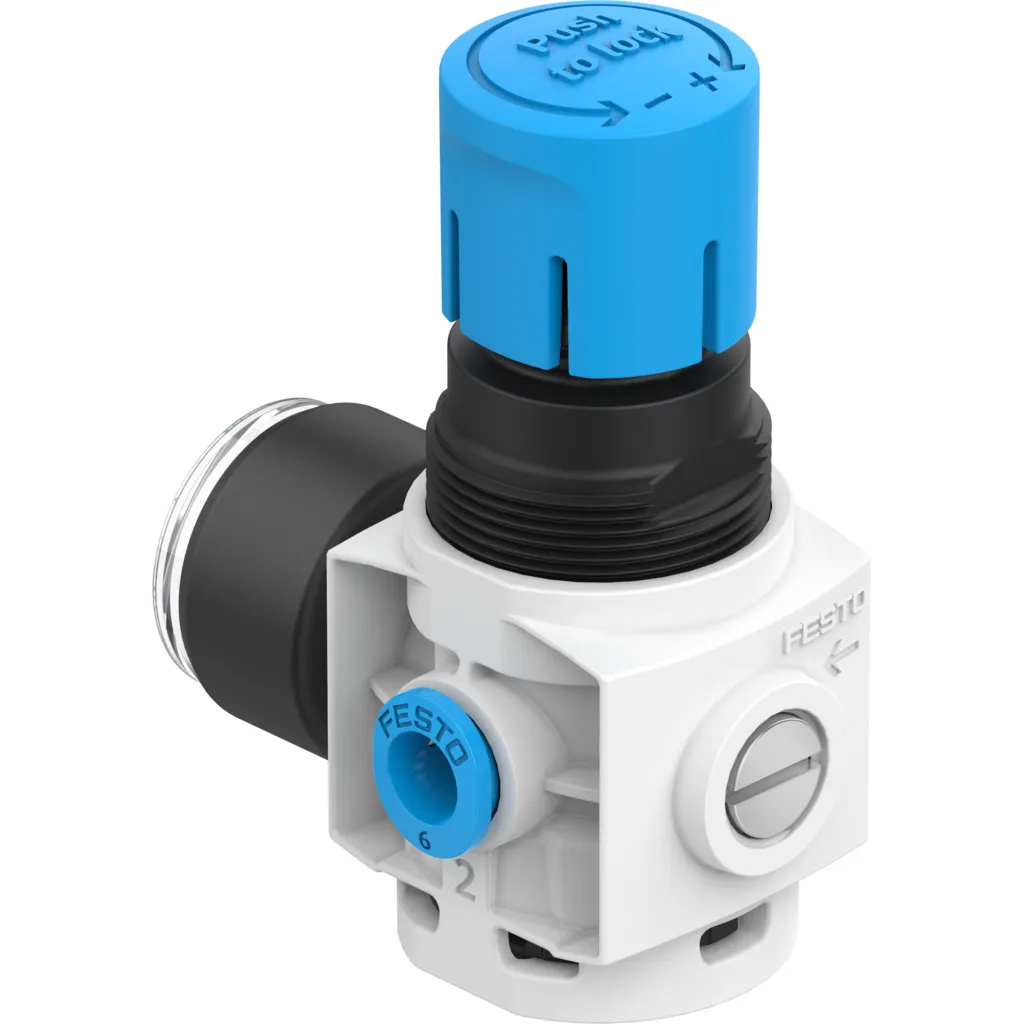

Festo Pressure Regulator, QS6, 0.5 bar to 7 bar, MS2-LR-QS6-D6-AR-MPA-B

Part Number : MS2-LR-QS6-D6-AR-MPA-B

Brand :
Festo

The MS2-LR-QS6-D6-AR-MPA-B regulator features a QS6 connection for versatile use in industrial pneumatic systems with adjustable pressure regulation.

View all

KWD 12.000

Quantity
Description
Specifications
Downloads
Related products

Description

Featuring a QS6 pneumatic connection, this Festo pressure regulator is compact and built for long-lasting performance. Its pressure range of 0.5 bar to 7 bar makes it a perfect choice for applications demanding high precision and reliability.

Product Overview

Precision pneumatic pressure regulator with QS6 connection and durable design for various industrial systems.

Key Features

1. QS6 pneumatic connection 2. Adjustable pressure range: 0.5 bar to 7 bar 3. Robust construction for longevity

Applications

Industrial automation, process control, and manufacturing systems.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS2-LR-QS6-D6-AR-MPA-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
2
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Directly actuated diaphragm regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991558
Displayable units
MPa
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 0.8 MPa
  • 1 bar ... 8 bar
Pressure regulation range
0.5 bar ... 7 bar
Max. pressure hysteresis
  • 0.025 MPa
  • 0.25 bar
  • 3.625 psi
Standard nominal flow rate (standardised to DIN 1343)
350 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
36.1 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
QS-6
Pneumatic connection, port 2
QS-6
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel
Material housing
PA-reinforced
Material membrane
NBR
Material valve stem
Wrought aluminium alloy NBR
