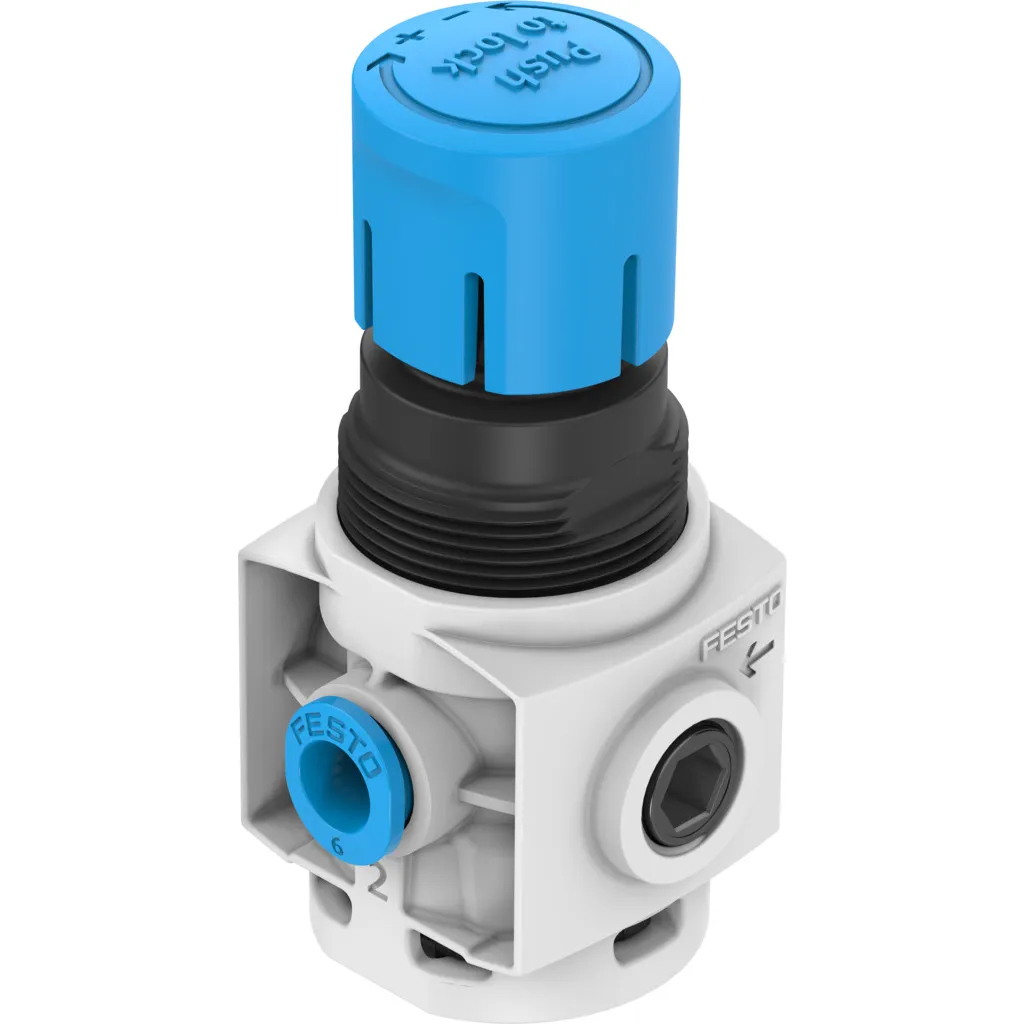

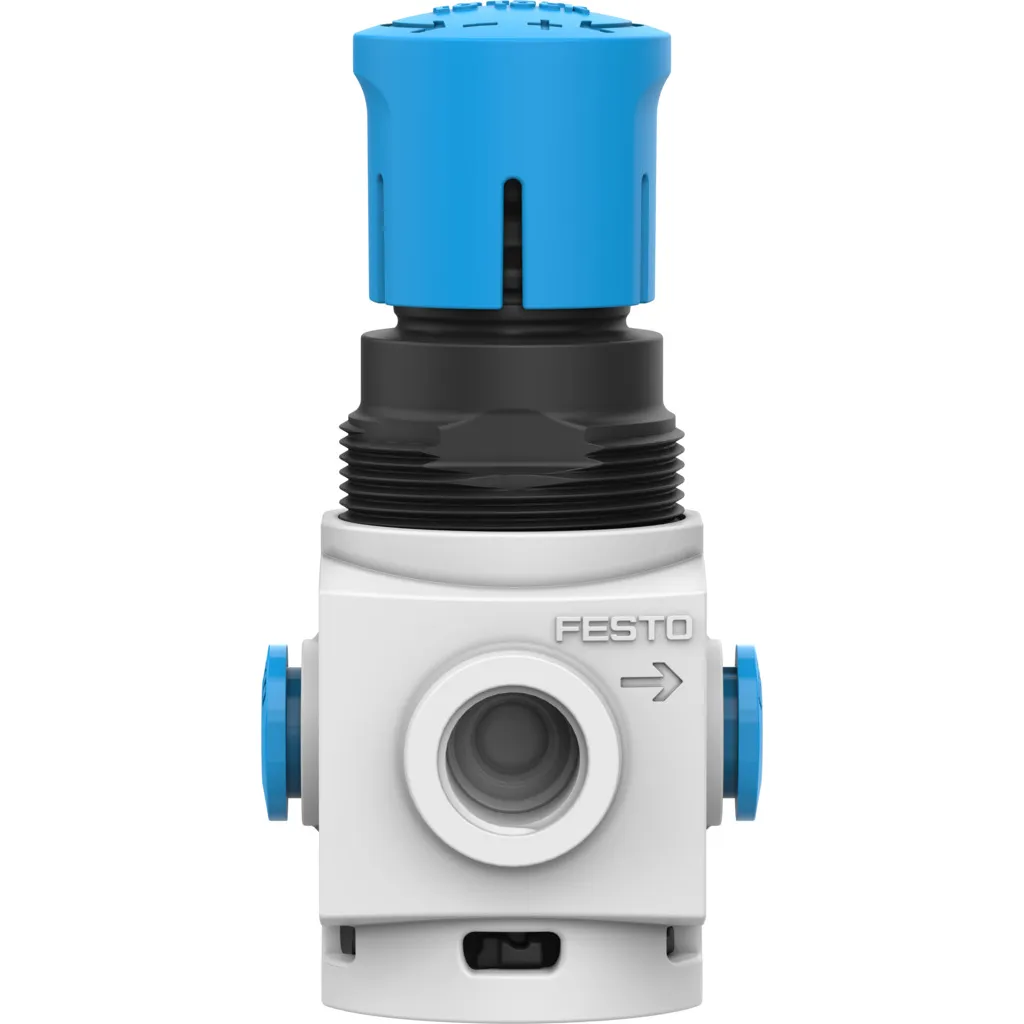

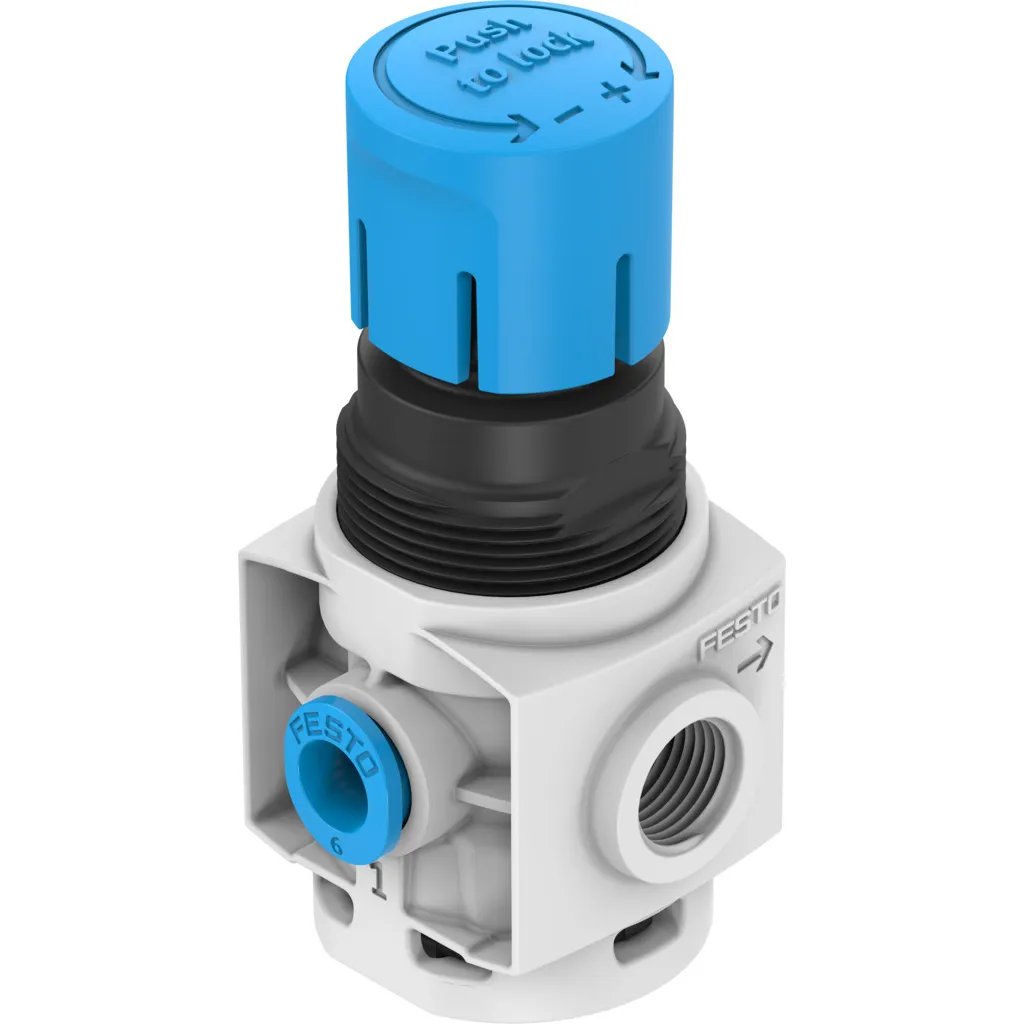

Festo Pressure Regulator, QS6, 0.5 bar to 7 bar, MS2-LR-QS6-D6-A8-B

Part Number : MS2-LR-QS6-D6-A8-B

Brand :
Festo

The Festo MS2-LR-QS6-D6-A8-B regulator offers compact, precise pneumatic control with a QS6 connection for a wide range of industrial applications.

View all

KWD 10.000

Quantity
Description
Specifications
Downloads
Related products

Description

Built with QS6 pneumatic connection, this regulator offers robust and reliable pressure control with an adjustable range of 0.5 bar to 7 bar. Compact and durable, it is engineered to meet the needs of modern industrial systems.

Product Overview

Durable and precise pneumatic regulator with QS6 connection, suitable for a variety of industrial applications.

Key Features

1. QS6 pneumatic connection 2. Adjustable pressure range: 0.5 bar to 7 bar 3. Compact and efficient design

Applications

Process industries, pneumatic systems, and automation setups.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS2-LR-QS6-D6-A8-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
2
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Directly actuated diaphragm regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991559
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
Prepared for G1/8
Operating pressure
  • 0.1 MPa ... 0.8 MPa
  • 1 bar ... 8 bar
Pressure regulation range
0.5 bar ... 7 bar
Max. pressure hysteresis
  • 0.025 MPa
  • 0.25 bar
  • 3.625 psi
Standard nominal flow rate (standardised to DIN 1343)
350 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
28.3 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
QS-6
Pneumatic connection, port 2
QS-6
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel
Material housing
PA-reinforced
Material membrane
NBR
Material valve stem
Wrought aluminium alloy NBR
