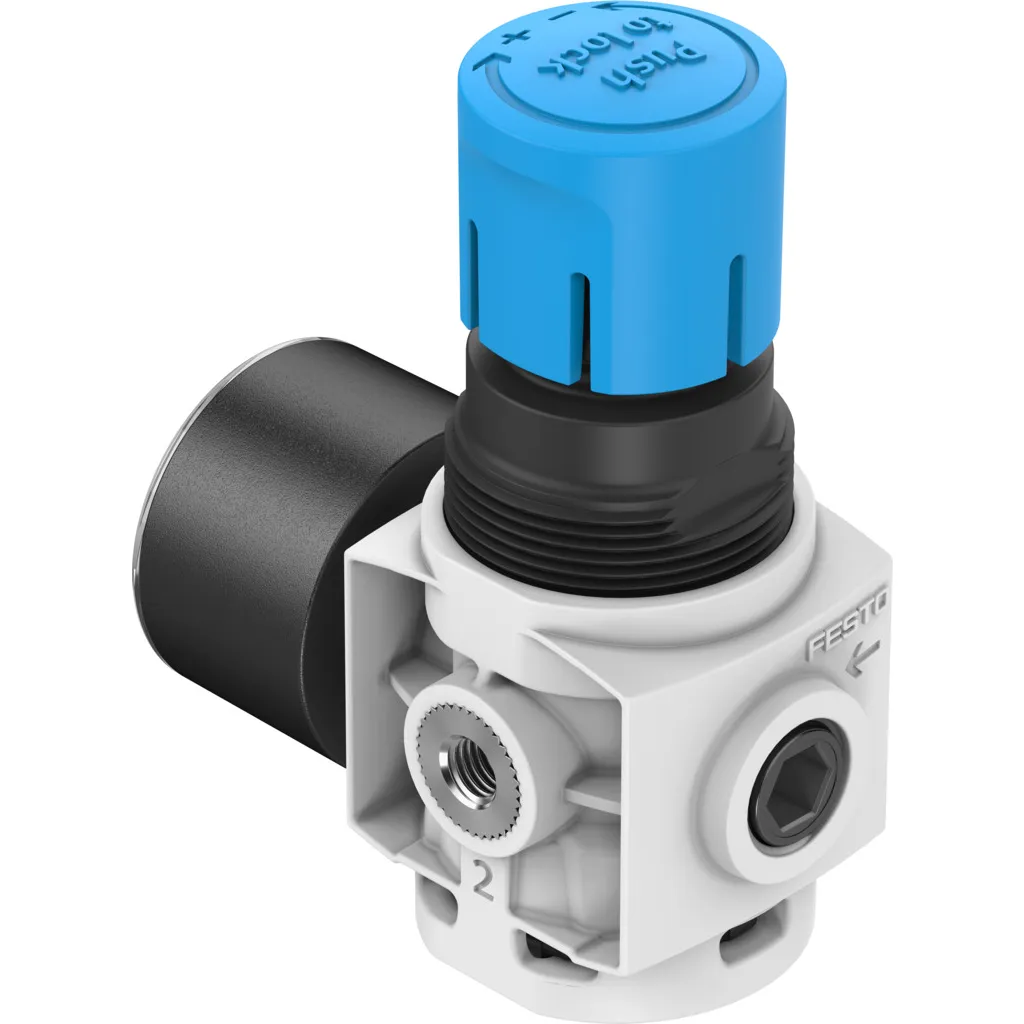

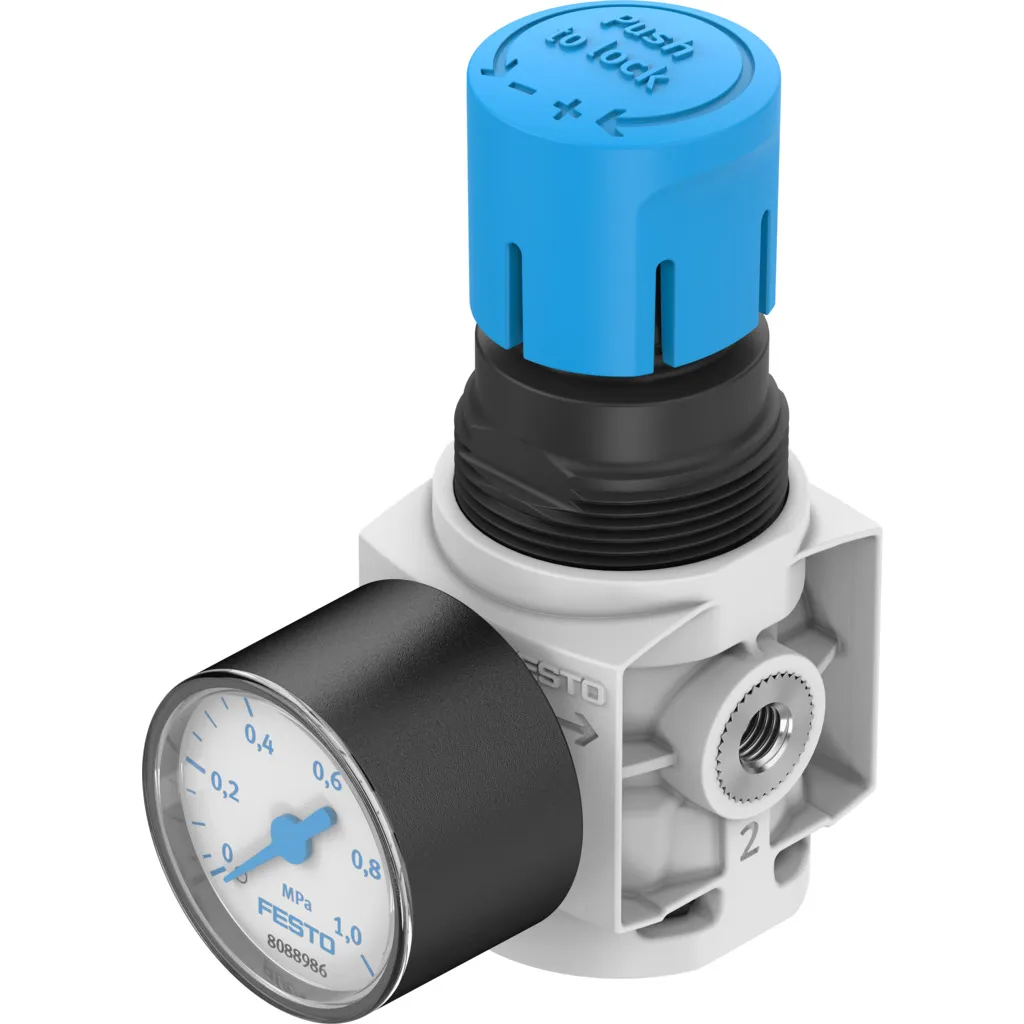

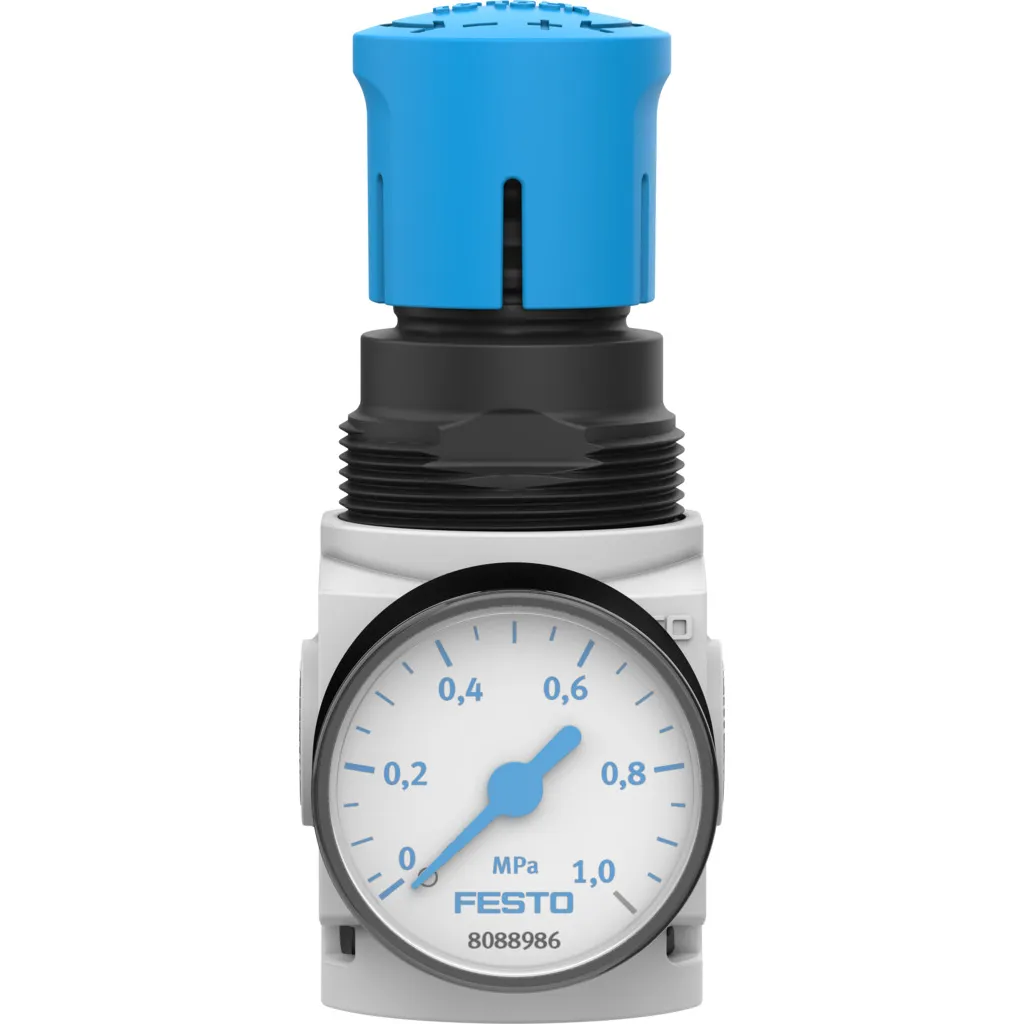

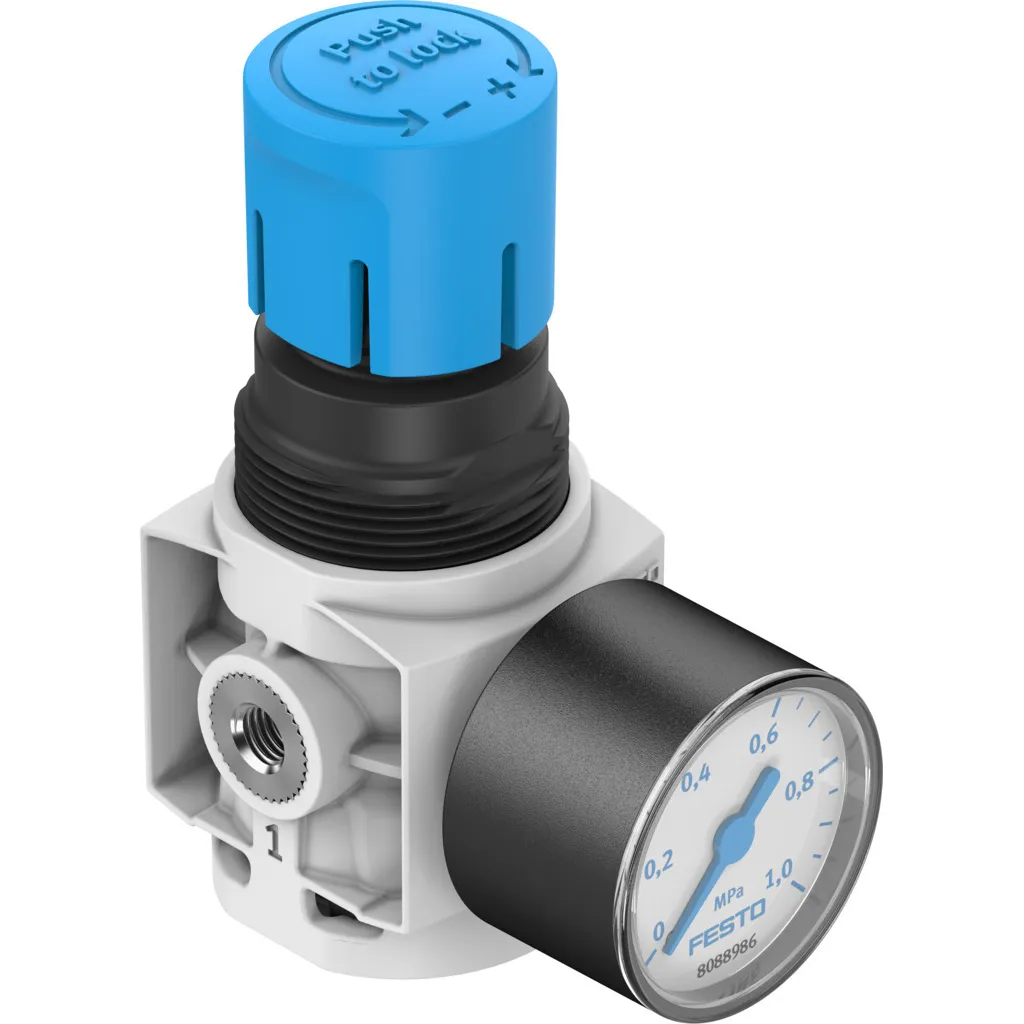

Festo Pressure Regulator, M5, 0.5 bar to 7 bar, MS2-LR-M5-D6-AR-MPA-F1A-B

Part Number : MS2-LR-M5-D6-AR-MPA-F1A-B

Brand :
Festo

The Festo Pressure Regulator MS2-LR-M5-D6-AR-MPA-F1A-B ensures precise pneumatic control with an M5 connection and a pressure range of 0.5 bar to 7 bar.

View all

KWD 17.000

Quantity
Description
Specifications
Downloads
Related products

Description

Designed for compact and precise performance, the MS2-LR-M5-D6-AR-MPA-F1A-B regulator features an M5 connection and a pressure range of 0.5 bar to 7 bar. It is suitable for diverse pneumatic applications in industrial automation and process control.

Product Overview

Compact pneumatic pressure regulator with an M5 connection for precision control.

Key Features

1. M5 port connection 2. Adjustable pressure range: 0.5 bar to 7 bar 3. Durable construction for industrial applications

Applications

Ideal for automation systems, pneumatic machinery, and process control.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS2-LR-M5-D6-AR-MPA-F1A-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
2
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Directly actuated diaphragm regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991558
Displayable units
MPa
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.5 bar ... 7 bar
Max. pressure hysteresis
  • 0.025 MPa
  • 0.25 bar
  • 3.625 psi
Standard nominal flow rate (standardised to DIN 1343)
170 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 4 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
38.6 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
M5
Pneumatic connection, port 2
M5
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel
Material housing
PA-reinforced
Material membrane
NBR
Material valve stem
Wrought aluminium alloy NBR
