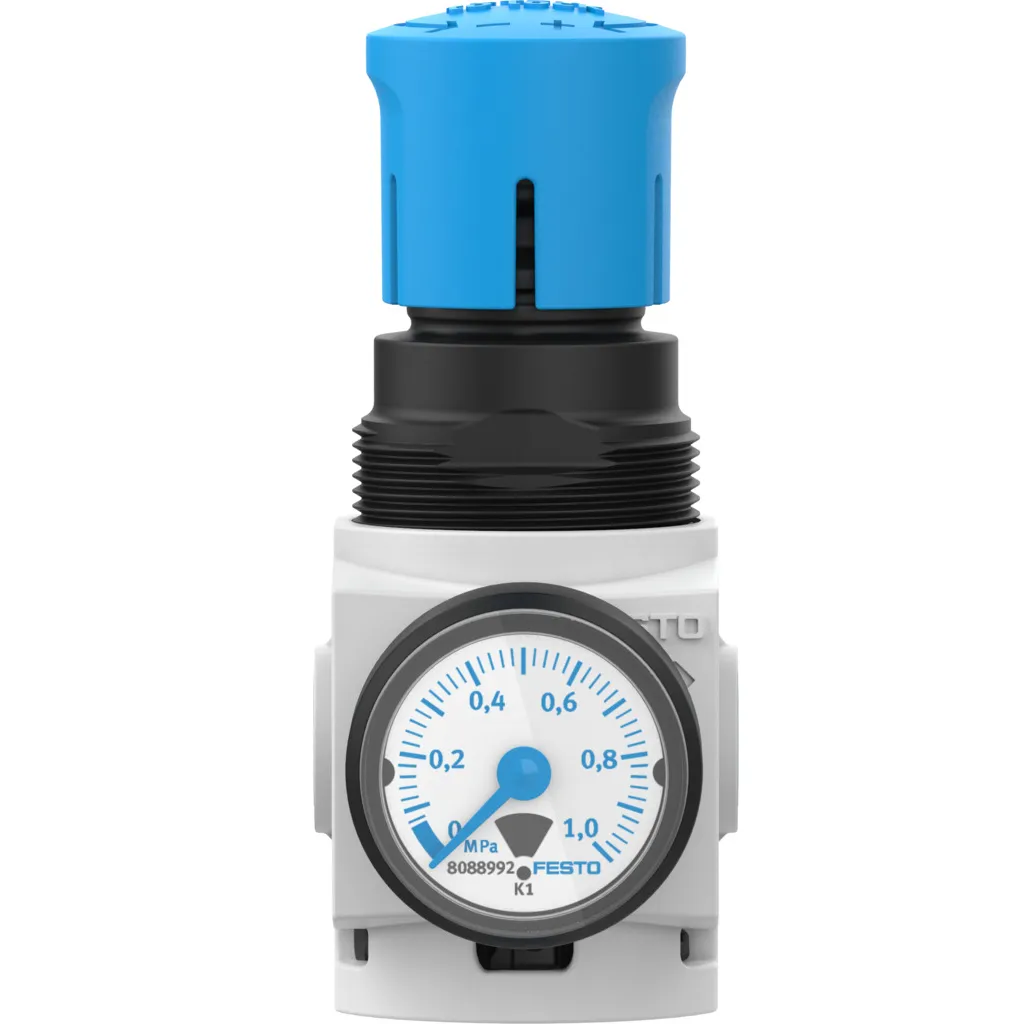

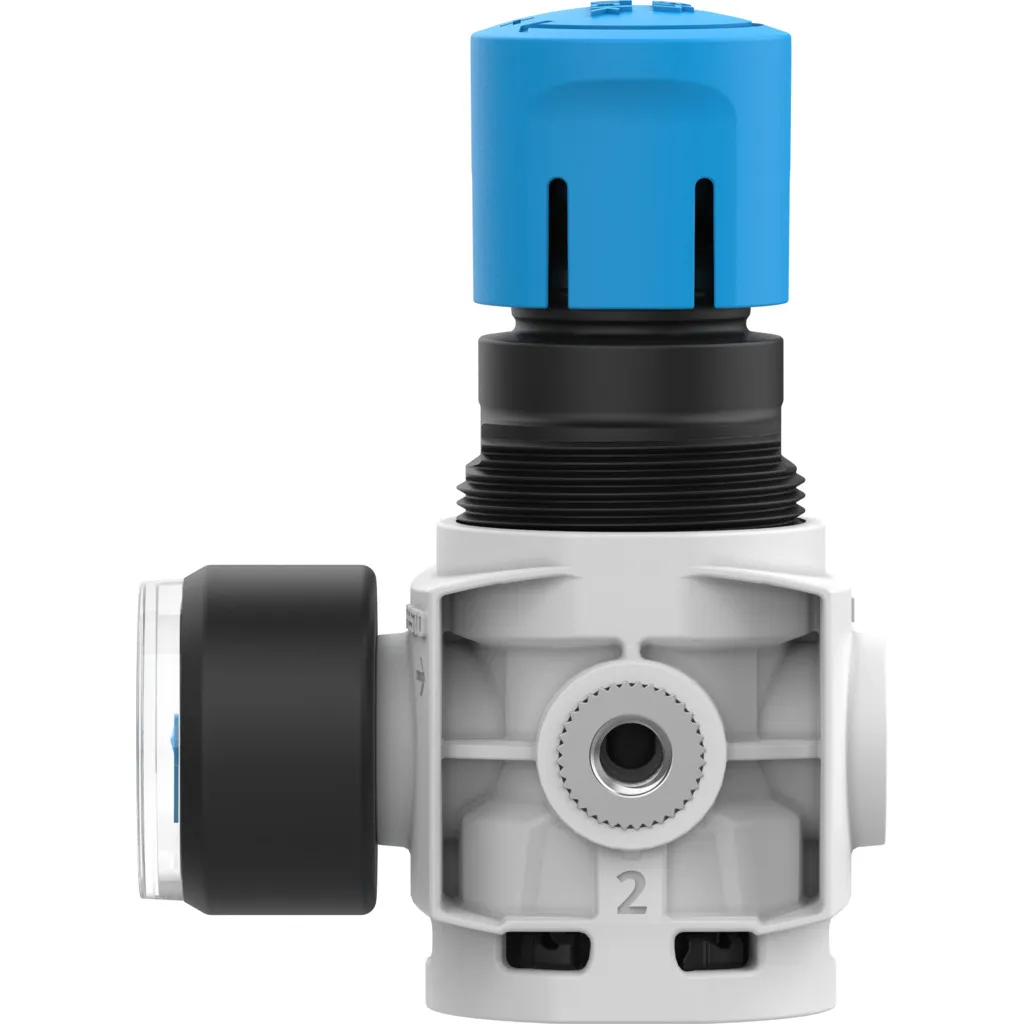

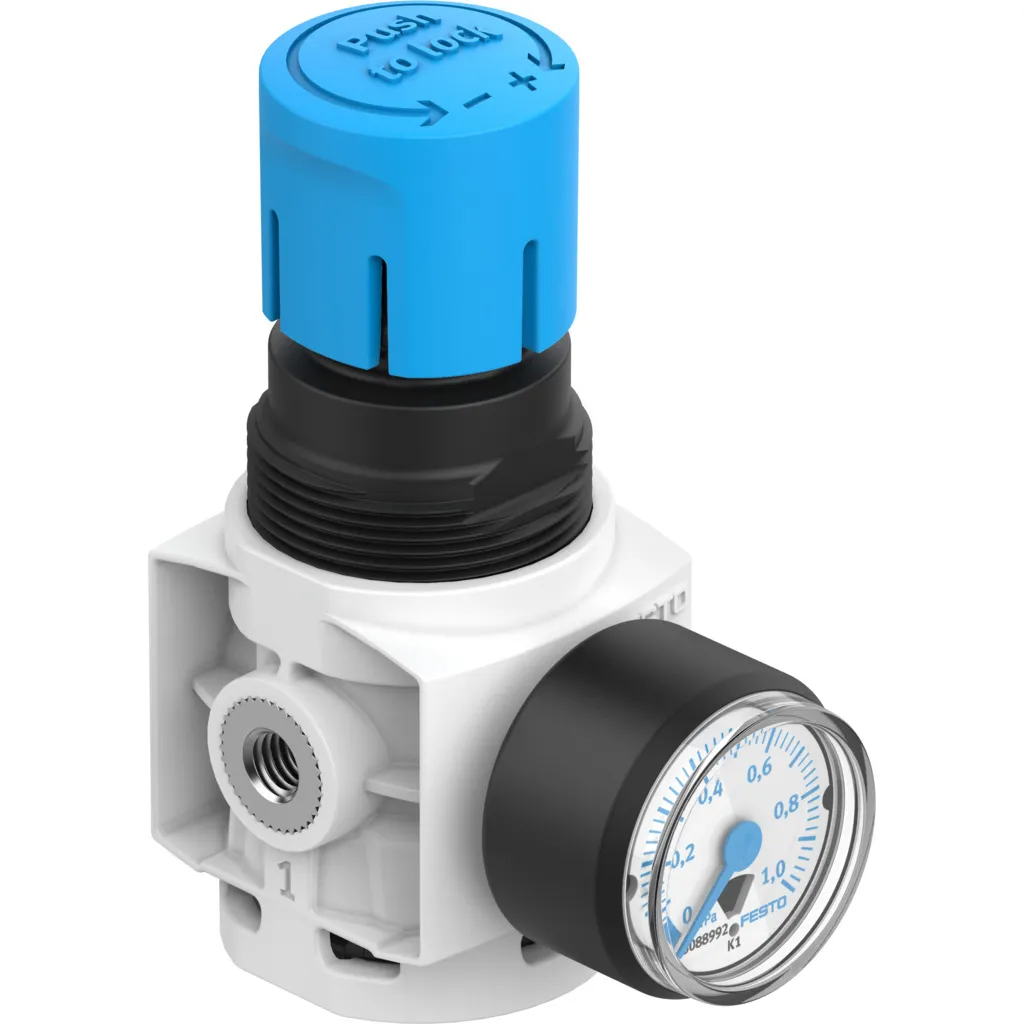

Festo Pressure Regulator, M5, 0.5 bar to 7 bar, MS2-LR-M5-D6-AR-MPA-B

Name: Festo Pressure Regulator M5 0.5 bar to 7 bar MS2-LR-M5-D6-AR-MPA-B
Brand: Festo
SKU: MS2-LR-M5-D6-AR-MPA-B
Rating: 5 (1 reviews)

Part Number : MS2-LR-M5-D6-AR-MPA-B

Brand :

The Festo Pressure Regulator MS2-LR-M5-D6-AR-MPA-B offers precise pneumatic pressure control with an M5 connection and a pressure range of 0.5 bar to 7 bar. Compact and efficient, it is suitable for industrial automation systems.

View all

KWD 12.000

Quantity

Description

Specifications

Downloads

Description

The MS2-LR-M5-D6-AR-MPA-B is a compact and reliable pressure regulator designed to deliver high performance and precision in pneumatic systems. Featuring an M5 pneumatic connection and an adjustable pressure range of 0.5 bar to 7 bar, this regulator is crafted to meet the demands of industrial environments. Built with robust materials, it ensures durability and optimal functionality in challenging conditions.

Product Overview

This Festo pressure regulator is designed for precision pneumatic control in automation systems, featuring an M5 connection and adjustable pressure range.

Key Features

1. Compact design with M5 connection 2. Adjustable pressure range of 0.5 bar to 7 bar 3. High durability and resistance

Applications

Industrial automation, pneumatic control, and process systems.

Downloads

Pressure regulator MS-LR-B.pdf

pdf

Download

MS2-LR-M5-D6-AR-MPA-B Technical data.pdf

pdf

Download

MS-LR-B Operating Instructions.pdf

pdf

Download

Specifications

Size

Series

Actuator lock

Rotary knob with detent

Mounting position

optional

Design

Directly actuated diaphragm regulator

Controller function

Output pressure constant With secondary venting With return flow function

Symbol

991558

Displayable units

MPa

Pressure gauge (ANALOG) or Pressure display (DIGITAL)

With pressure gauge

Operating pressure

0.1 MPa ... 1 MPa
1 bar ... 10 bar

Pressure regulation range

0.5 bar ... 7 bar

Max. pressure hysteresis

0.025 MPa
0.25 bar
3.625 psi

Standard nominal flow rate (standardised to DIN 1343)

170 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Storage Temperature

-5 °C ... 50 °C

Media temperature

-5 °C ... 50 °C

Ambient temperature

-5 °C ... 50 °C

Product weight

38.6 g

Type of mounting

Either: Front panel mounting In-line installation With accessories

Pneumatic connection, port 1

Pneumatic connection, port 2

Note on materials

RoHS-compliant

Material underneath cover

Material seals

NBR

Material rotary knob

POM

Material spring

High-alloy steel

Material housing

PA-reinforced

Material membrane

NBR

Material valve stem

Wrought aluminium alloy NBR
