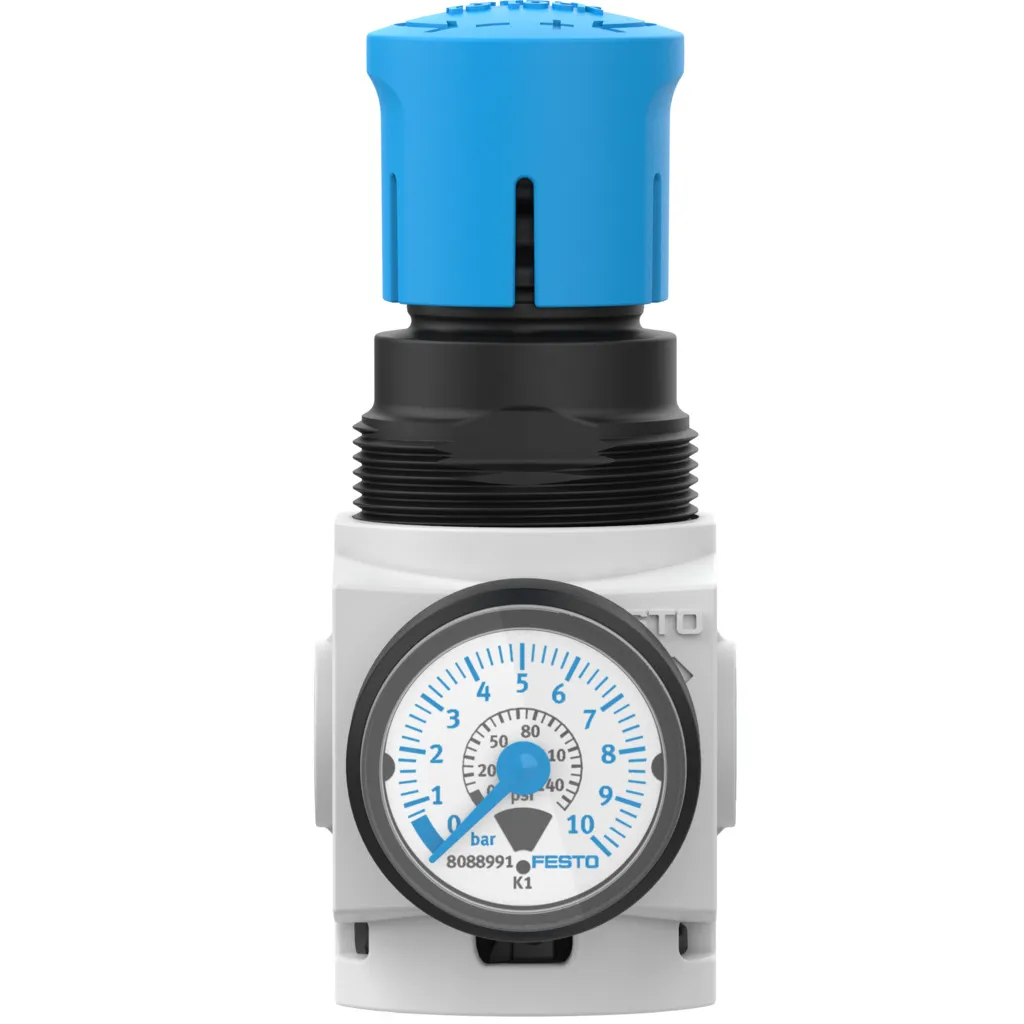

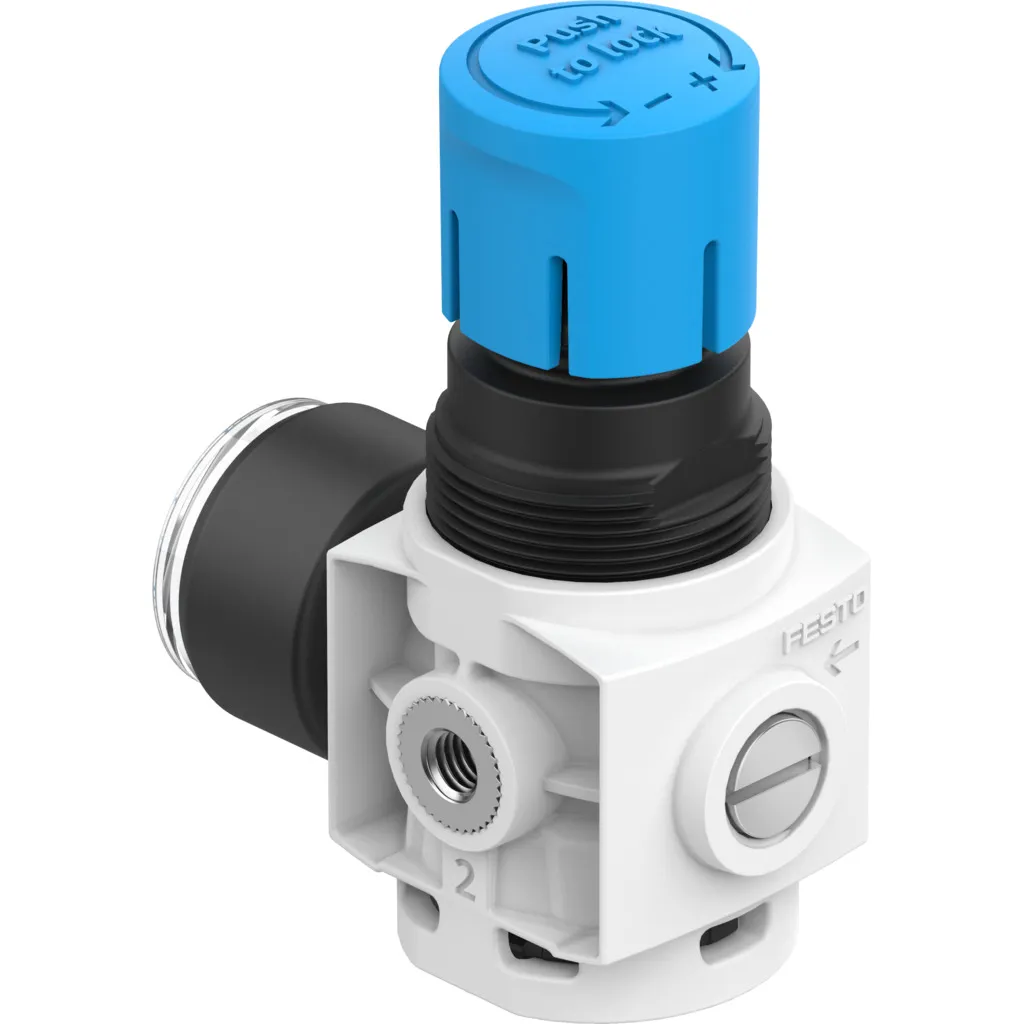

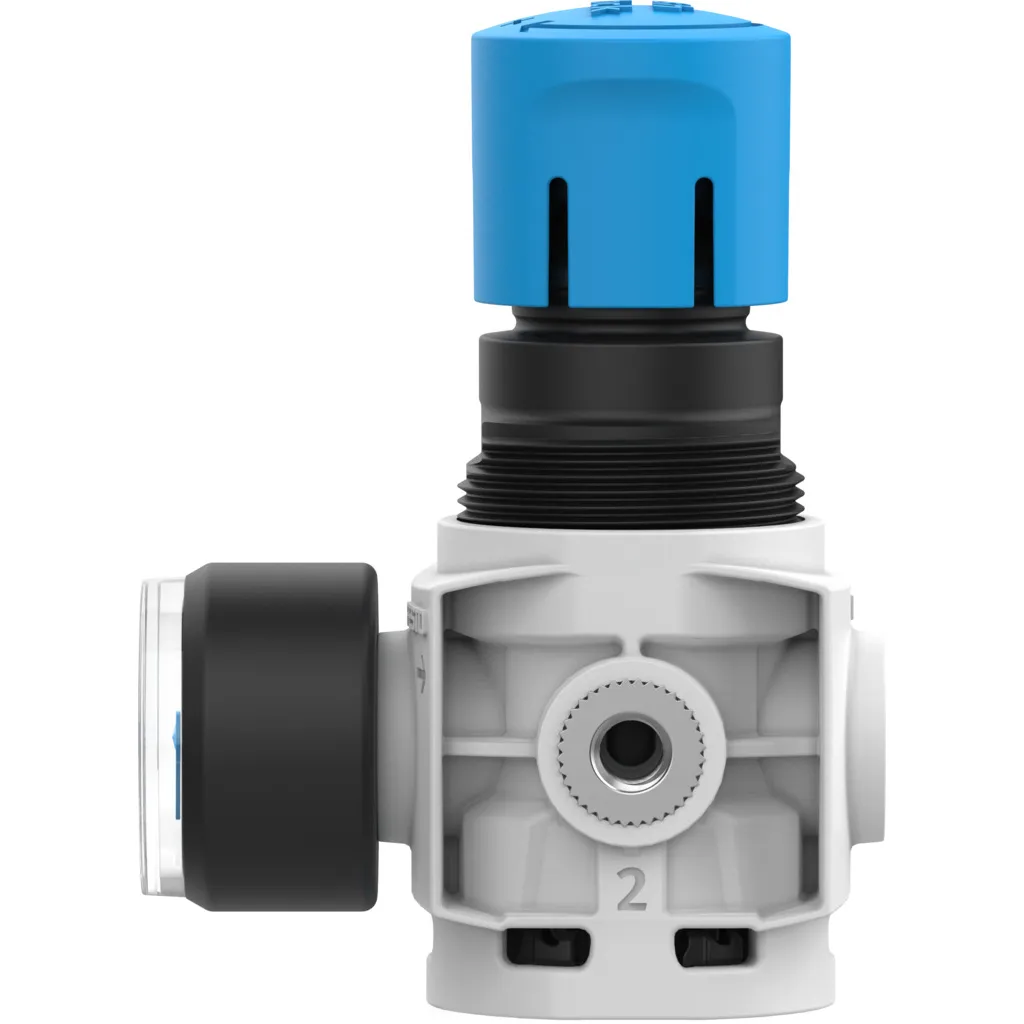

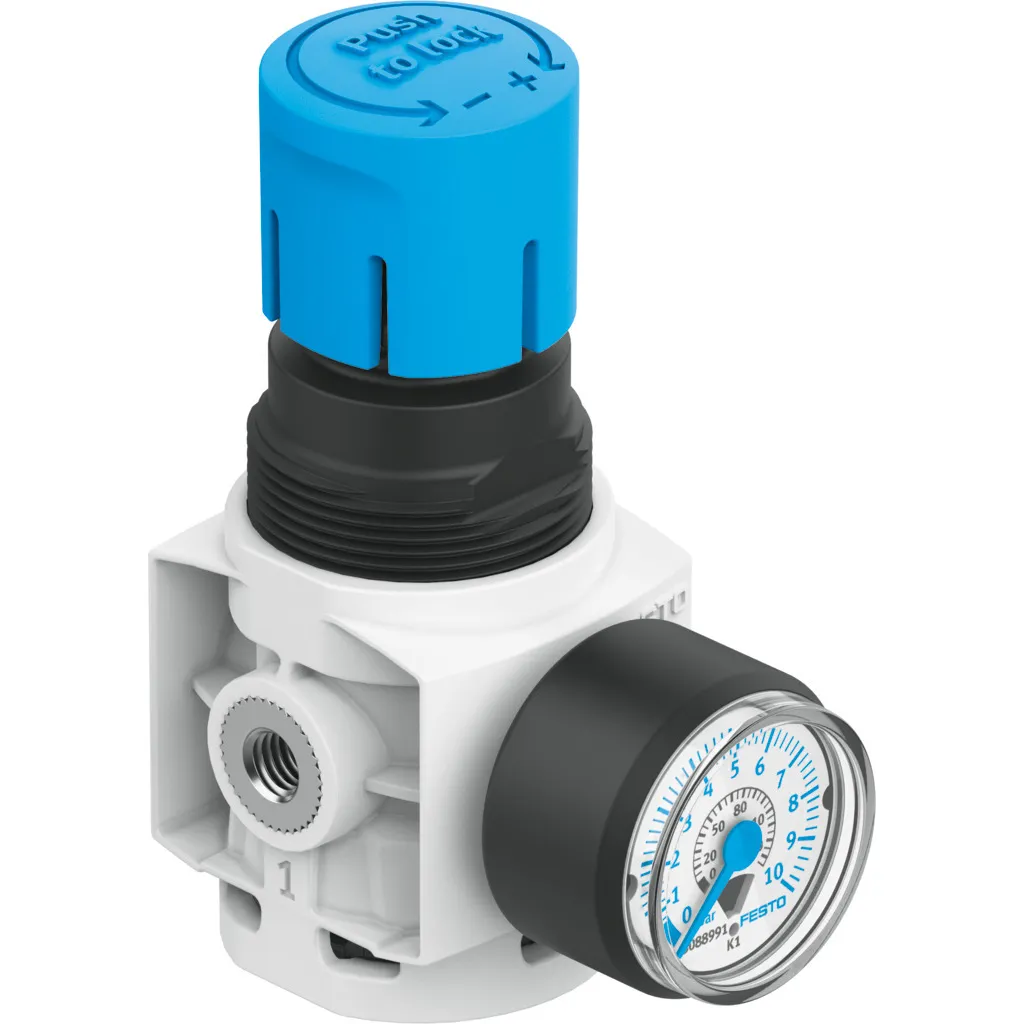

Festo Pressure Regulator, M5, 0.5 bar to 7 bar, MS2-LR-M5-D6-AR-BAR-B

Part Number : MS2-LR-M5-D6-AR-BAR-B

Brand :
Festo

The MS2-LR-M5-D6-AR-BAR-B regulator offers advanced pneumatic pressure control for various industrial applications with a durable M5 connection.

View all

KWD 12.000

Quantity
Description
Specifications
Downloads
Related products

Description

Designed for precision and reliability, this Festo regulator features an M5 pneumatic connection with a pressure range of 0.5 bar to 7 bar. Its compact build ensures seamless integration into automation systems, making it ideal for demanding industrial environments.

Product Overview

Compact Festo regulator with M5 connection and wide pressure range, suited for pneumatic systems.

Key Features

1. M5 connection 2. Adjustable pressure range: 0.5 bar to 7 bar 3. Compact and durable design

Applications

Industrial pneumatic systems and automation processes.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS2-LR-M5-D6-AR-BAR-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
2
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Directly actuated diaphragm regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991558
Displayable units
bar psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.5 bar ... 7 bar
Max. pressure hysteresis
  • 0.025 MPa
  • 0.25 bar
  • 3.625 psi
Standard nominal flow rate (standardised to DIN 1343)
170 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
38.6 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
M5
Pneumatic connection, port 2
M5
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel
Material housing
PA-reinforced
Material membrane
NBR
Material valve stem
Wrought aluminium alloy NBR
