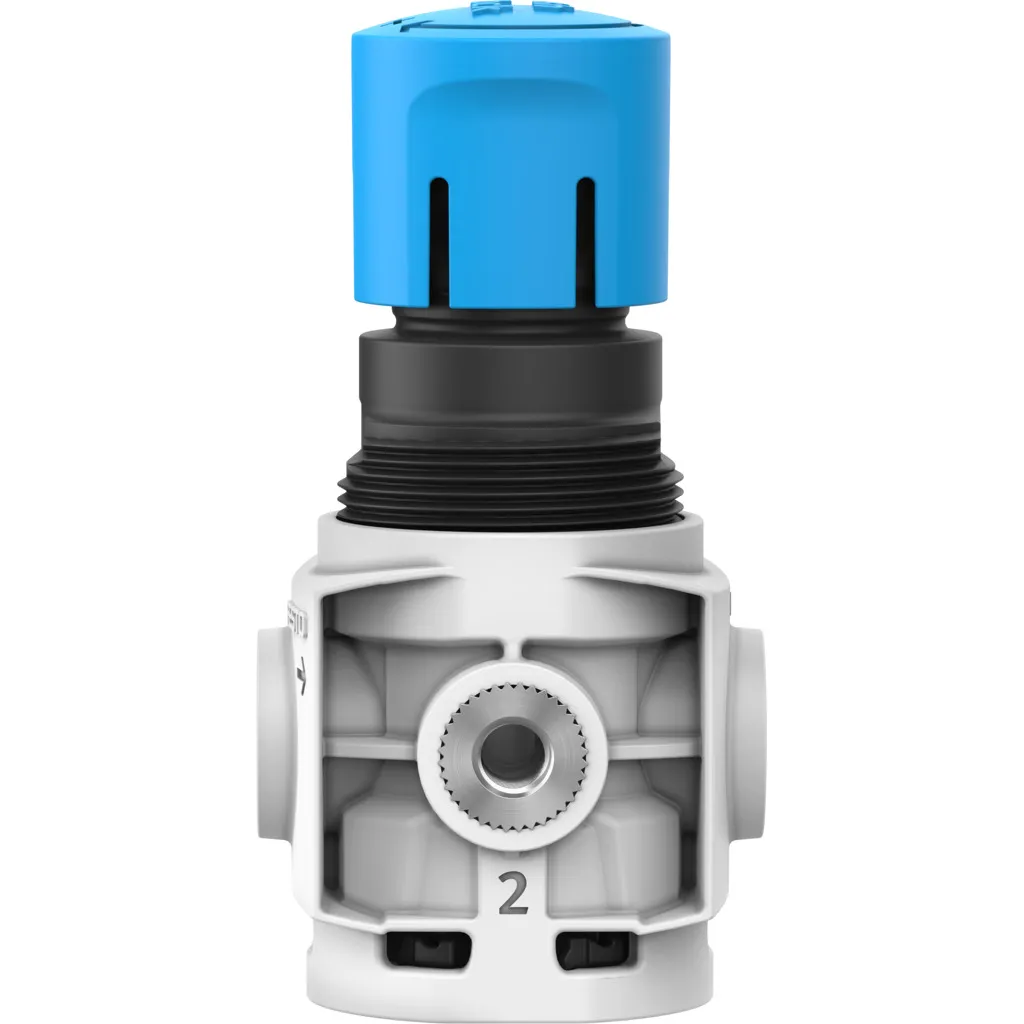

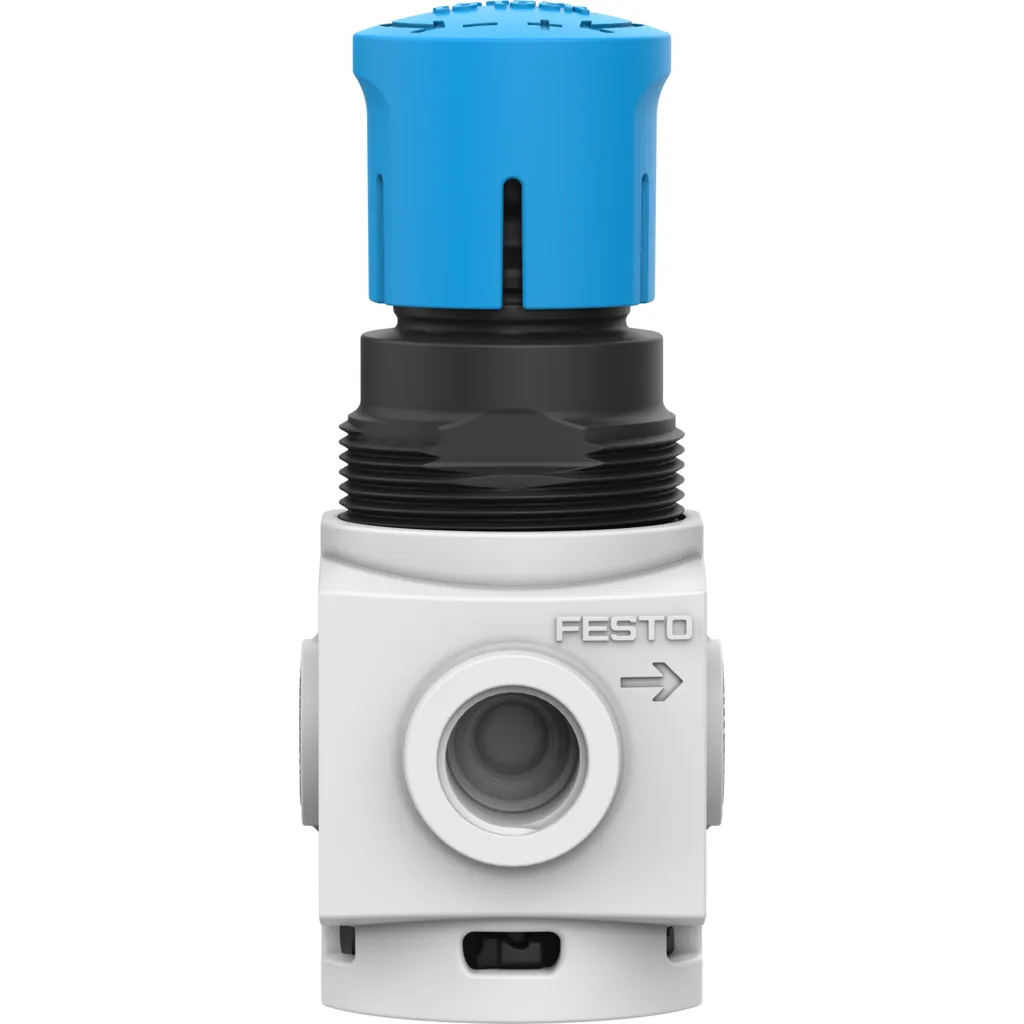

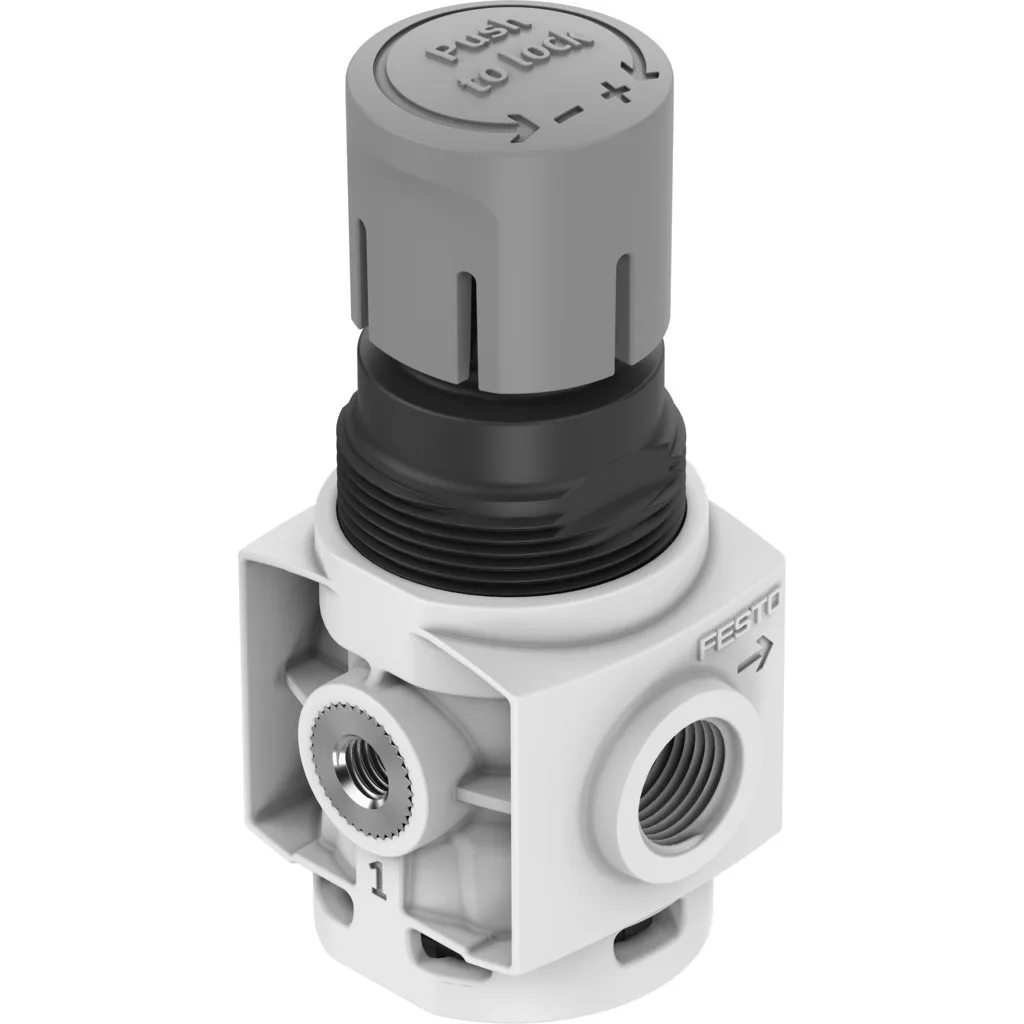

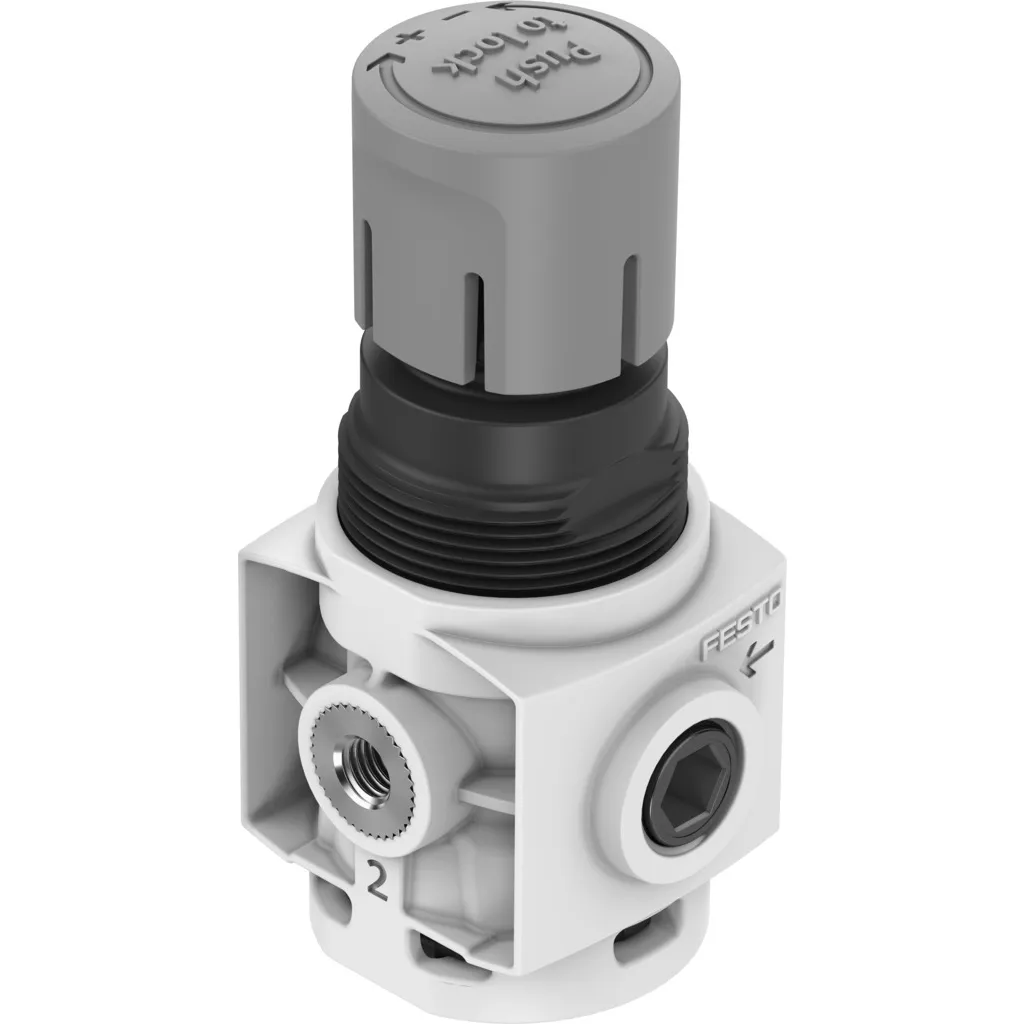

Festo Pressure Regulator, M5, 0.5 bar to 7 bar, MS2-LR-M5-D6-A8-B

Part Number : MS2-LR-M5-D6-A8-B

Brand :
Festo

The Festo Pressure Regulator MS2-LR-M5-D6-A8-B ensures precise pneumatic pressure control with a compact design. With a pressure range of 0.5 bar to 7 bar and an M5 port connection, it is ideal for diverse industrial applications demanding reliability and efficiency.

View all

KWD 10.000

Quantity
Description
Specifications
Downloads
Related products

Description

The MS2-LR-M5-D6-A8-B pressure regulator by Festo combines compactness, durability, and high performance for optimized pneumatic system control. Its M5 pneumatic connection makes it versatile and easy to integrate into various systems, while the adjustable pressure range from 0.5 bar to 7 bar allows for precise control in demanding applications. This regulator is crafted with premium materials, ensuring long-term resistance to wear and environmental factors. Perfect for automation, process control, and industrial use, this Festo product provides reliability and performance at its best.

Product Overview

The Festo MS2-LR-M5-D6-A8-B pressure regulator is engineered for precise pressure regulation in pneumatic systems. It features a compact design with an M5 port connection and a pressure range of 0.5 bar to 7 bar, making it suitable for diverse industrial applications.

Key Features

1. Compact and lightweight design for easy system integration 2. Adjustable pressure regulation from 0.5 bar to 7 bar 3. M5 pneumatic connection for versatile application 4. High durability and resistance to environmental wear

Applications

The MS2-LR-M5-D6-A8-B pressure regulator is ideal for: - Industrial automation systems - Process control environments - Pneumatic machinery requiring precise pressure regulation

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS2-LR-M5-D6-A8-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
2
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Directly actuated diaphragm regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991559
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
Prepared for G1/8
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.5 bar ... 7 bar
Max. pressure hysteresis
  • 0.025 MPa
  • 0.25 bar
  • 3.625 psi
Standard nominal flow rate (standardised to DIN 1343)
170 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
30.8 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
M5
Pneumatic connection, port 2
M5
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel
Material housing
PA-reinforced
Material membrane
NBR
Material valve stem
Wrought aluminium alloy NBR
