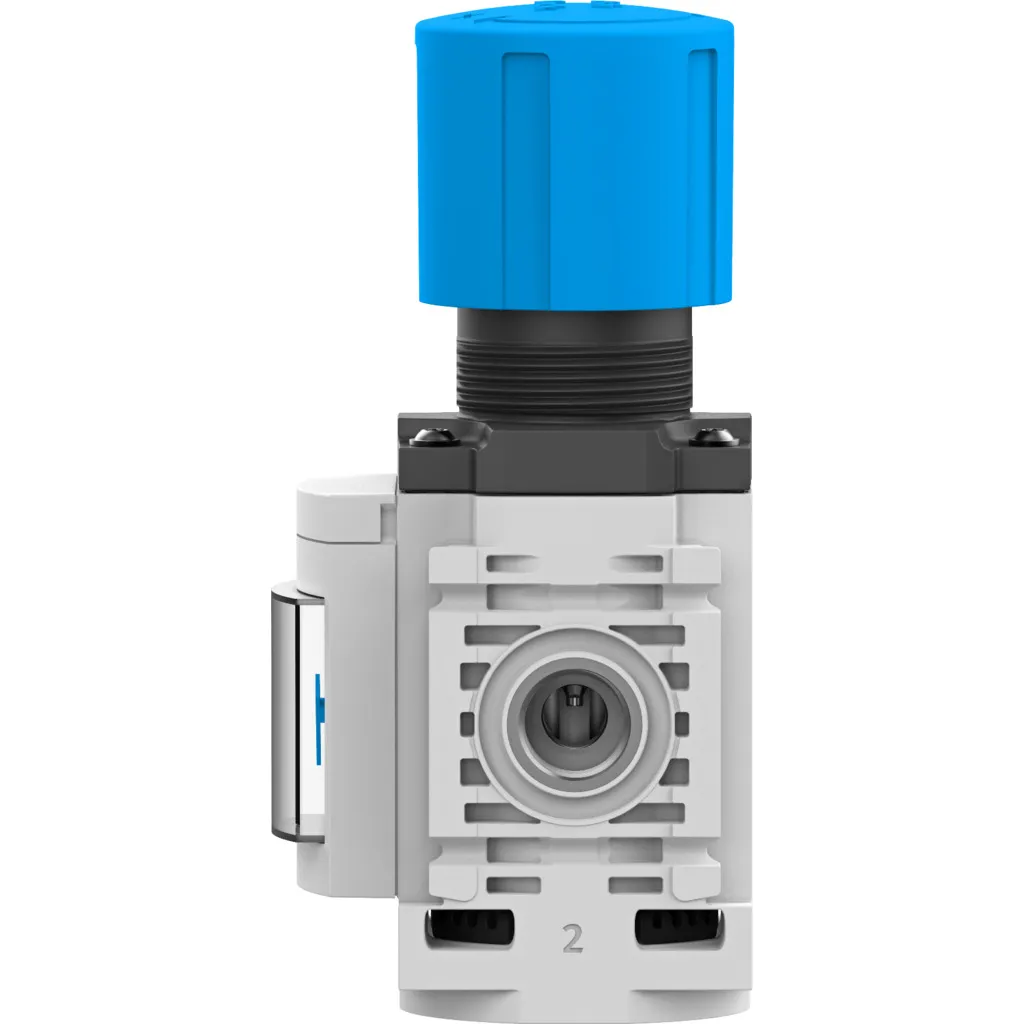

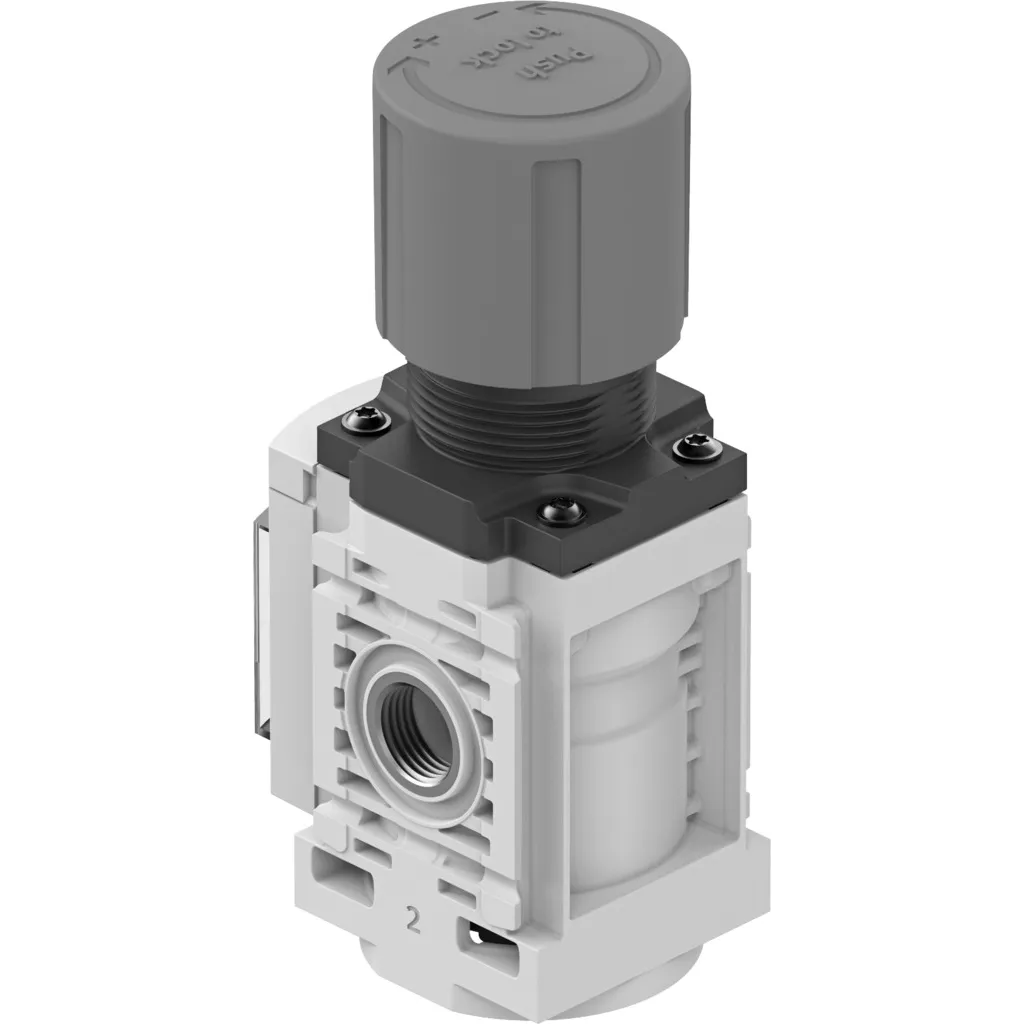

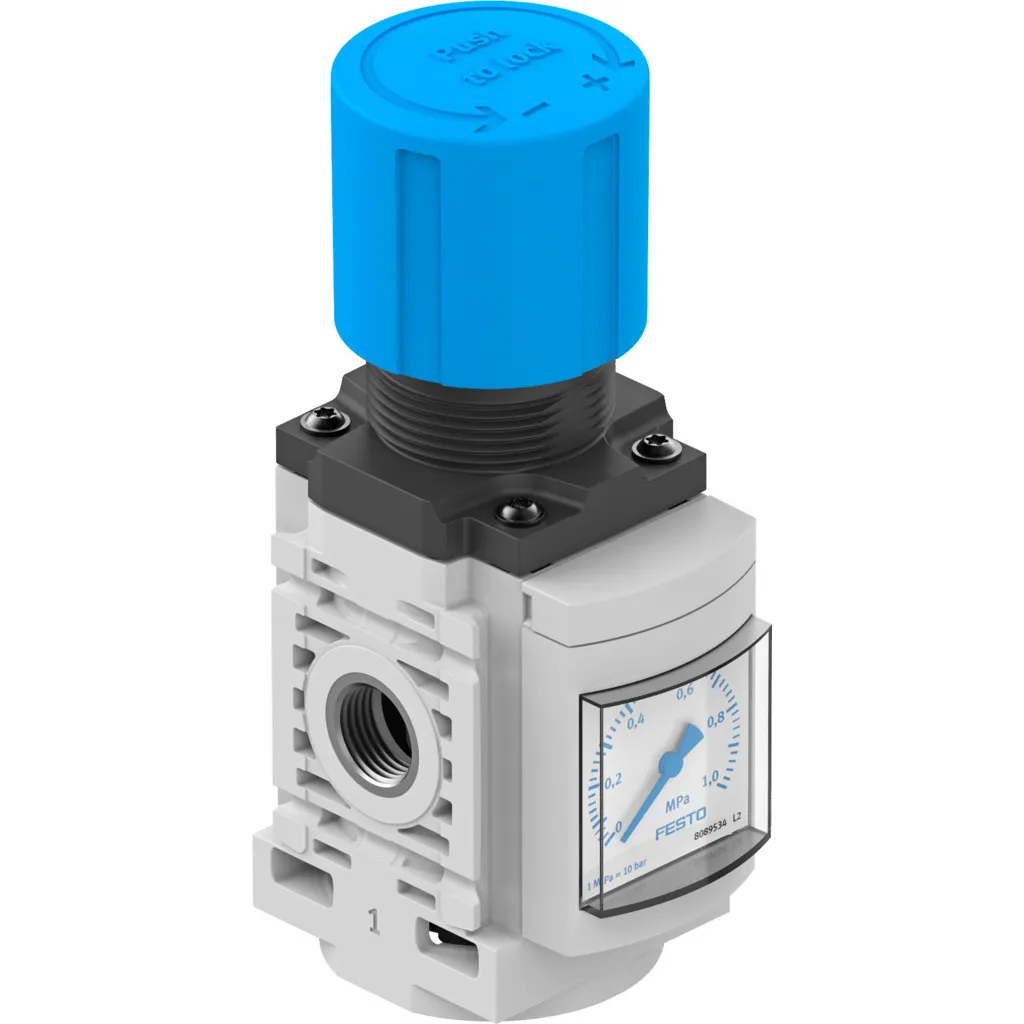

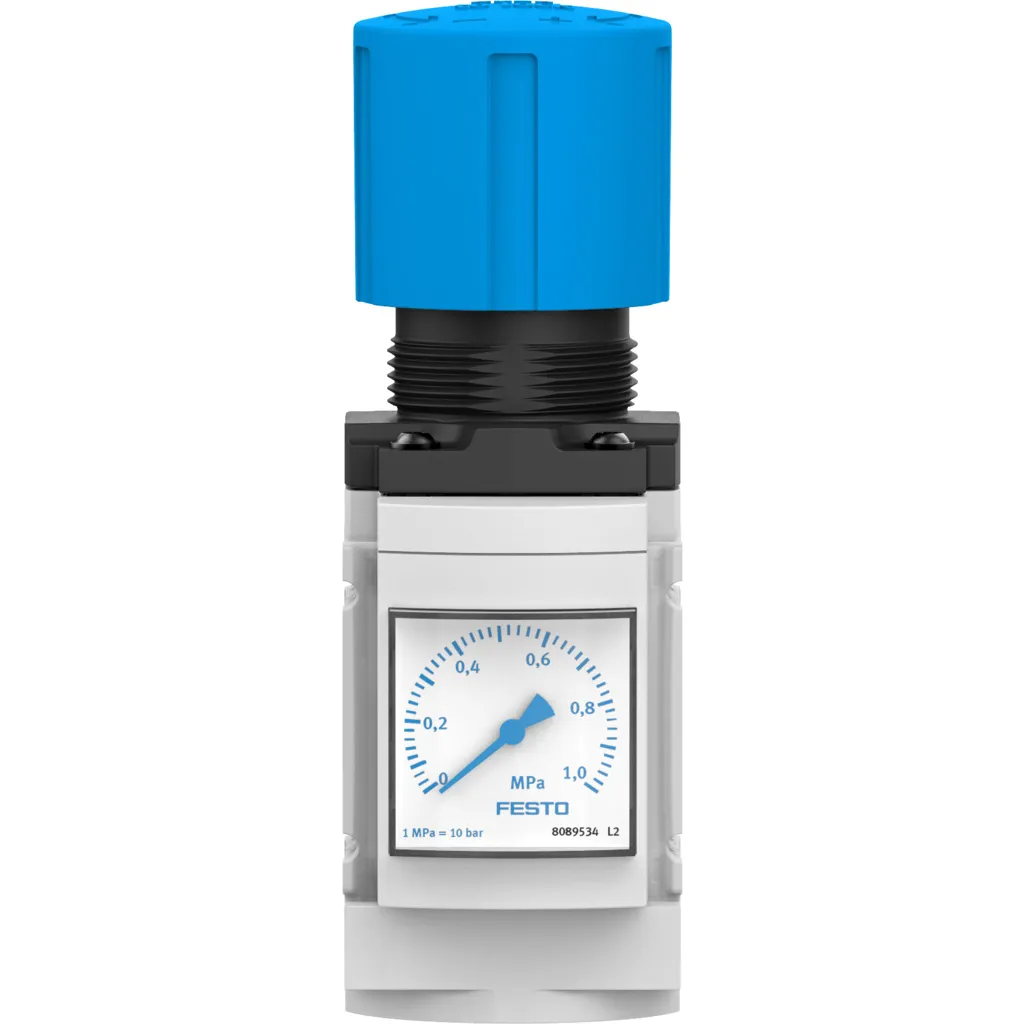

Festo Pressure Regulator, G1/4, 0.3 bar to 7 bar, MS4-LR-1/4-D6-AG-MPA-B

Part Number : MS4-LR-1/4-D6-AG-MPA-B

Brand :
Festo

The Festo Pressure Regulator MS4-LR-1/4-D6-AG-MPA-B delivers precise pneumatic pressure regulation with a G1/4 port connection and a pressure range of 0.3 bar to 7 bar.

View all

KWD 13.500

Quantity
Description
Specifications
Downloads
Related products

Description

The MS4-LR-1/4-D6-AG-MPA-B pressure regulator by Festo is engineered to ensure reliable pneumatic system performance. Featuring a G1/4 port connection and an adjustable pressure range of 0.3 bar to 7 bar, this regulator offers high precision and durability, making it ideal for demanding industrial environments.

Product Overview

Designed for high-precision pneumatic pressure control, this regulator features a G1/4 connection and adjustable pressure range of 0.3 bar to 7 bar.

Key Features

1. G1/4 port connection 2. Pressure range: 0.3 bar to 7 bar 3. Durable and compact design

Applications

Industrial automation, process systems, and pneumatic control setups.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS4-LR-1-4-D6-AG-MPA-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Pressure regulator with pressure gauge Directly actuated piston regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991558
Displayable units
MPa
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
  • 0.05 MPa
  • 0.5 bar
  • 7.25 psi
Standard nominal flow rate (standardised to DIN 1343)
1800 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
165 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel Galvanised steel
Material housing
PA-reinforced
Material valve stem
POM
