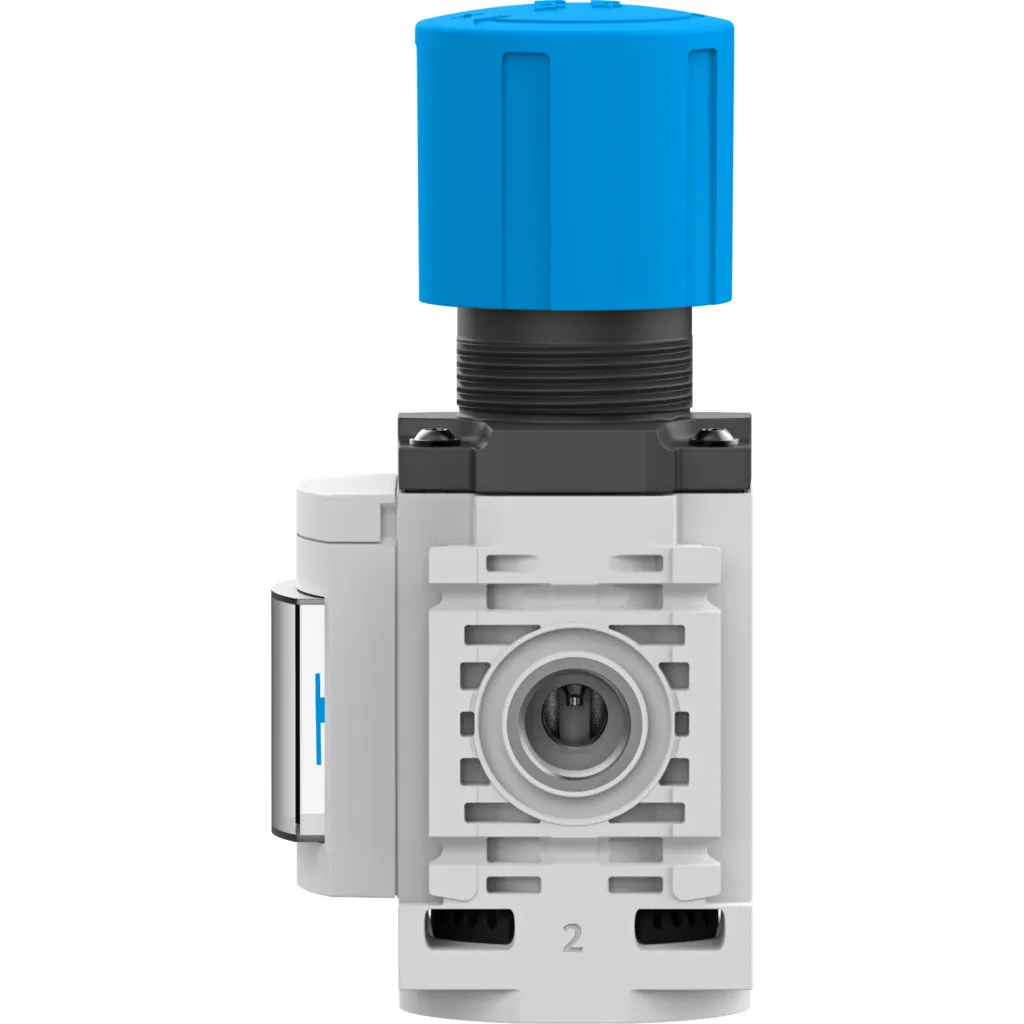

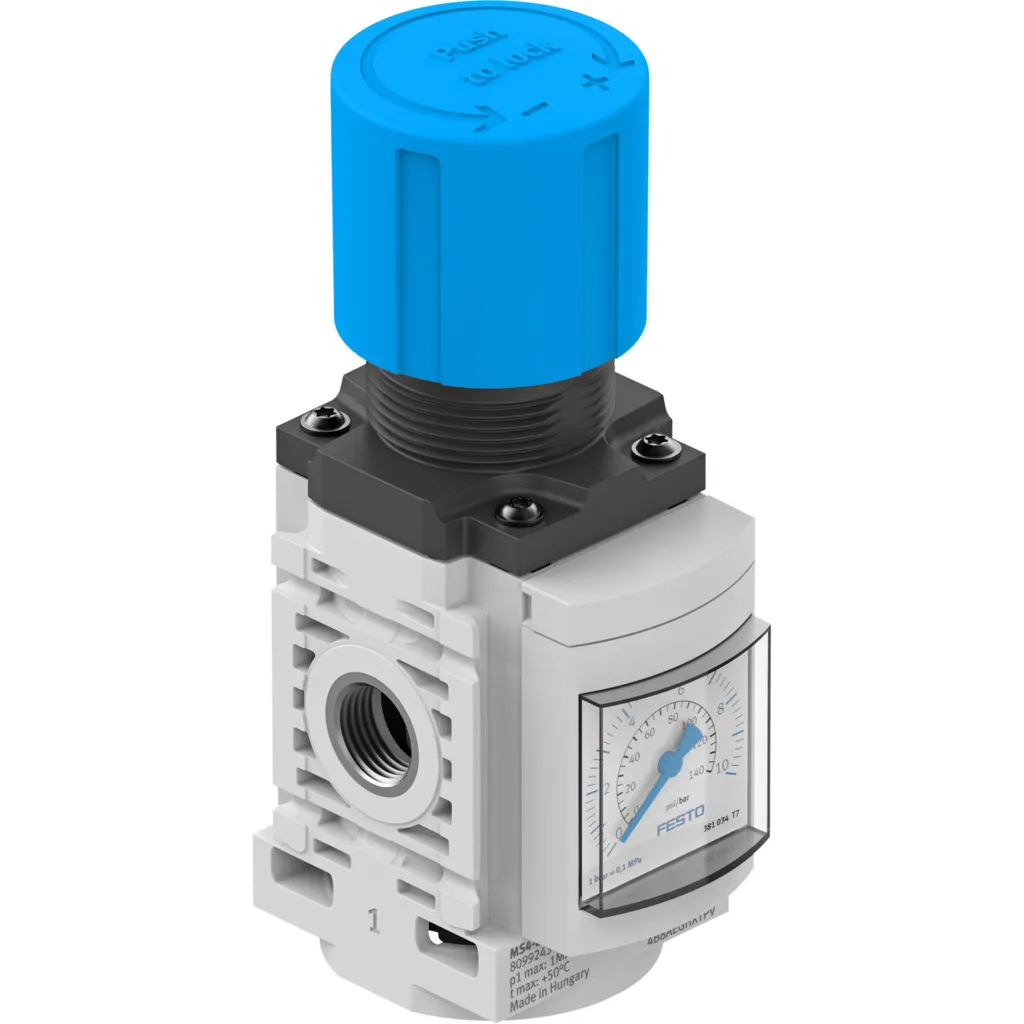

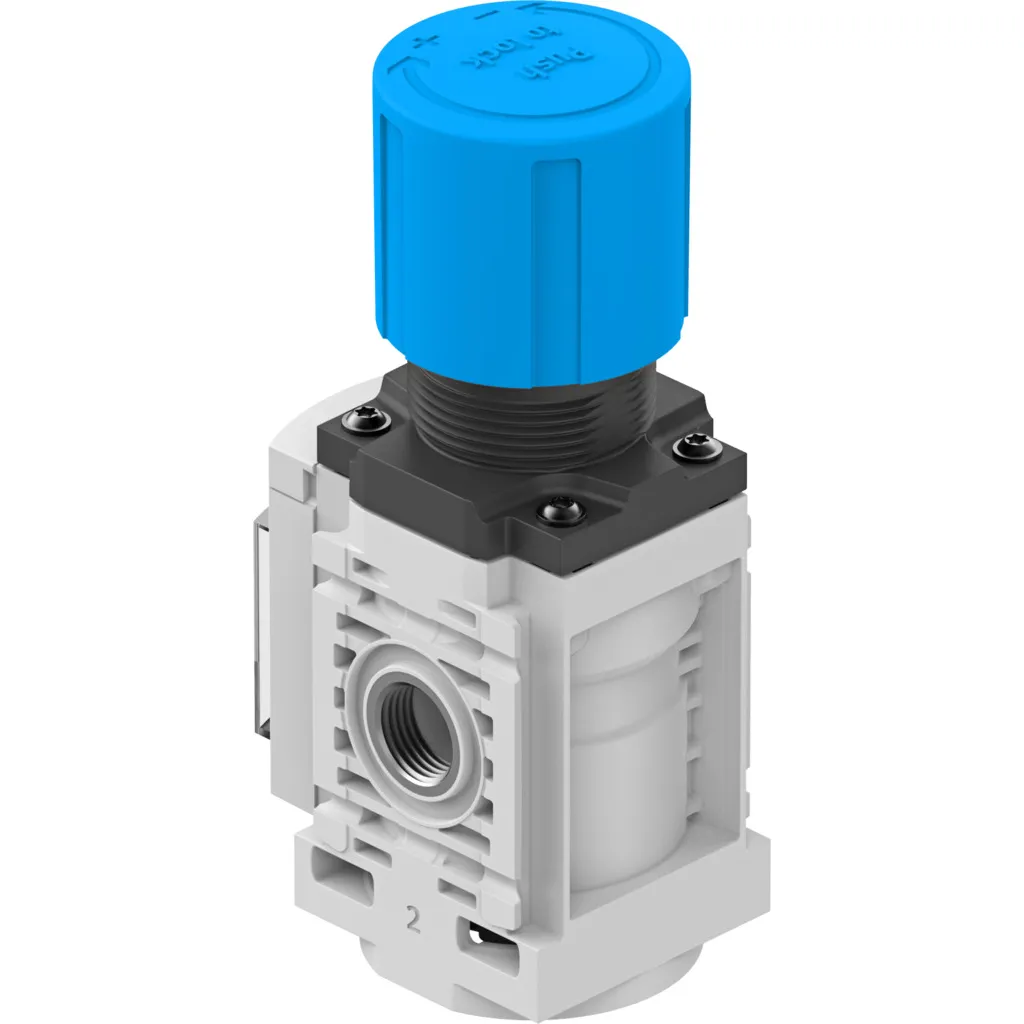

Festo Pressure Regulator, G1/4, 0.3 bar to 7 bar, MS4-LR-1/4-D6-AG-BAR-F1A-B

Part Number : MS4-LR-1/4-D6-AG-BAR-F1A-B

Brand :
Festo

The Festo MS4-LR-1/4-D6-AG-BAR-F1A-B regulator provides precise pneumatic pressure control with a G1/4 connection and adjustable pressure range.

View all

KWD 19.000

Quantity
Description
Specifications
Downloads
Related products

Description

Designed for industrial applications, this Festo pressure regulator features a G1/4 connection and a pressure range of 0.3 bar to 7 bar. Its robust construction ensures reliability and long-term performance for various pneumatic systems.

Product Overview

Compact pneumatic pressure regulator with G1/4 connection for reliable performance.

Key Features

1. G1/4 connection for pneumatic systems 2. Adjustable pressure range: 0.3 bar to 7 bar 3. Durable and compact design

Applications

Suitable for industrial pneumatic systems and automation environments.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS4-LR-1-4-D6-AG-BAR-F1A-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Pressure regulator with pressure gauge Directly actuated piston regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991558
Displayable units
bar psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
  • 0.05 MPa
  • 0.5 bar
  • 7.25 psi
Standard nominal flow rate (standardised to DIN 1343)
1800 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
165 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy stainless steel
Material housing
PA-reinforced
Material valve stem
POM
