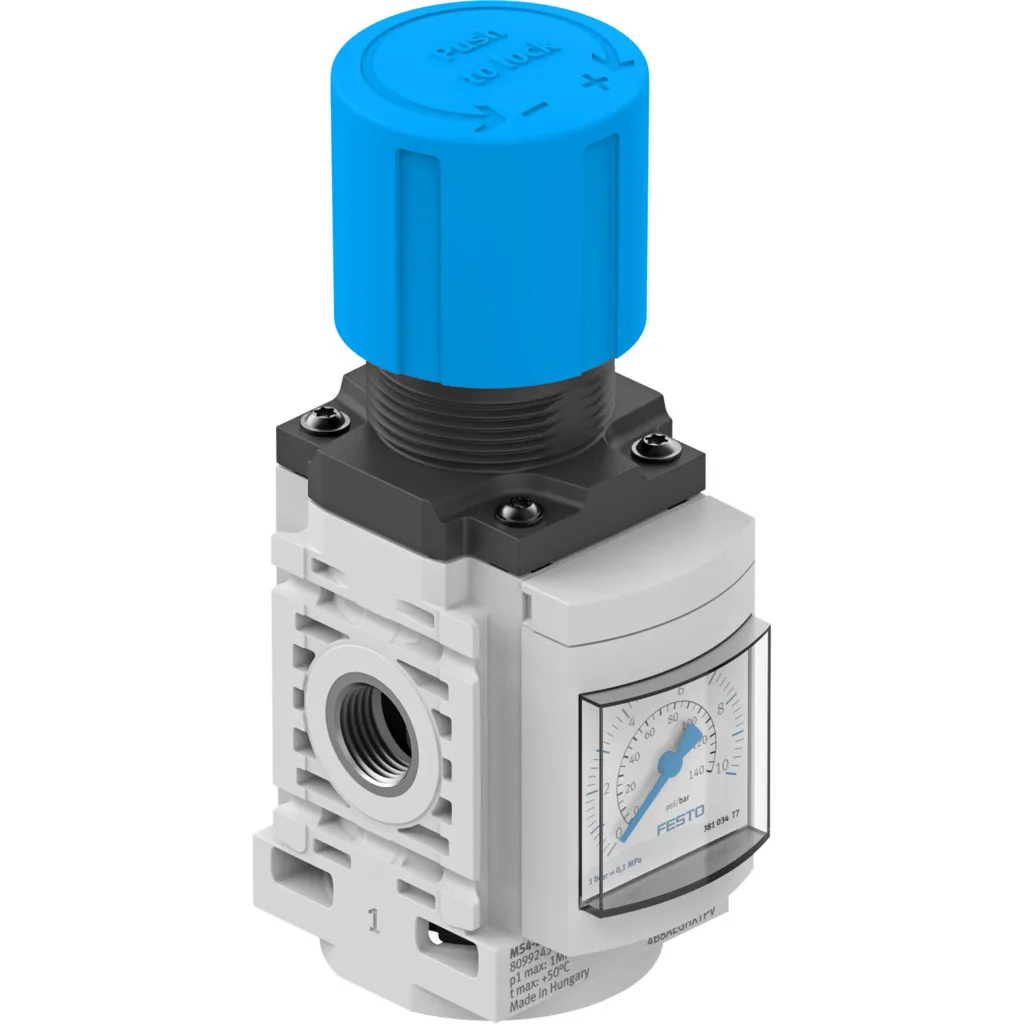

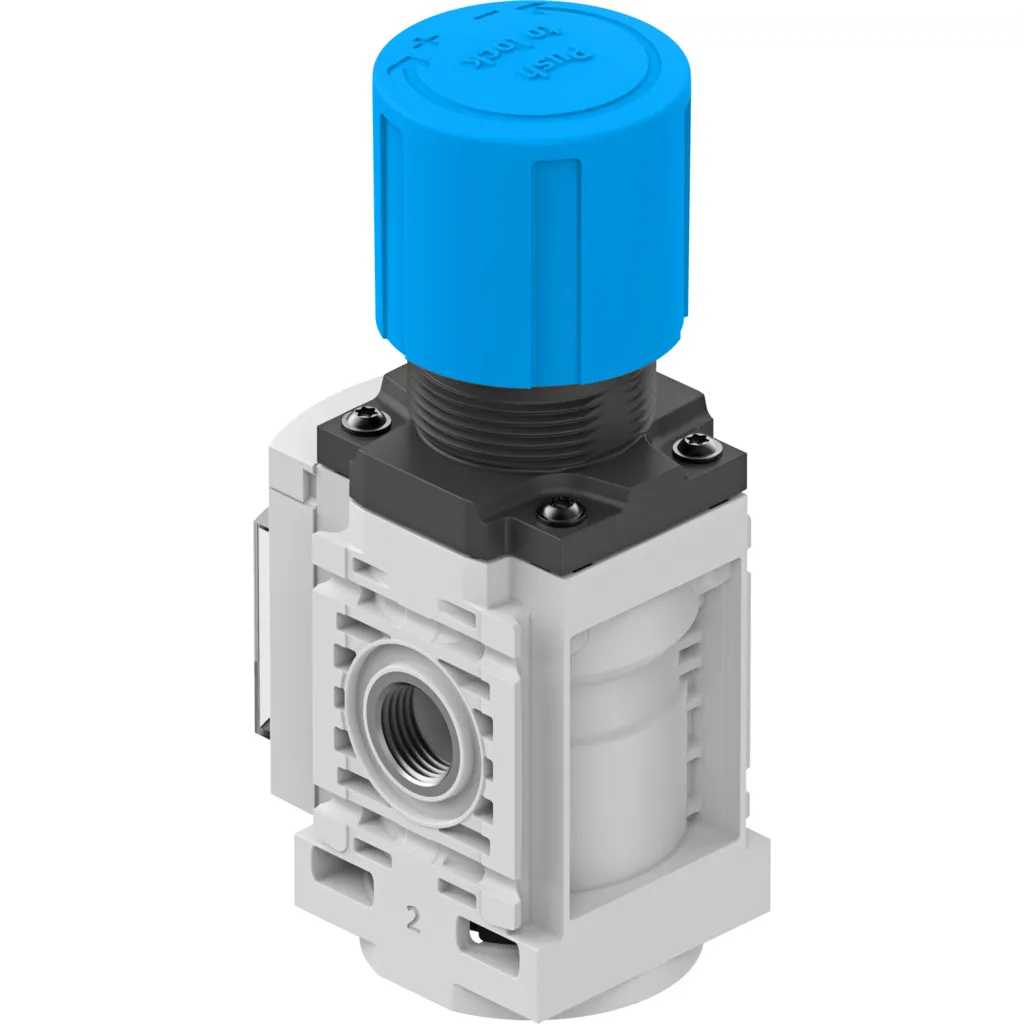

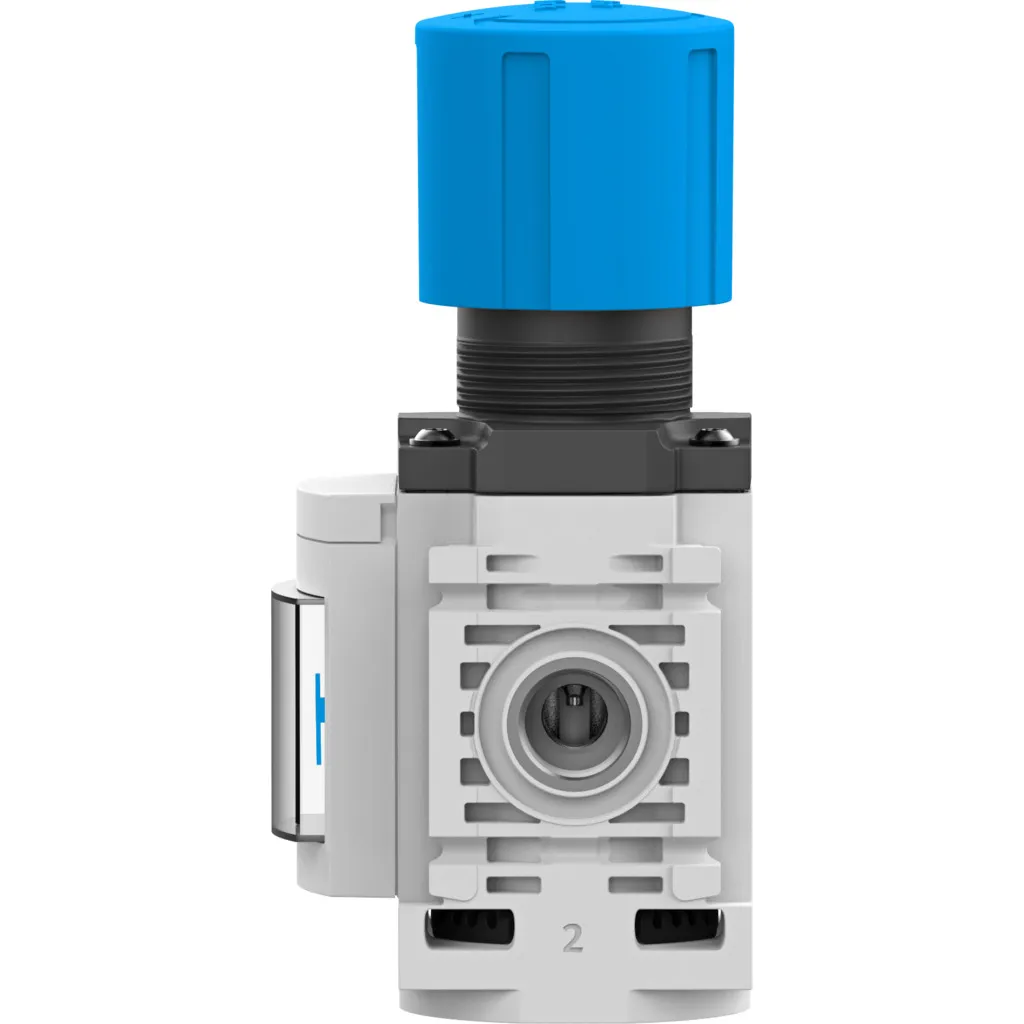

Festo Pressure Regulator, G1/4, 0.3 bar to 7 bar, MS4-LR-1/4-D6-AG-BAR-B

Part Number : MS4-LR-1/4-D6-AG-BAR-B

Brand :
Festo

The Festo MS4-LR-1/4-D6-AG-BAR-B regulator provides robust pressure control with a G1/4 connection and a wide pressure range of 0.3 bar to 7 bar.

This product is also a replacement for the discontinued Model LR-1/4-DB-7-MINI (539682).

View all

KWD 13.500

Quantity
Description
Specifications
Downloads
Related products

Description

Featuring a G1/4 port and precision regulation, the MS4-LR-1/4-D6-AG-BAR-B pressure regulator ensures consistent performance in pneumatic systems. It is compact, reliable, and built to handle demanding industrial applications with ease.

Product Overview

Compact and efficient pneumatic pressure regulator designed for industrial automation systems.

Key Features

1. G1/4 pneumatic connection 2. Pressure regulation: 0.3 bar to 7 bar 3. Robust construction for extended use

Applications

Process control, pneumatic systems, and manufacturing equipment.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS4-LR-1-4-D6-AG-BAR-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Pressure regulator with pressure gaugeDirectly actuated piston regulator
Controller function
Output pressure constantWith secondary ventingWith return flow function
Symbol
991558
Displayable units
barpsi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
  • 0.05 MPa
  • 0.5 bar
  • 7.25 psi
Standard nominal flow rate (standardised to DIN 1343)
1800 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
165 g
Type of mounting
Either:Front panel mountingIn-line installationWith accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steelGalvanised steel
Material housing
PA-reinforced
Material valve stem
POM
