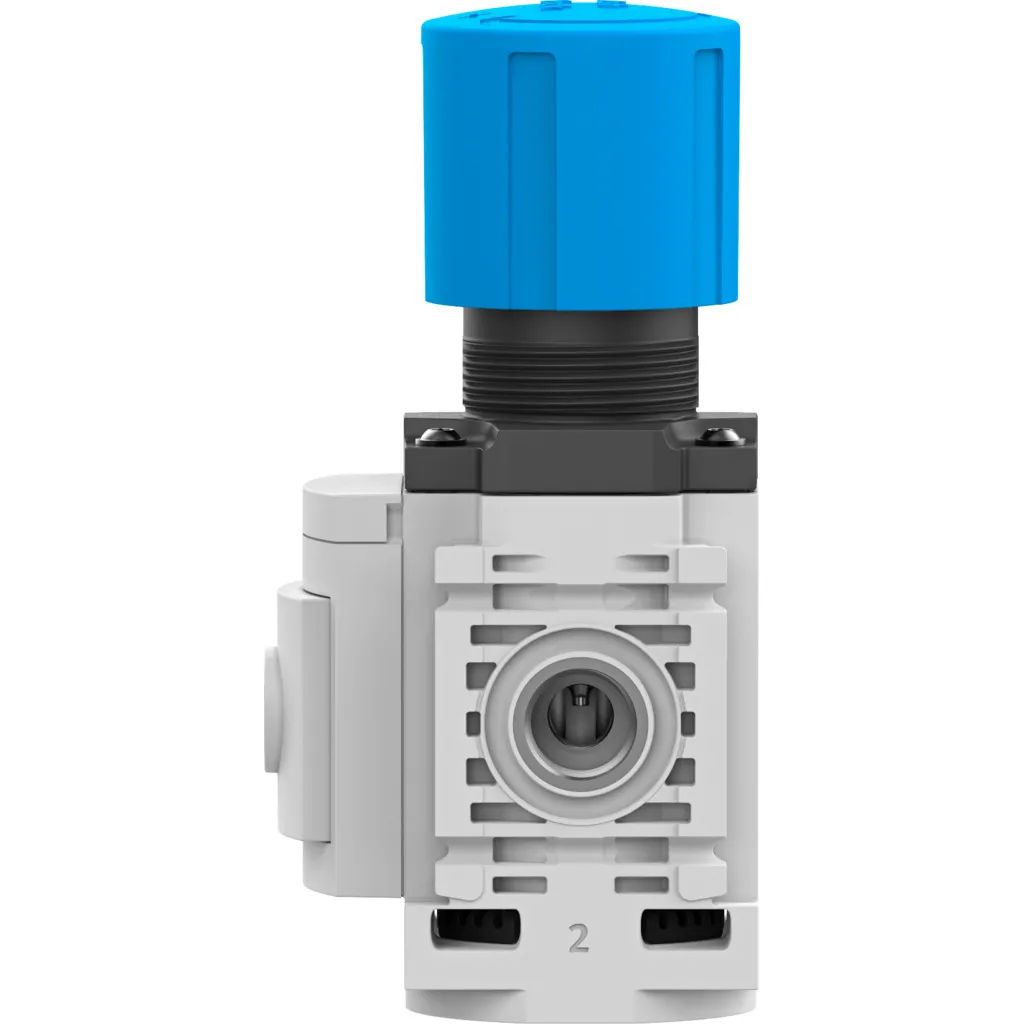

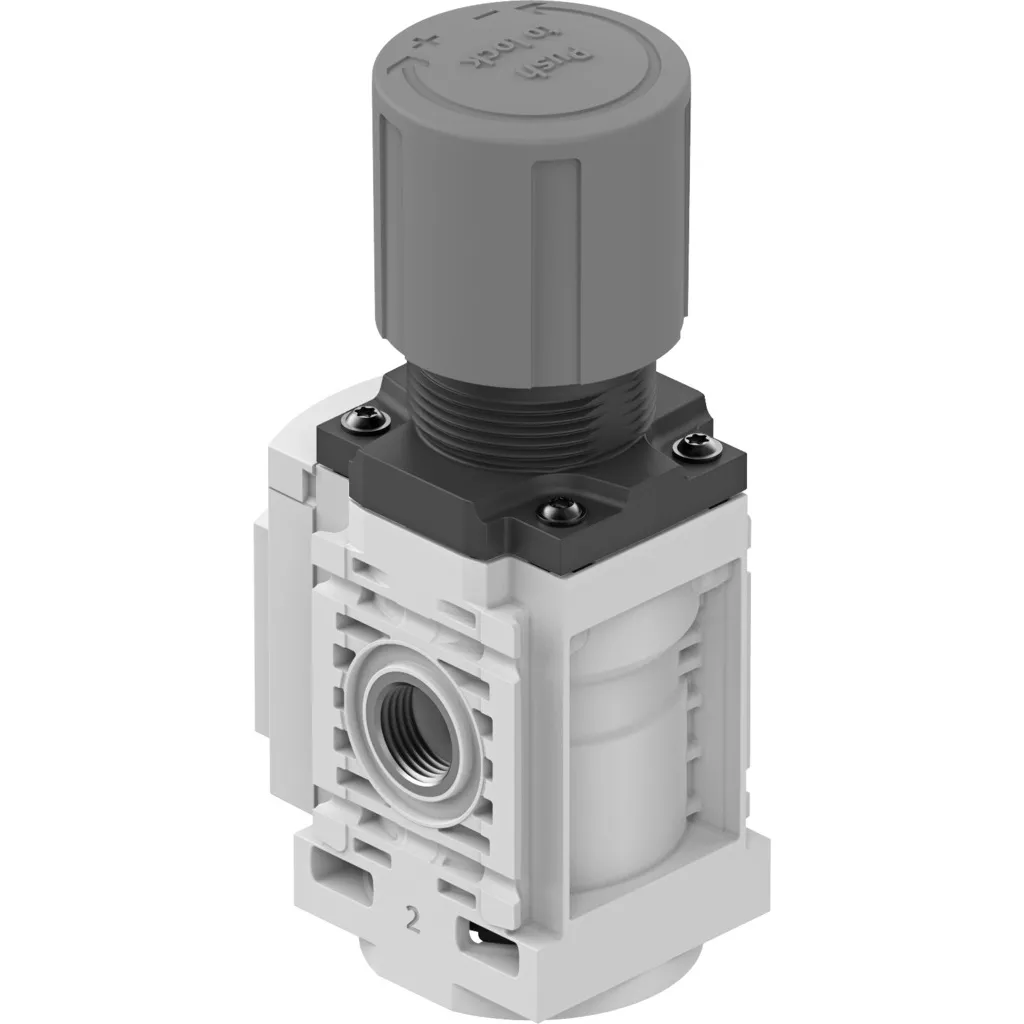

Festo Pressure Regulator, G1/4, 0.3 bar to 7 bar, MS4-LR-1/4-D6-A8-B

Part Number : MS4-LR-1/4-D6-A8-B

Brand :
Festo

The Festo MS4-LR-1/4-D6-A8-B regulator delivers reliable pneumatic pressure control for industrial automation systems.

View all

KWD 11.000

Quantity
Description
Specifications
Downloads
Related products

Description

Designed for precision and durability, this regulator features a G1/4 port and an adjustable pressure range of 0.3 bar to 7 bar. Its compact size and robust build ensure optimal performance in demanding environments.

Product Overview

Durable and reliable regulator with G1/4 port for industrial applications.

Key Features

1. G1/4 connection for pneumatic systems 2. Adjustable pressure range: 0.3 bar to 7 bar 3. Compact and robust design

Applications

Industrial automation, pneumatic control, and process systems.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS4-LR-1-4-D6-A8-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Pressure regulator without pressure gauge Directly actuated piston regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991559
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
Prepared for G1/8
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
  • 0.05 MPa
  • 0.5 bar
  • 7.25 psi
Standard nominal flow rate (standardised to DIN 1343)
1800 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
163 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel Galvanised steel
Material housing
PA-reinforced
Material valve stem
POM
