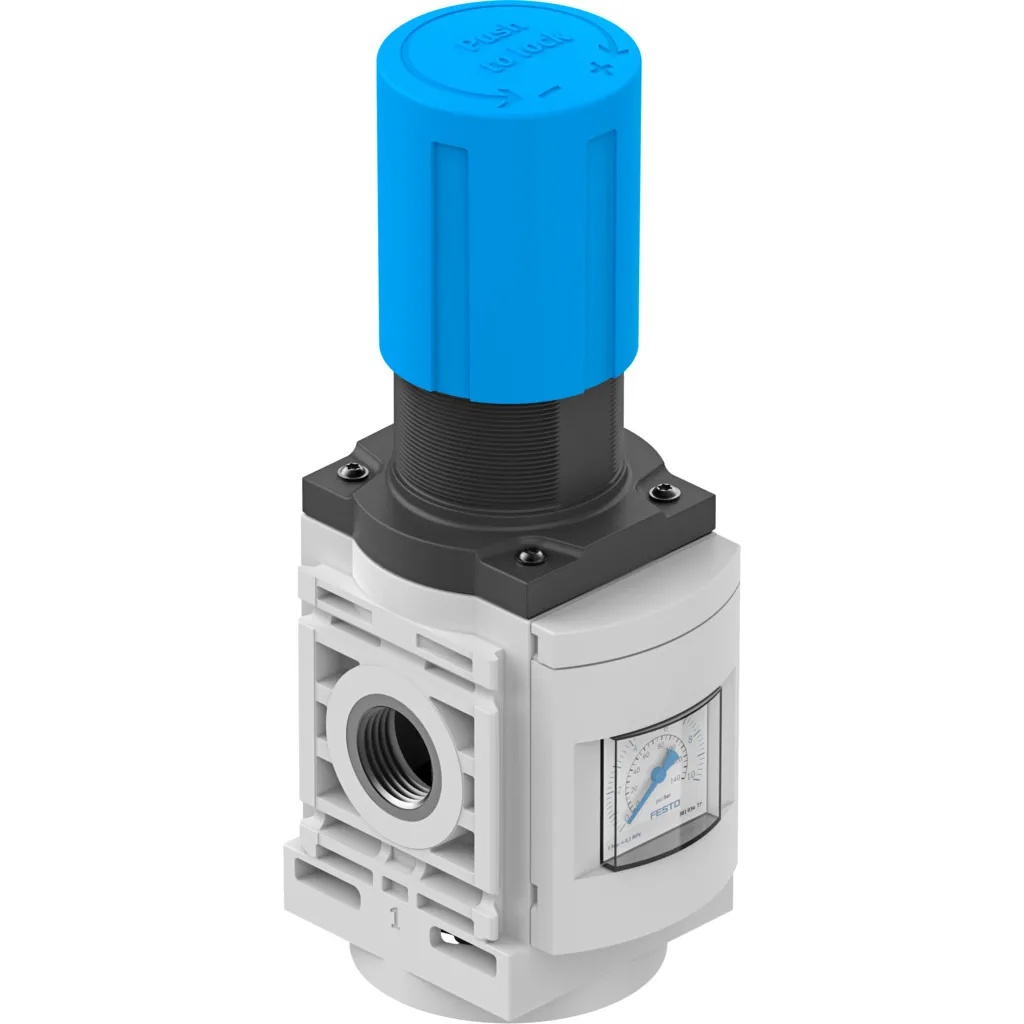

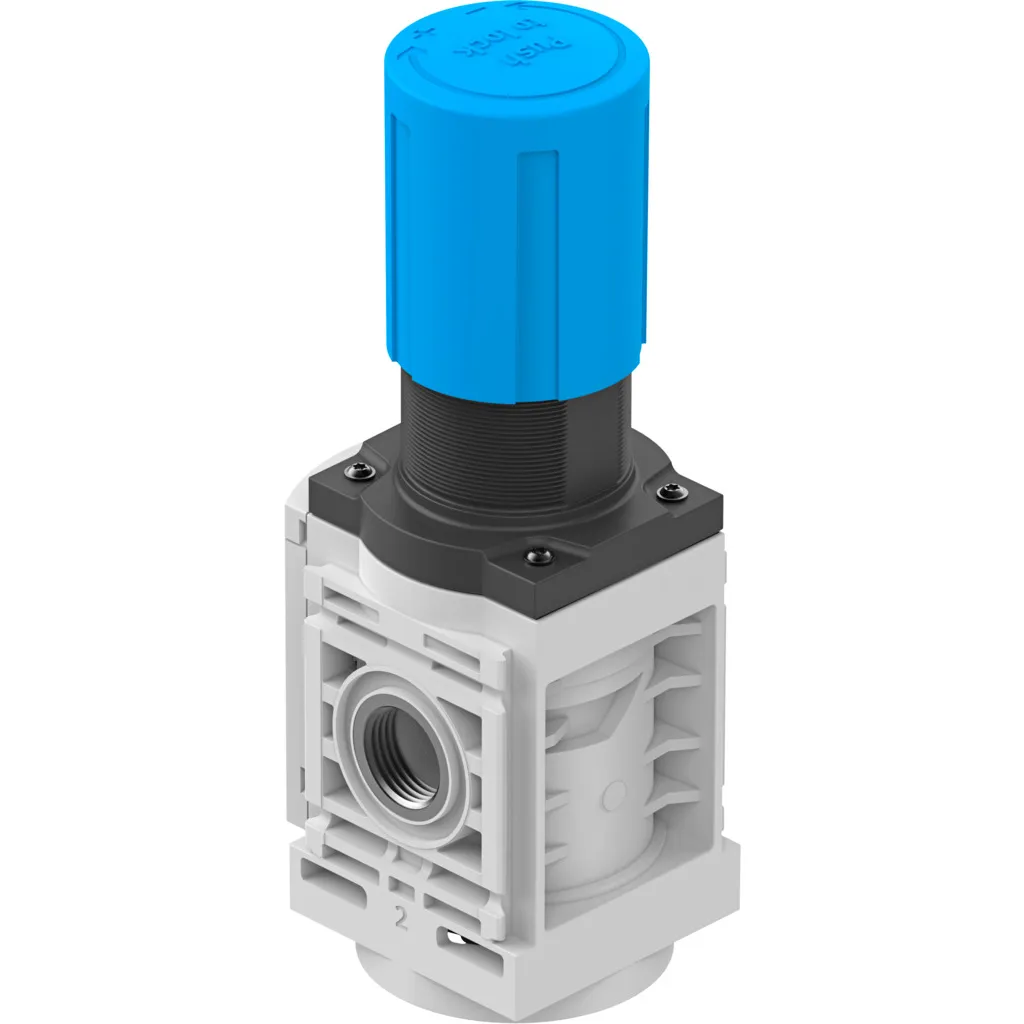

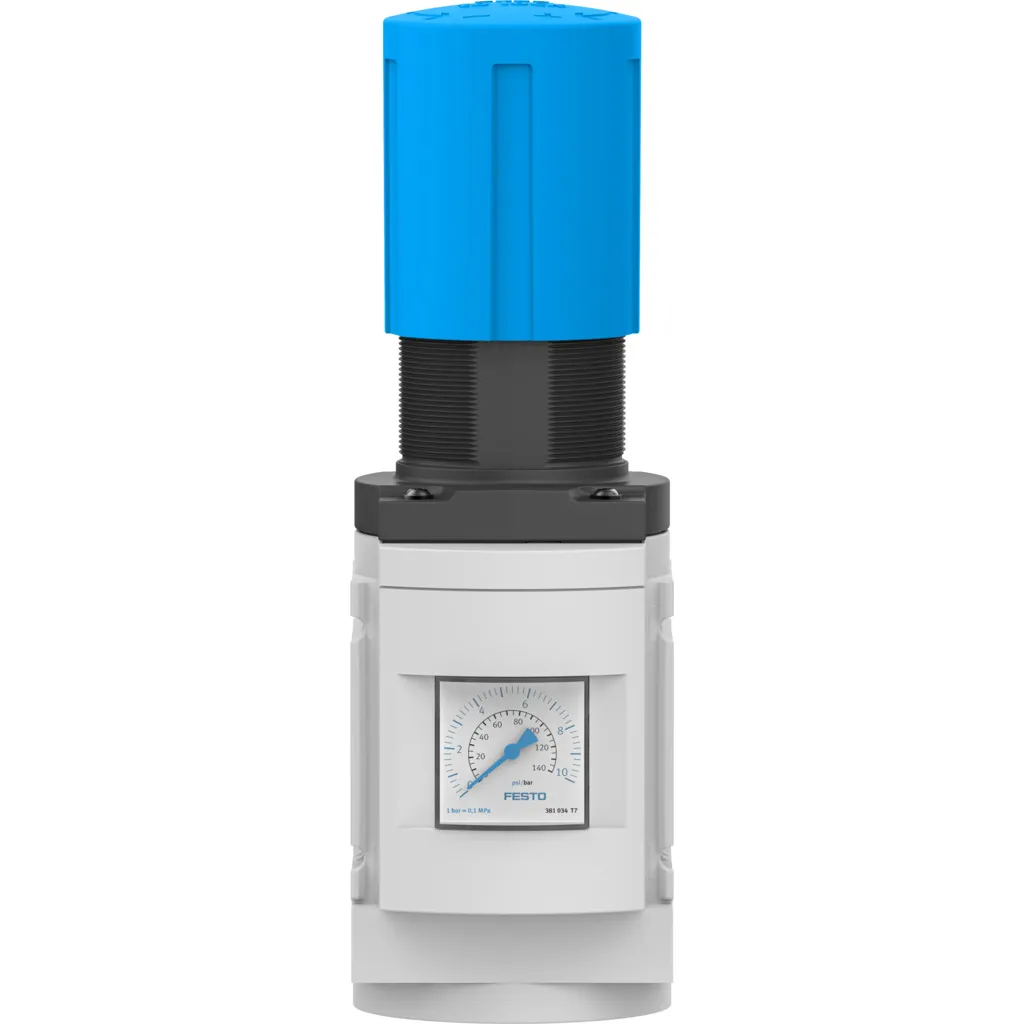

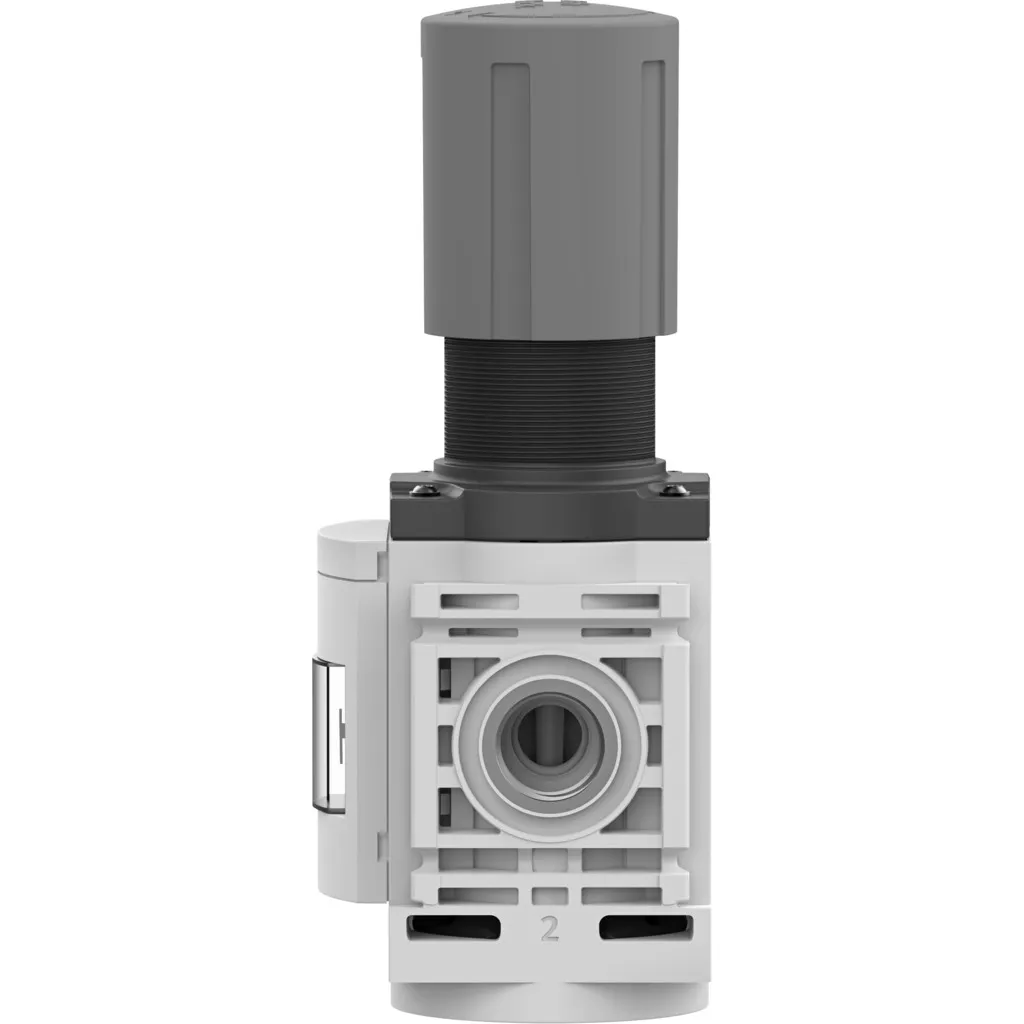

Festo Pressure Regulator, G1/2, 0.3 bar to 7 bar, MS6-LR-1/2-D6-AG-MPA-B

Name: Festo Pressure Regulator G1/2 0.3 bar to 7 bar MS6-LR-1/2-D6-AG-MPA-B
Brand: Festo
SKU: MS6-LR-1/2-D6-AG-MPA-B
Rating: 5 (1 reviews)

Part Number : MS6-LR-1/2-D6-AG-MPA-B

Brand :

The Festo MS6-LR-1/2-D6-AG-MPA-B regulator provides precise pneumatic pressure control with a G1/2 port connection and durable construction.

View all

KWD 20.000

Quantity

Description

Specifications

Downloads

Description

This pressure regulator features a G1/2 connection and adjustable pressure range of 0.3 bar to 7 bar, ensuring reliability and efficiency in demanding industrial applications. Its robust build and compact design allow seamless integration into various systems.

Product Overview

Compact pressure regulator with a G1/2 port for industrial automation and process control applications.

Key Features

1. G1/2 pneumatic connection 2. Pressure range of 0.3 bar to 7 bar 3. Durable and reliable design

Applications

Pneumatic control systems, industrial automation, and manufacturing processes.

Downloads

Pressure regulator MS-LR-B.pdf

pdf

Download

MS6-LR-1-2-D6-AG-MPA-B Technical data.pdf

pdf

Download

MS-LR-B Operating Instructions.pdf

pdf

Download

Specifications

Size

Series

Actuator lock

Rotary knob with detent

Mounting position

optional

Design

Pressure regulator with pressure gauge Directly actuated piston regulator

Controller function

Output pressure constant With secondary venting With return flow function

Symbol

991558

Displayable units

MPa

Pressure gauge (ANALOG) or Pressure display (DIGITAL)

With pressure gauge

Operating pressure

0.1 MPa ... 1 MPa
1 bar ... 10 bar

Pressure regulation range

0.3 bar ... 7 bar

Max. pressure hysteresis

0.035 MPa
0.35 bar
5.075 psi

Standard nominal flow rate (standardised to DIN 1343)

6000 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 7 according to ISO 14644-1

Storage Temperature

-5 °C ... 50 °C

Media temperature

-5 °C ... 50 °C

Ambient temperature

-5 °C ... 50 °C

Product weight

482 g

Type of mounting

Either: Front panel mounting In-line installation With accessories

Pneumatic connection, port 1

G1/2

Pneumatic connection, port 2

G1/2

Note on materials

RoHS-compliant

Material underneath cover

Material seals

NBR

Material rotary knob

POM

Material spring

High-alloy steel Galvanised steel

Material housing

PA-reinforced

Material valve stem

POM
