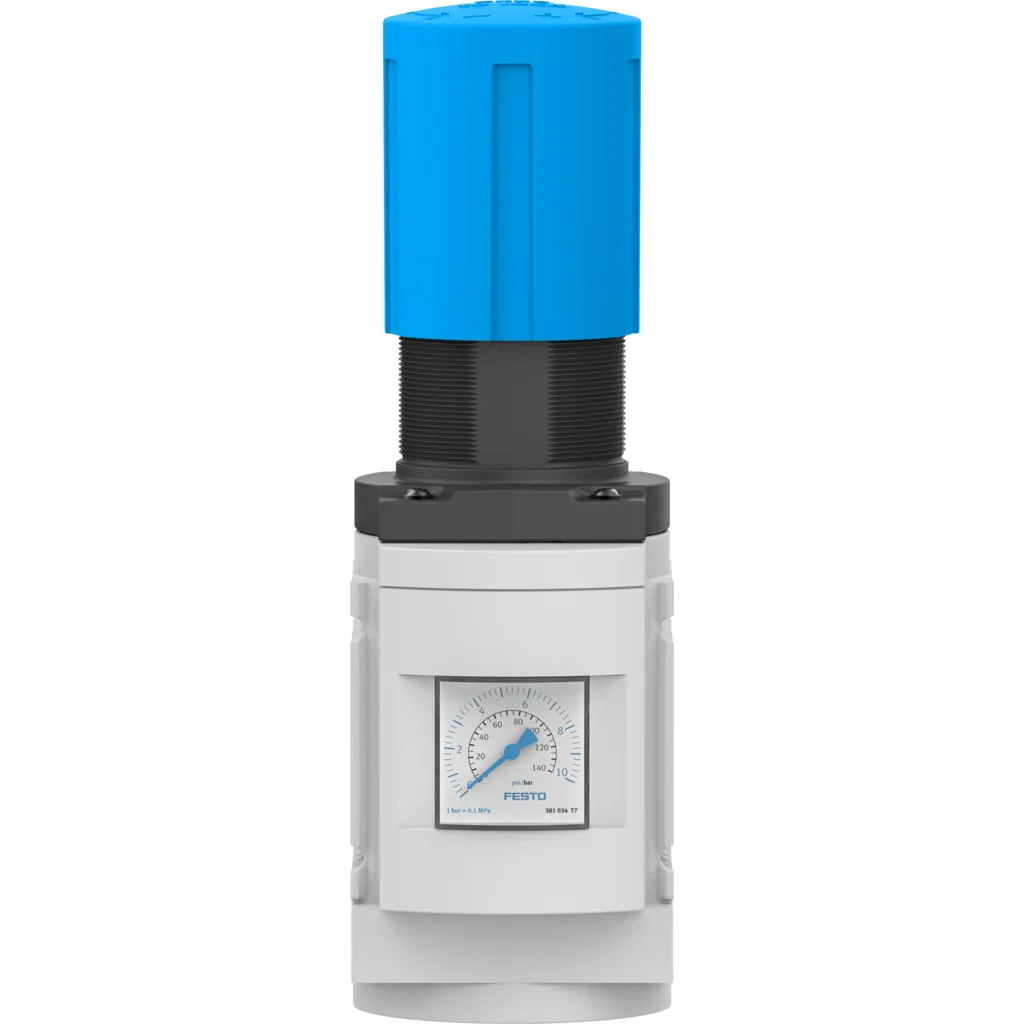

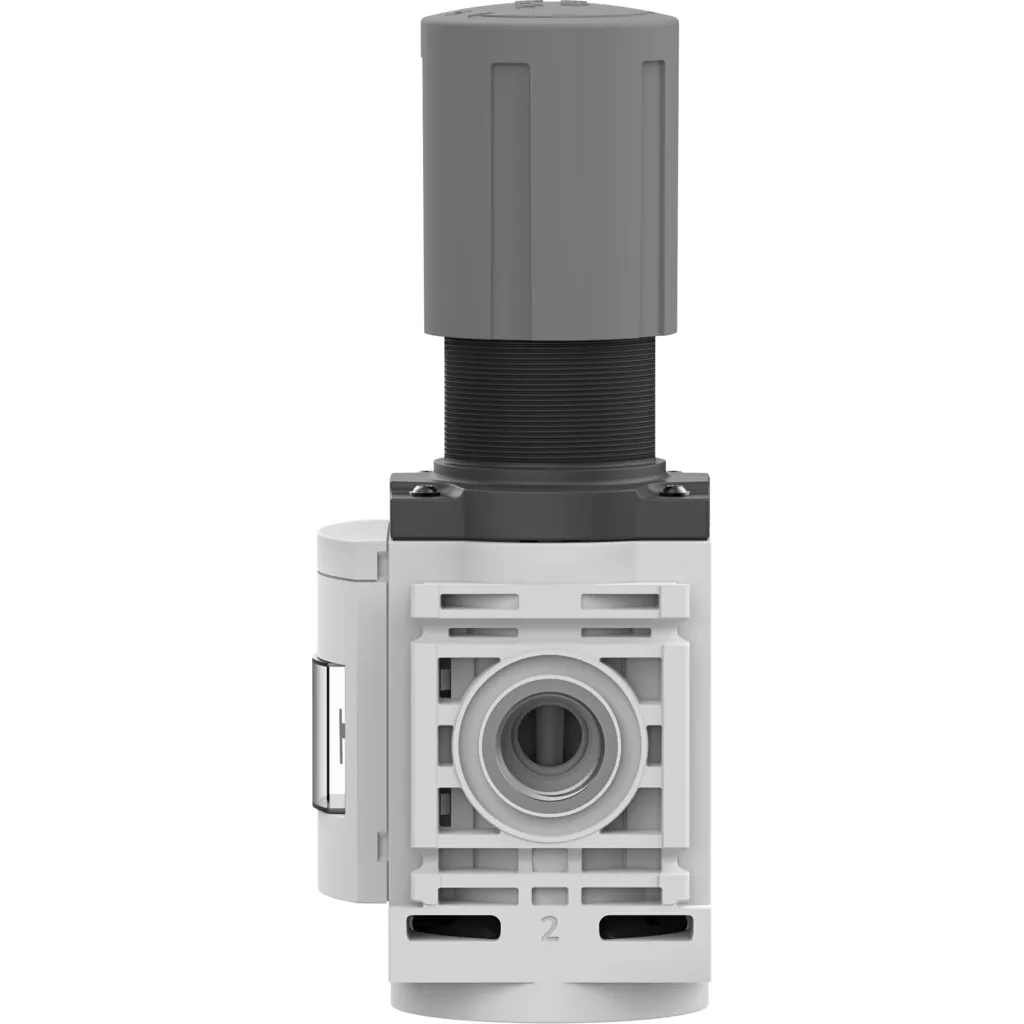

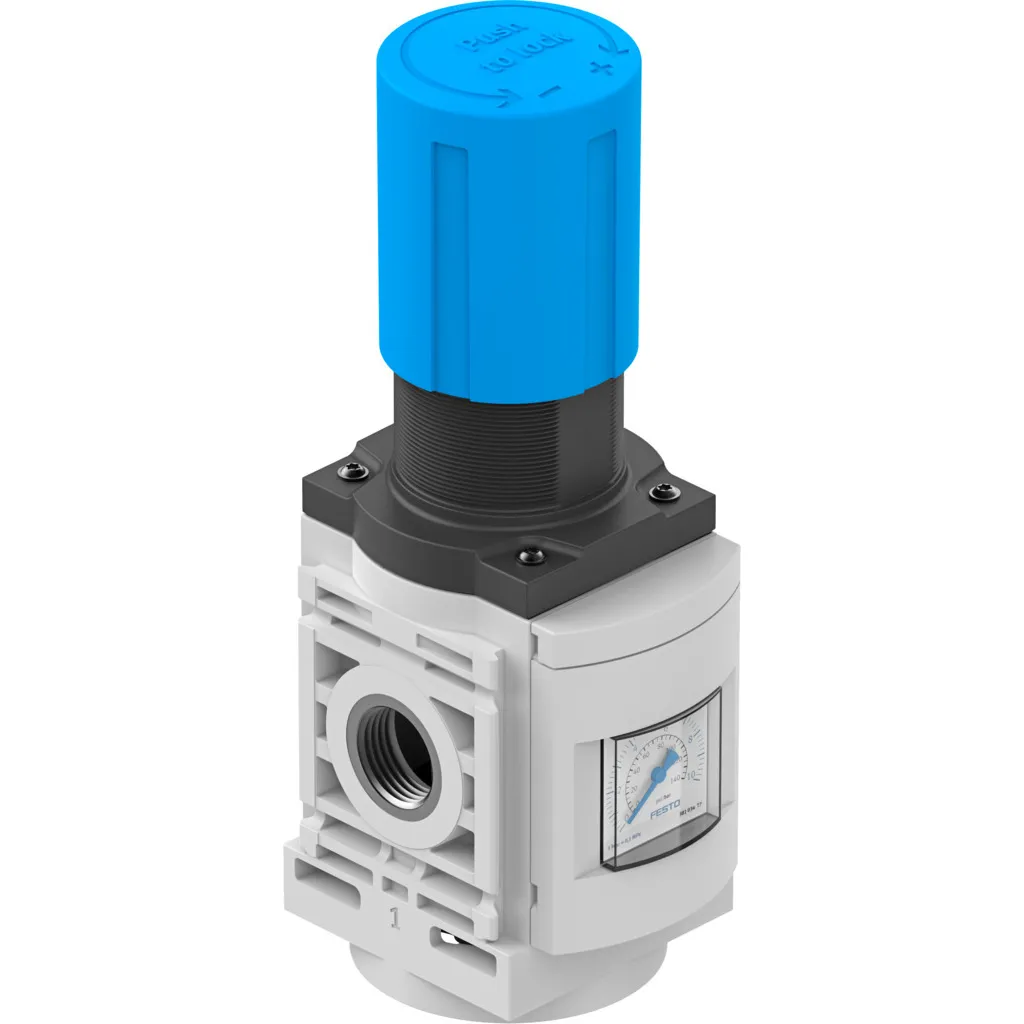

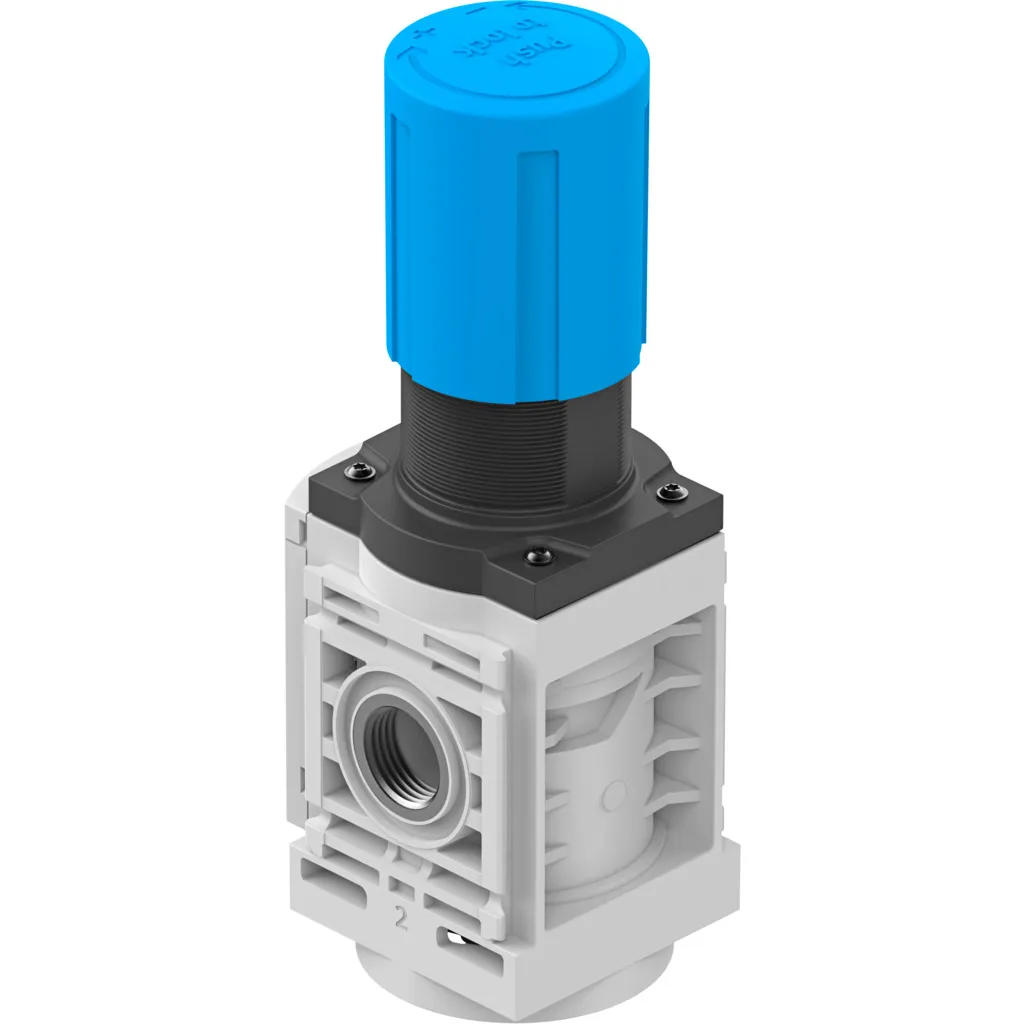

Festo Pressure Regulator, G1/2, 0.3 bar to 7 bar, MS6-LR-1/2-D6-AG-BAR-F1A-B

Part Number : MS6-LR-1/2-D6-AG-BAR-F1A-B

Brand :
Festo

The MS6-LR-1/2-D6-AG-BAR-F1A-B regulator offers precise pneumatic pressure regulation with a G1/2 connection for industrial systems.

View all

KWD 30.800

Quantity
Description
Specifications
Downloads
Related products

Description

Designed for industrial applications, this Festo regulator features a G1/2 connection and an adjustable pressure range of 0.3 bar to 7 bar. Its durable construction ensures long-term reliability and precision in pneumatic systems.

Product Overview

Durable and precise regulator with G1/2 connection for industrial pneumatic systems.

Key Features

1. G1/2 connection 2. Adjustable pressure range: 0.3 bar to 7 bar 3. High durability and performance

Applications

Suitable for pneumatic systems, automation setups, and process industries.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS6-LR-1-2-D6-AG-BAR-F1A-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Pressure regulator with pressure gauge Directly actuated piston regulator
Controller function
Output pressure constant With secondary venting With return flow function

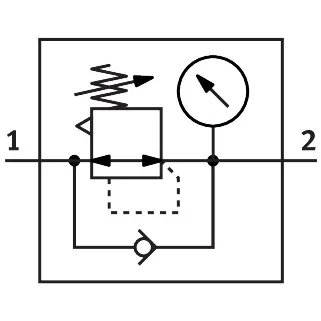

Symbol
991558
Displayable units
bar psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
  • 0.035 MPa
  • 0.35 bar
  • 5.075 psi
Standard nominal flow rate (standardised to DIN 1343)
6000 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
482 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy stainless steel
Material housing
PA-reinforced
Material valve stem
POM
