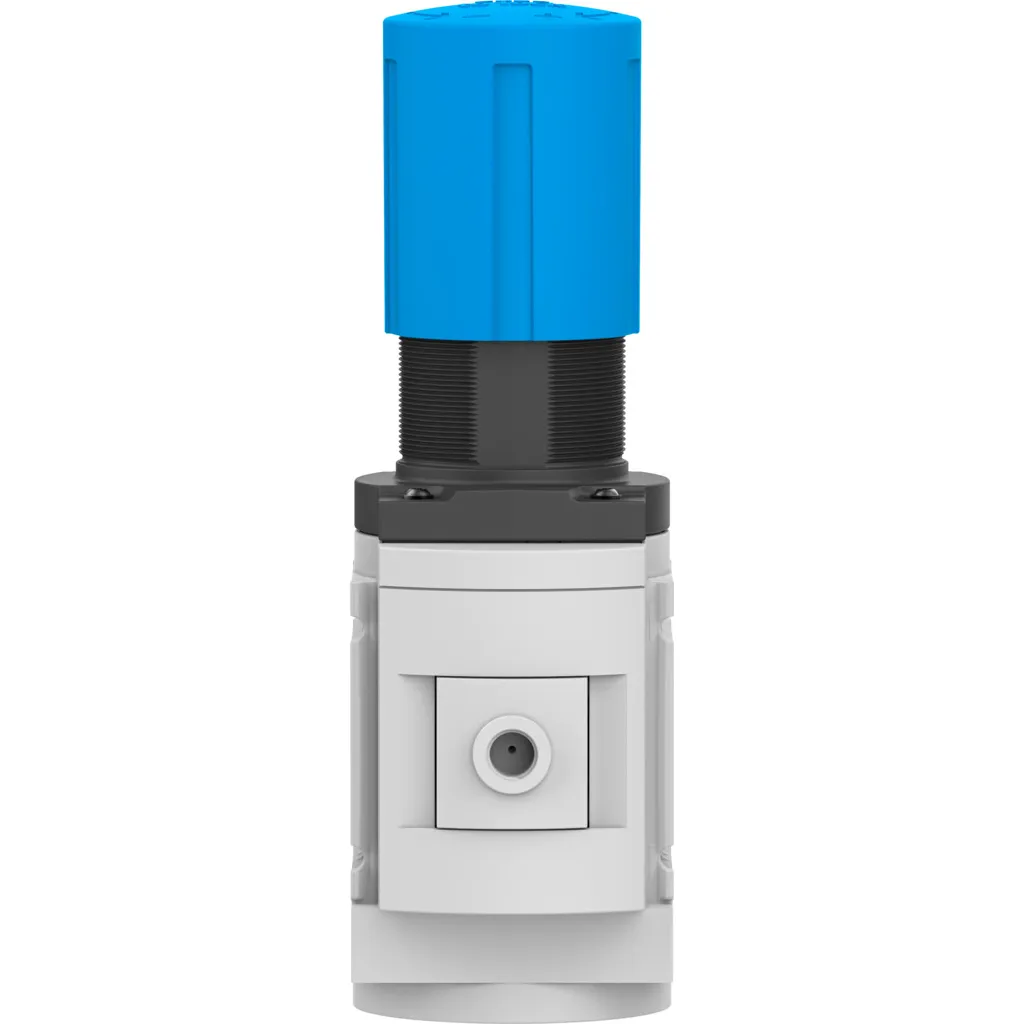

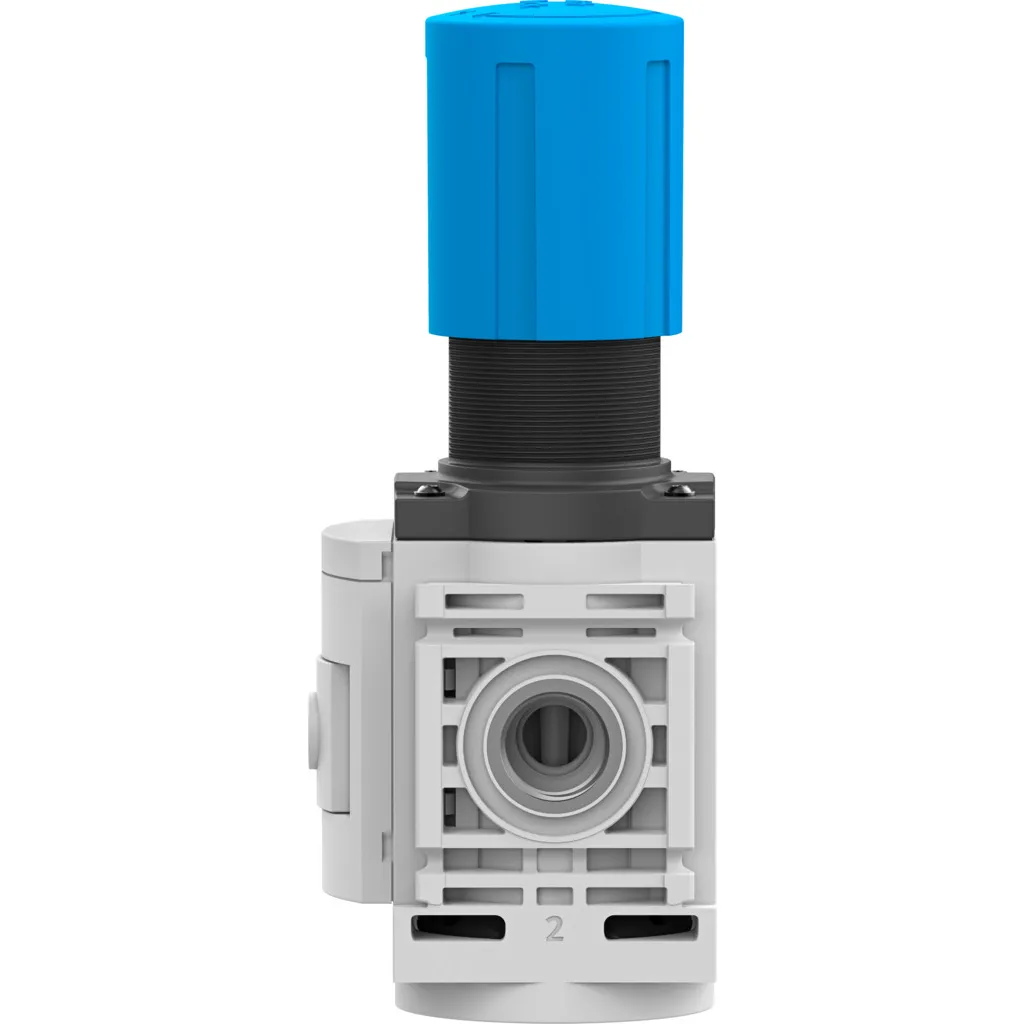

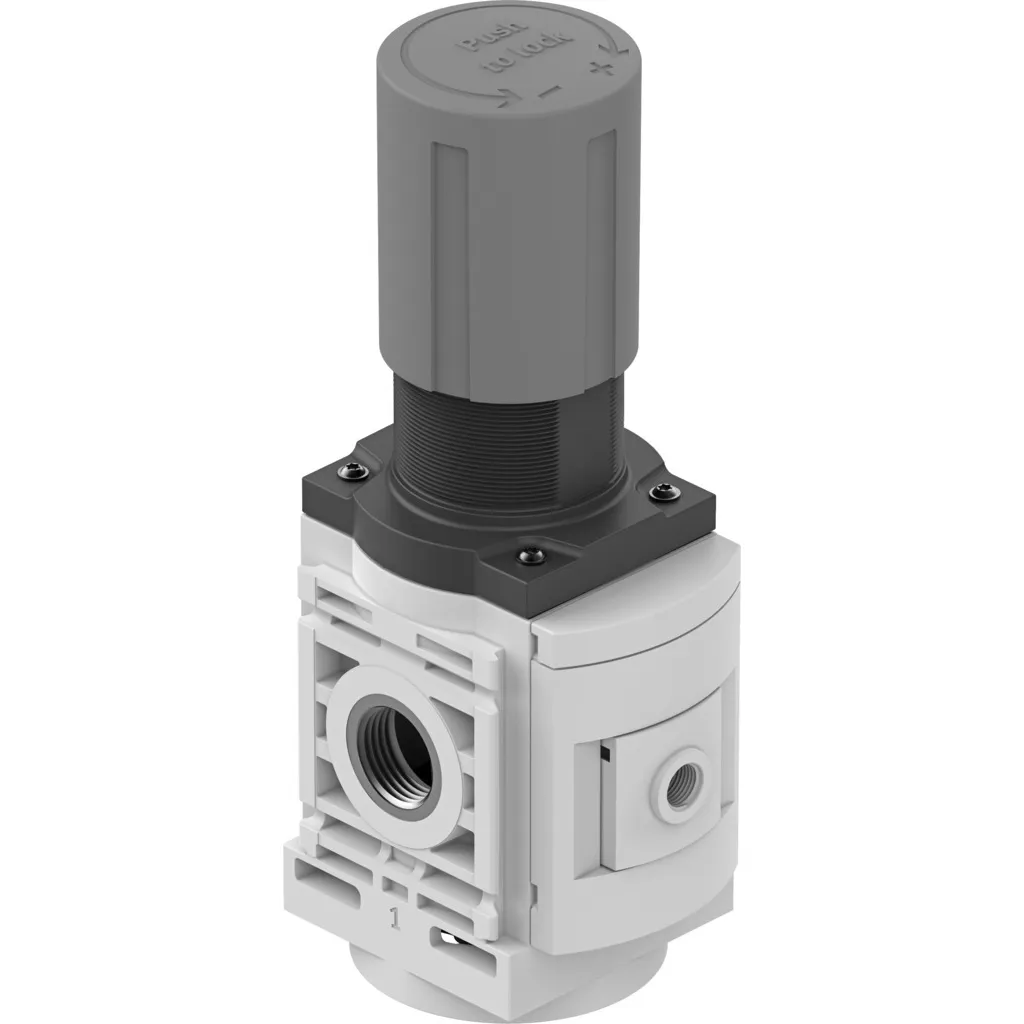

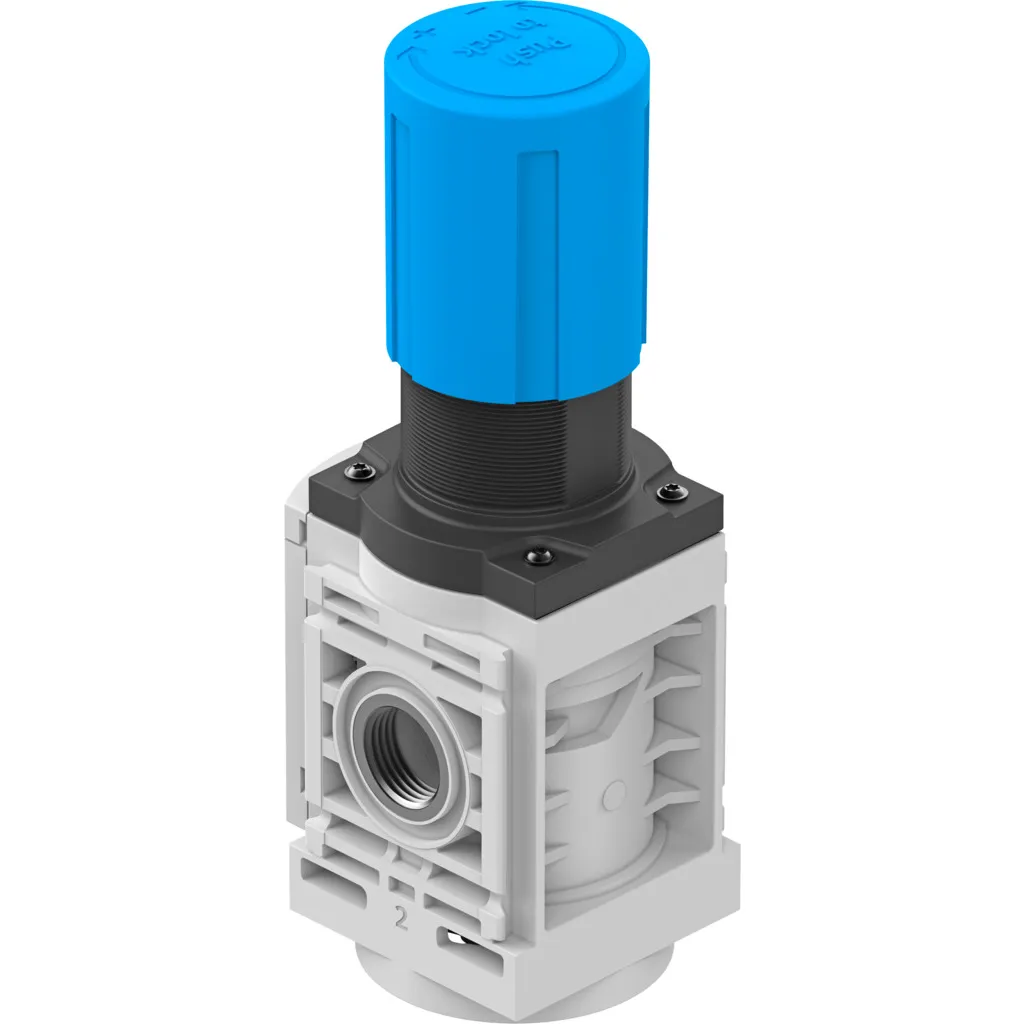

Festo Pressure Regulator, G1/2, 0.3 bar to 7 bar, MS6-LR-1/2-D6-A8-F1A-B

Part Number : MS6-LR-1/2-D6-A8-F1A-B

Brand :
Festo

The MS6-LR-1/2-D6-A8-F1A-B regulator provides reliable and precise pneumatic pressure control for industrial applications.

View all

KWD 27.000

Quantity
Description
Specifications
Downloads
Related products

Description

This Festo regulator features a G1/2 port and a pressure range of 0.3 bar to 7 bar. Its robust construction and compact design make it a versatile solution for demanding pneumatic systems.

Product Overview

Compact and durable regulator with G1/2 port for pneumatic systems.

Key Features

1. G1/2 connection for pneumatic systems 2. Adjustable pressure range: 0.3 bar to 7 bar 3. Robust and reliable design

Applications

Process control, pneumatic systems, and industrial automation.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS6-LR-1-2-D6-A8-F1A-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Pressure regulator without pressure gauge Directly actuated piston regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991559
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
Prepared for G1/8
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
  • 0.035 MPa
  • 0.35 bar
  • 5.075 psi
Standard nominal flow rate (standardised to DIN 1343)
6000 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
479 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy stainless steel
Material housing
PA-reinforced
Material valve stem
POM
