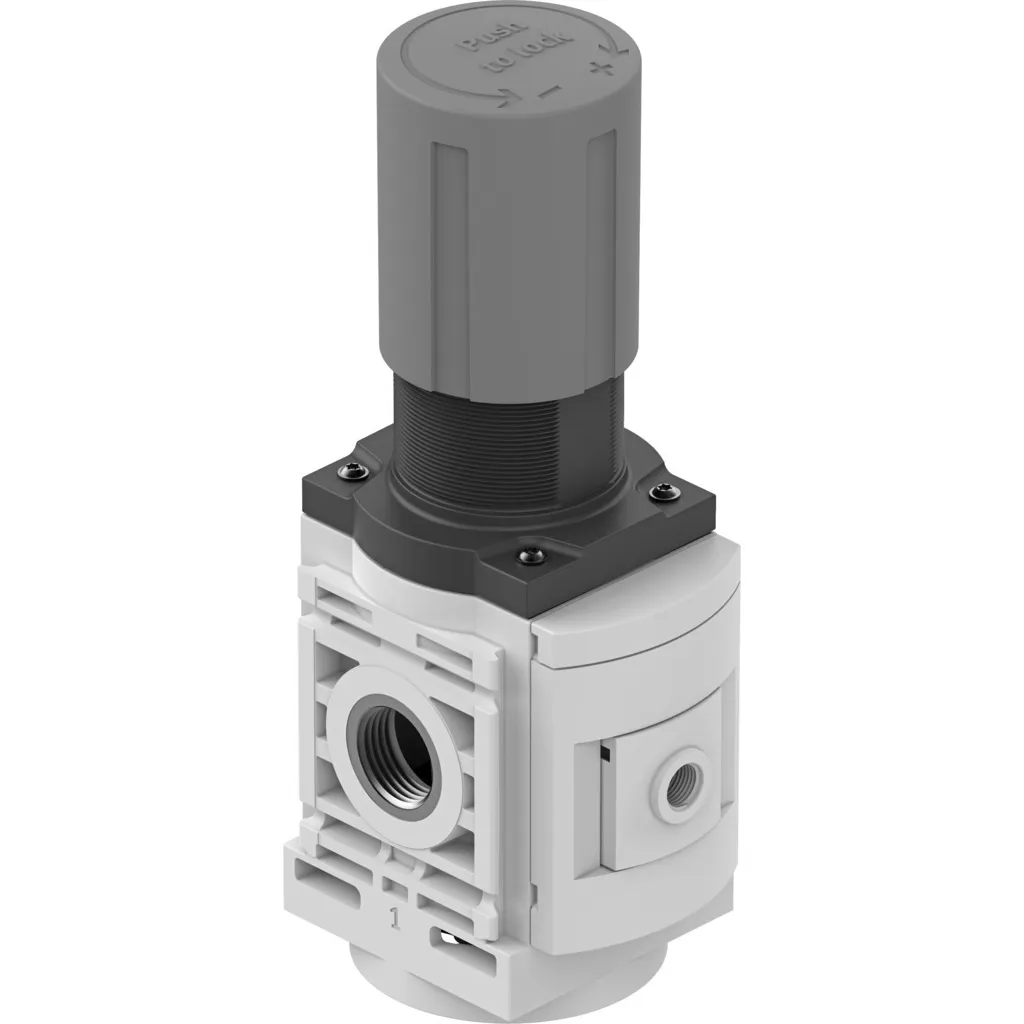

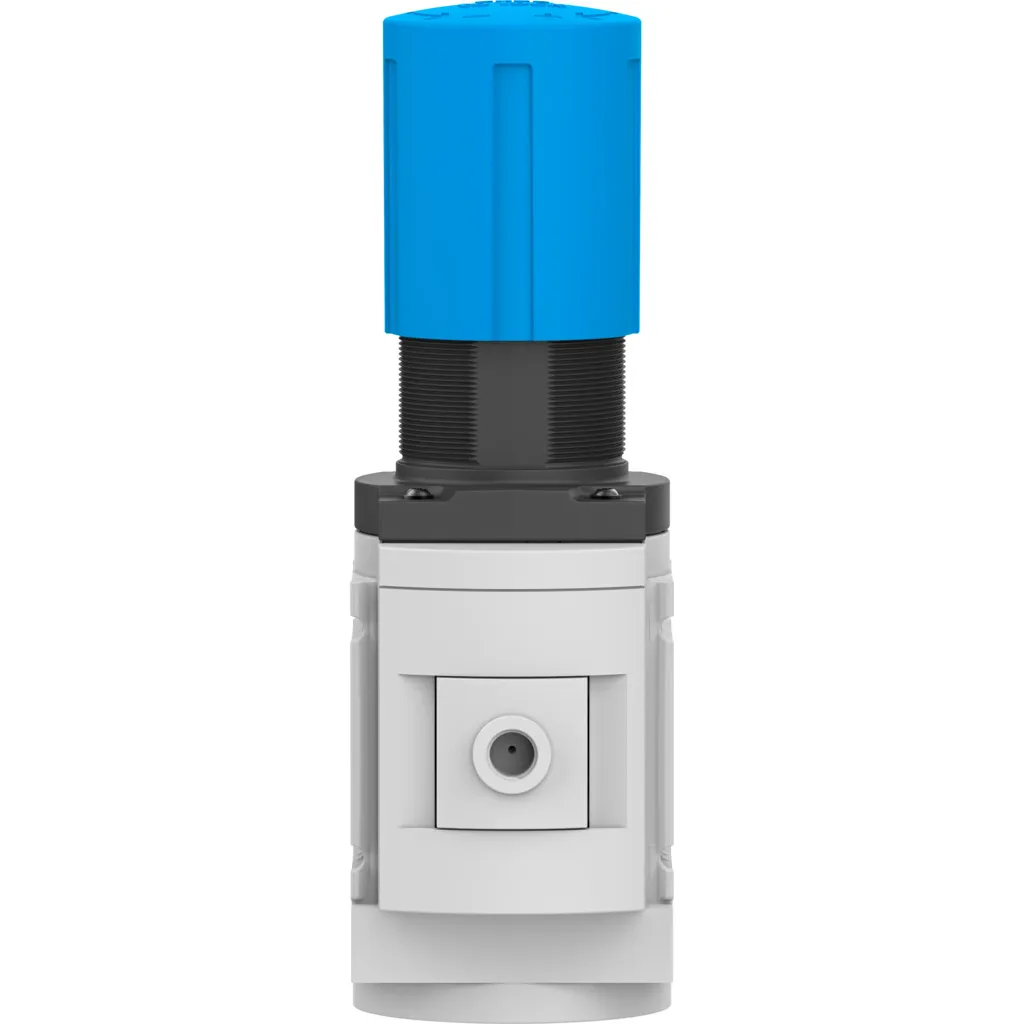

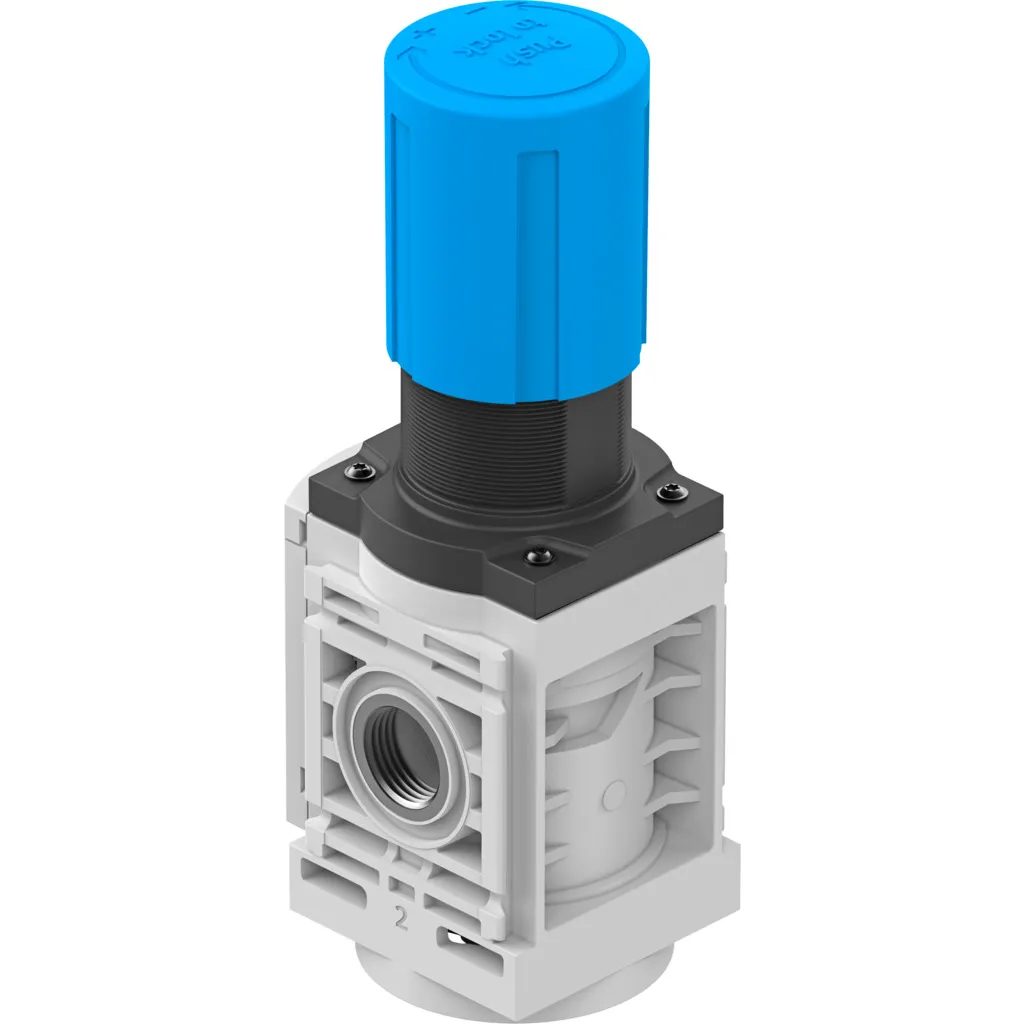

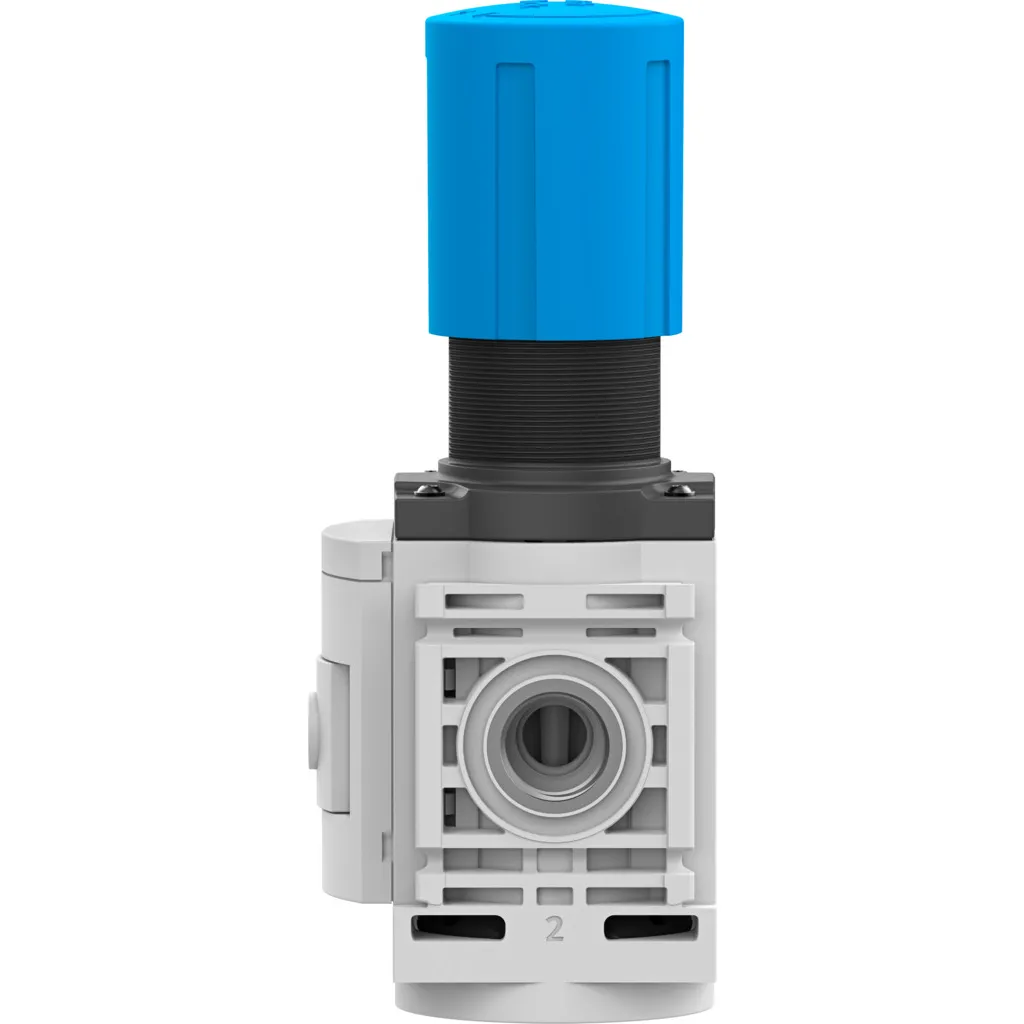

Festo Pressure Regulator, G1/2, 0.3 bar to 7 bar, MS6-LR-1/2-D6-A8-B

Part Number : MS6-LR-1/2-D6-A8-B

Brand :
Festo

The Festo MS6-LR-1/2-D6-A8-B regulator delivers reliable pneumatic pressure regulation with a G1/2 connection.

View all

KWD 17.000

Quantity
Description
Specifications
Downloads
Related products

Description

Featuring a G1/2 port and a pressure range of 0.3 bar to 7 bar, this regulator is ideal for industrial automation and process systems. Its compact design ensures ease of use and reliable performance.

Product Overview

Compact and efficient pneumatic pressure regulator with G1/2 connection.

Key Features

1. G1/2 port connection 2. Adjustable pressure range: 0.3 bar to 7 bar 3. Durable and reliable design

Applications

Suitable for industrial pneumatic systems, automation setups, and process environments.

Downloads

Pressure regulator MS-LR-B.pdf

pdf
Download

MS6-LR-1-2-D6-A8-B Technical data.pdf

pdf
Download

MS-LR-B Operating Instructions.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
optional
Design
Pressure regulator without pressure gauge Directly actuated piston regulator
Controller function
Output pressure constant With secondary venting With return flow function
Symbol
991559
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
Prepared for G1/8
Operating pressure
  • 0.1 MPa ... 1 MPa
  • 1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
  • 0.035 MPa
  • 0.35 bar
  • 5.075 psi
Standard nominal flow rate (standardised to DIN 1343)
6000 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
479 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material underneath cover
PA
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel Galvanised steel
Material housing
PA-reinforced
Material valve stem
POM
