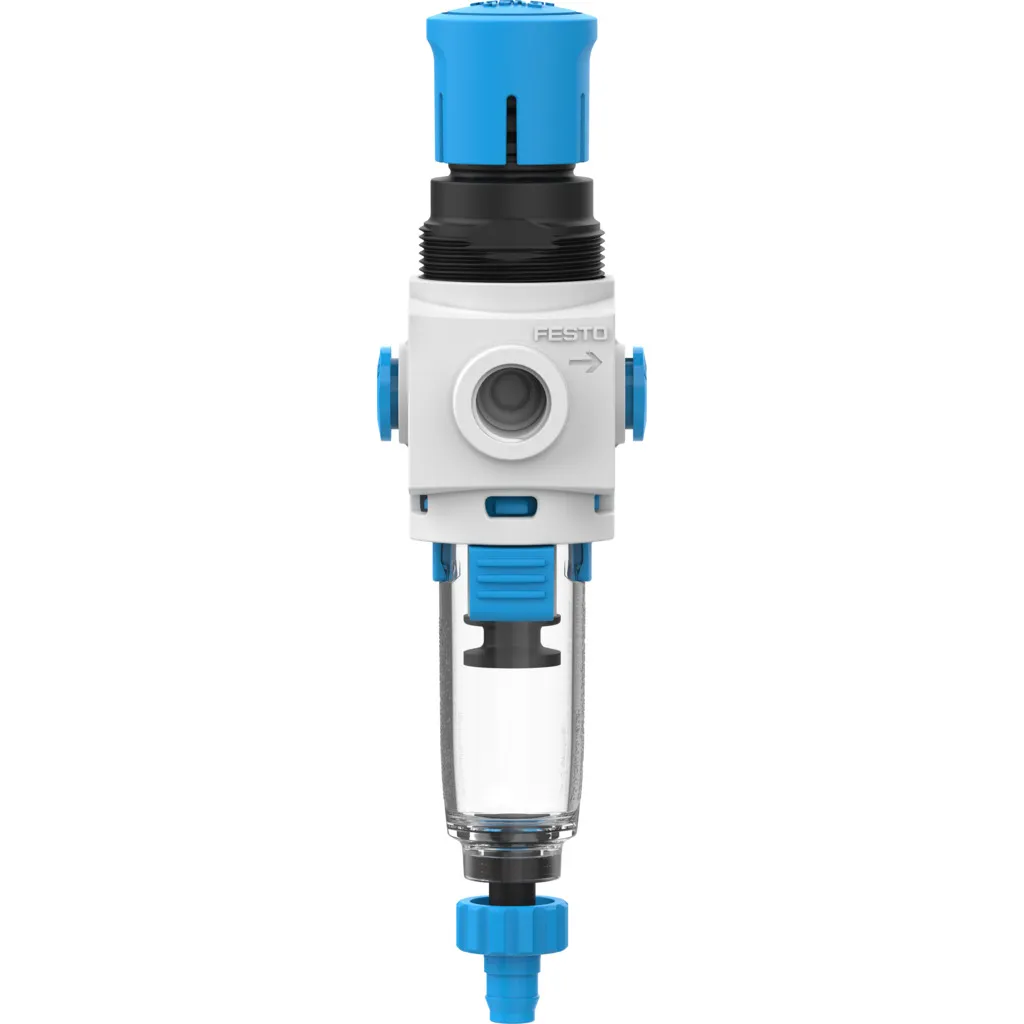

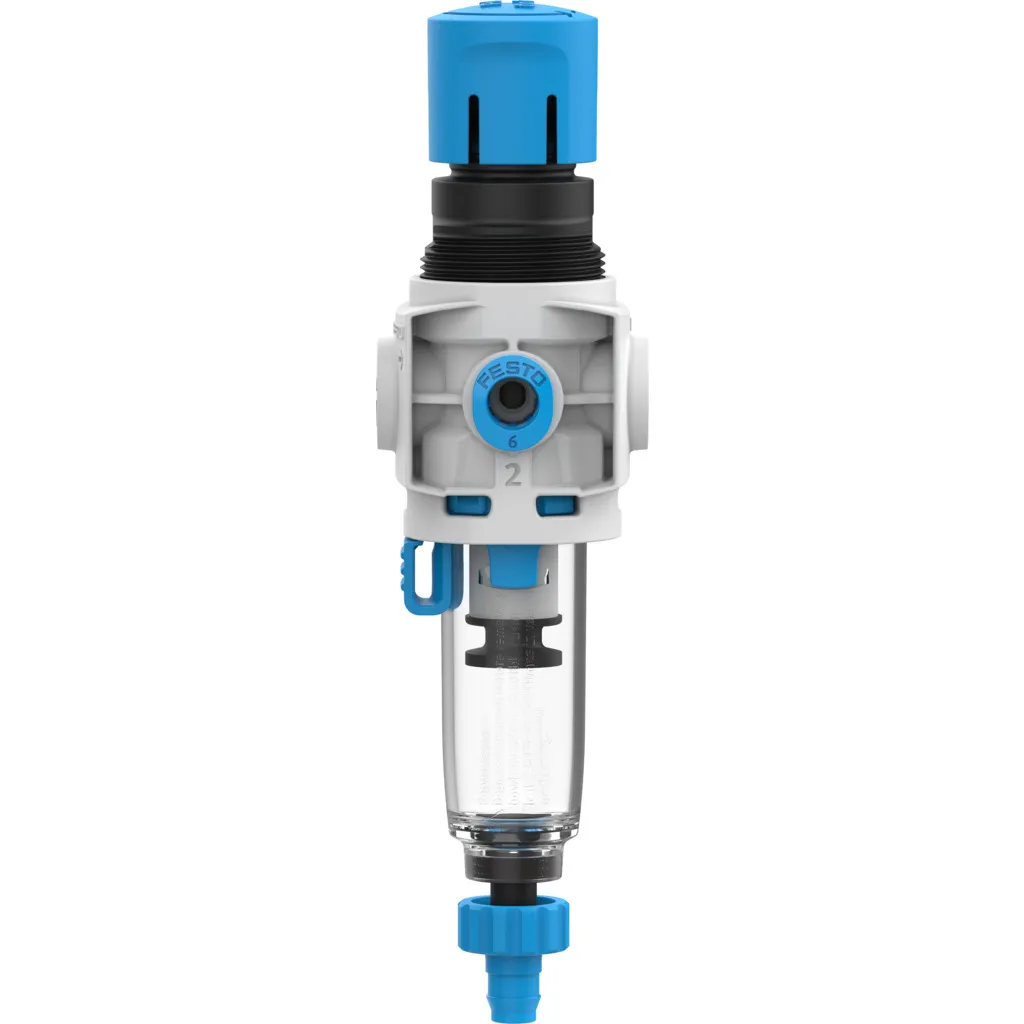

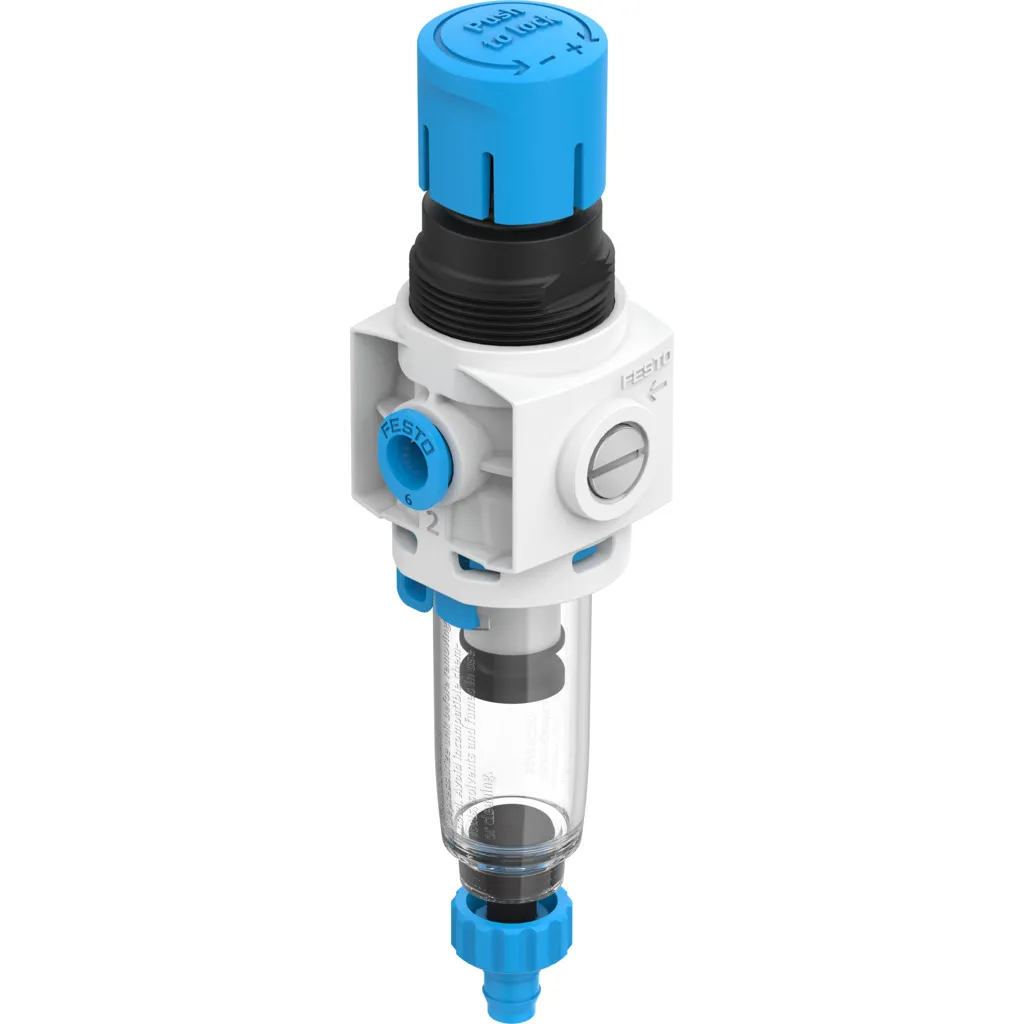

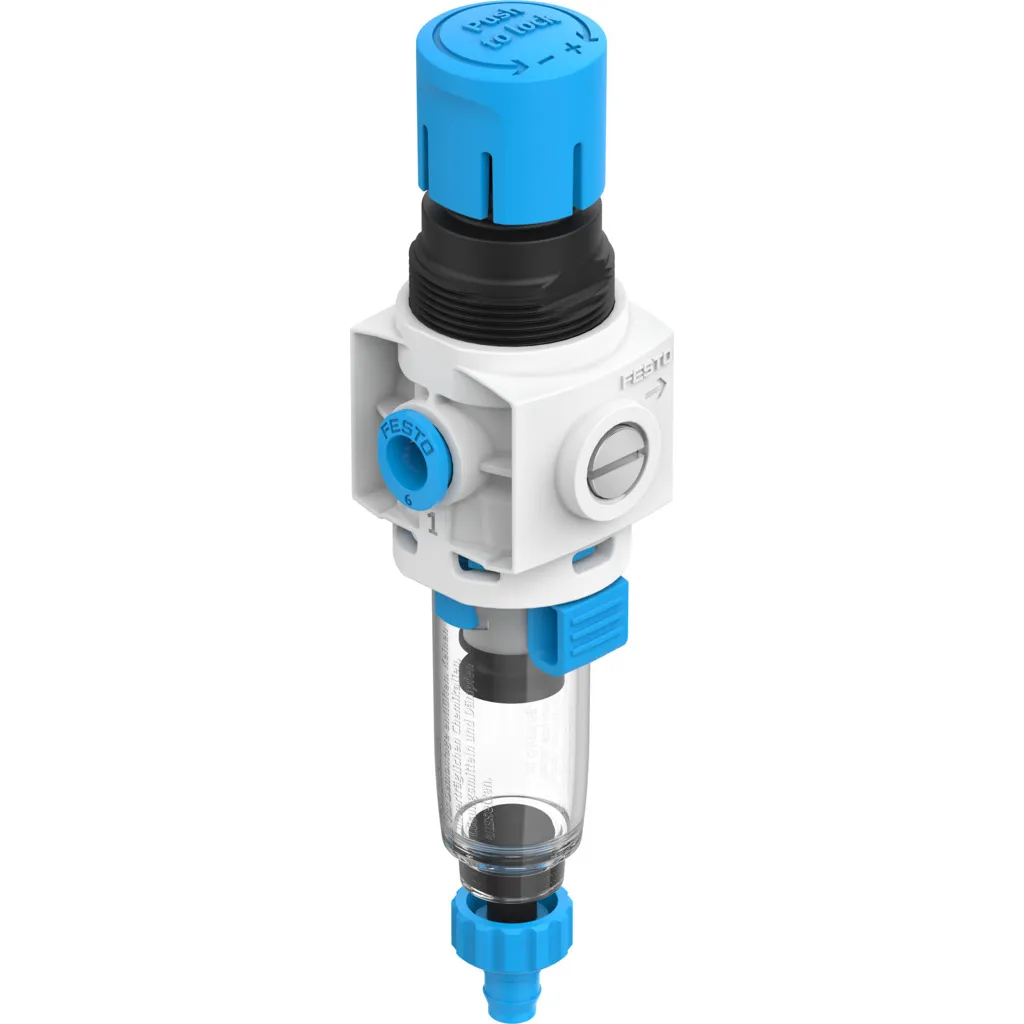

Festo Filter Regulator, QS-6, 0.5 to 7 bar Pressure Range, MS2-LFR-QS6-D6-C-P-M-A8-B

Part Number : MS2-LFR-QS6-D6-C-P-M-A8-B

Brand :
Festo

Filter regulator with Quick Connect QS6 for easy installation and usage. This product is designed for precise air control and optimized for both standard and advanced industrial applications.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The MS2-LFR-QS6-D6-C-P-M-A8-B is equipped with a Quick Connect QS6 for seamless integration into pneumatic setups. Crafted with robust materials and cutting-edge technology, it ensures consistent performance even in demanding industrial conditions. Ideal for automation, manufacturing, and other high-performance pneumatic systems.

Product Overview

MS2-LFR-QS6-D6-C-P-M-A8-B from Festo provides reliable air control and filtration for industrial applications.

Key Features

• Compact design • Precise pressure control • Reliable and durable

Applications

Ideal for pneumatic systems requiring clean and regulated air.

Downloads

Filter regulator MS-LFR-B.pdf

pdf
Download

MS2-LFR-QS6-D6-C-P-M-A8-B Technical data.pdf

pdf
Download

MS2-LFR Operating Instructions.pdf

pdf
Download

Specifications

Size
2
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
Vertical +/-5°
Grade of filtration
5 µm
Condensate drain
Manually rotating
Design
Filter regulator without pressure gauge
Max. condensate volume
3 ml
Controller function
Output pressure constant With secondary venting With return flow function

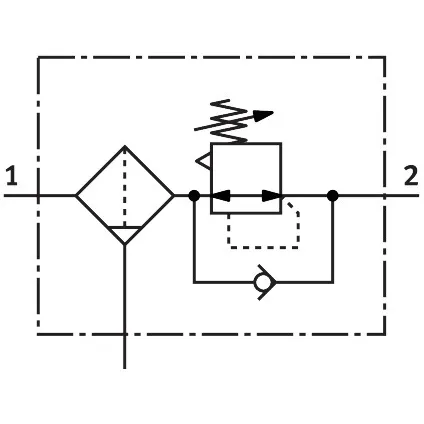

Symbol
991590
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
Prepared for G1/8
Operating pressure
1 bar ... 8 bar
Pressure regulation range
0.5 bar ... 7 bar
Max. pressure hysteresis
3.625 psi
Standard nominal flow rate (standardised to DIN 1343)
310 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:4]
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
35.7 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
QS-6
Pneumatic connection, port 2
QS-6
Note on materials
RoHS-compliant
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel
Material filter
PE
Material housing
PA-reinforced
Material membrane
NBR
Material bowl
PC
Material separating plate
POM
Material valve stem
Wrought aluminium alloy NBR
