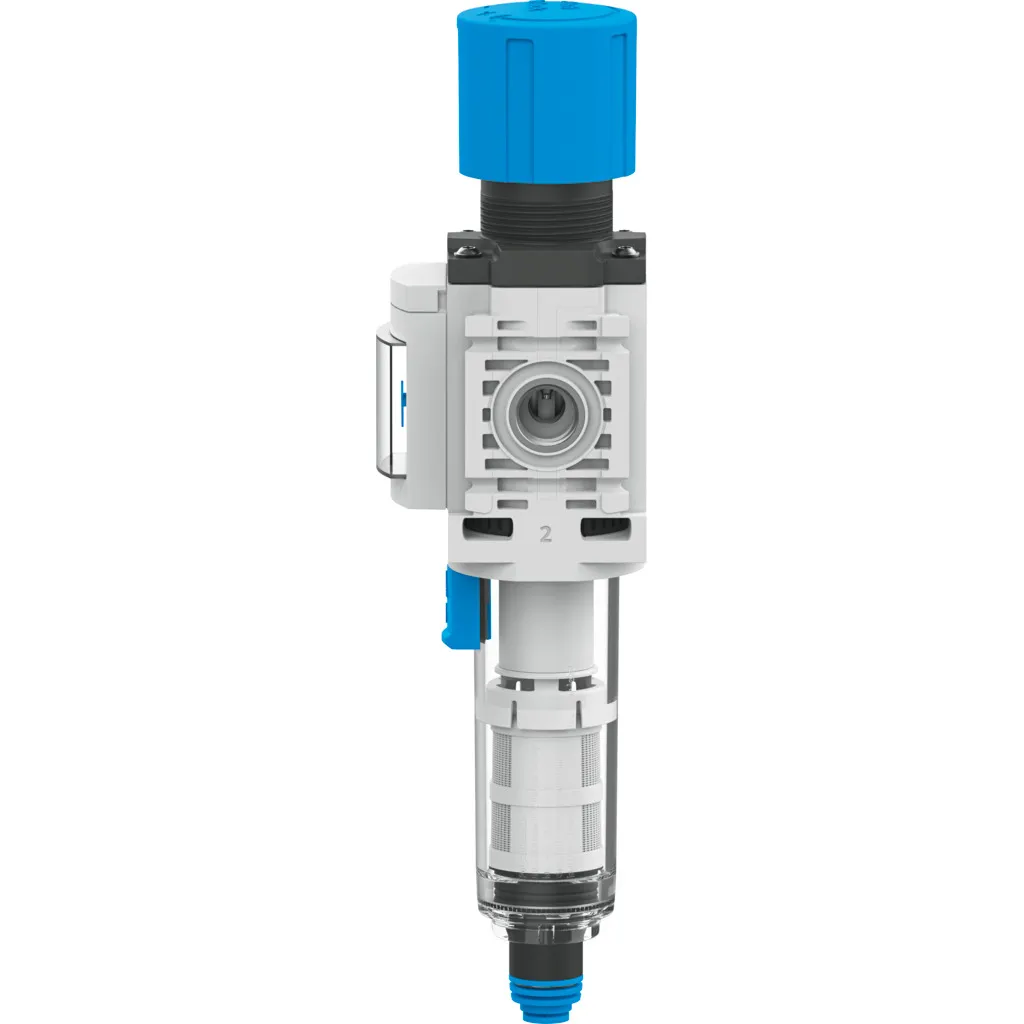

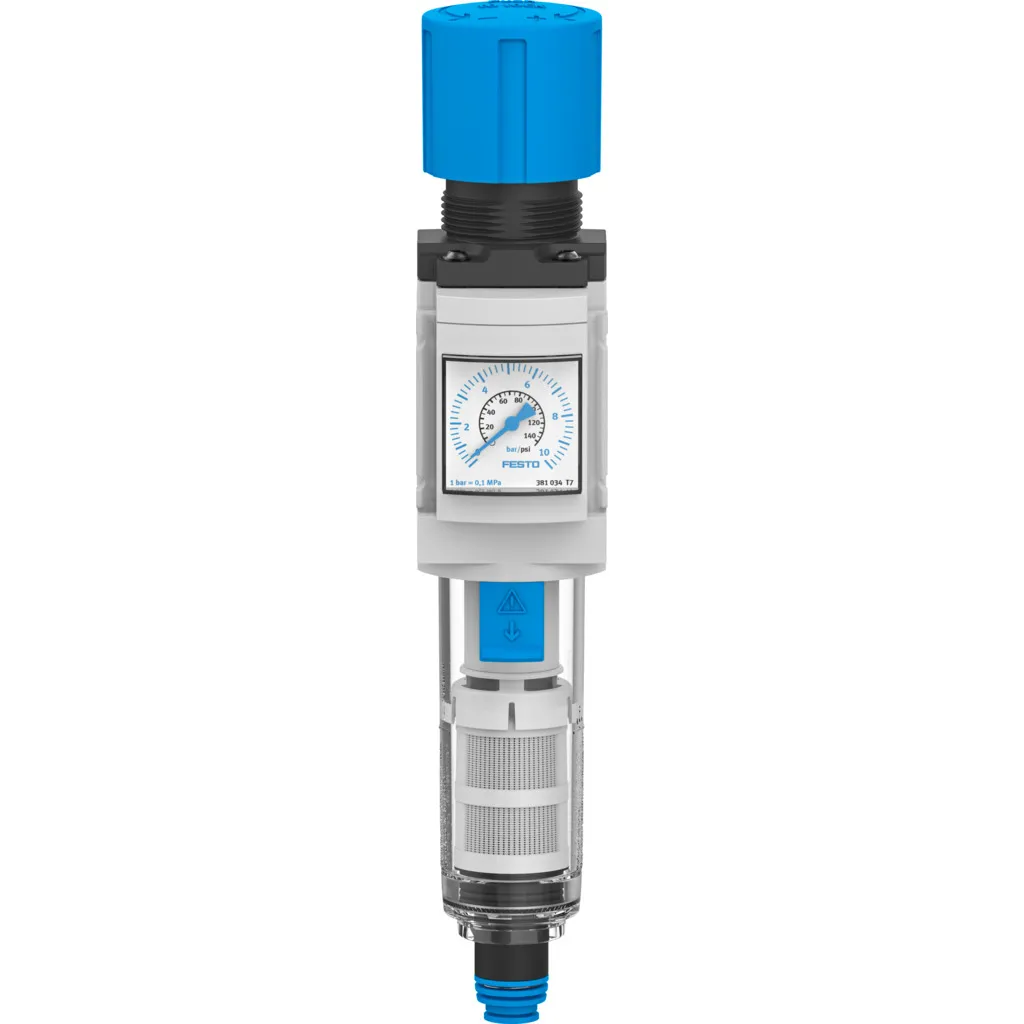

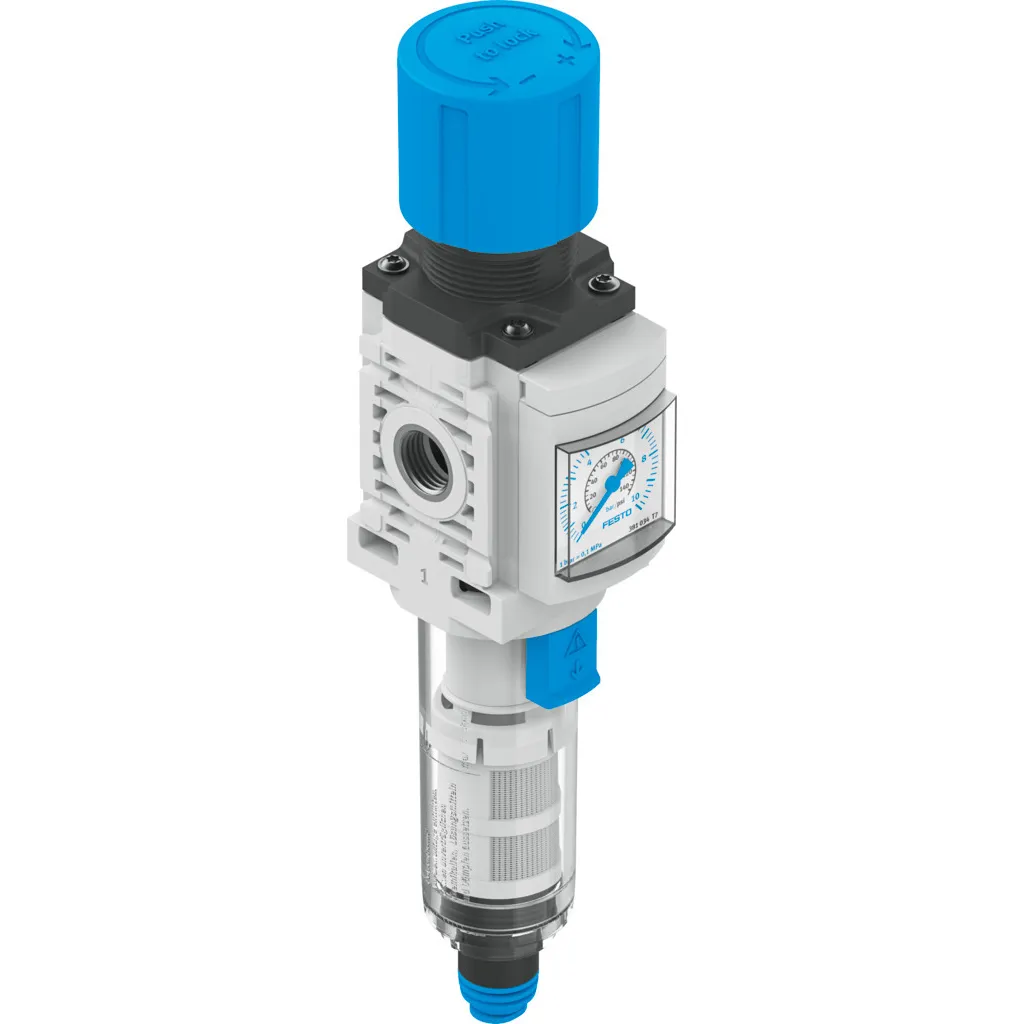

Festo Filter Regulator, 1/4", 0.3 to 7 bar Pressure Range, MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B

Part Number : MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B

Brand :
Festo

VC model regulator with integrated BAR indicator for precise pressure control. This product is designed for precise air control and optimized for both standard and advanced industrial applications.

View all

KWD 33.000

Quantity
Description
Specifications
Downloads
Related products

Description

The MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B comes with a BAR indicator, ensuring precise monitoring of air pressure in industrial systems. Crafted with robust materials and cutting-edge technology, it ensures consistent performance even in demanding industrial conditions. Ideal for automation, manufacturing, and other high-performance pneumatic systems.

Product Overview

With an integrated BAR indicator, this VC model offers precise pressure monitoring for demanding applications.

Key Features

• Integrated BAR indicator for accurate pressure monitoring • Robust construction for industrial reliability • Pressure range of 1 to 12 bar.

Applications

• Best suited for high-precision pneumatic applications • Reliable pressure monitoring in automated systems • Industrial air filtration and regulation.

Downloads

Filter regulator MS-LFR-B.pdf

pdf
Download

MS4-LFR-1-4-D6-E-P-VC-AG-BAR-B Technical data.pdf

pdf
Download

MS4-LFR Operating Instructions.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
Vertical +/-5°
Grade of filtration
40 µm
Condensate drain
Fully automatic Manual, non-detenting
Design
Filter regulator with pressure gauge Directly actuated piston regulator
Max. condensate volume
16.5 ml
Controller function
Output pressure constant With secondary venting With return flow function

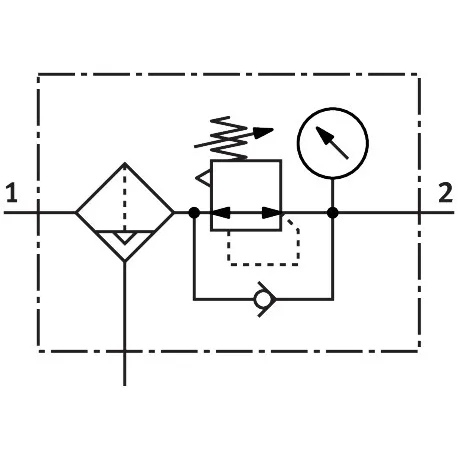

Symbol
991587
Displayable units
bar psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
2 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
7.25 psi
Standard nominal flow rate (standardised to DIN 1343)
1700 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature
5 °C ... 50 °C
Ambient temperature
5 °C ... 50 °C
Product weight
216 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel Galvanised steel
Material filter
PE
Material housing
PA-reinforced
Material bowl
PC
Material valve stem
POM
