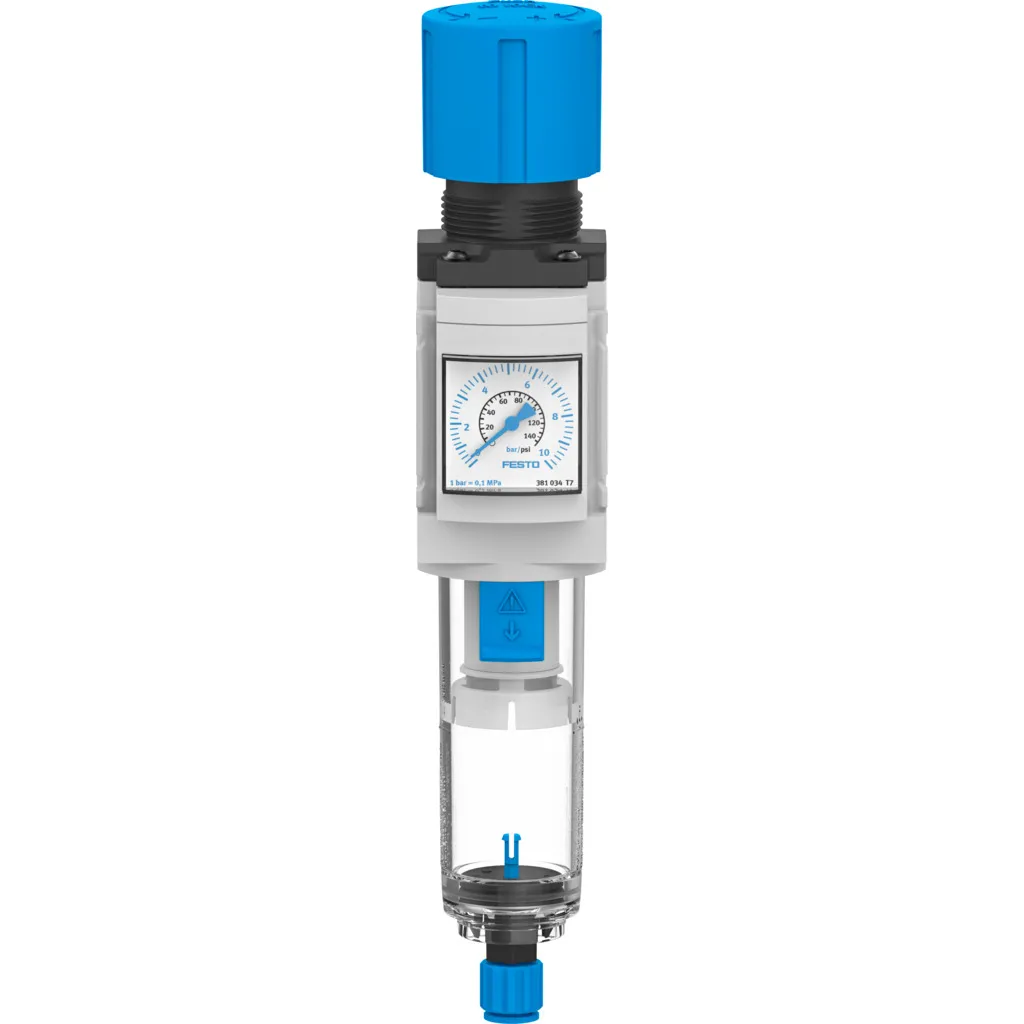

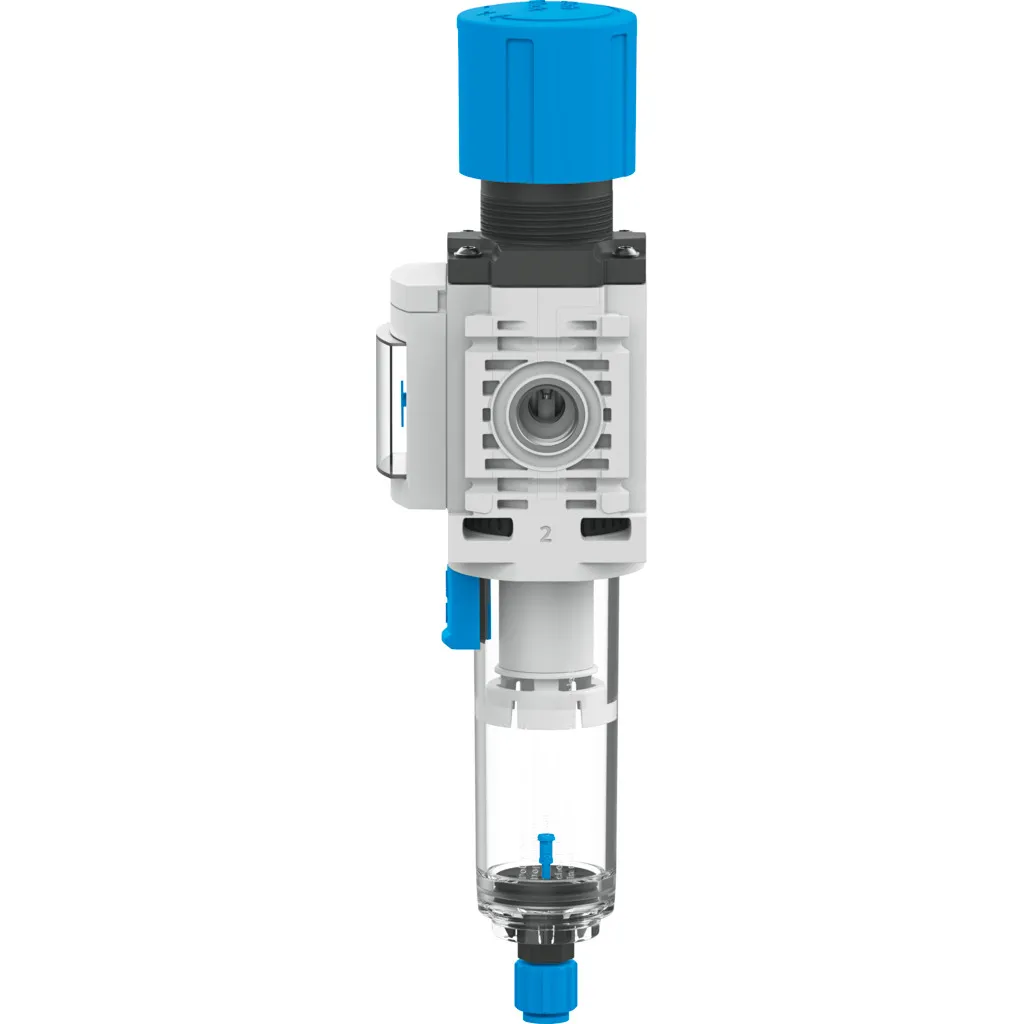

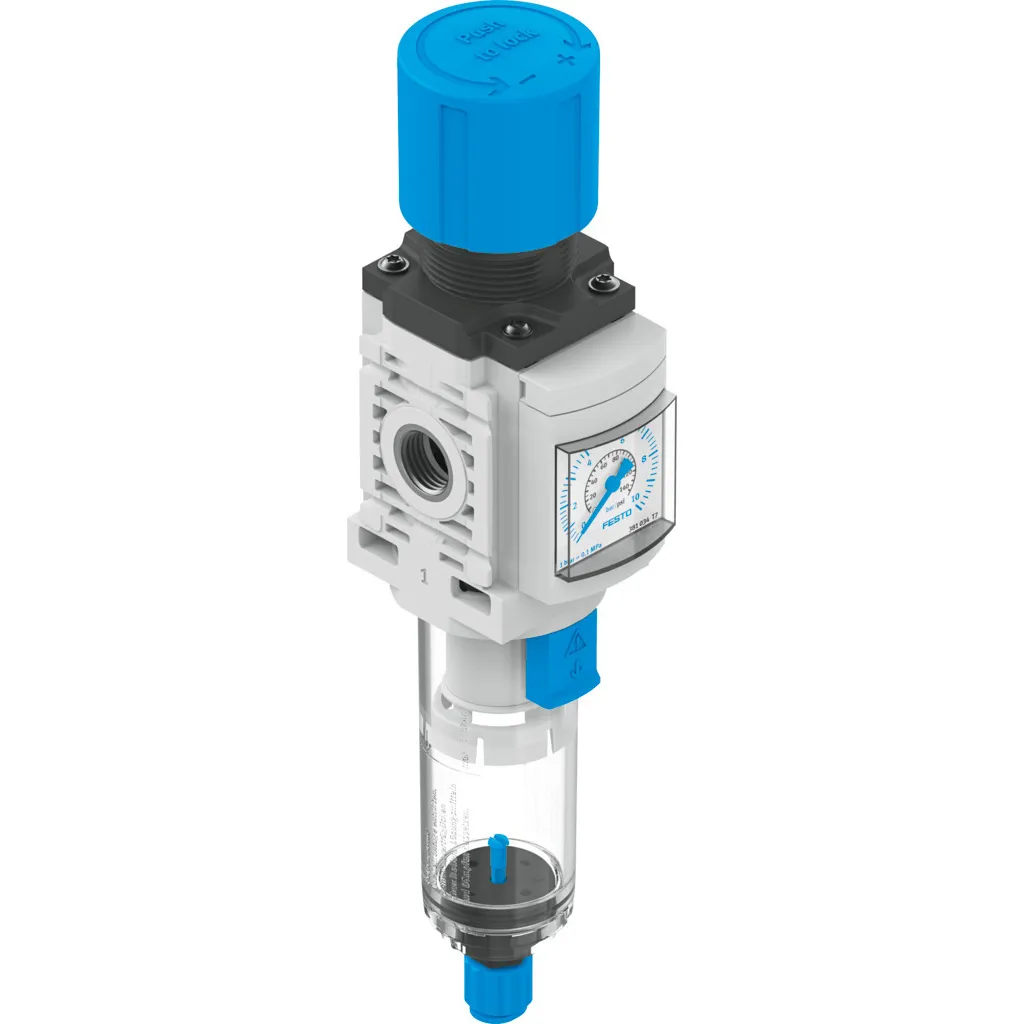

Festo Filter Regulator, 1/4", 0.3 to 7 bar Pressure Range, MS4-LFR-1/4-D6-E-P-M-AG-BAR-B

Part Number : MS4-LFR-1/4-D6-E-P-M-AG-BAR-B

Brand :
Festo

AG model regulator with a BAR indicator for precise air control. This product is designed for precise air control and optimized for both standard and advanced industrial applications.

View all

KWD 21.300


Quantity



Description
Specifications
Downloads
Related products

Description

AG model regulator with a BAR indicator provides precise control for pneumatic systems. Crafted with robust materials and cutting-edge technology, it ensures consistent performance even in demanding industrial conditions. Ideal for automation, manufacturing, and other high-performance pneumatic systems.

Product Overview

The MS4-LFR-1/4-D6-E-P-M-AG-BAR-B from Festo is a reliable filter regulator designed for precision air control in industrial applications.

Key Features

• Robust construction • Precision pressure regulation • Enhanced durability and reliability.

Applications

• Industrial pneumatic systems • High-precision air regulation • Demanding industrial environments.

Downloads

Filter regulator MS-LFR-B.pdf

pdf

MS4-LFR-1-4-D6-E-P-M-AG-BAR-B Technical data.pdf

pdf

MS4-LFR Operating Instructions.pdf

pdf

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
Vertical +/-5°
Grade of filtration
40 µm
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Directly actuated piston regulator
Max. condensate volume
16.5 ml
Controller function
Output pressure constant With secondary venting With return flow function

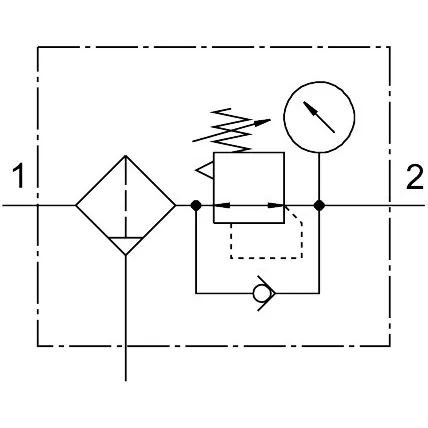

Symbol
991589
Displayable units
bar psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
7.25 psi
Standard nominal flow rate (standardised to DIN 1343)
1700 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
207 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel Galvanised steel
Material filter
PE
Material housing
PA-reinforced
Material bowl
PC
Material valve stem
POM
