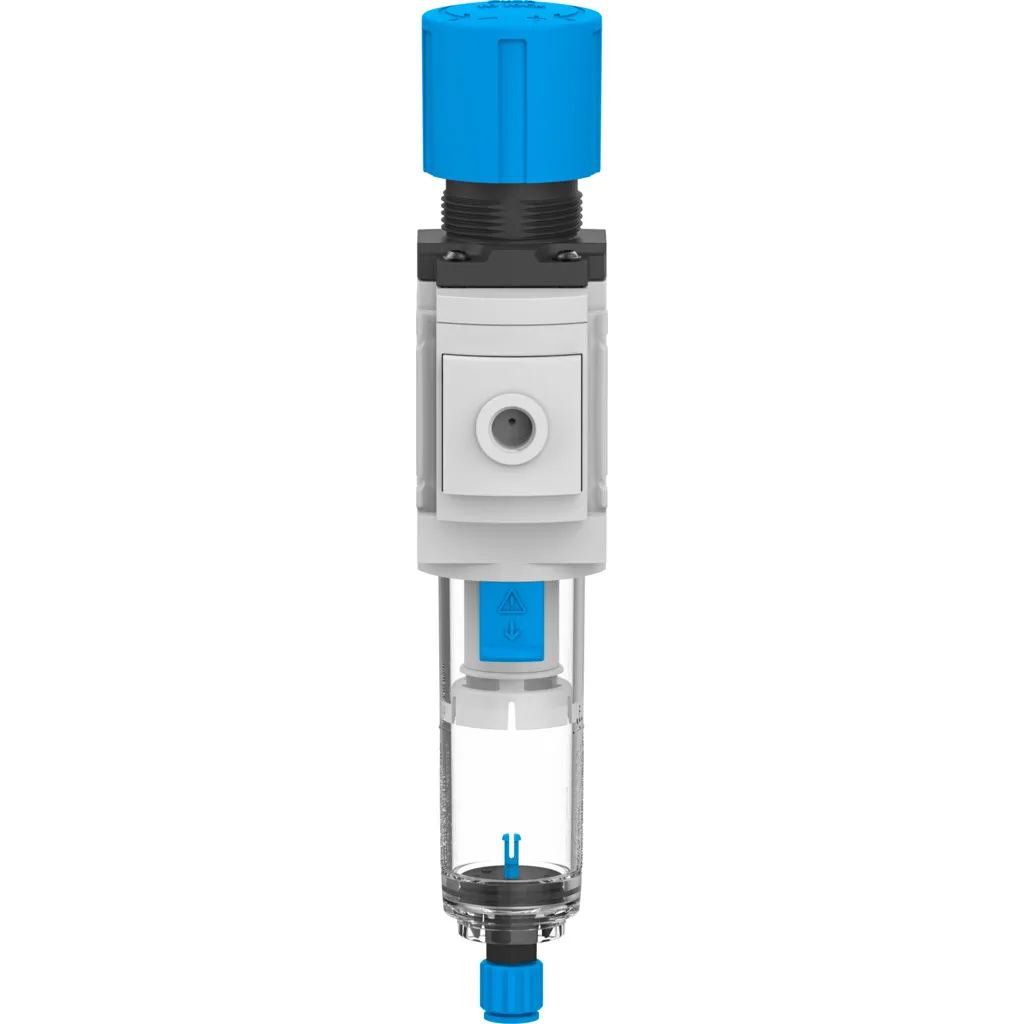

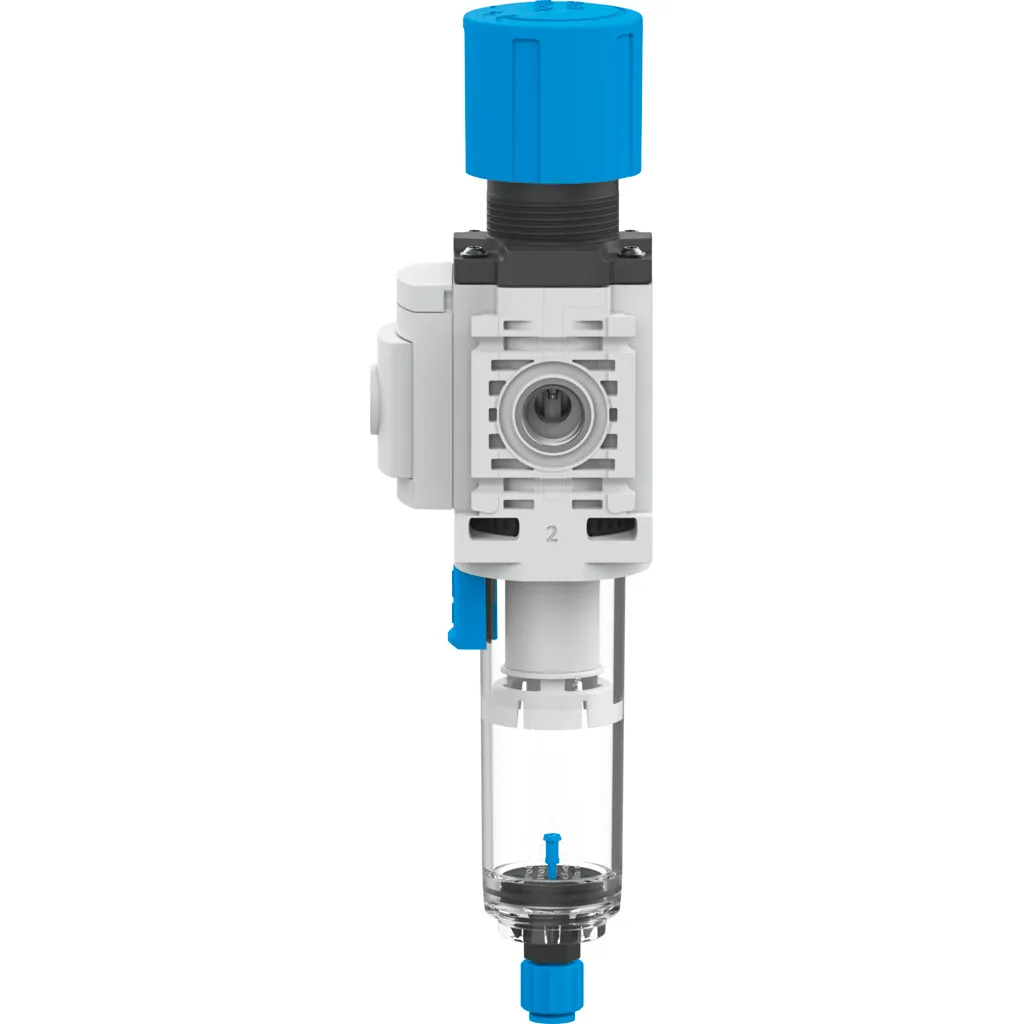

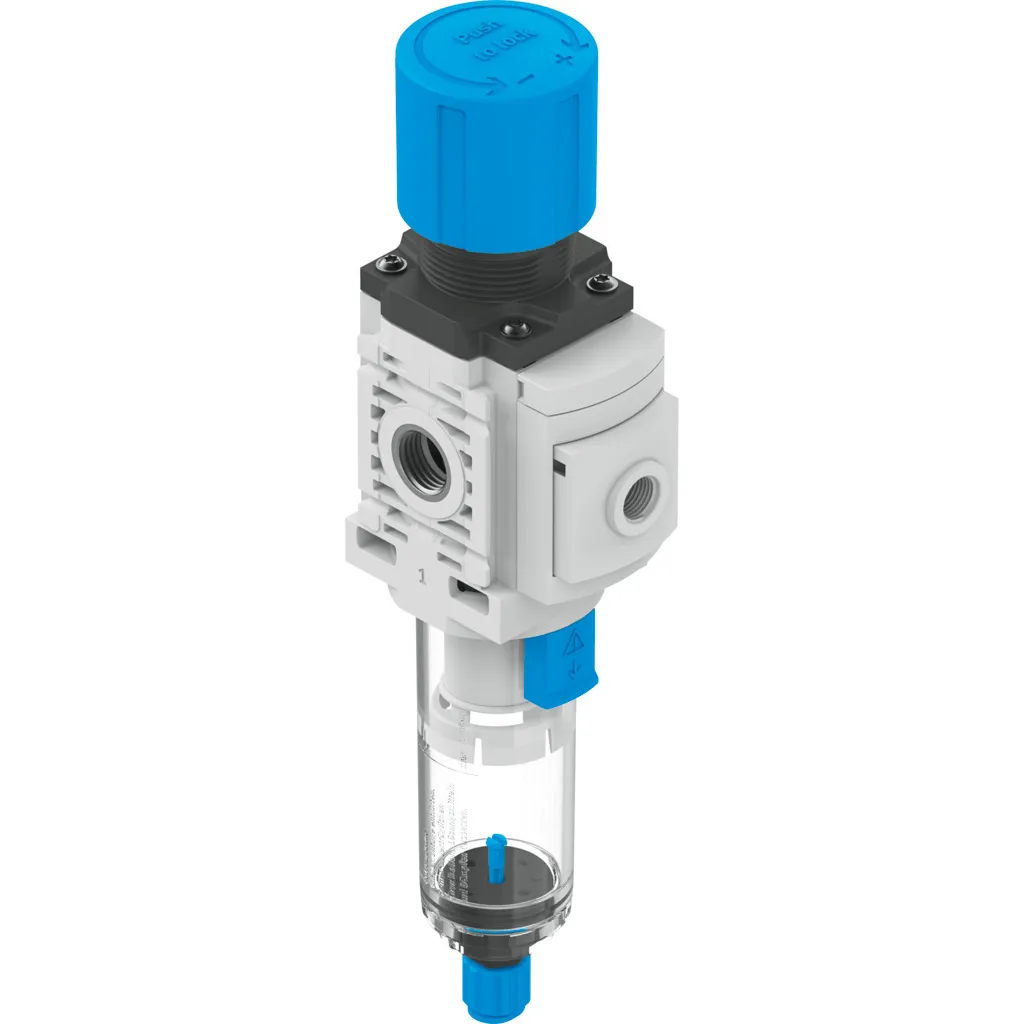

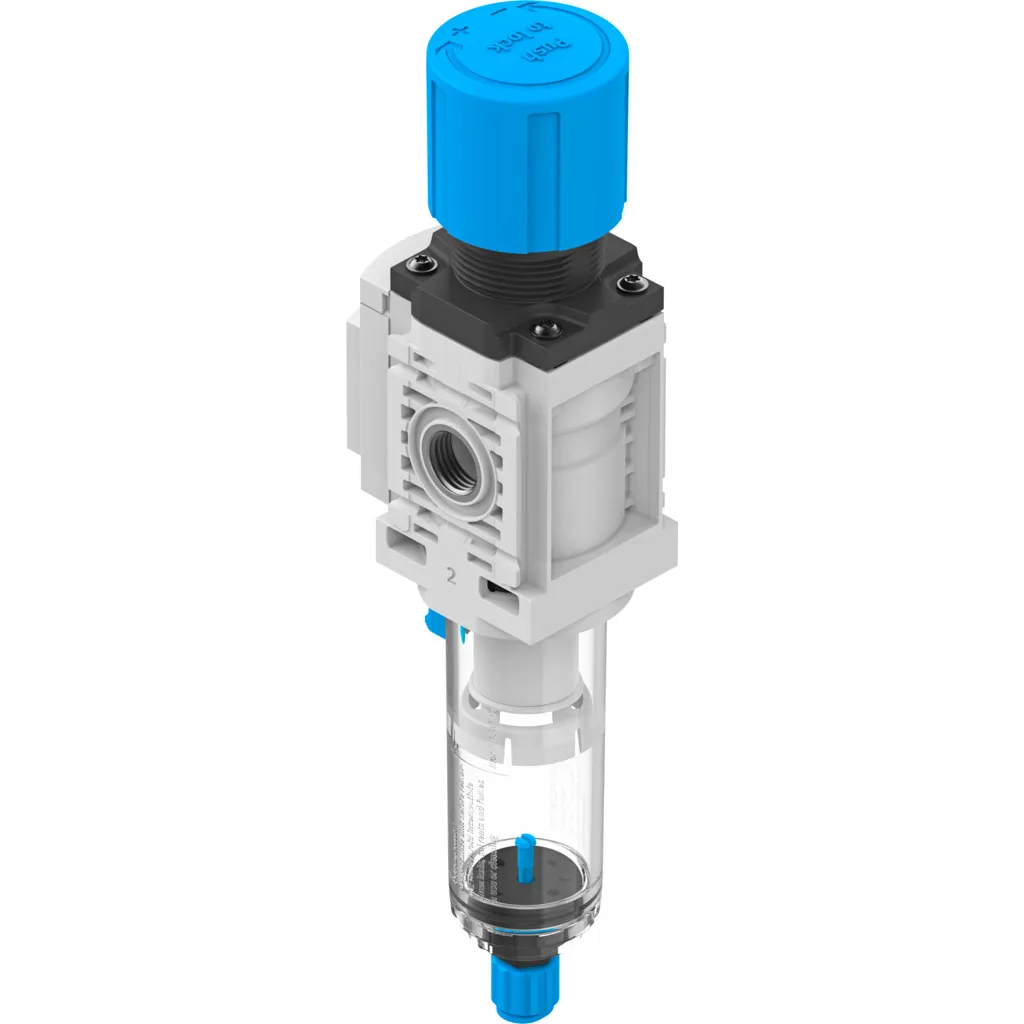

Festo Filter Regulator, 1/4", 0.3 to 7 bar Pressure Range, MS4-LFR-1/4-D6-E-P-M-A8-F1A-B

Part Number : MS4-LFR-1/4-D6-E-P-M-A8-F1A-B

Brand :
Festo

Enhanced F1A configuration regulator for advanced applications. This product is designed for precise air control and optimized for both standard and advanced industrial applications.

View all

KWD 28.500

Quantity
Description
Specifications
Downloads
Related products

Description

Extended F1A model designed for advanced industrial applications with enhanced durability. Crafted with robust materials and cutting-edge technology, it ensures consistent performance even in demanding industrial conditions. Ideal for automation, manufacturing, and other high-performance pneumatic systems.

Product Overview

The MS4-LFR-1/4-D6-E-P-M-A8-F1A-B from Festo is a reliable filter regulator designed for precision air control in industrial applications.

Key Features

• Robust construction • Precision pressure regulation • Enhanced durability and reliability.

Applications

• Industrial pneumatic systems • High-precision air regulation • Demanding industrial environments.

Downloads

Filter regulator MS-LFR-B.pdf

pdf
Download

MS4-LFR-1-4-D6-E-P-M-A8-F1A-B Technical data.pdf

pdf
Download

MS4-LFR Operating Instructions.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
Vertical +/-5°
Grade of filtration
40 µm
Condensate drain
Manually rotating
Design
Filter regulator without pressure gauge Directly actuated piston regulator
Max. condensate volume
16.5 ml
Controller function
Output pressure constant With secondary venting With return flow function

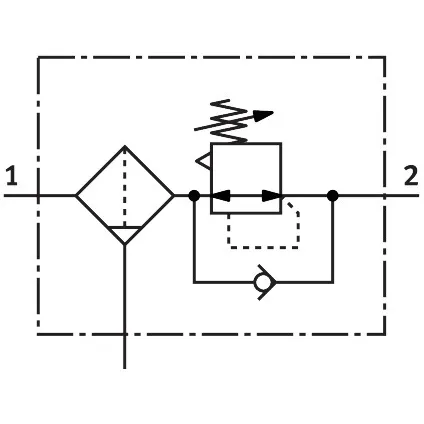

Symbol
991590
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
Prepared for G1/8
Operating pressure
1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
7.25 psi
Standard nominal flow rate (standardised to DIN 1343)
1700 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
204 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy stainless steel
Material filter
PE
Material housing
PA-reinforced
Material bowl
PC
Material valve stem
POM
