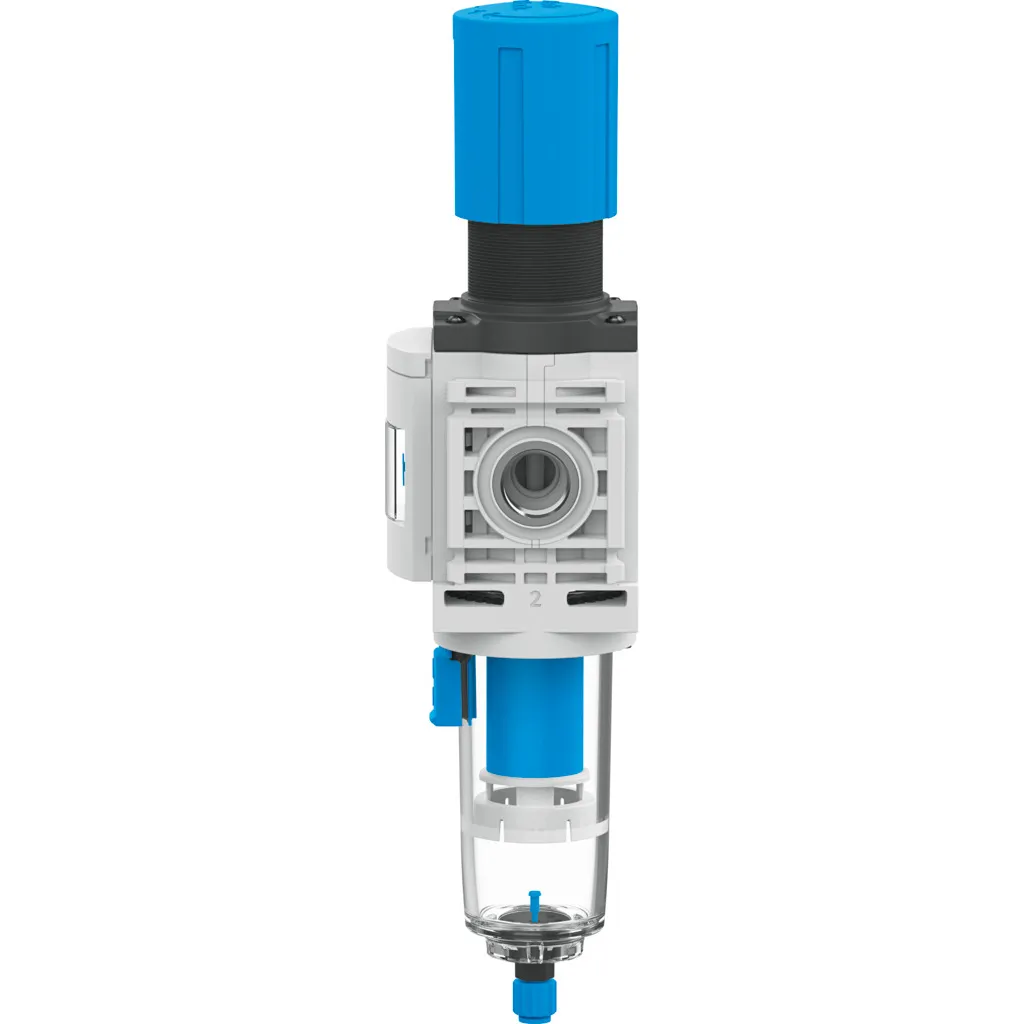

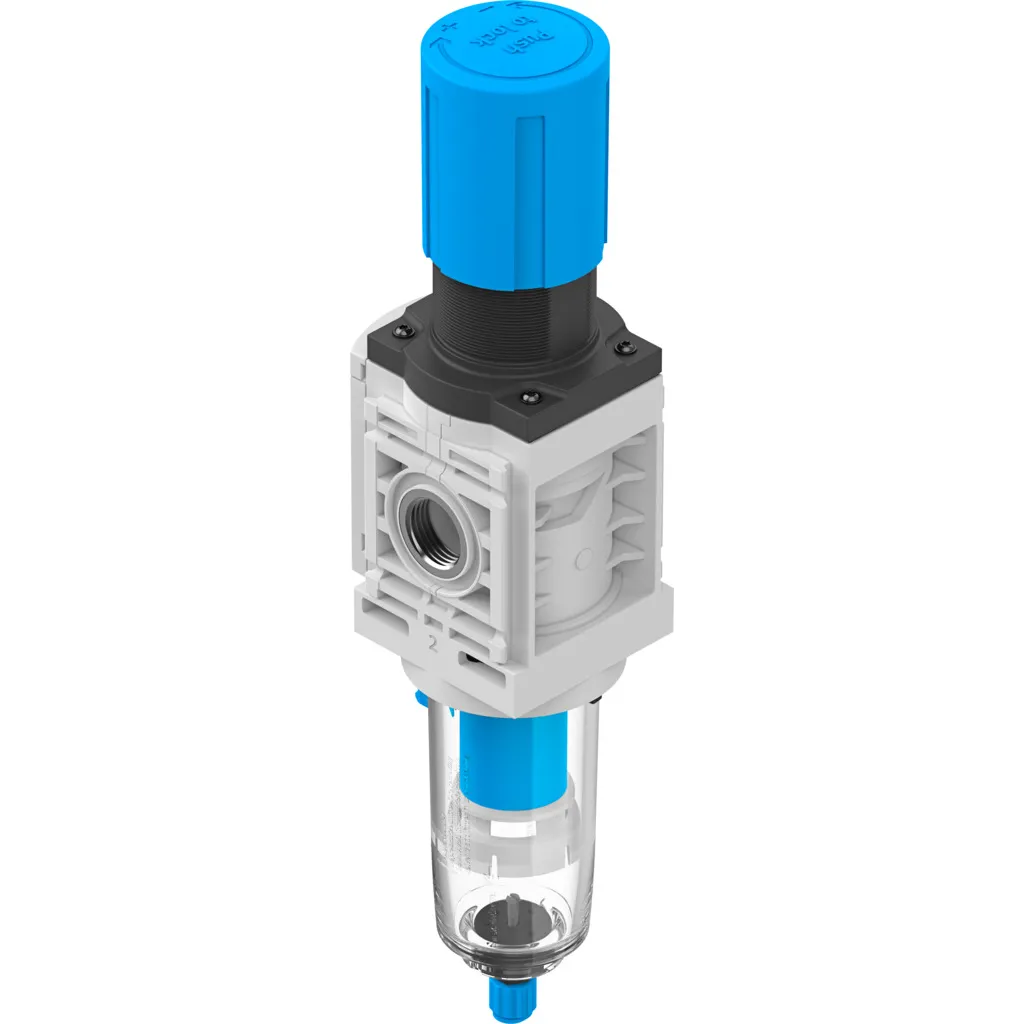

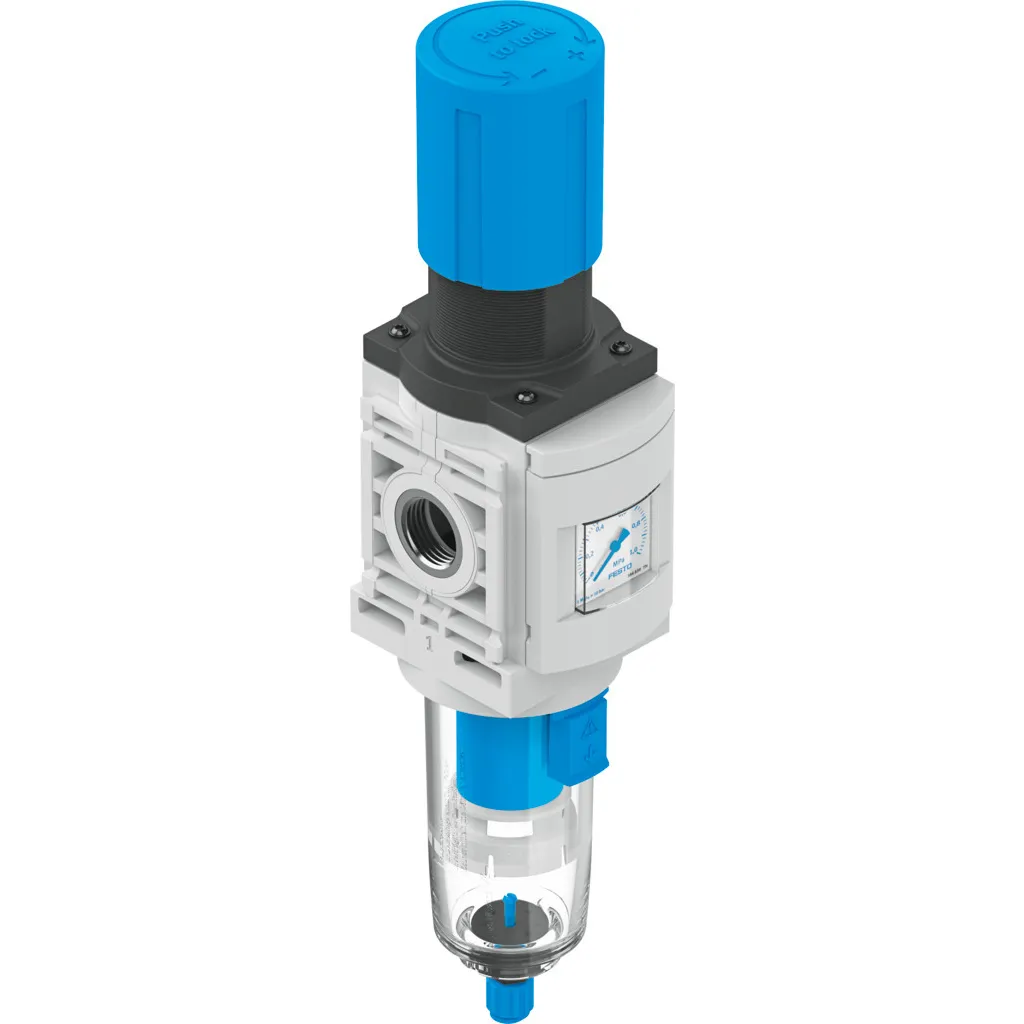

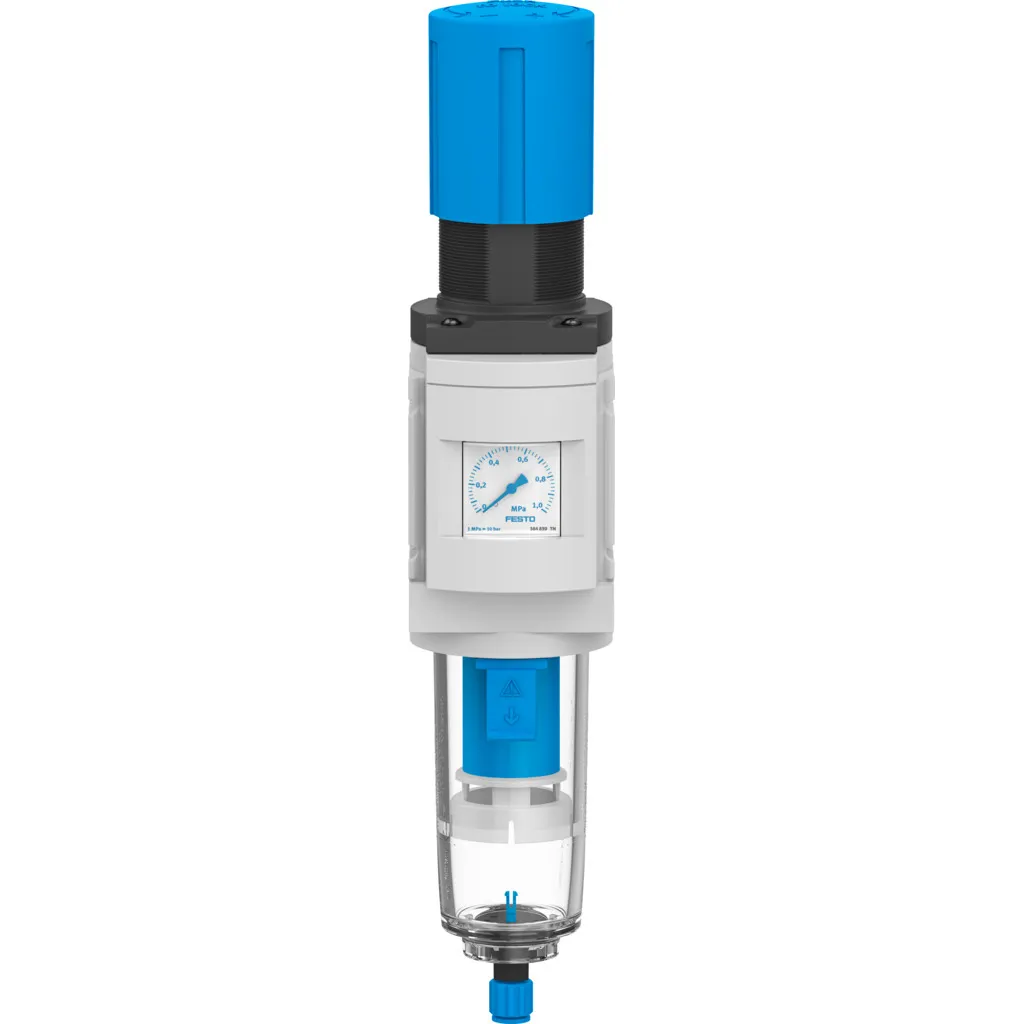

Festo Filter Regulator, 1/2", 0.3 to 7 bar Pressure Range, MS6-LFR-1/2-D6-C-P-M-AG-MPA-F1A-B

Part Number : MS6-LFR-1/2-D6-C-P-M-AG-MPA-F1A-B

Brand :
Festo

AG model with MPA and F1A enhancements, ideal for high-performance applications. This product is designed for precise air control and optimized for both standard and advanced industrial applications.

View all

KWD 39.000

Quantity
Description
Specifications
Downloads
Related products

Description

The MS6-LFR-1/2-D6-C-P-M-AG-MPA-F1A-B combines MPA and F1A enhancements, offering unparalleled precision and durability. Crafted with robust materials and cutting-edge technology, it ensures consistent performance even in demanding industrial conditions. Ideal for automation, manufacturing, and other high-performance pneumatic systems.

Product Overview

Combining MPA and F1A enhancements, this AG model offers the highest level of precision and durability for pneumatic applications.

Key Features

• MPA and F1A enhancements for maximum precision • Exceptional durability for advanced applications • Pressure range of 0.5 to 16 bar.

Applications

• Maximum precision for critical pneumatic systems • Suitable for high-performance manufacturing setups • Designed for advanced air control and filtration.

Downloads

Filter regulator MS-LFR-B.pdf

pdf
Download

MS6-LFR-1-2-D6-C-P-M-AG-MPA-F1A-B Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
Vertical +/-5°
Grade of filtration
5 µm
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Directly actuated piston regulator
Max. condensate volume
27.3 ml
Controller function
Output pressure constant With secondary venting With return flow function

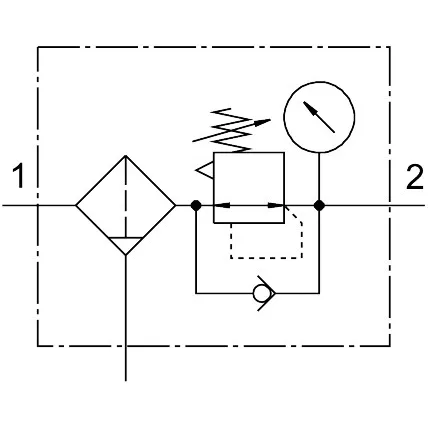

Symbol
991589
Displayable units
MPa
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
5.075 psi
Standard nominal flow rate (standardised to DIN 1343)
4750 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Compatibility with ester oil not guaranteed
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:4]
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
581 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy stainless steel
Material filter
PE
Material housing
PA-reinforced
Material bowl
PC
Material valve stem
POM
