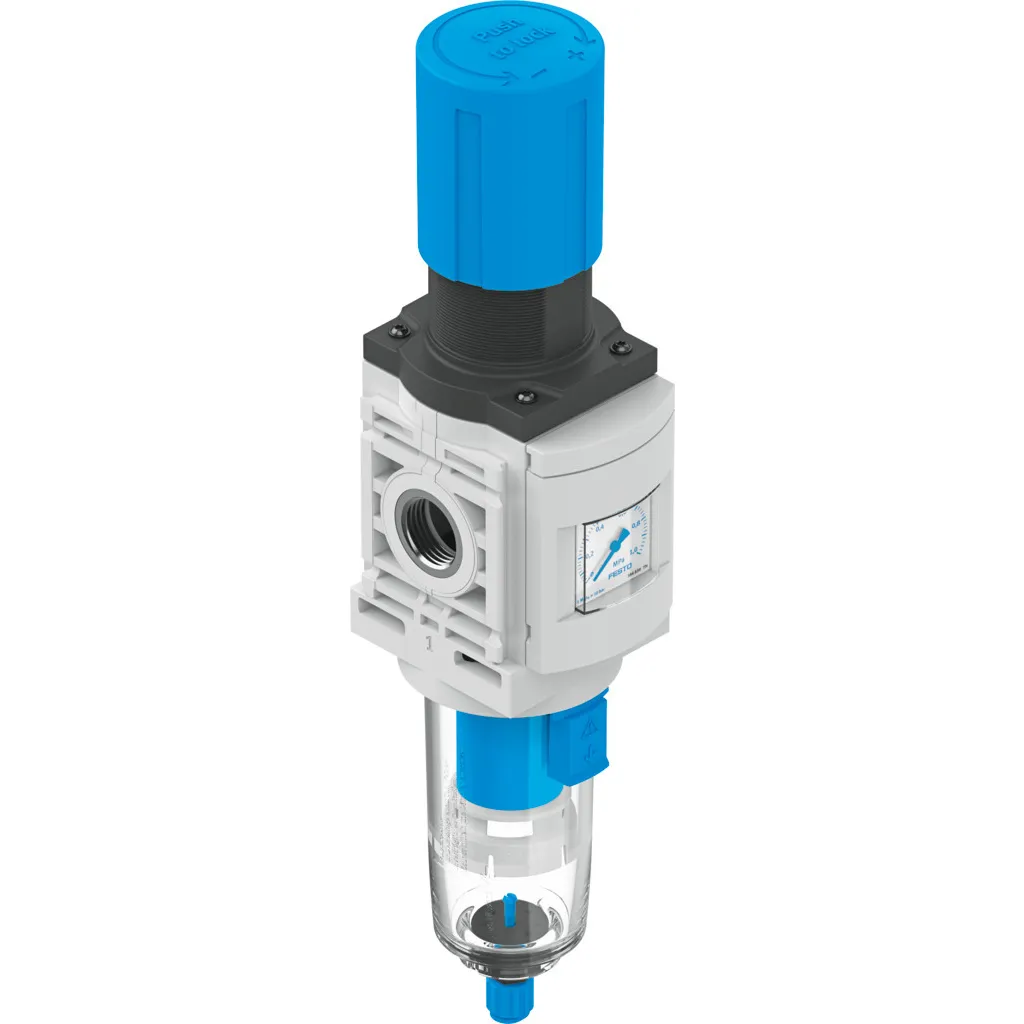

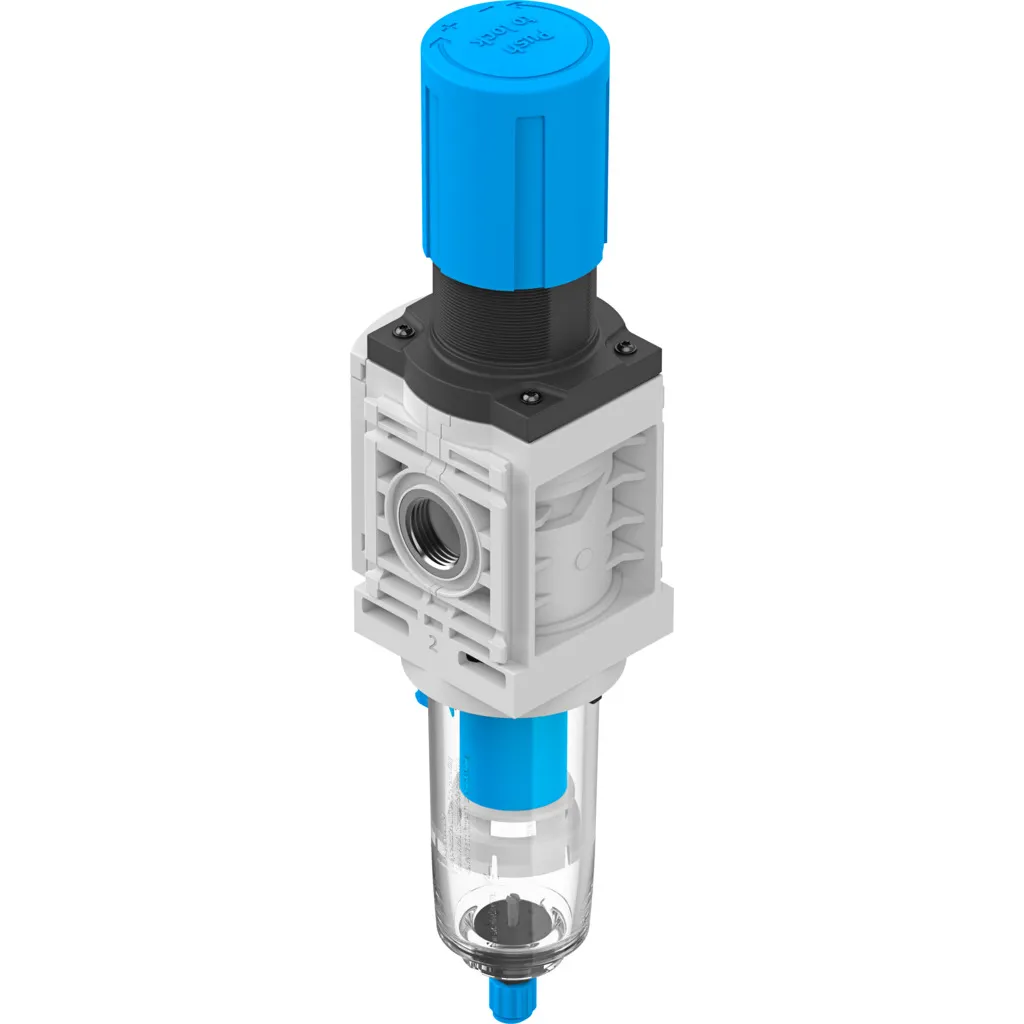

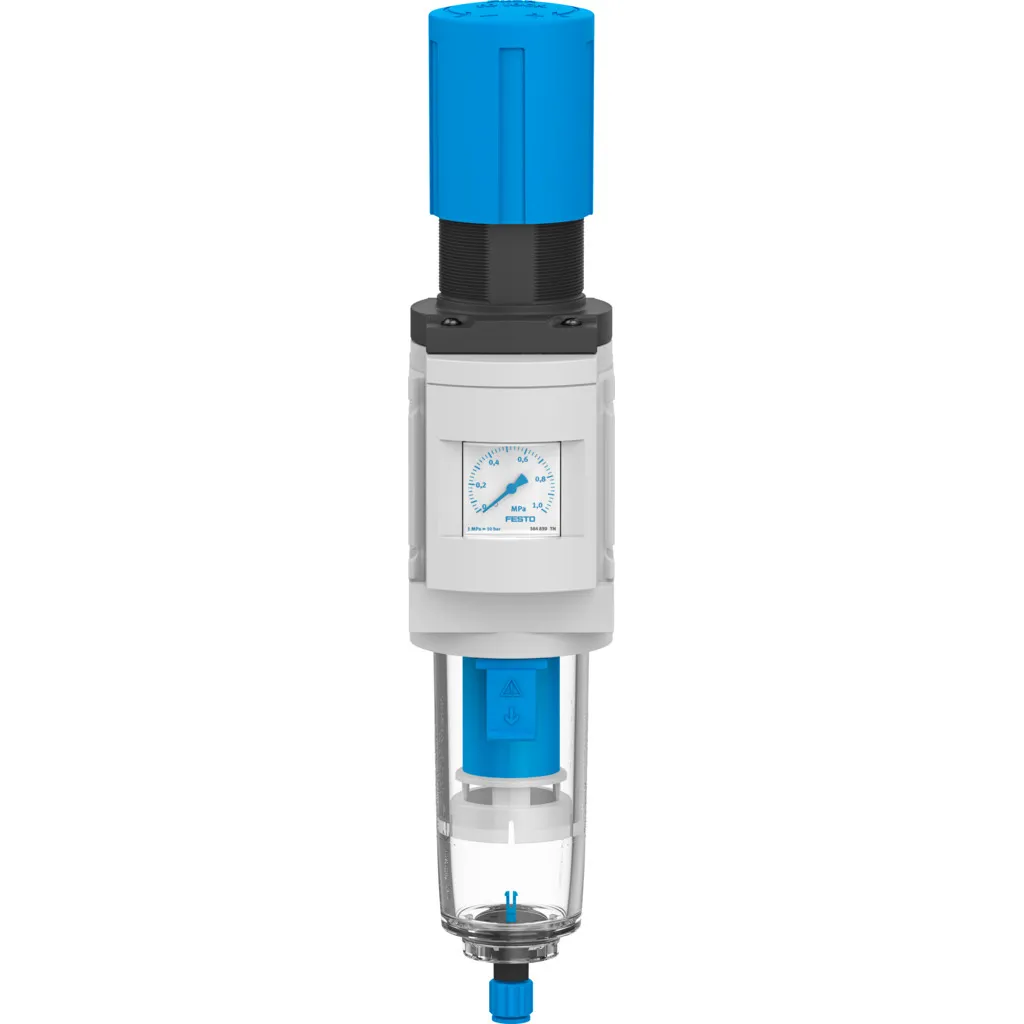

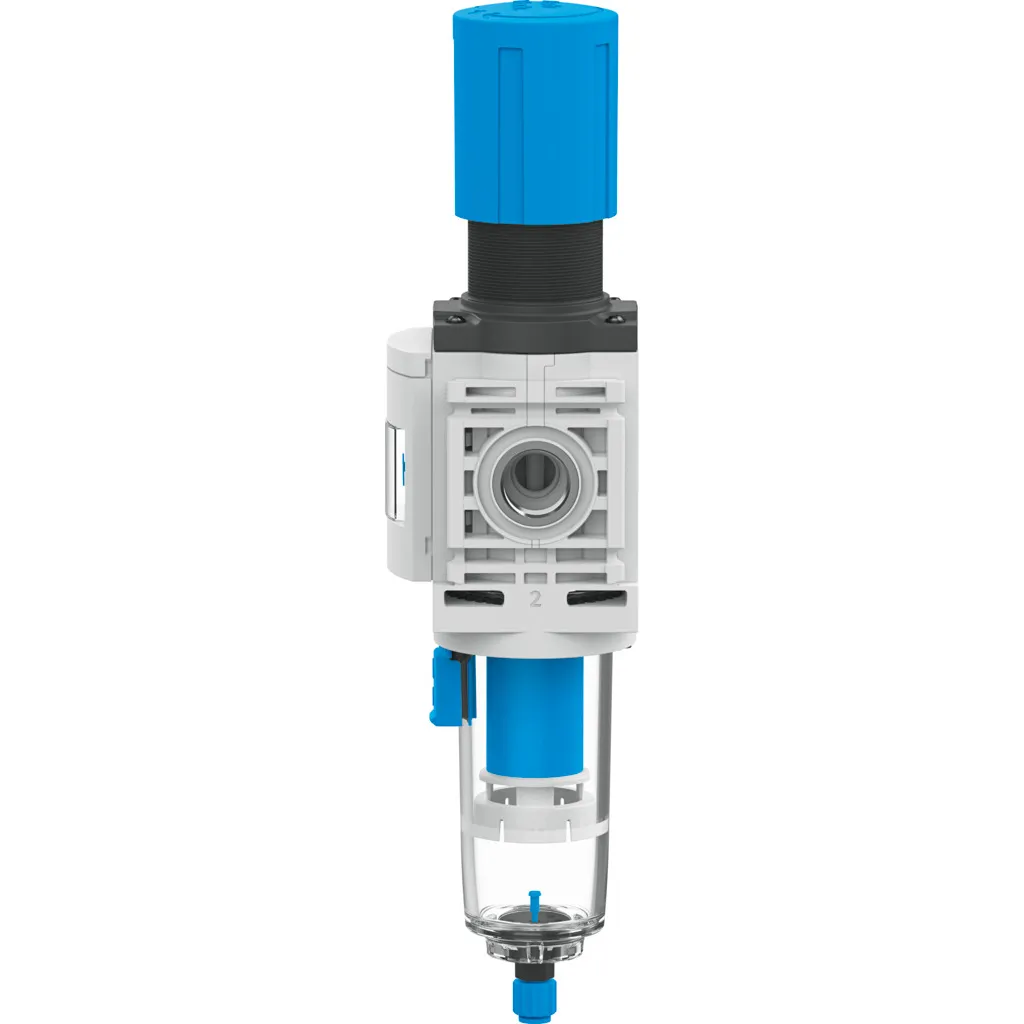

Festo Filter Regulator, 1/2", 0.3 to 7 bar Pressure Range, MS6-LFR-1/2-D6-C-P-M-AG-MPA-B

Part Number : MS6-LFR-1/2-D6-C-P-M-AG-MPA-B

Brand :
Festo

AG model with an MPA indicator for advanced precision control in industrial systems. This product is designed for precise air control and optimized for both standard and advanced industrial applications.

View all

KWD 26.500

Quantity
Description
Specifications
Downloads
Related products

Description

The MS6-LFR-1/2-D6-C-P-M-AG-MPA-B includes an MPA indicator for enhanced precision in critical industrial operations. Crafted with robust materials and cutting-edge technology, it ensures consistent performance even in demanding industrial conditions. Ideal for automation, manufacturing, and other high-performance pneumatic systems.

Product Overview

The AG model with an MPA indicator is tailored for advanced air pressure control in industrial environments.

Key Features

• MPA indicator for enhanced precision • Designed for demanding industrial setups • Pressure range of 0.5 to 16 bar.

Applications

• High-precision pressure control for demanding environments • Tailored for manufacturing and automation systems • Optimized for industrial air regulation.

Downloads

Filter regulator MS-LFR-B.pdf

pdf
Download

MS6-LFR-1-2-D6-C-P-M-AG-MPA-B Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
Vertical +/-5°
Grade of filtration
5 µm
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Directly actuated piston regulator
Max. condensate volume
27.3 ml
Controller function
Output pressure constant With secondary venting With return flow function

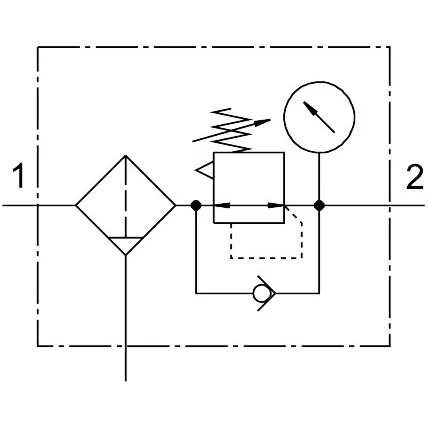

Symbol
991589
Displayable units
MPa
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
5.075 psi
Standard nominal flow rate (standardised to DIN 1343)
4750 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Compatibility with ester oil not guaranteed
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:4]
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
581 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material seals
NBR
Material rotary knob
POM
Material spring
High-alloy steel Galvanised steel
Material filter
PE
Material housing
PA-reinforced
Material bowl
PC
Material valve stem
POM
