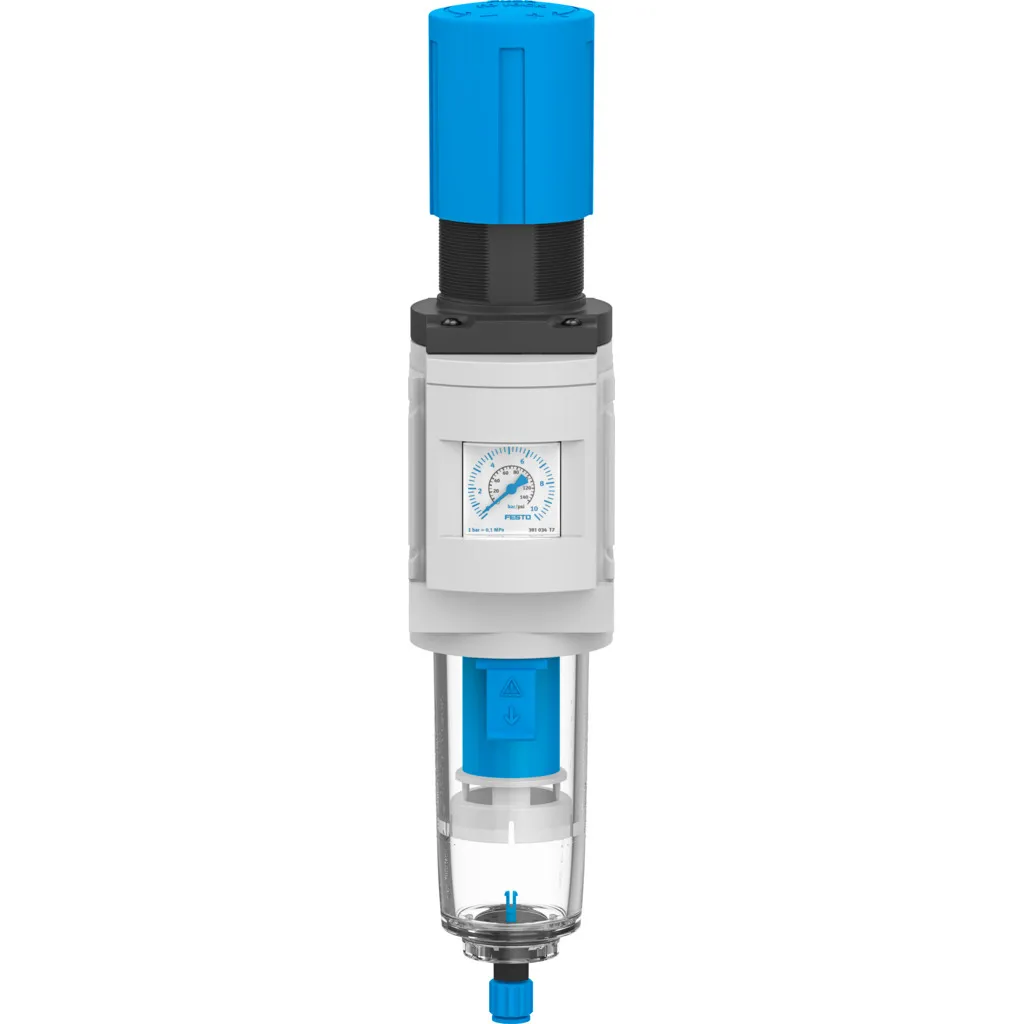

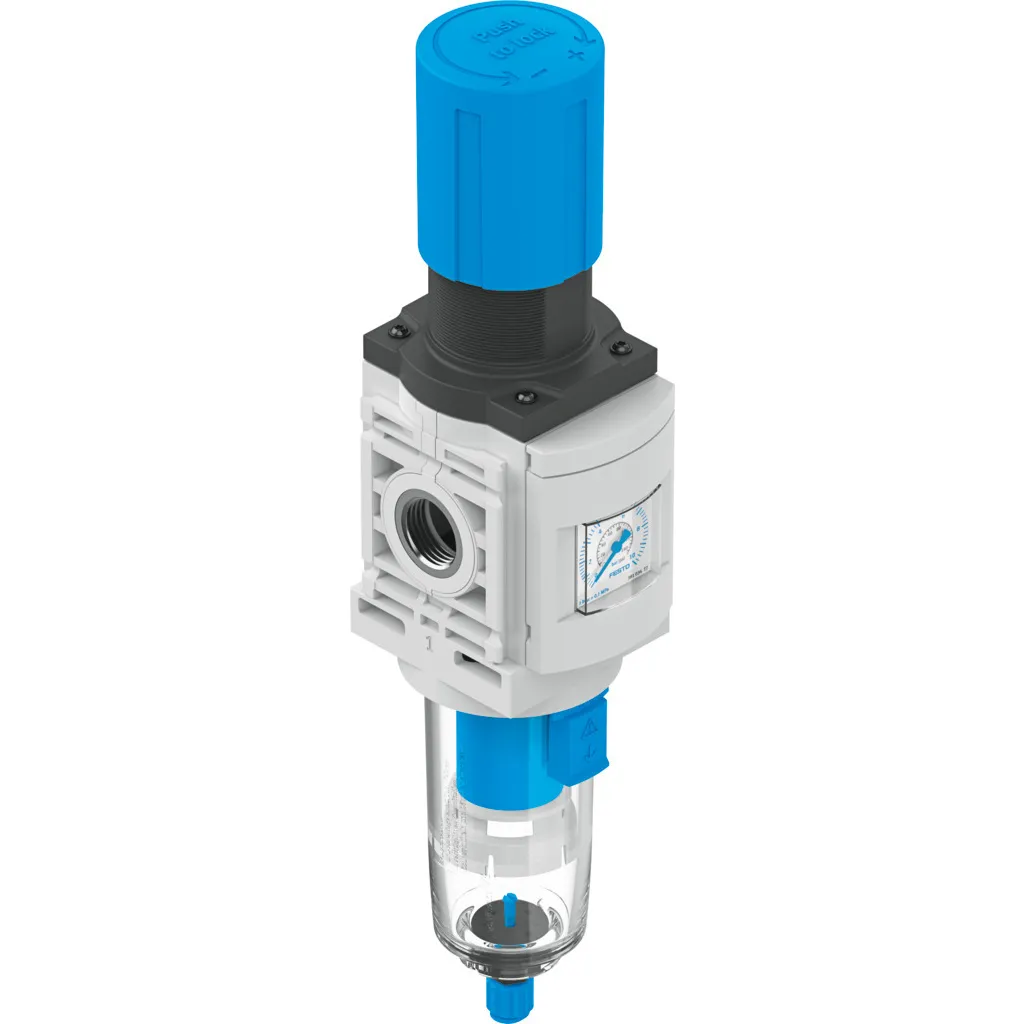

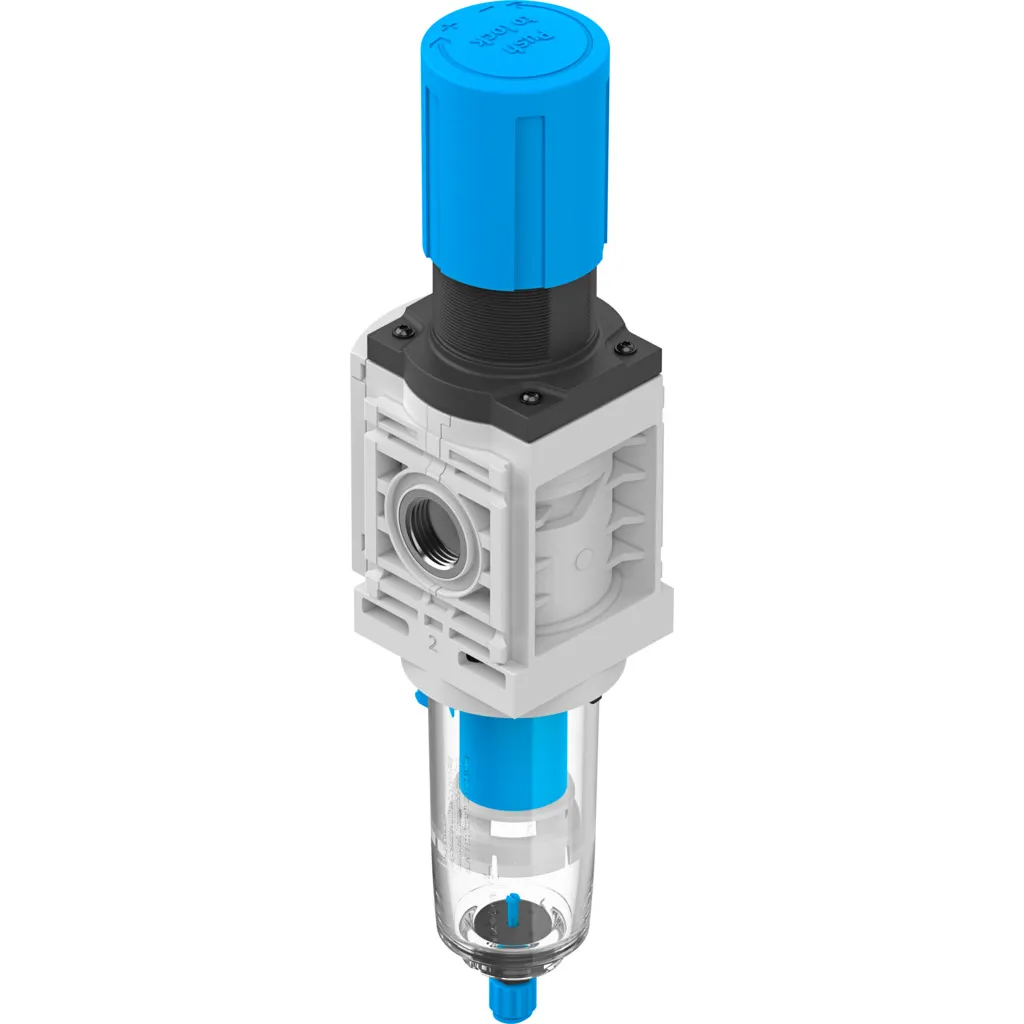

Festo Filter Regulator, 1/2", 0.3 to 7 bar Pressure Range, MS6-LFR-1/2-D6-C-P-M-AG-BAR-B

Part Number : MS6-LFR-1/2-D6-C-P-M-AG-BAR-B

Brand :
Festo

AG model with a BAR indicator for accurate air pressure monitoring. This product is designed for precise air control and optimized for both standard and advanced industrial applications.

View all

KWD 26.500


Quantity



Description
Specifications
Downloads
Related products

Description

The MS6-LFR-1/2-D6-C-P-M-AG-BAR-B provides advanced air filtration with a BAR indicator for accurate pressure control. Crafted with robust materials and cutting-edge technology, it ensures consistent performance even in demanding industrial conditions. Ideal for automation, manufacturing, and other high-performance pneumatic systems.

Product Overview

The AG model with a BAR indicator ensures accurate pressure readings and superior air regulation.

Key Features

• Integrated BAR indicator for precise pressure readings • High-performance air regulation • Pressure range of 0.5 to 16 bar.

Applications

• Accurate pressure monitoring for critical setups • Optimized for demanding pneumatic operations • Suitable for high-performance air regulation.

Downloads

Filter regulator MS-LFR-B.pdf

pdf

MS6-LFR-1-2-D6-C-P-M-AG-BAR-B Technical data.pdf

pdf

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with detent
Mounting position
Vertical +/-5°
Grade of filtration
5 µm
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Directly actuated piston regulator
Max. condensate volume
27.3 ml
Controller function
Output pressure constant With secondary venting With return flow function

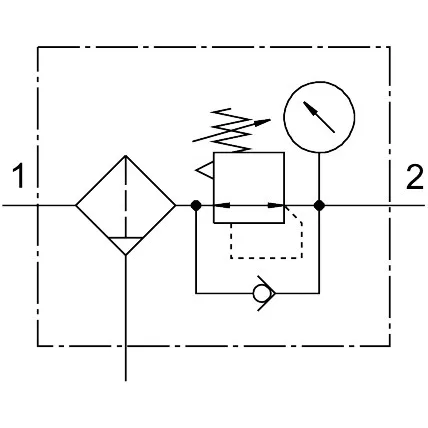

Symbol
991589
Displayable units
bar psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
1 bar ... 10 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
5.075 psi
Standard nominal flow rate (standardised to DIN 1343)
4750 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Compatibility with ester oil not guaranteed
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 7 according to ISO 14644-1
Storage Temperature
-5 °C ... 50 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:4]
Media temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
581 g
Type of mounting
Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material seals
NBR
Material spring
High-alloy steel Galvanised steel
Material rotary knob
POM
Material filter
PE
Material housing
PA-reinforced
Material bowl
PC
Material valve stem
POM
