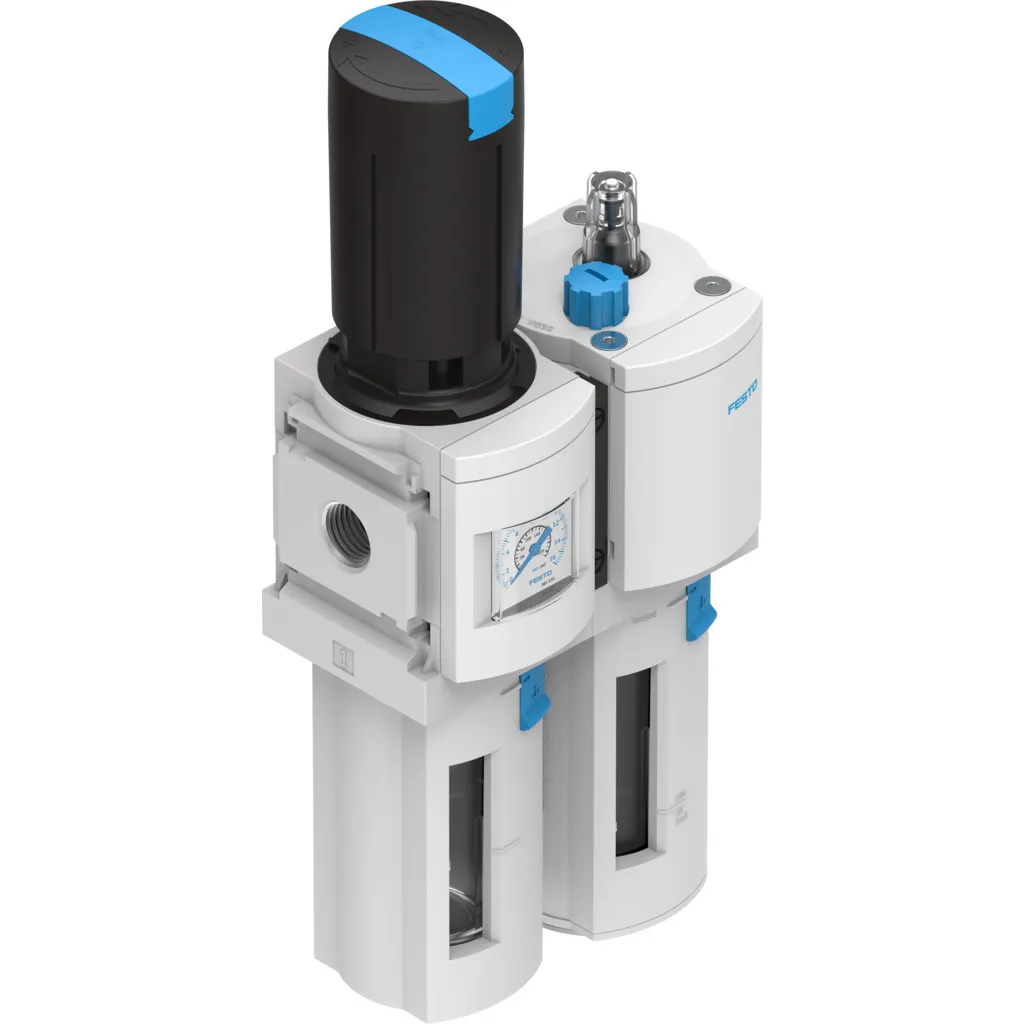

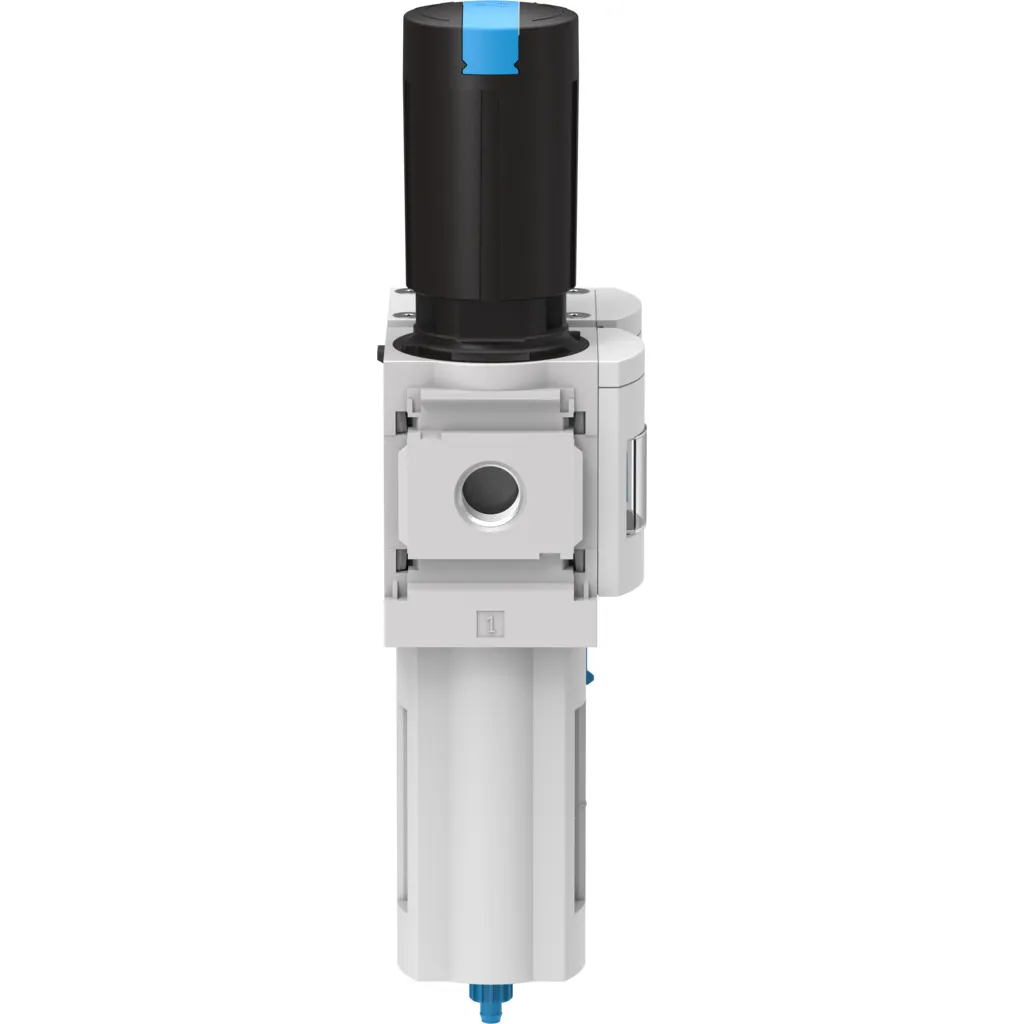

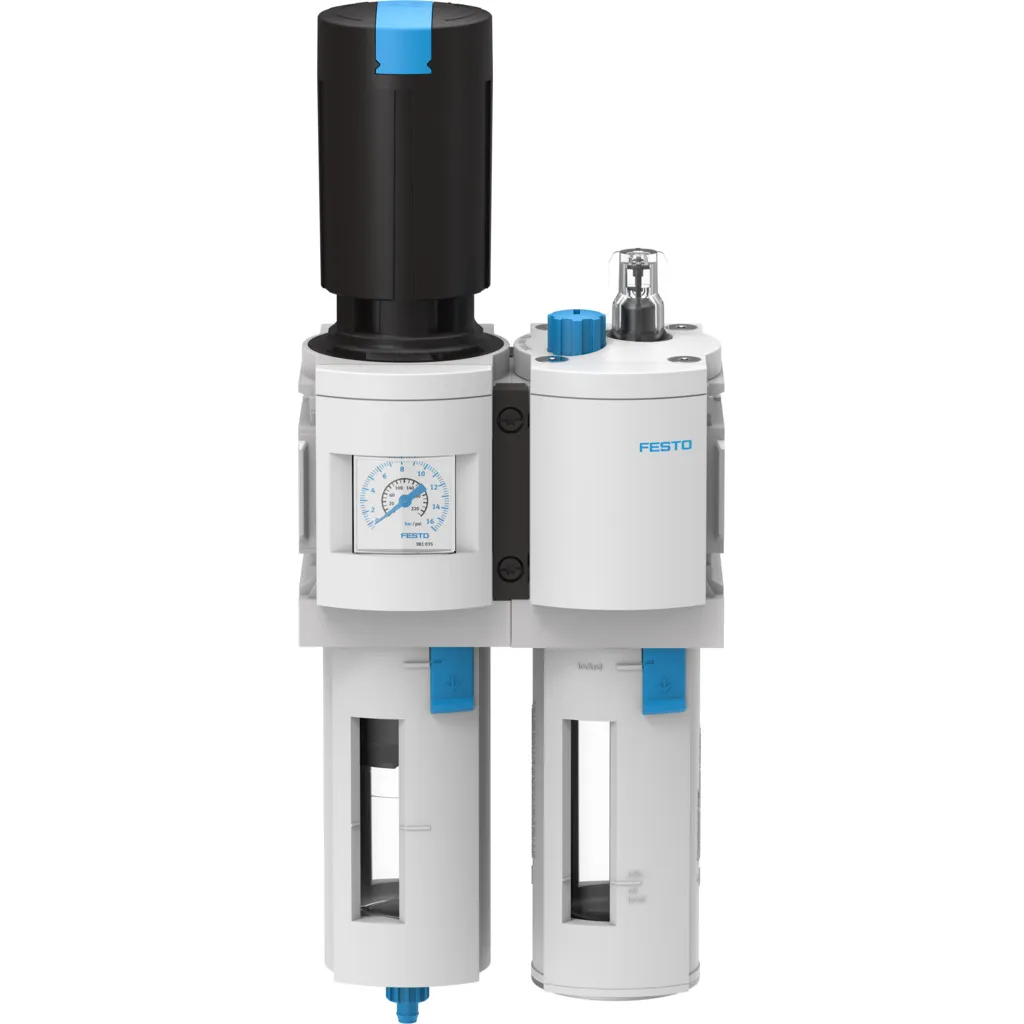

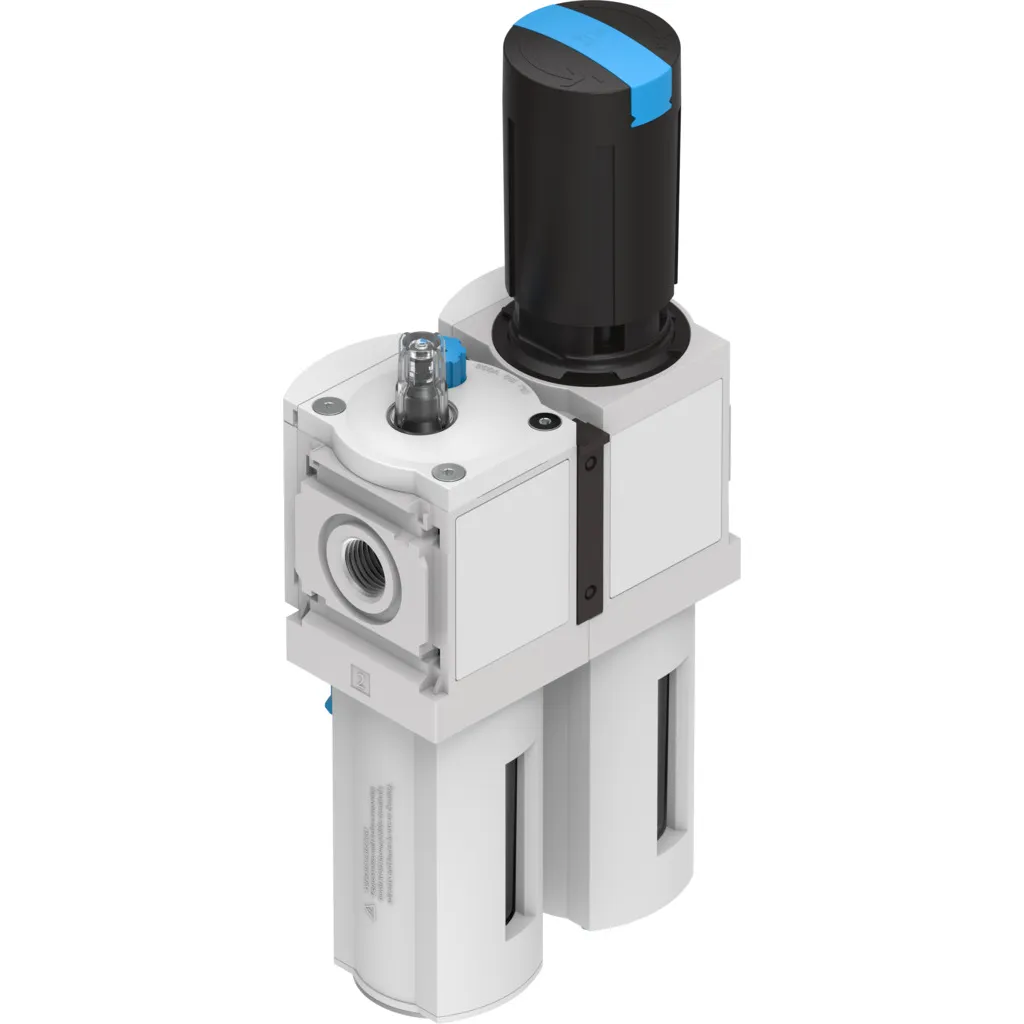

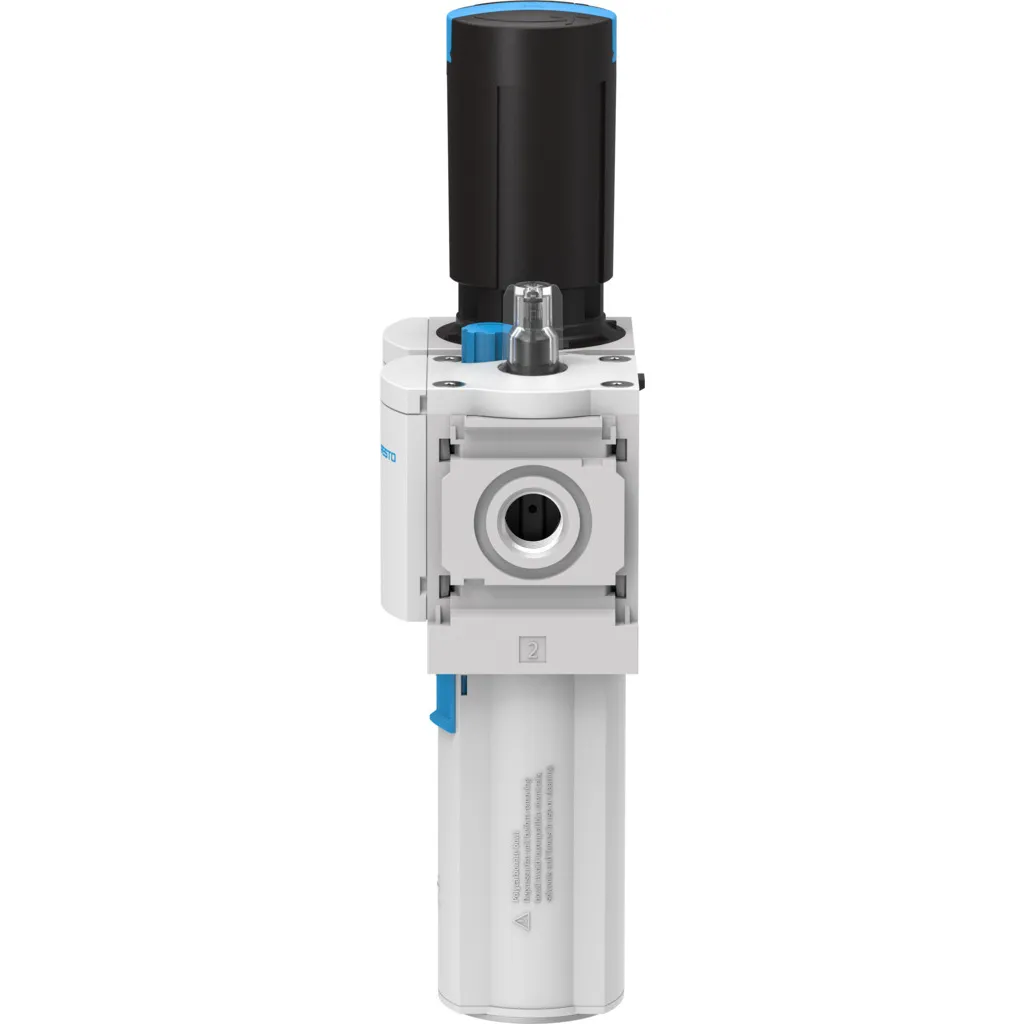

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 3/8", 0.5 to 12 bar Pressure Range, MSB6-3/8-FRC5:J1M1

Part Number : MSB6-3/8-FRC5:J1M1

Brand :
Festo

A medium-capacity air preparation unit with integrated filtering, regulating, and lubricating features. Designed with a 3/8" female thread, it ensures efficient air quality management in industrial applications.

View all

KWD 60.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-3/8-FRC5:J1M1 offers medium-capacity air preparation with a flow rate of 2500 l/min and precise pressure regulation from 0.5 to 12 bar. Its robust design and efficient functionality make it perfect for industrial environments requiring reliable air management.

Key Features

• Medium-capacity design combining advanced air preparation functions. • Provides a flow rate of 2500 l/min. • Designed with a 3/8" female thread for industrial setups.

Technical Specifications

• Connection Type: 3/8" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 2500 l/min

Applications

• Suitable for medium-scale industrial pneumatic systems. • Ideal for setups requiring efficient and reliable air preparation.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 3-8 FRC5 J1M1 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Plastic bowl guard

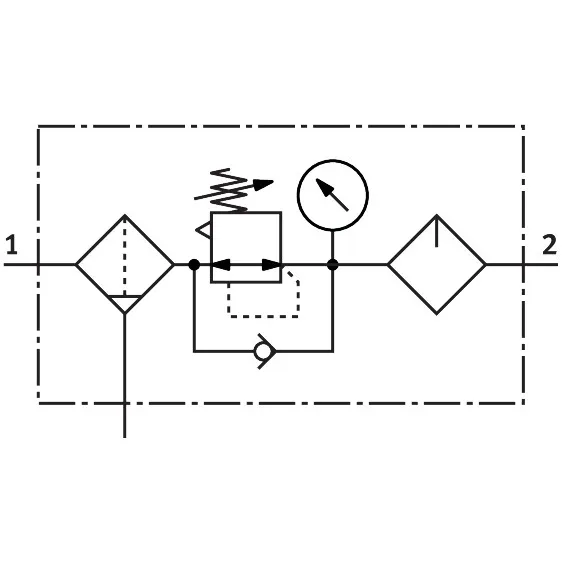

Symbol
991761
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
1.5 bar ... 20 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
1900 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1495 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Note on materials
RoHS-compliant
