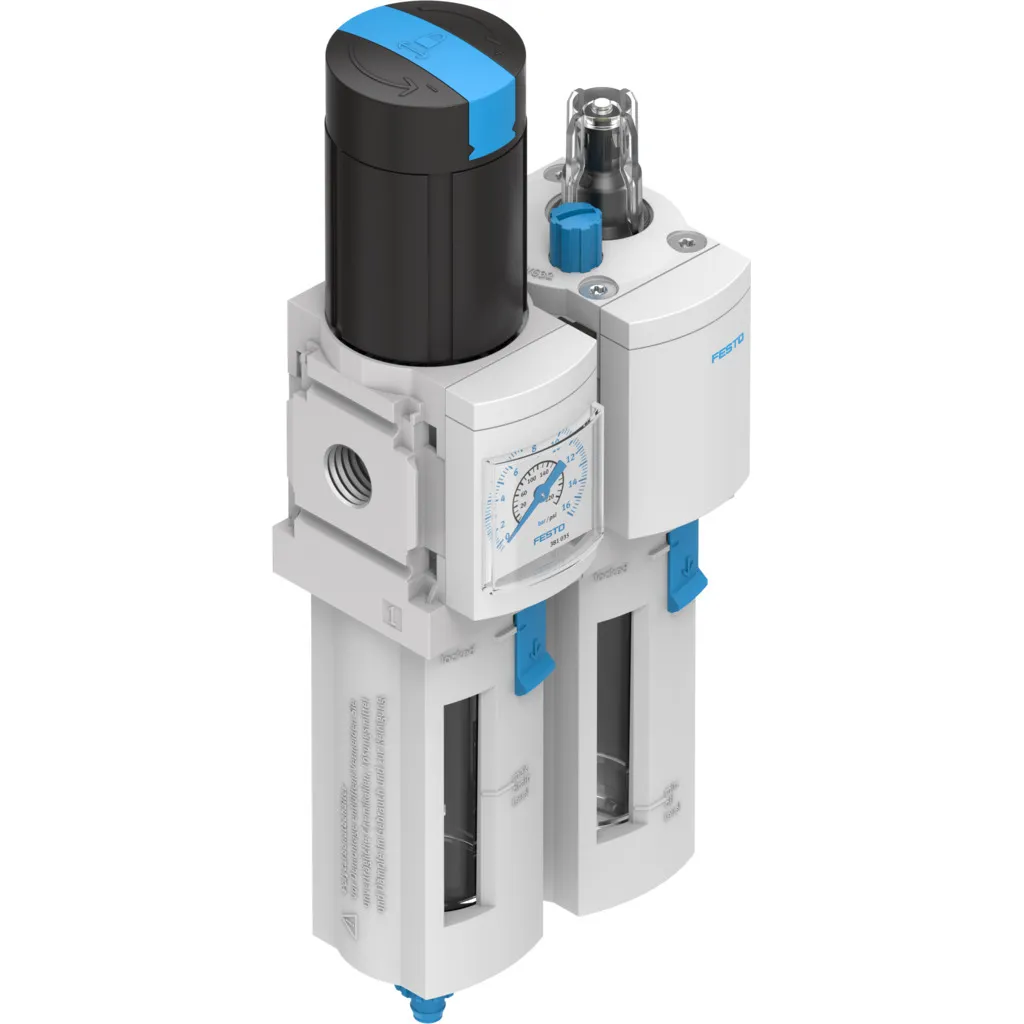

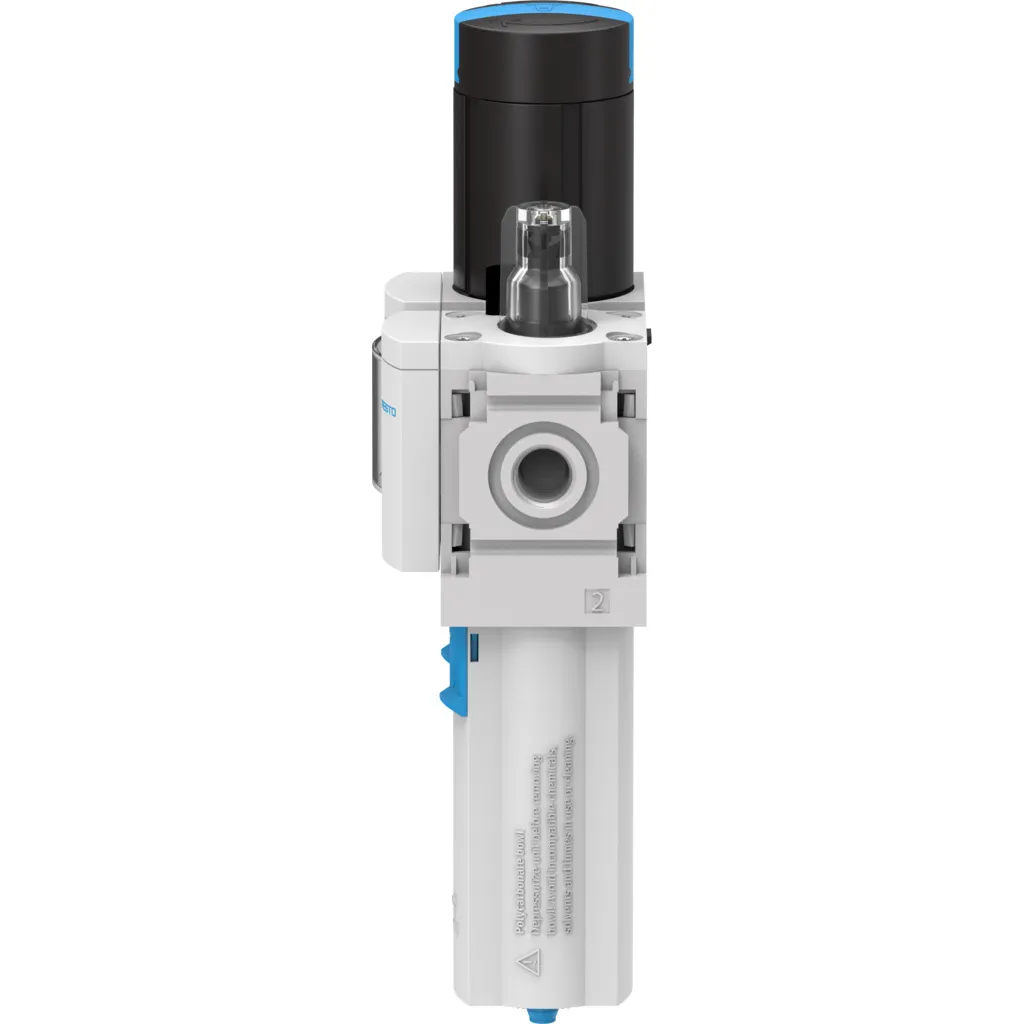

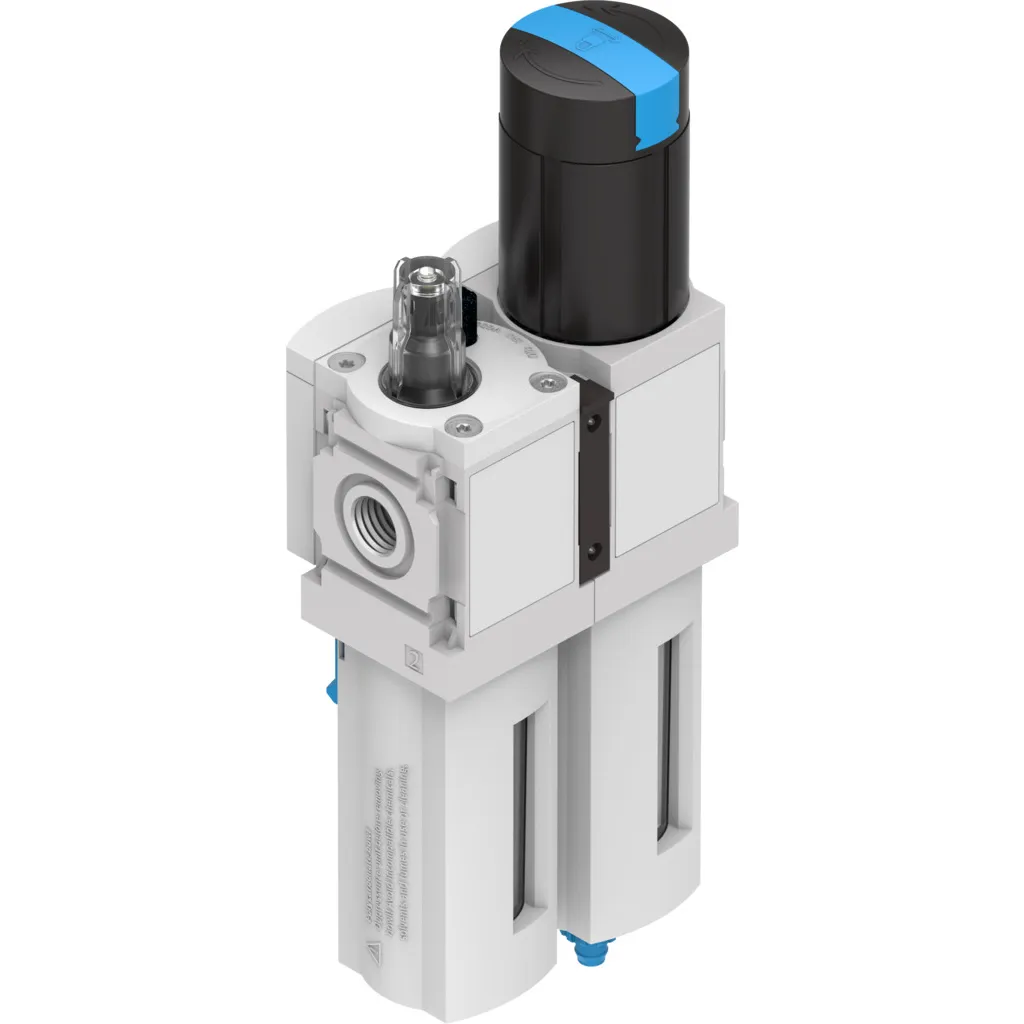

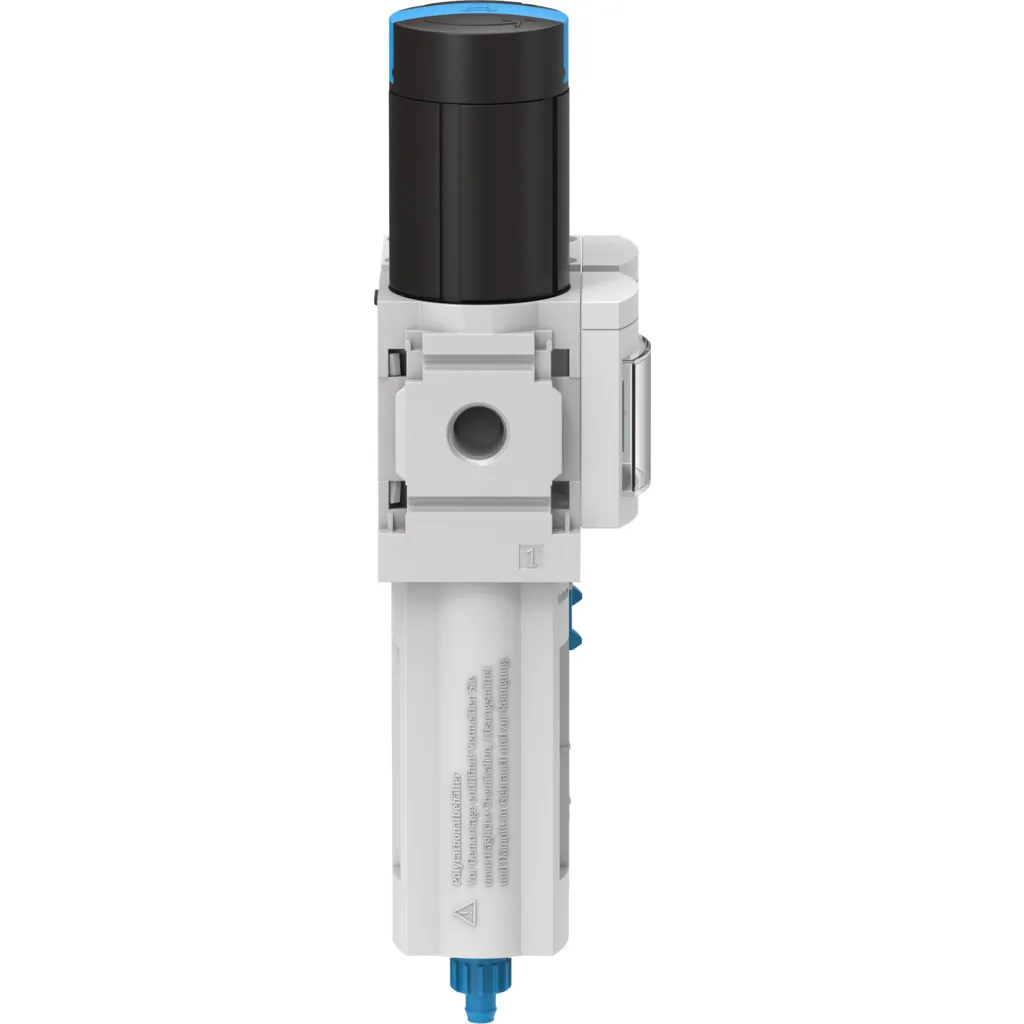

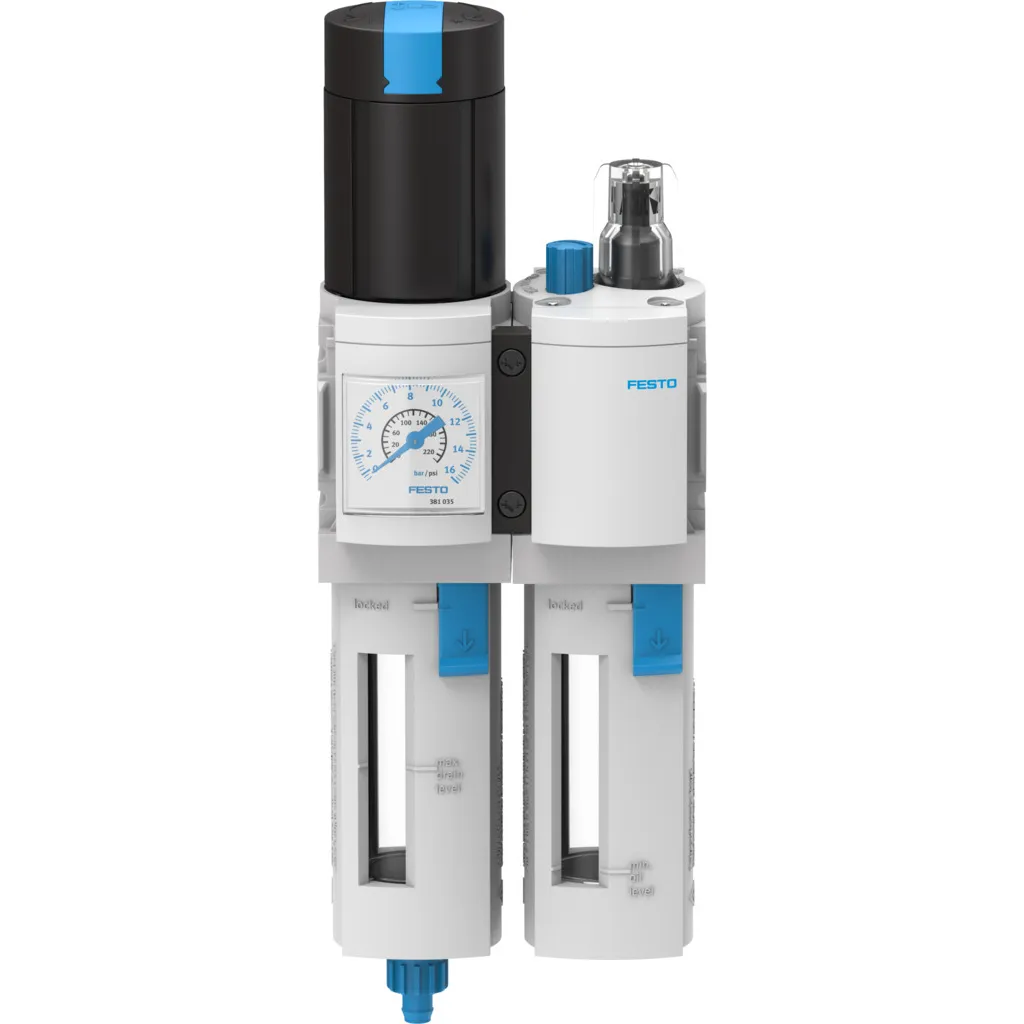

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/4", 0.5 to 12 bar Pressure Range, MSB4-1/4-FRC1:J5M1

Part Number : MSB4-1/4-FRC1:J5M1

Brand :
Festo

A compact air preparation unit combining advanced filtering, regulating, and lubricating features. With a 1/4" female thread, it ensures reliable air quality management for a variety of industrial applications.

View all

KWD 44.600

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB4-1/4-FRC1:J5M1 combines advanced air preparation functions in a compact design. With a flow rate of 1900 l/min and pressure regulation range of 0.5 to 12 bar, it meets the demands of diverse industrial and pneumatic setups.

Key Features

• Compact design combining filter, regulator, and lubricator functions. • Flow rate of up to 1900 l/min for efficient air preparation. • Supports precise pressure regulation between 0.5 and 12 bar.

Technical Specifications

• Connection Type: 1/4" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 1900 l/min

Applications

• Suitable for pneumatic systems requiring reliable air preparation. • Ideal for automation systems and industrial machinery.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB4 1-4 FRC1 J5M1 Technical data.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent can be closed with accessories
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Bowl guard
Plastic bowl guard

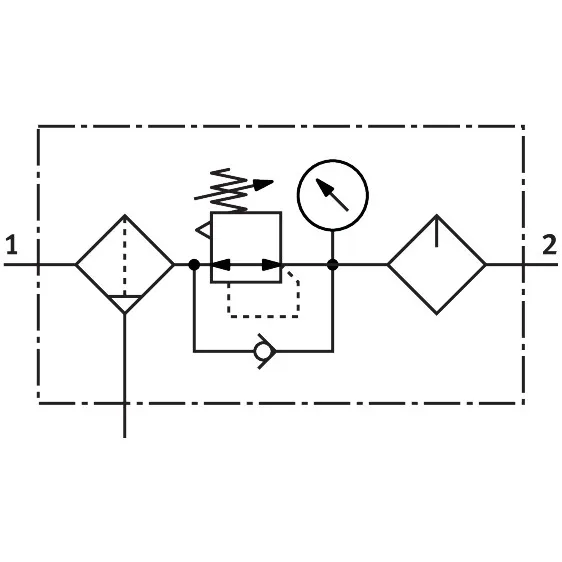

Symbol
991761
Pressure gauge
With pressure gauge
Operating pressure
1.5 bar ... 14 bar
Pressure regulation range
0.3 bar ... 7 bar
Standard nominal flow rate
1400 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
500 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Material housing
Die-cast aluminium
Material bowl
PC
