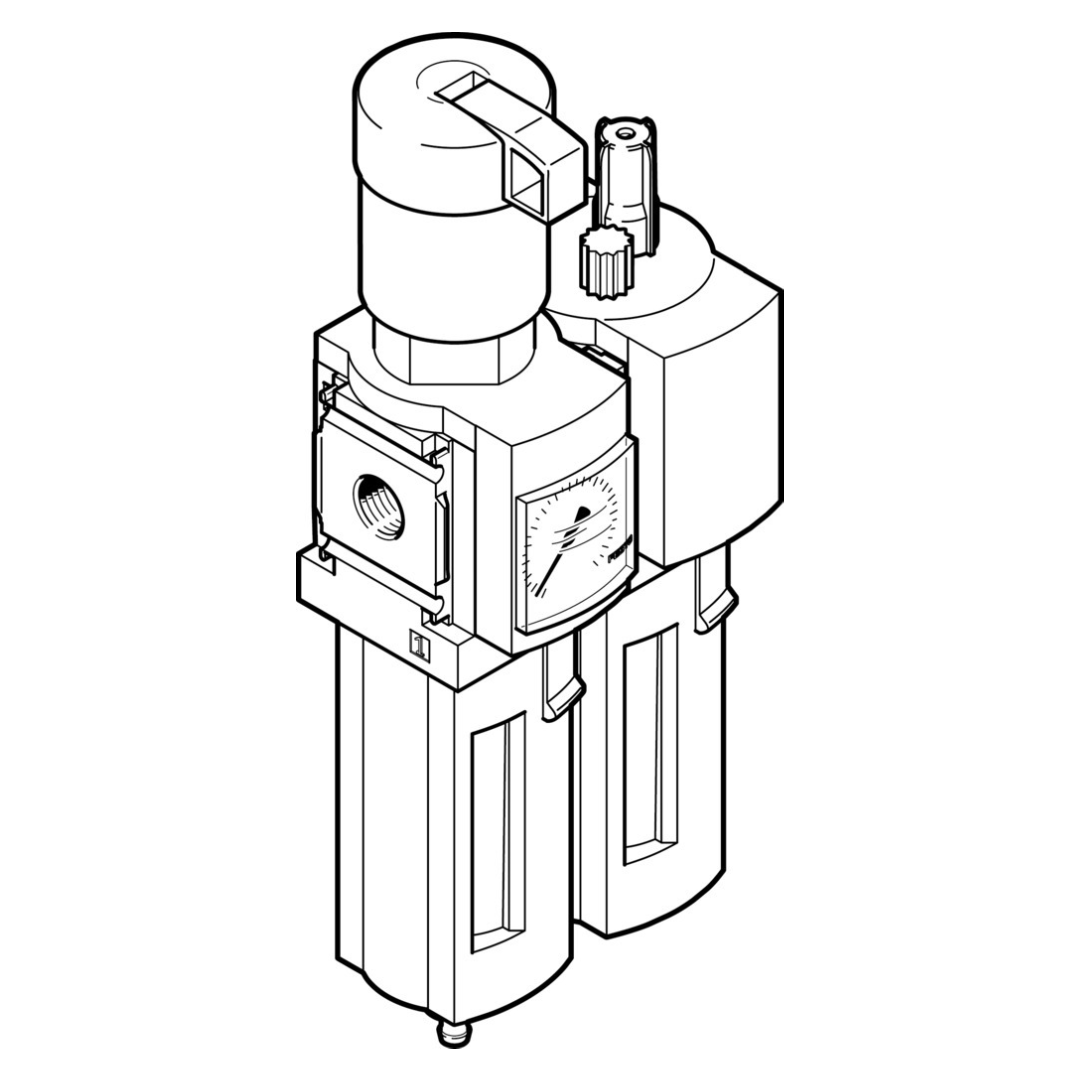

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/4", 0.3 to 7 bar Pressure Range, MSB4-1/4-FRC13:J120M1

Part Number : MSB4-1/4-FRC13:J120M1

Brand :
Festo

A robust air preparation unit integrating filtering, regulating, and lubricating features. Equipped with a lockable rotary knob and a 1/4" female thread, this unit delivers reliable performance for secure air preparation needs.

View all

KWD 44.600

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB4-1/4-FRC13:J120M1 ensures secure air preparation with its lockable rotary knob. This unit supports a flow rate of 1400 l/min and a pressure range of 0.3 to 7 bar, providing reliability and precision for demanding industrial environments.

Key Features

• Lockable rotary knob for secure pressure adjustments. • Reliable air preparation with a flow rate of 1400 l/min.

Technical Specifications

• Connection Type: 1/4" Female Thread • Pressure Regulation Range: 0.3 to 7 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 1400 l/min

Applications

• Suitable for pneumatic systems requiring secure air preparation. • Ideal for setups demanding reliable filtration and pressure control.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB4 1-4 FRC13 J120M1 Technical data.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent can be closed with accessories
Mounting position
Vertical +/-5°
Grade of filtration
40 µm
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Proportional standard mist lubricator
Controller function
Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Bowl guard
Plastic bowl guard

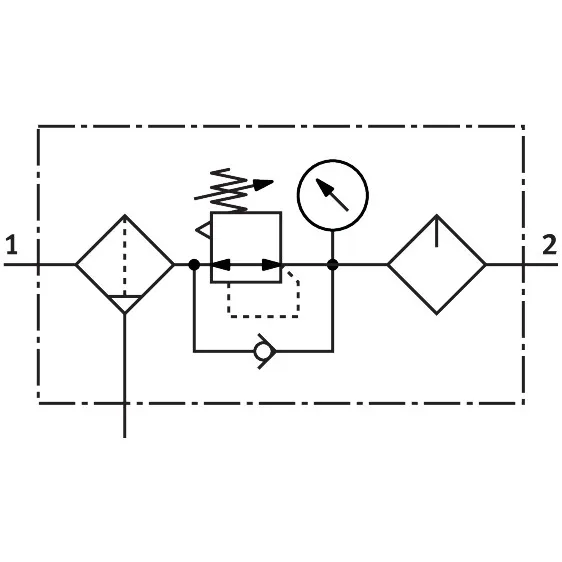

Symbol
991761
Pressure gauge
With pressure gauge
Operating pressure
1.5 bar ... 14 bar
Pressure regulation range
0.5 bar ... 7 bar
Standard nominal flow rate
1400 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
500 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Material housing
Die-cast aluminium
Material bowl
PC
