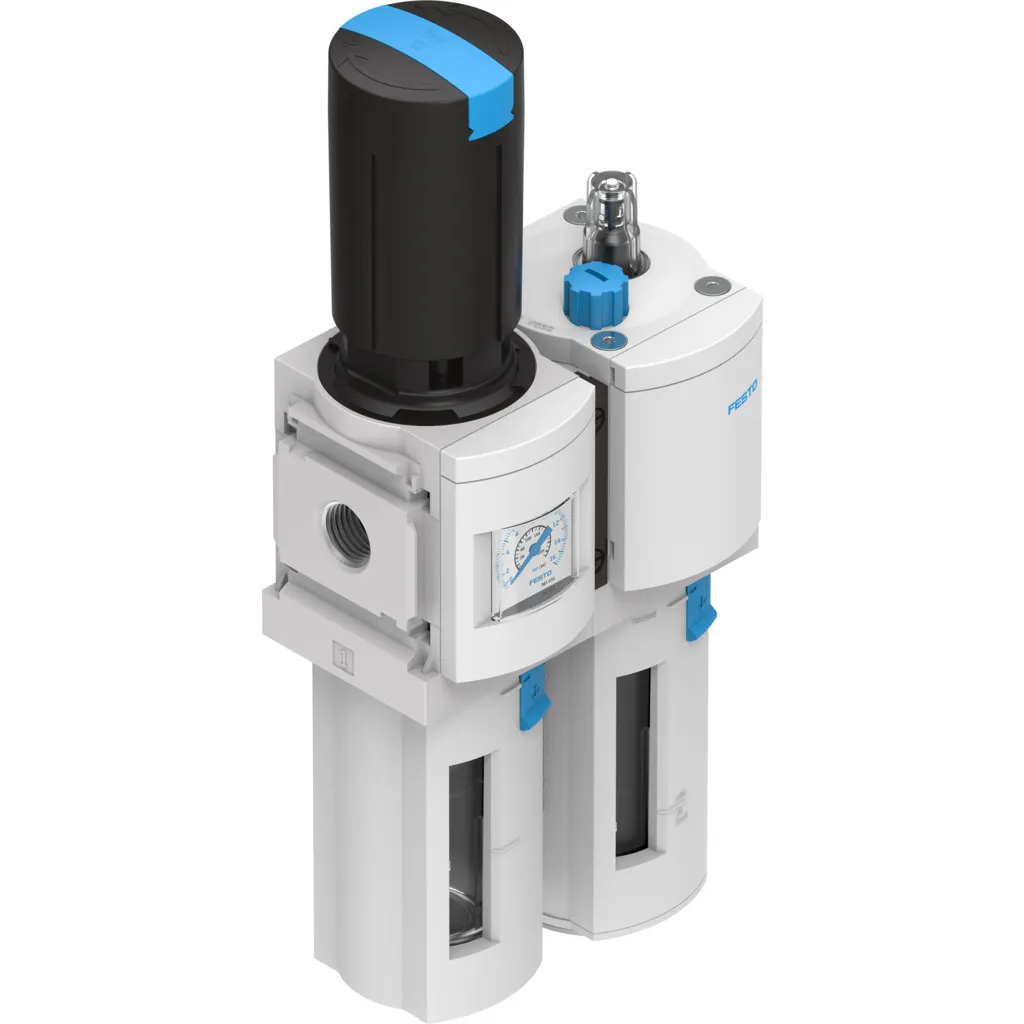

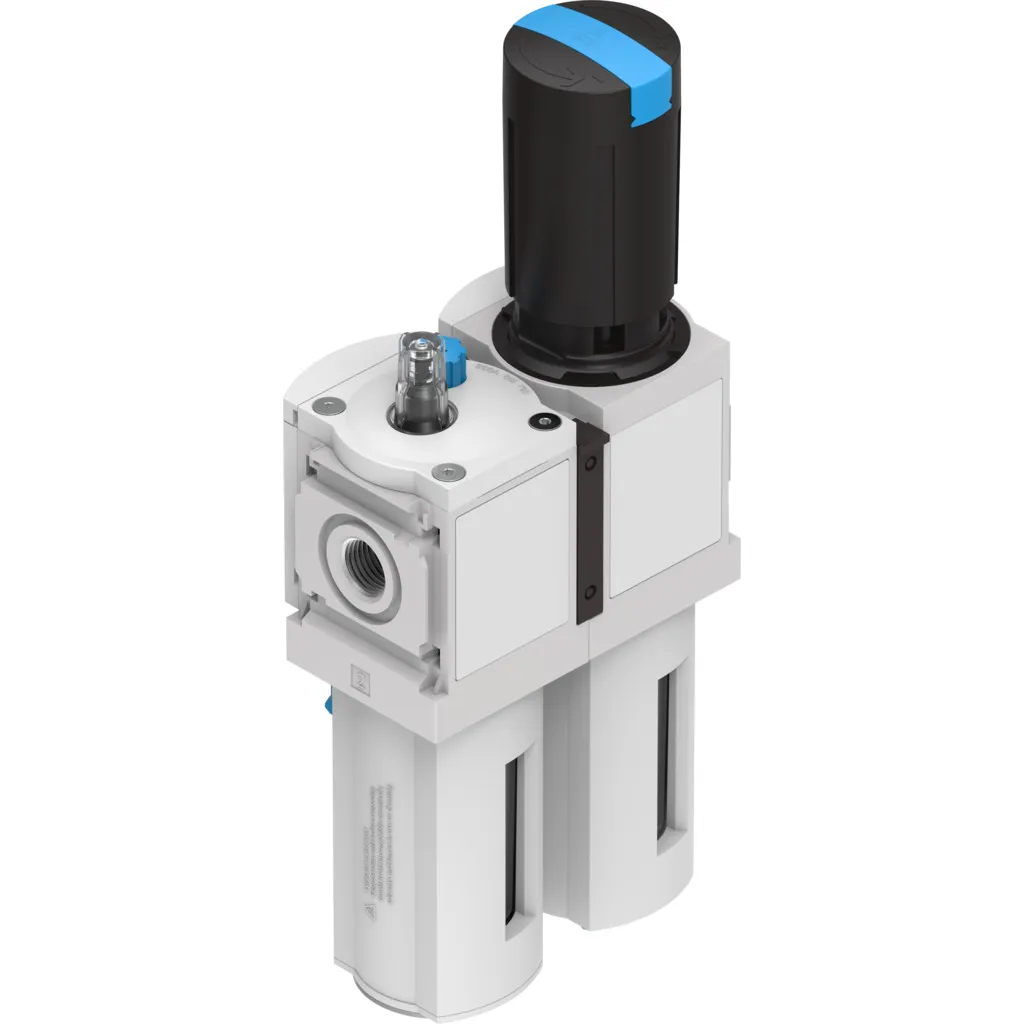

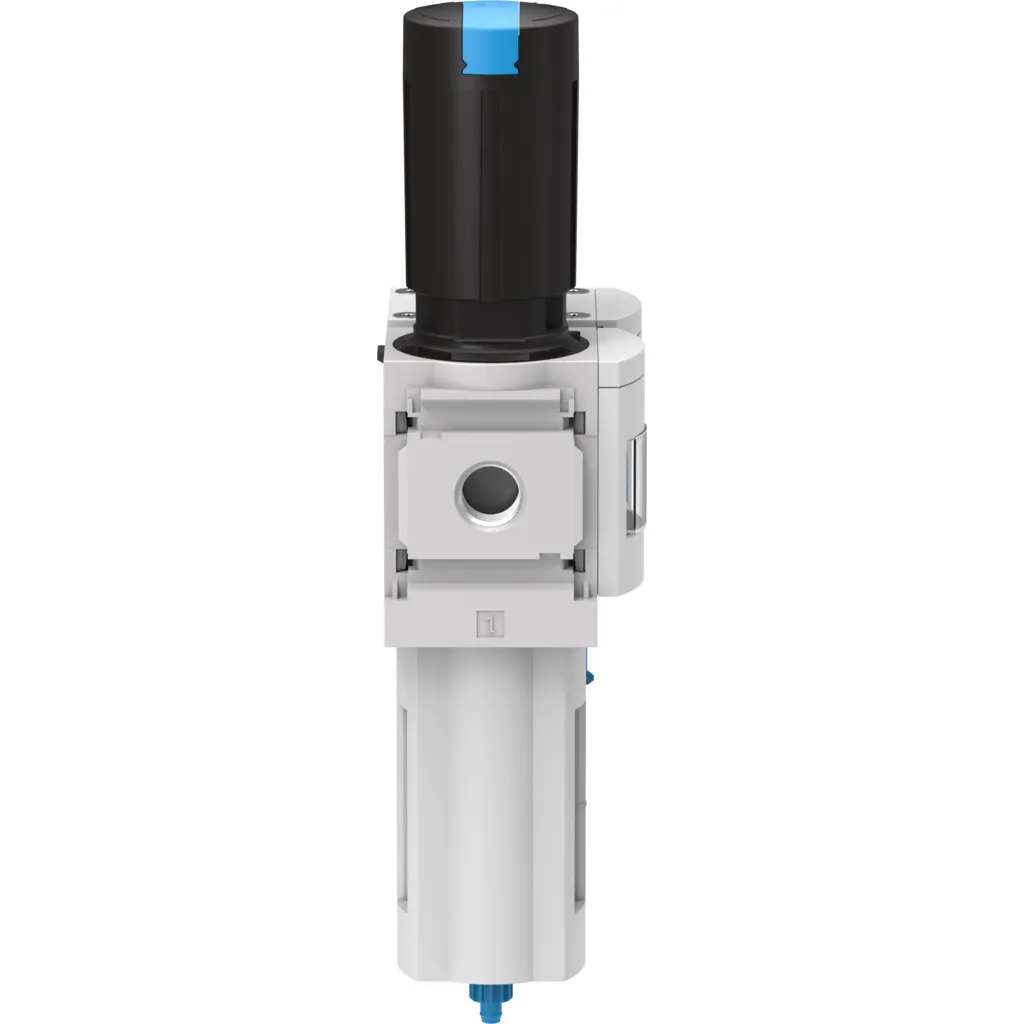

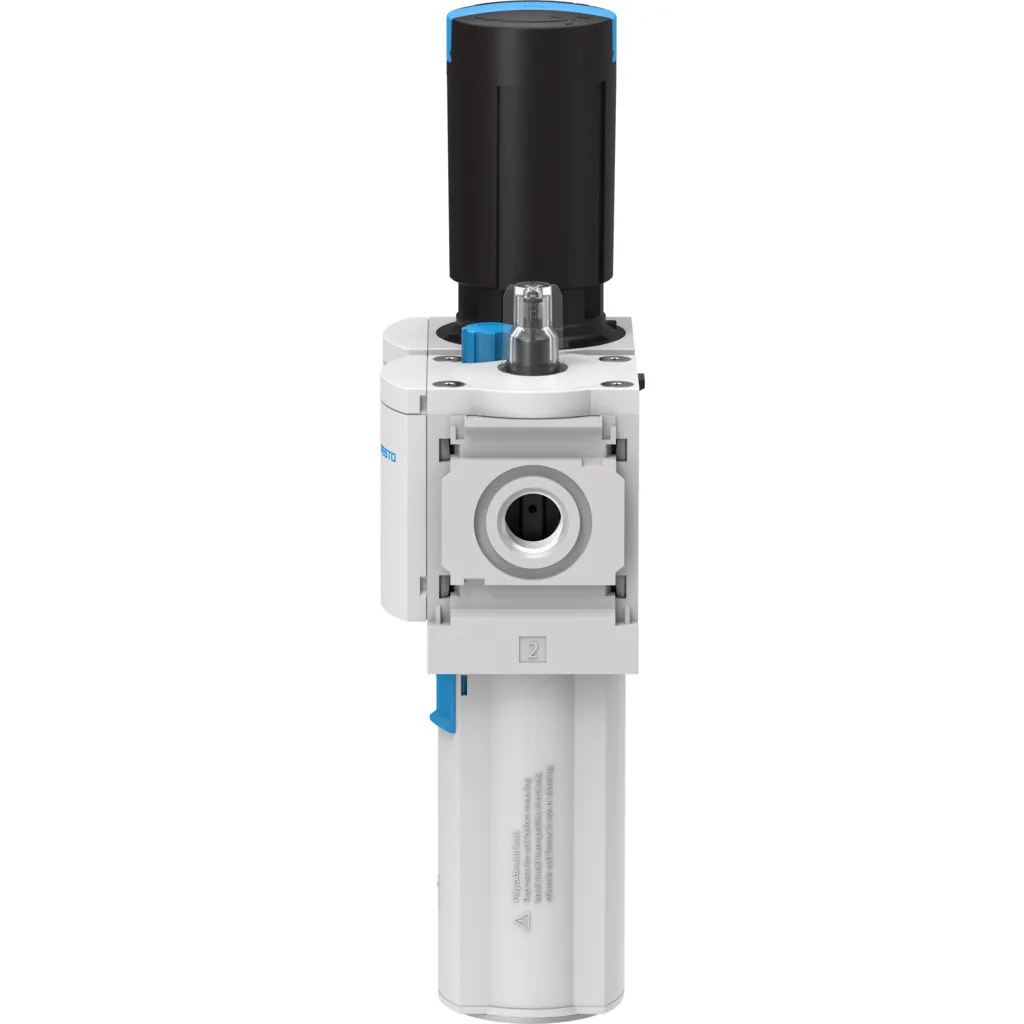

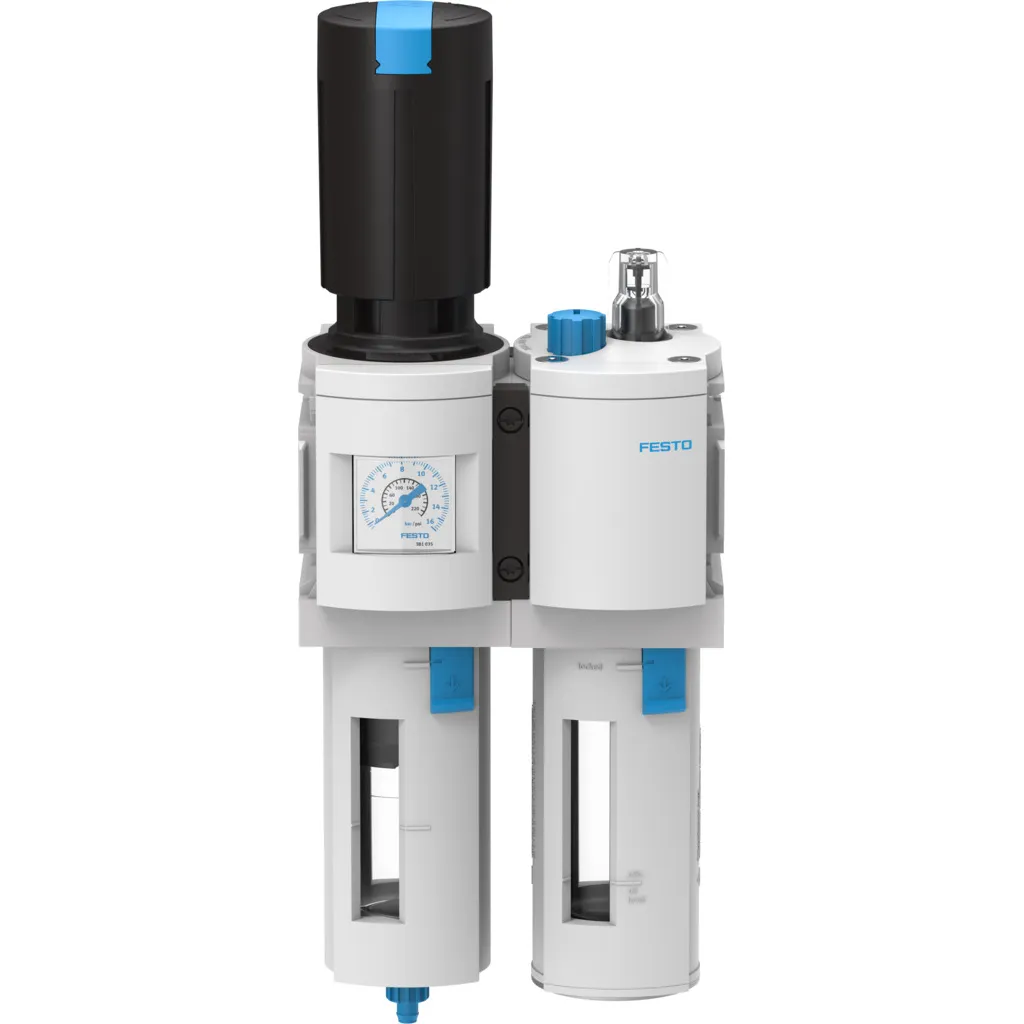

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.5 to 12 bar Pressure Range, MSB6-1/2-FRC9:J11M2

Part Number : MSB6-1/2-FRC9:J11M2

Brand :
Festo

A versatile air preparation system offering filtering, regulating, and lubricating capabilities with superior reliability. Its robust construction and 1/2" female thread ensure high-quality performance in large-scale pneumatic operations.

View all

KWD 80.400

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC9:J11M2 is built to handle high-demand air preparation tasks with ease. Its advanced filtering and regulating capabilities support a flow rate of 3700 l/min, ensuring superior performance. The durable design makes it suitable for large-scale pneumatic systems and heavy-duty applications.

Key Features

• Reliable design with durable construction. • Supports advanced filtering and regulating functions. • Flow rate of 3700 l/min for efficient air preparation.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 3700 l/min

Applications

• Ideal for systems requiring reliable air preparation. • Suitable for high-demand pneumatic systems.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC9 J11M2 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Integrated as metal bowl

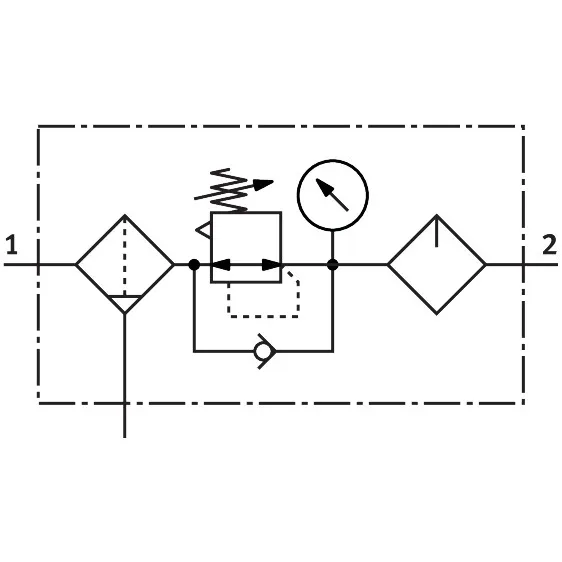

Symbol
991761
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
1.5 bar ... 20 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
3700 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1713 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
