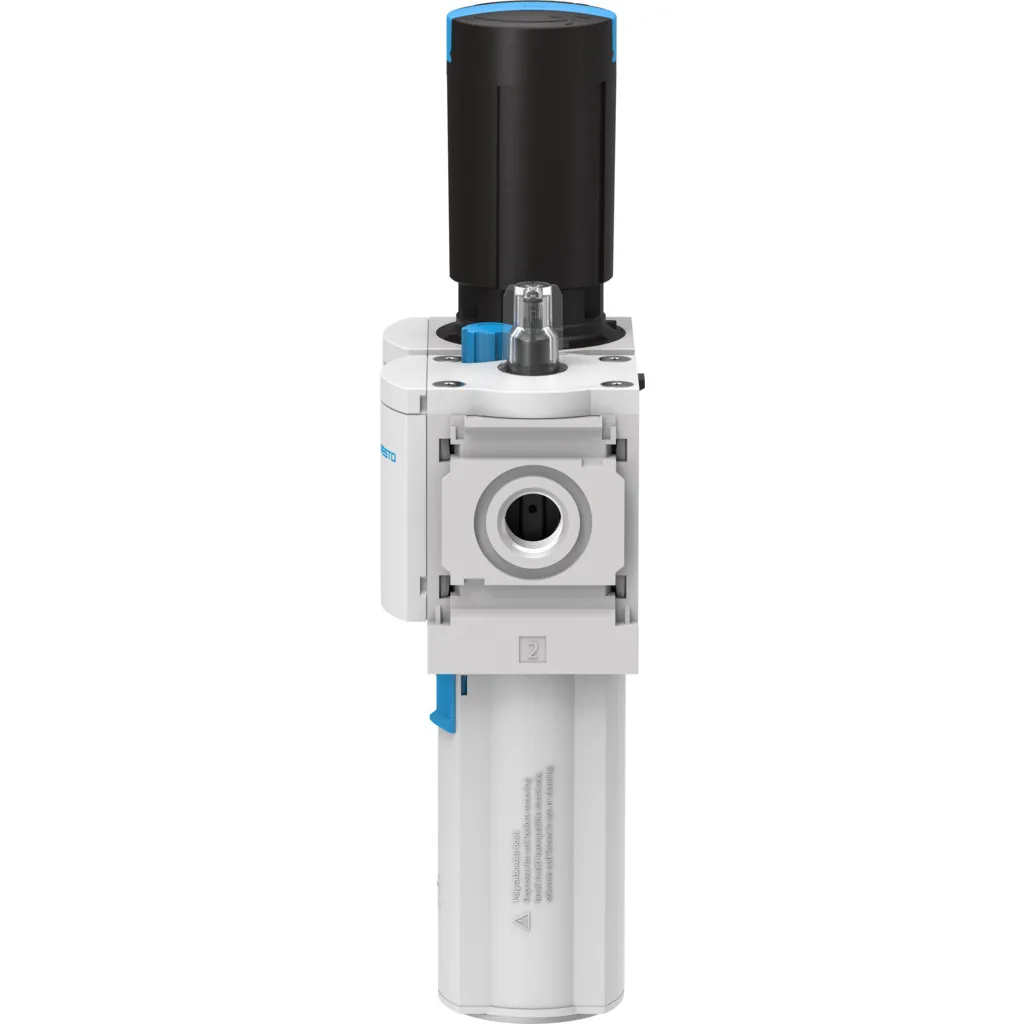

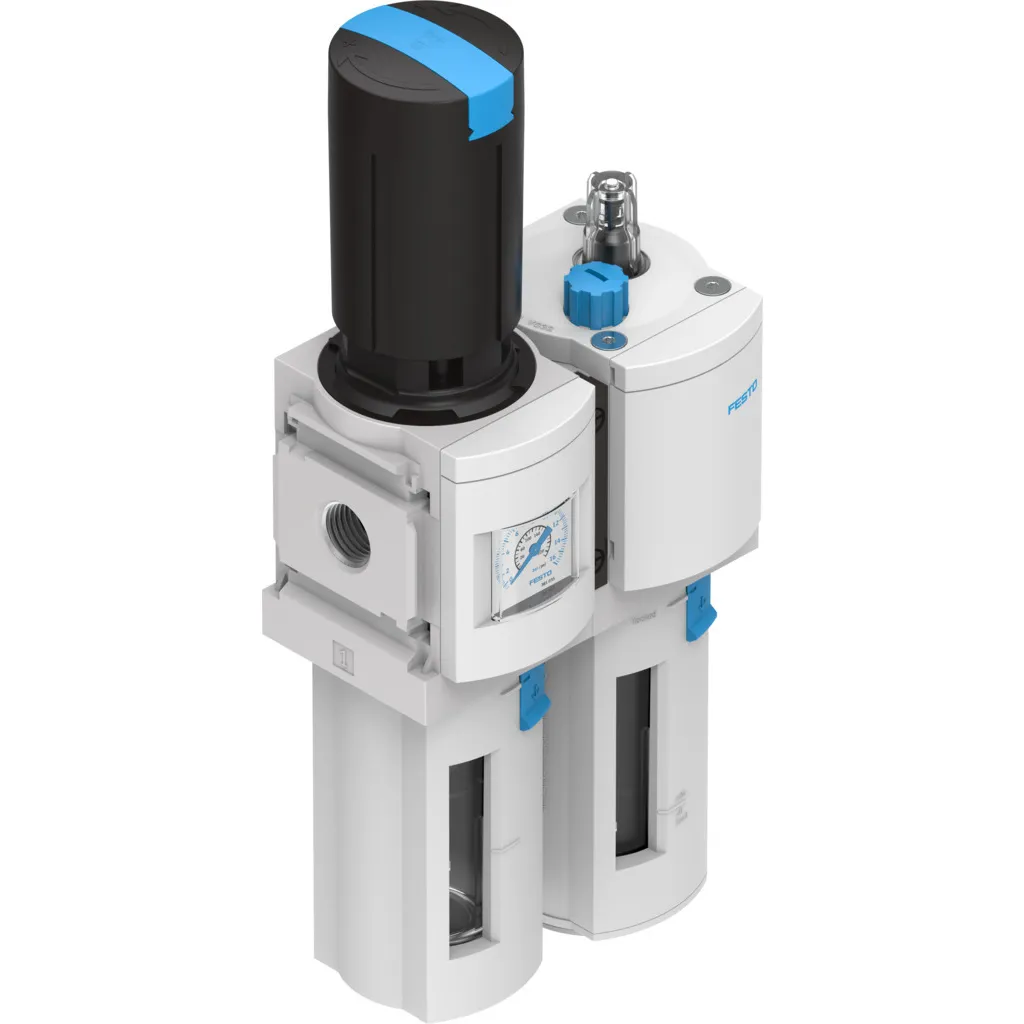

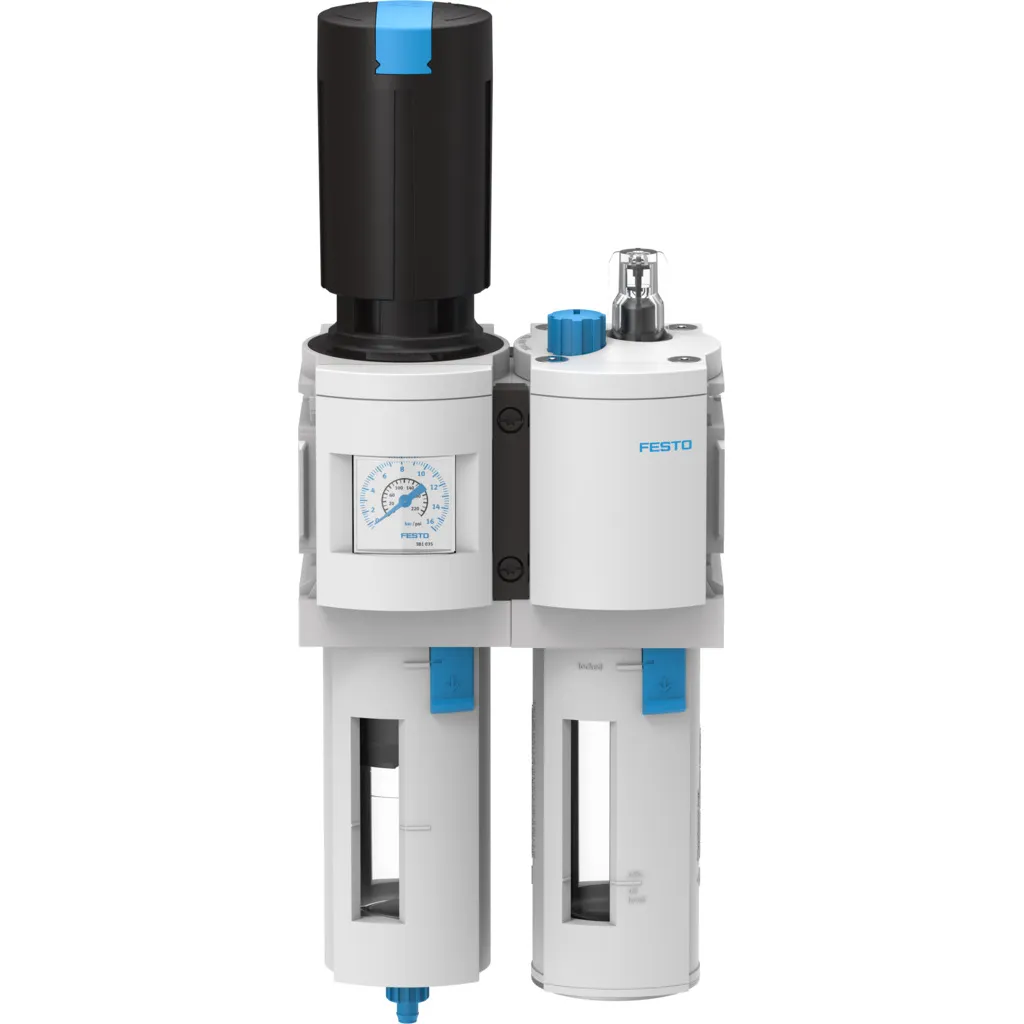

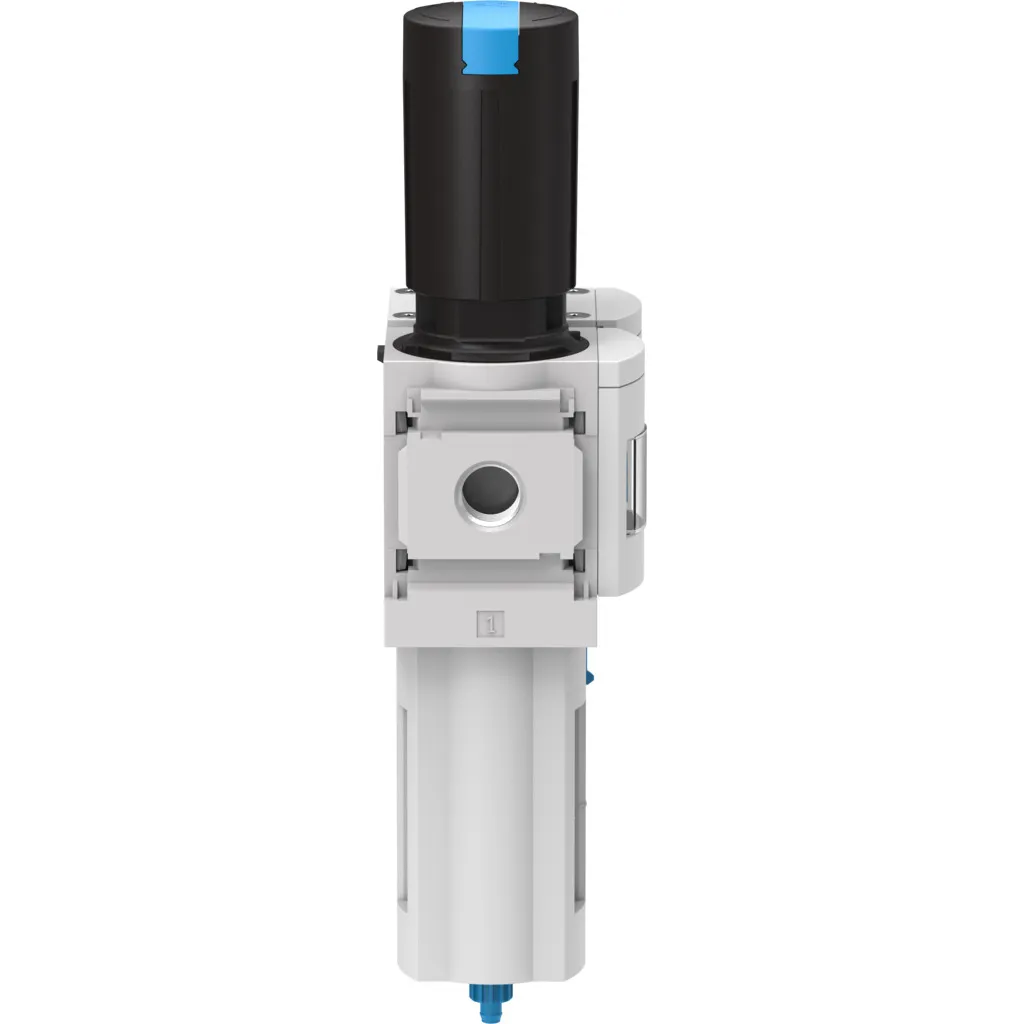

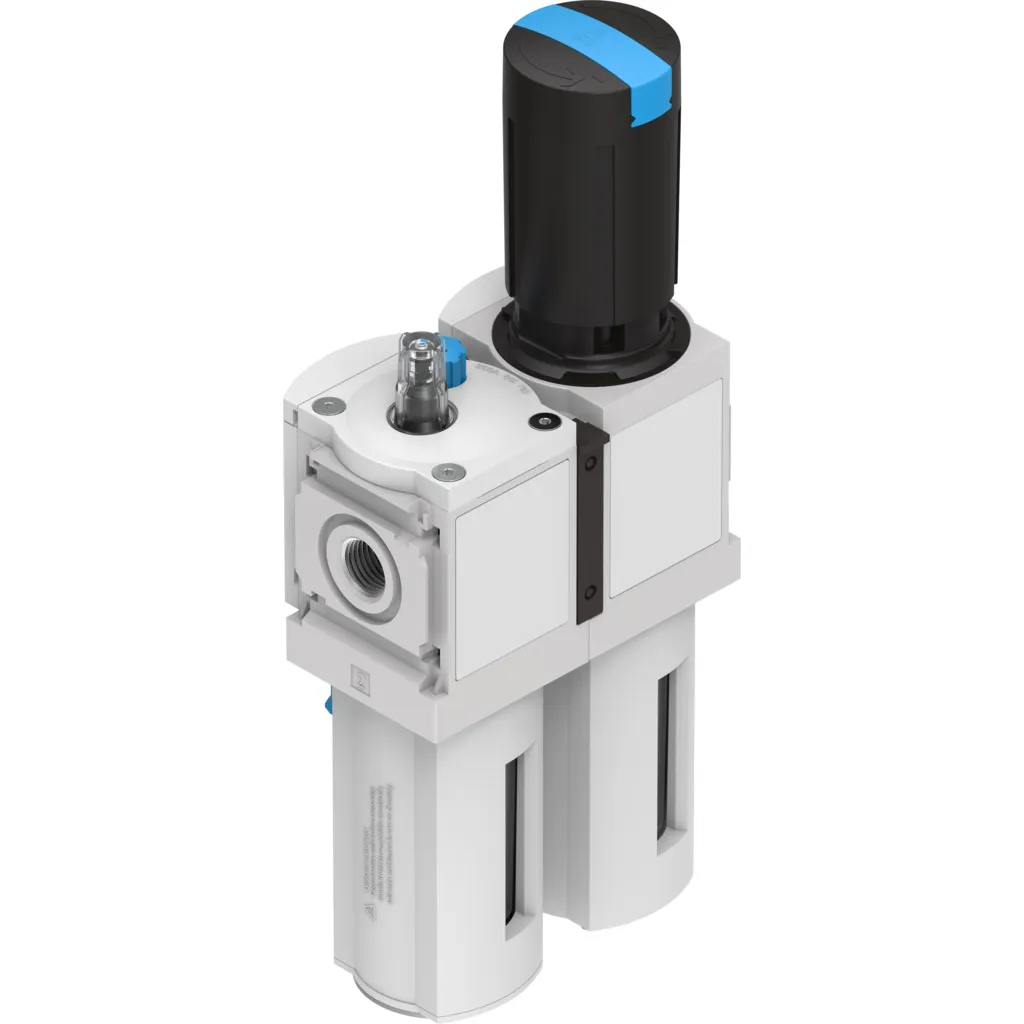

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.5 to 12 bar Pressure Range, MSB6-1/2-FRC7:J3M1

Part Number : MSB6-1/2-FRC7:J3M1

Brand :
Festo

A high-performance air preparation unit that excels in filtering, regulating, and lubricating air for industrial systems. It includes a robust 1/2" female thread connection, delivering reliable performance even in high-pressure environments.

View all

KWD 60.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC7:J3M1 delivers exceptional air quality with advanced filtering and regulating capabilities. It supports a flow rate of 3600 l/min and operates within a pressure range of 0.5 to 12 bar. Its durable construction ensures long-lasting performance in industrial environments.

Key Features

• Precision filtering and regulating functions for air systems. • Features a durable design for demanding industrial applications. • Supports a flow rate of 3600 l/min.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 5 ?m • Maximum Flow Rate: 3600 l/min

Applications

• Designed for precision air preparation in industrial environments. • Suitable for systems requiring advanced filtration and regulation.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC7 J3M1 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
5 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Plastic bowl guard

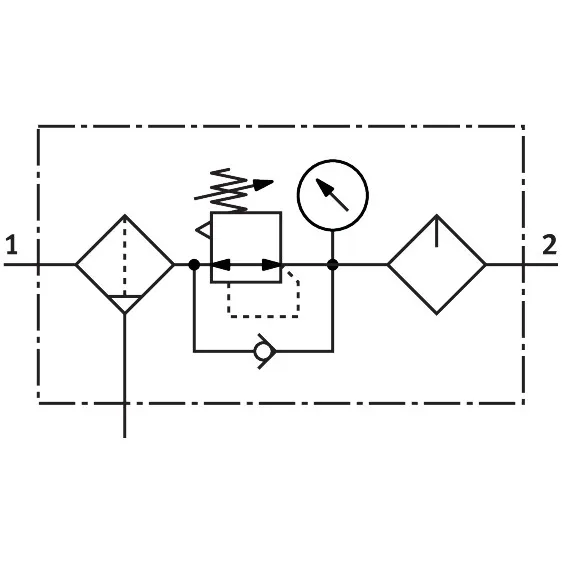

Symbol
991761
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
1.5 bar ... 20 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
3600 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1495 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
