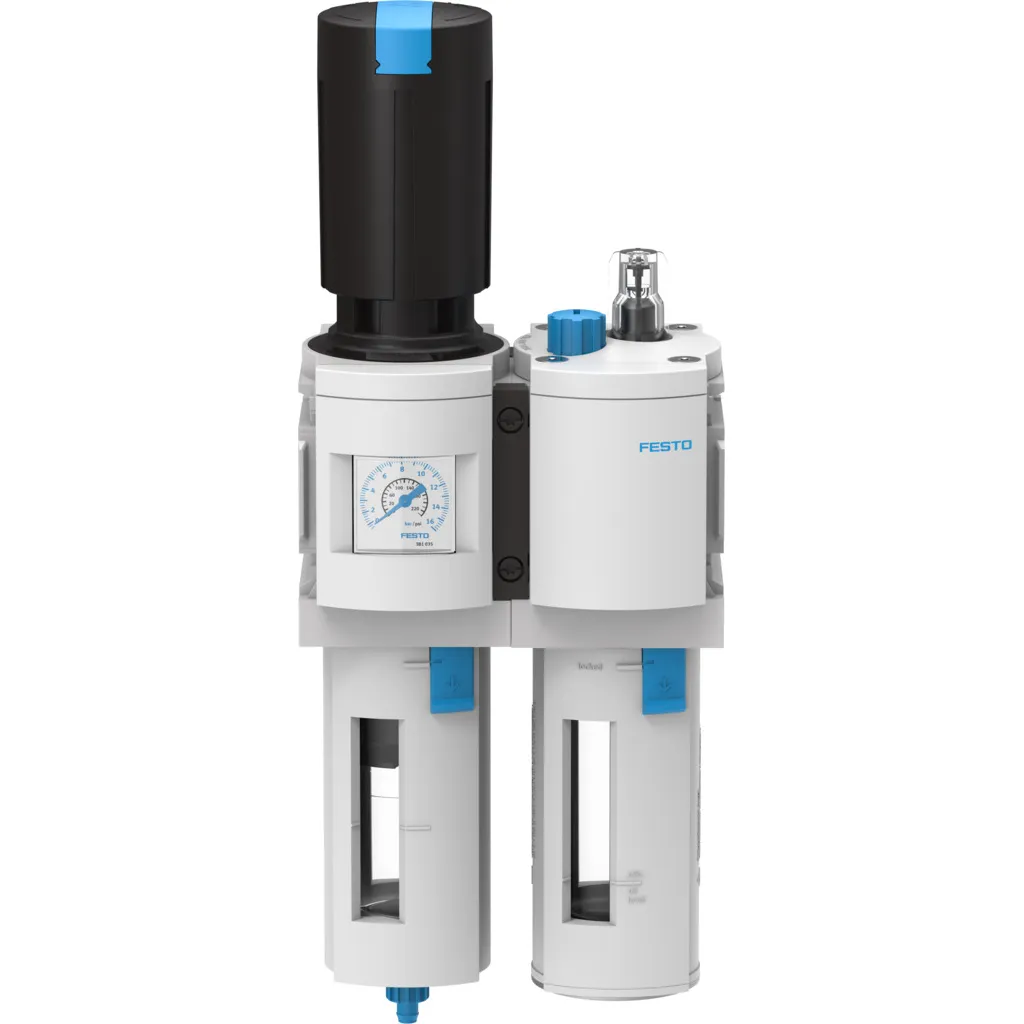

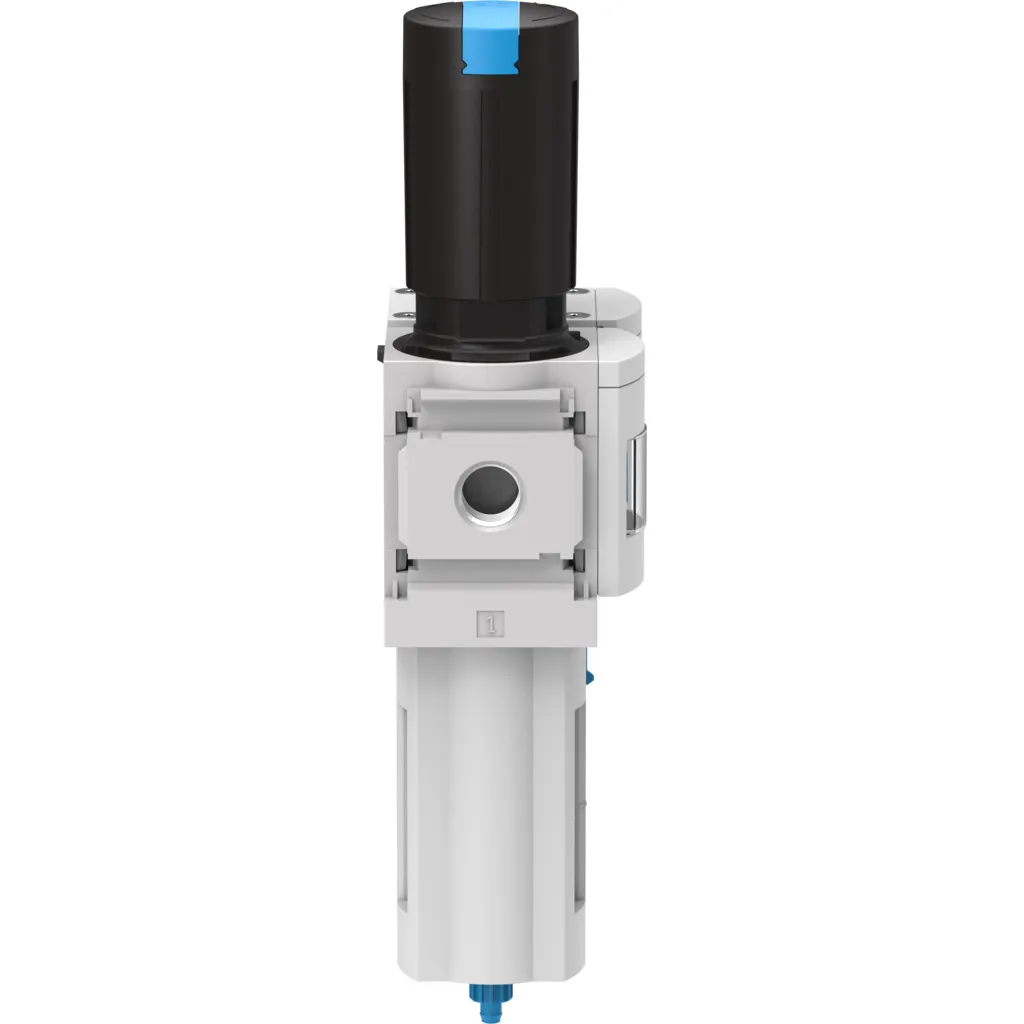

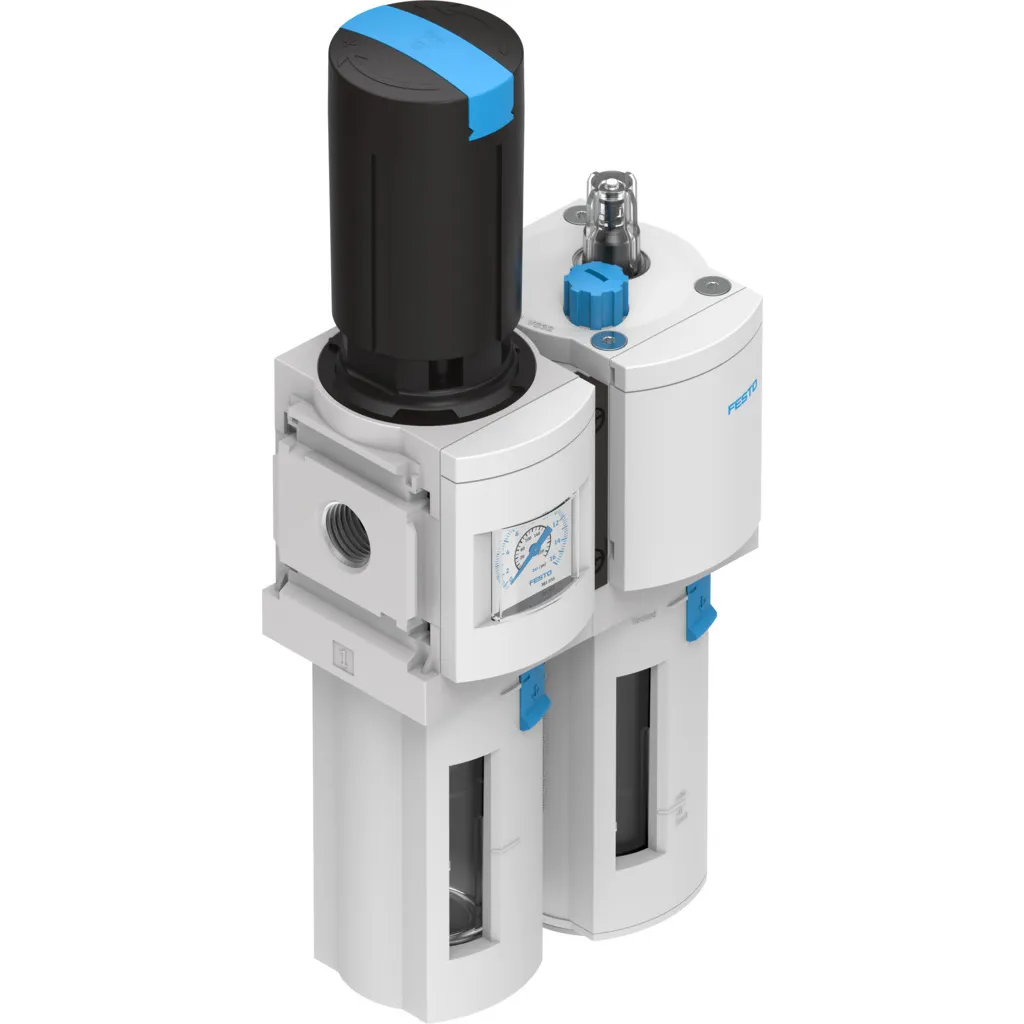

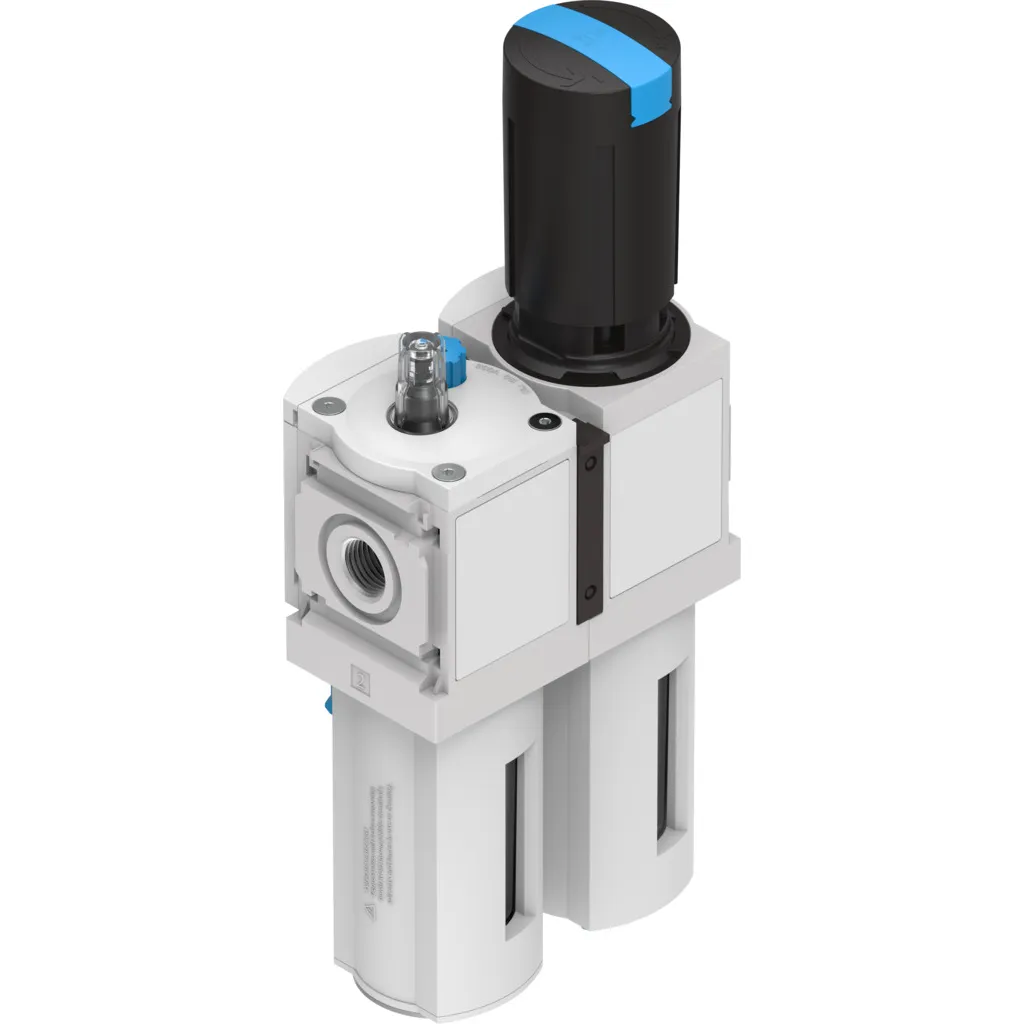

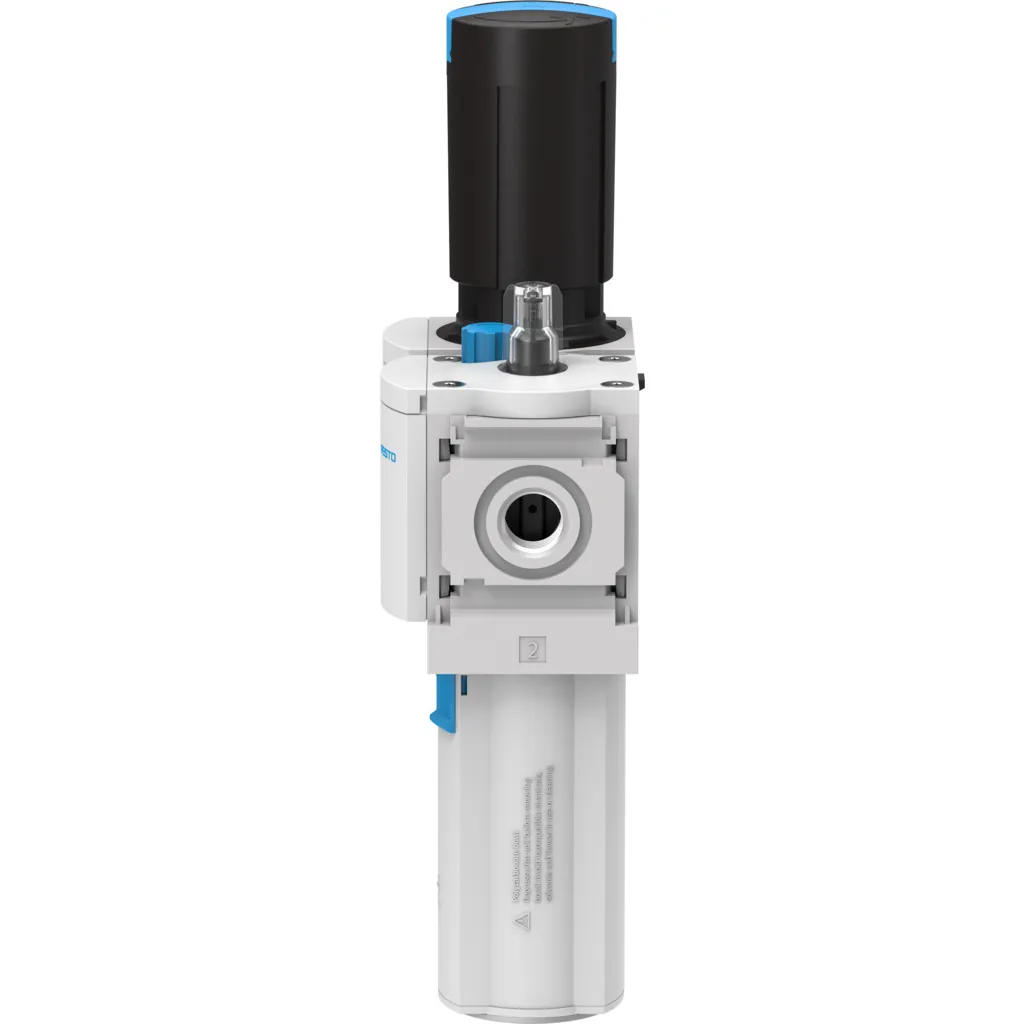

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.5 to 12 bar Pressure Range, MSB6-1/2-FRC6:J2M1

Part Number : MSB6-1/2-FRC6:J2M1

Brand :
Festo

A versatile air preparation unit combining filtering, regulating, and lubricating functions. Features a 1/2" female thread and advanced design for seamless air management in demanding systems.

View all

KWD 71.300

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC6:J2M1 is built to handle demanding pneumatic tasks with precision filtering, regulating, and lubricating functions. It offers a flow rate of 3600 l/min and operates within a pressure range of 0.5 to 12 bar, ensuring reliable performance in industrial applications.

Key Features

• Compact design combining filtering, regulating, and lubricating functions. • Provides a flow rate of 3600 l/min and supports a pressure range of 0.5 to 12 bar. • Built for seamless air management in demanding applications.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 3600 l/min

Applications

• Suitable for demanding pneumatic tasks in industrial setups. • Perfect for applications requiring precise air regulation and filtration.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC6 J2M1 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Fully automatic
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Integrated as metal bowl

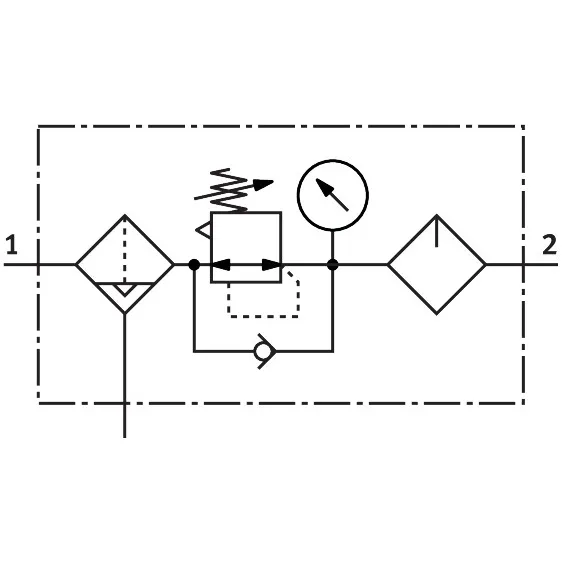

Symbol
991599
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
2 bar ... 12 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
3700 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1713 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
