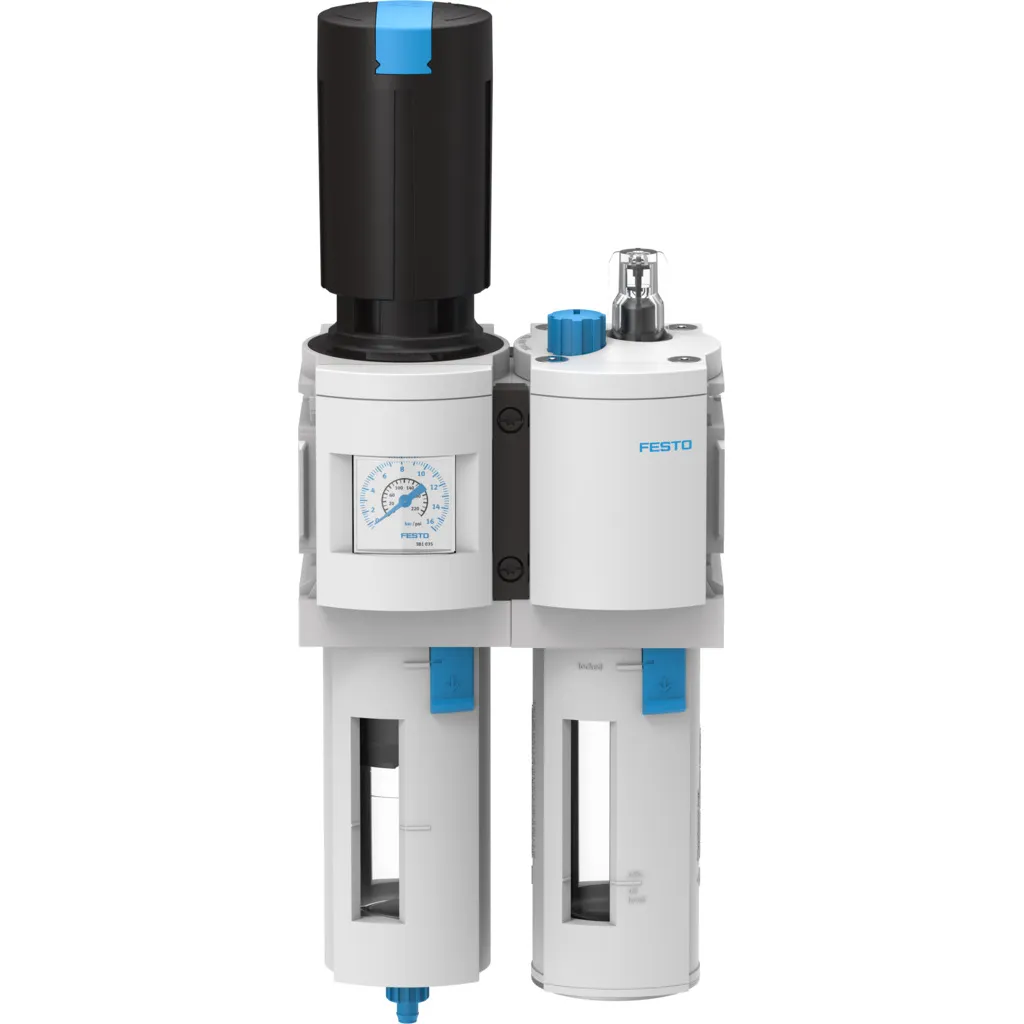

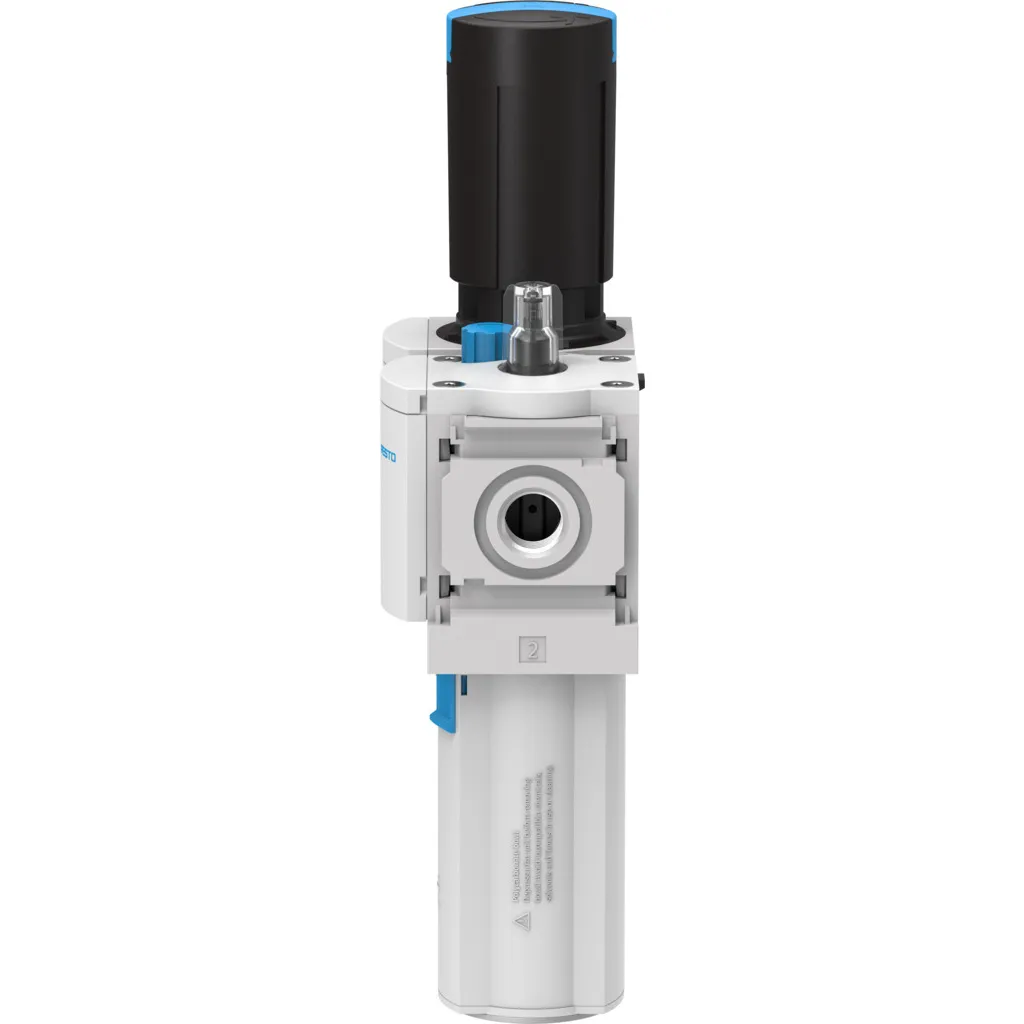

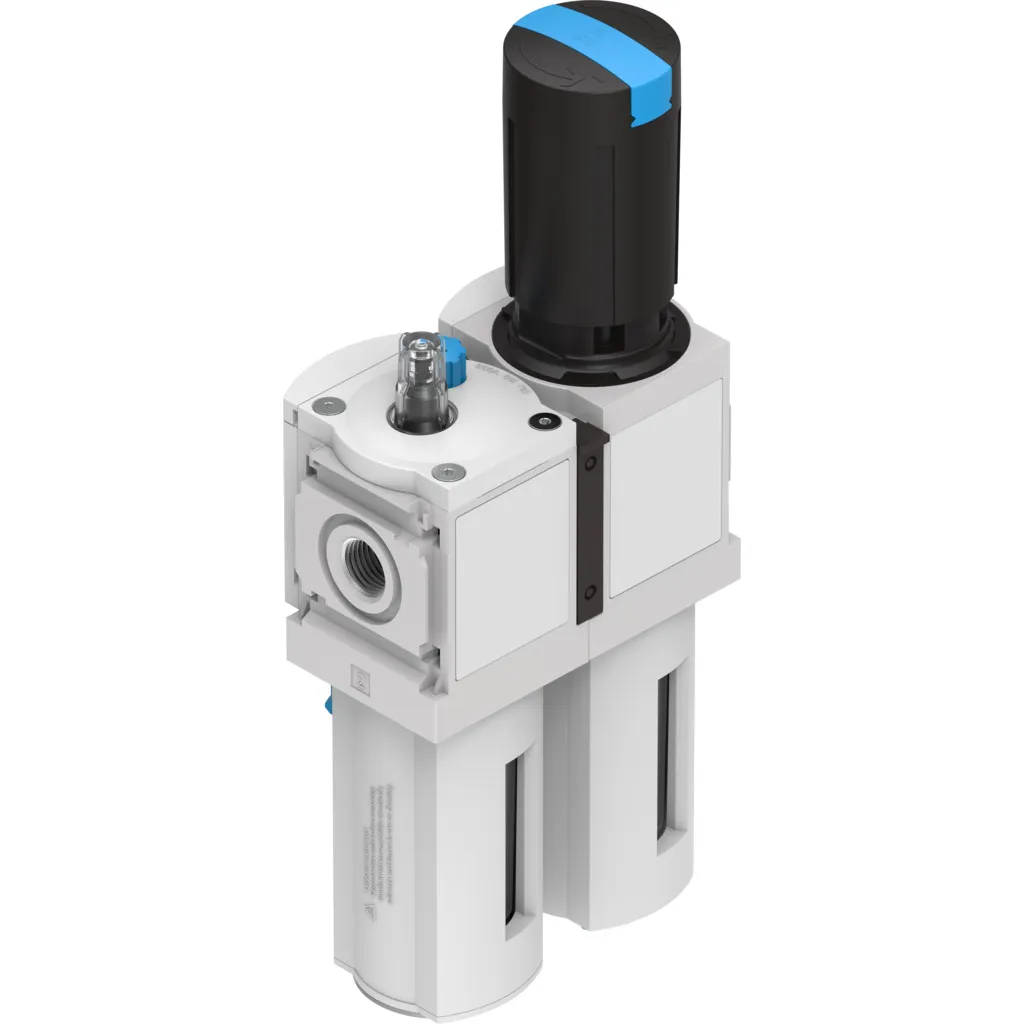

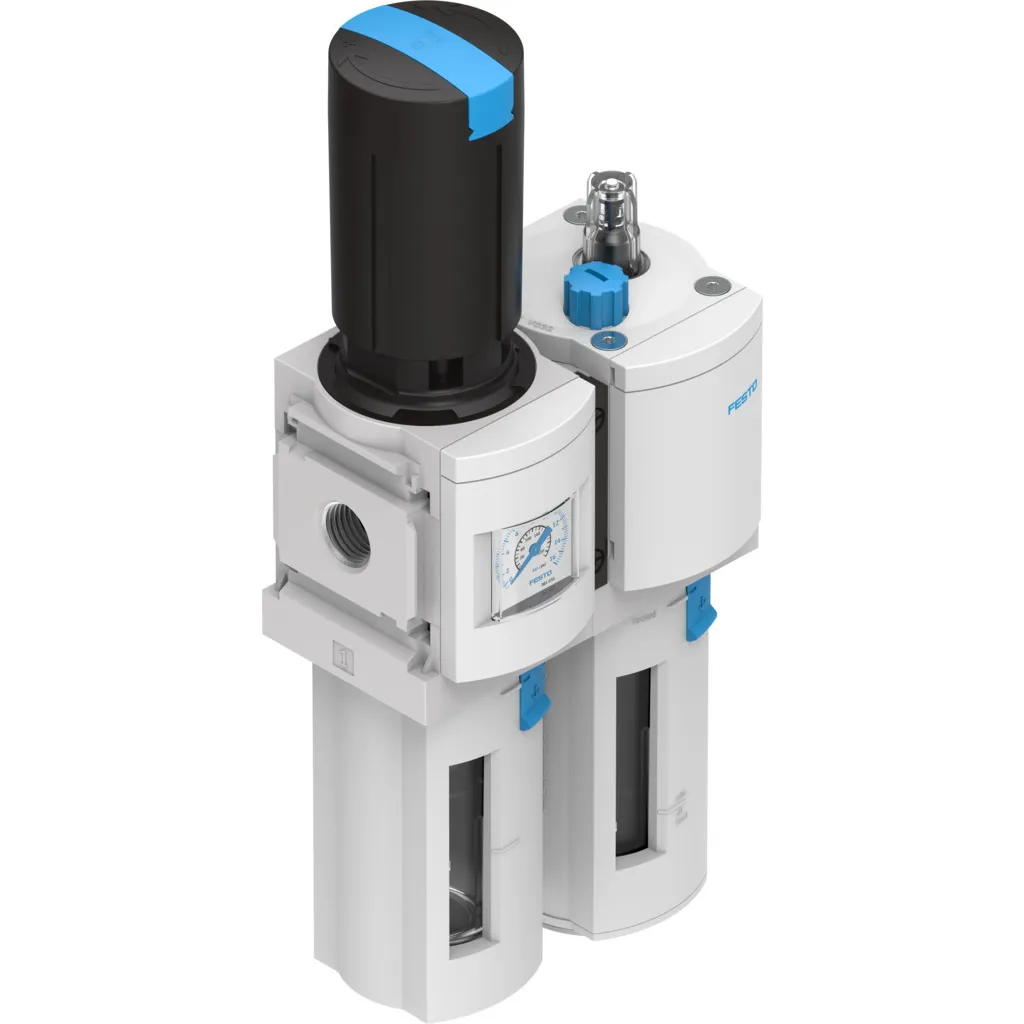

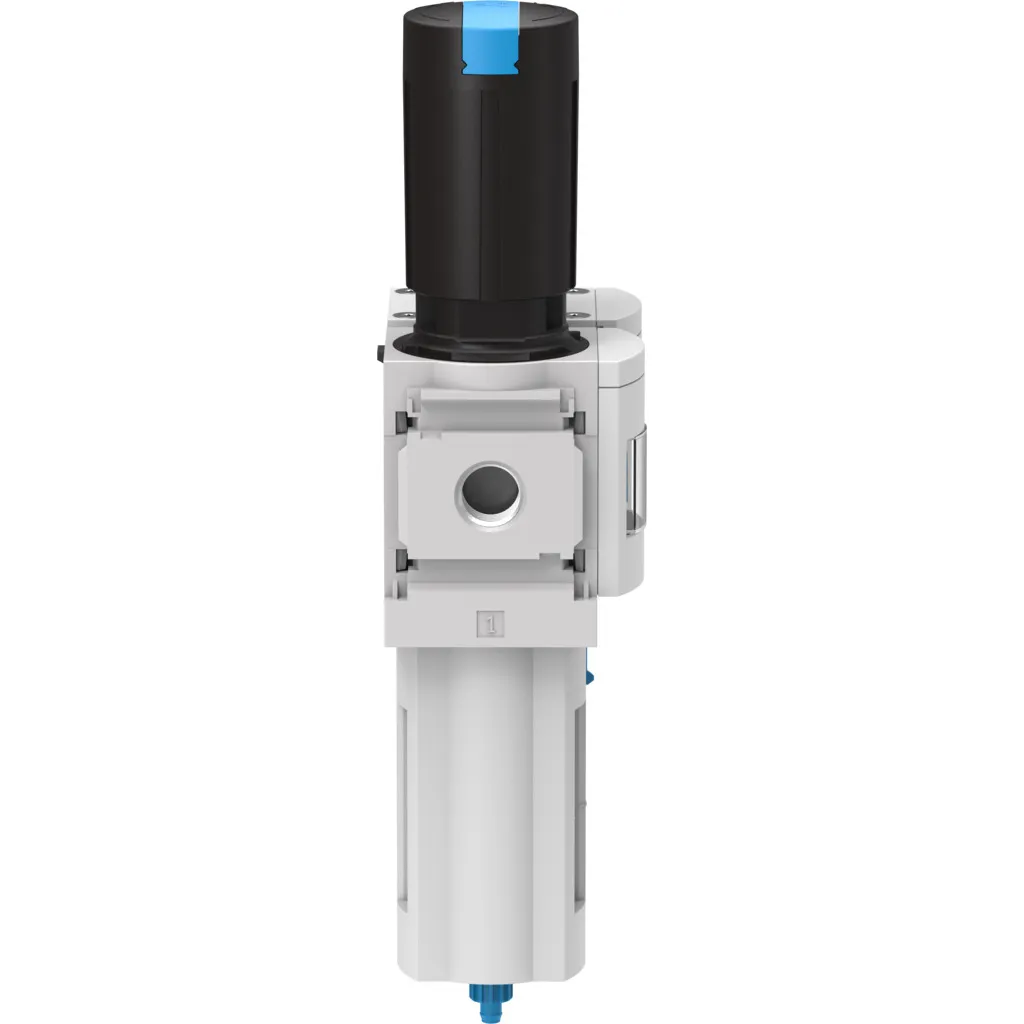

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.5 to 12 bar Pressure Range, MSB6-1/2-FRC12:J10M2

Part Number : MSB6-1/2-FRC12:J10M2

Brand :
Festo

An advanced air preparation system offering precise filtration, pressure regulation, and automatic condensate draining. With a durable metal bowl and a 1/2" female thread, this unit is designed to handle the toughest pneumatic tasks with ease.

View all

KWD 92.300

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC12:J10M2 is a high-capacity air preparation solution featuring precise filtration and pressure regulation. With a maximum flow rate of 3600 l/min, it incorporates automatic condensate draining and a durable metal bowl, making it ideal for heavy-duty applications requiring consistent air preparation.

Key Features

• Advanced filtering, regulating, and lubricating capabilities. • Automatic condensate drain for maintenance-free operation. • Supports a flow rate of 3600 l/min.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 5 ?m • Maximum Flow Rate: 3600 l/min

Applications

• Suitable for industrial air systems requiring durable performance. • Ideal for automation and heavy-duty applications.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC12 J10M2 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
5 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Plastic bowl guard

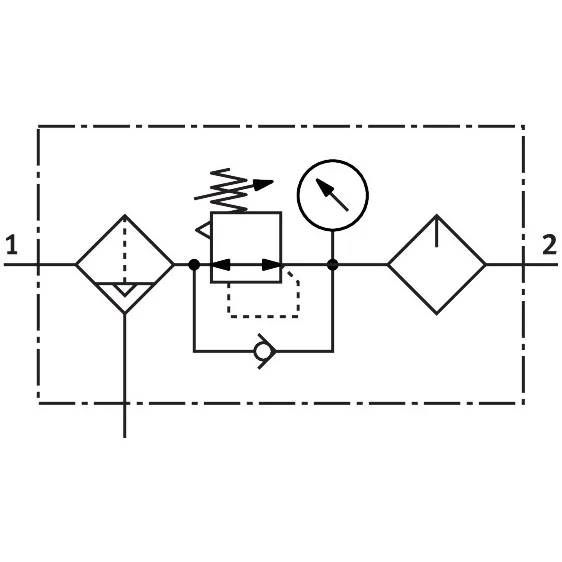

Symbol
991761
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
1.5 bar ... 20 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
3600 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1495 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
