Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.5 to 12 bar Pressure Range, MSB6-1/2-FRC11:J9M2

Part Number : MSB6-1/2-FRC11:J9M2

Brand :
Festo

A robust air preparation unit designed to ensure clean, regulated, and lubricated compressed air. Featuring a metal bowl guard and a 1/2" female thread, it is built for efficiency and long-term durability in industrial setups.

View all

KWD 80.400

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC11:J9M2 offers reliable and efficient air preparation with advanced filtration and lubrication features. Designed for high-demand systems, it provides a maximum flow rate of 3700 l/min and precise pressure control. The robust metal bowl adds to its durability and safety for industrial operations.

Key Features

• Robust construction with advanced air filtration. • Manual condensate drain for ease of use. • Provides a flow rate of 3700 l/min.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 3700 l/min

Applications

• Perfect for high-demand pneumatic systems requiring robust air management. • Ideal for industrial automation setups.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC11 J9M2 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
5 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Integrated as metal bowl

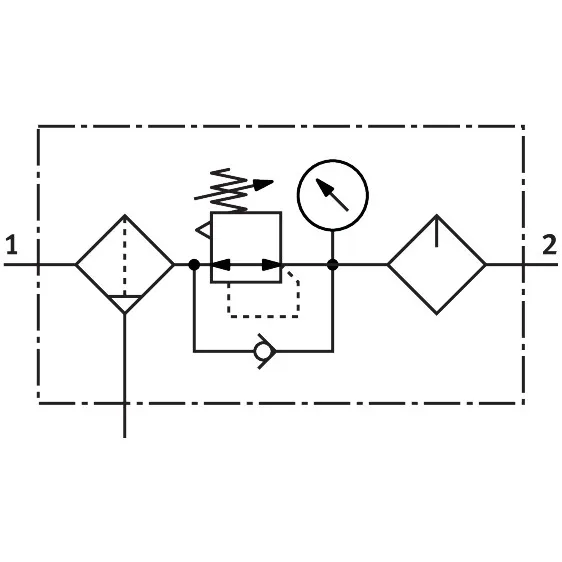

Symbol
991761
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
1.5 bar ... 20 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
3600 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1713 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
