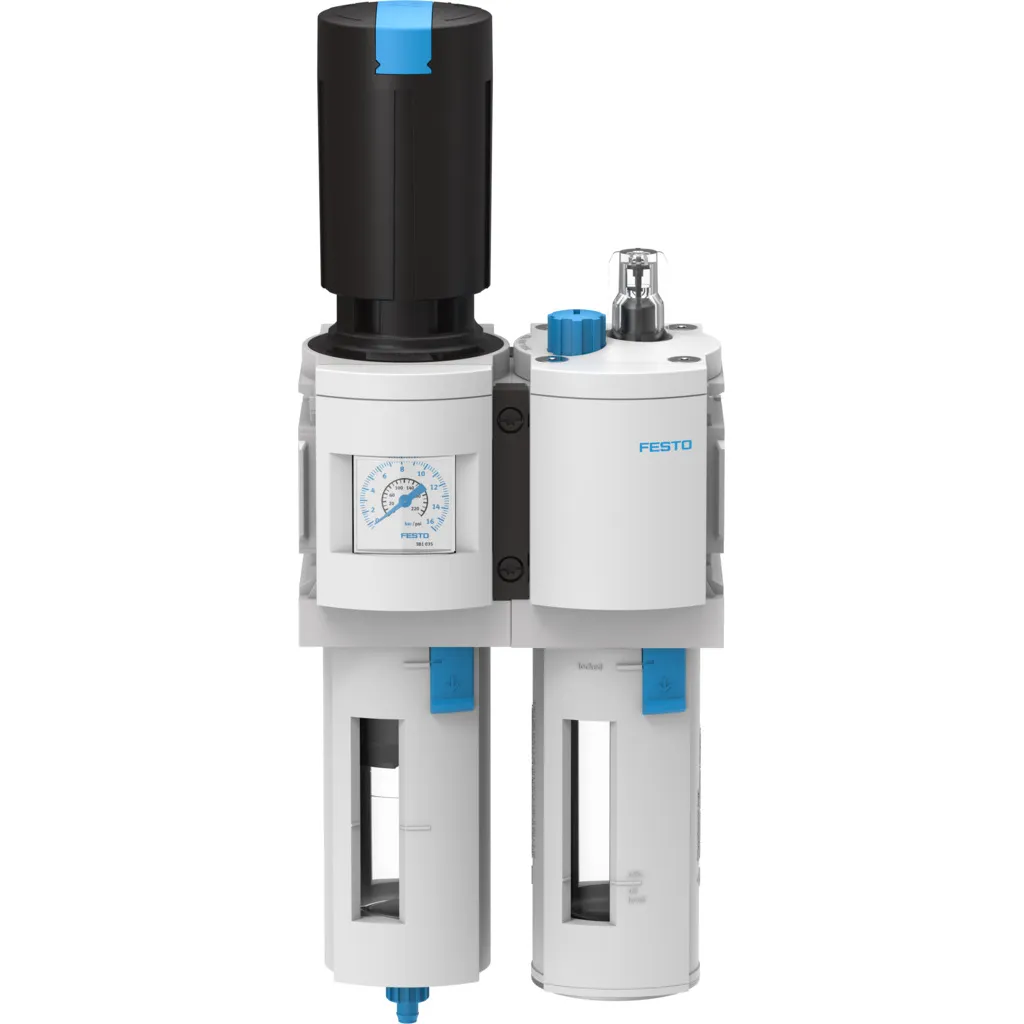

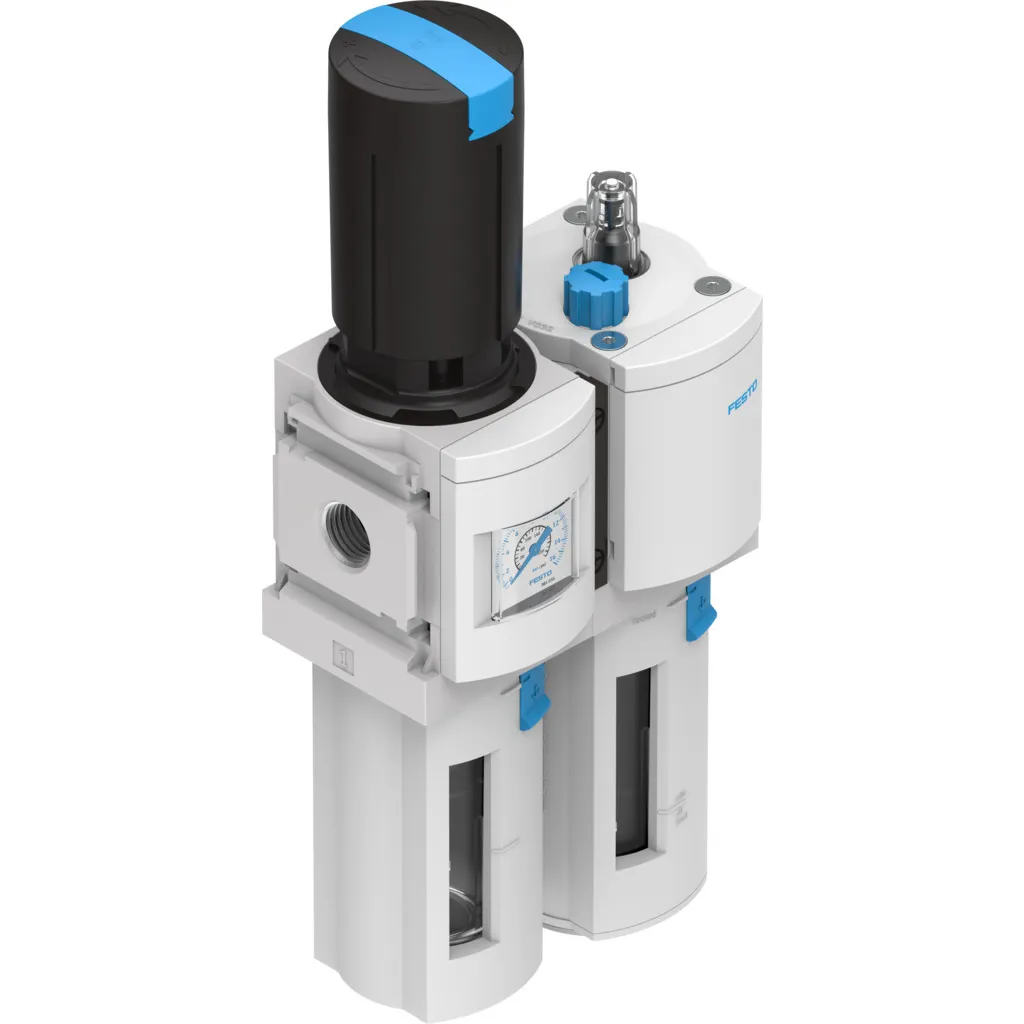

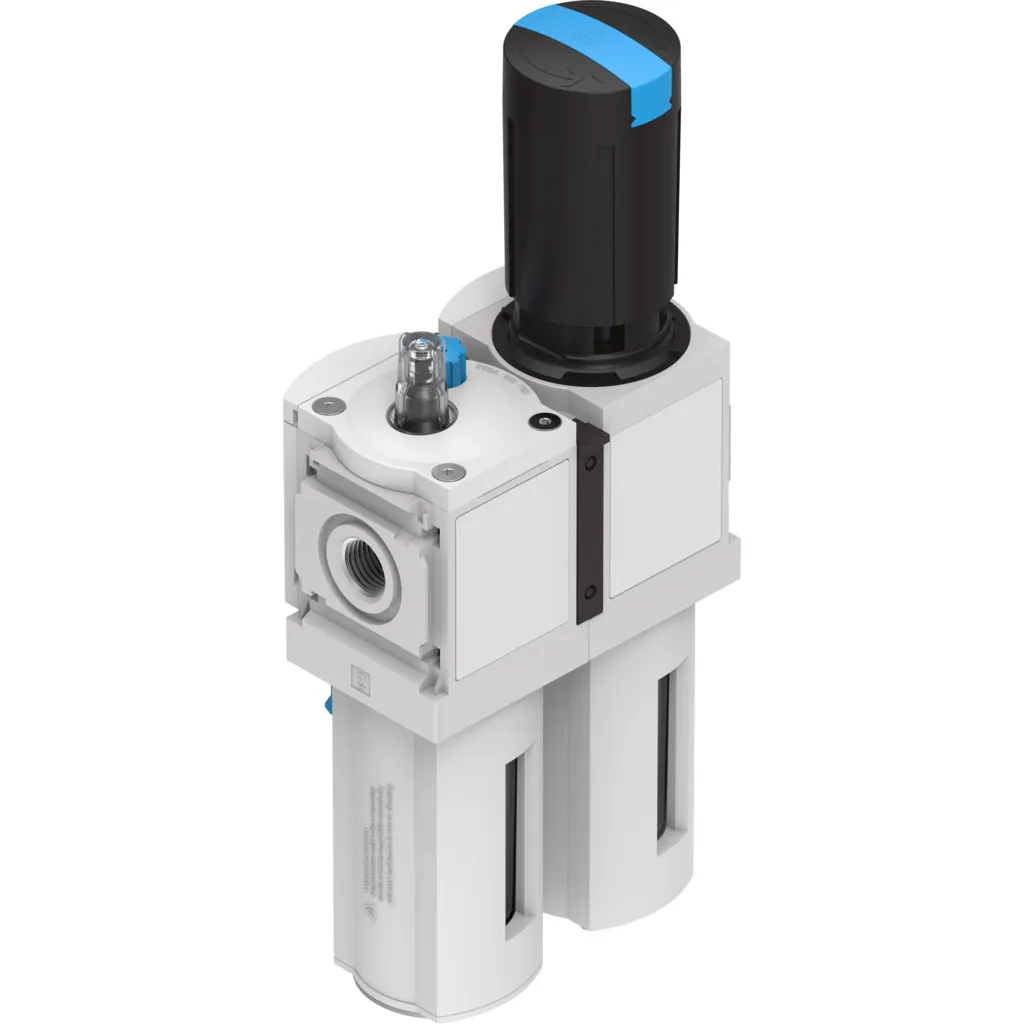

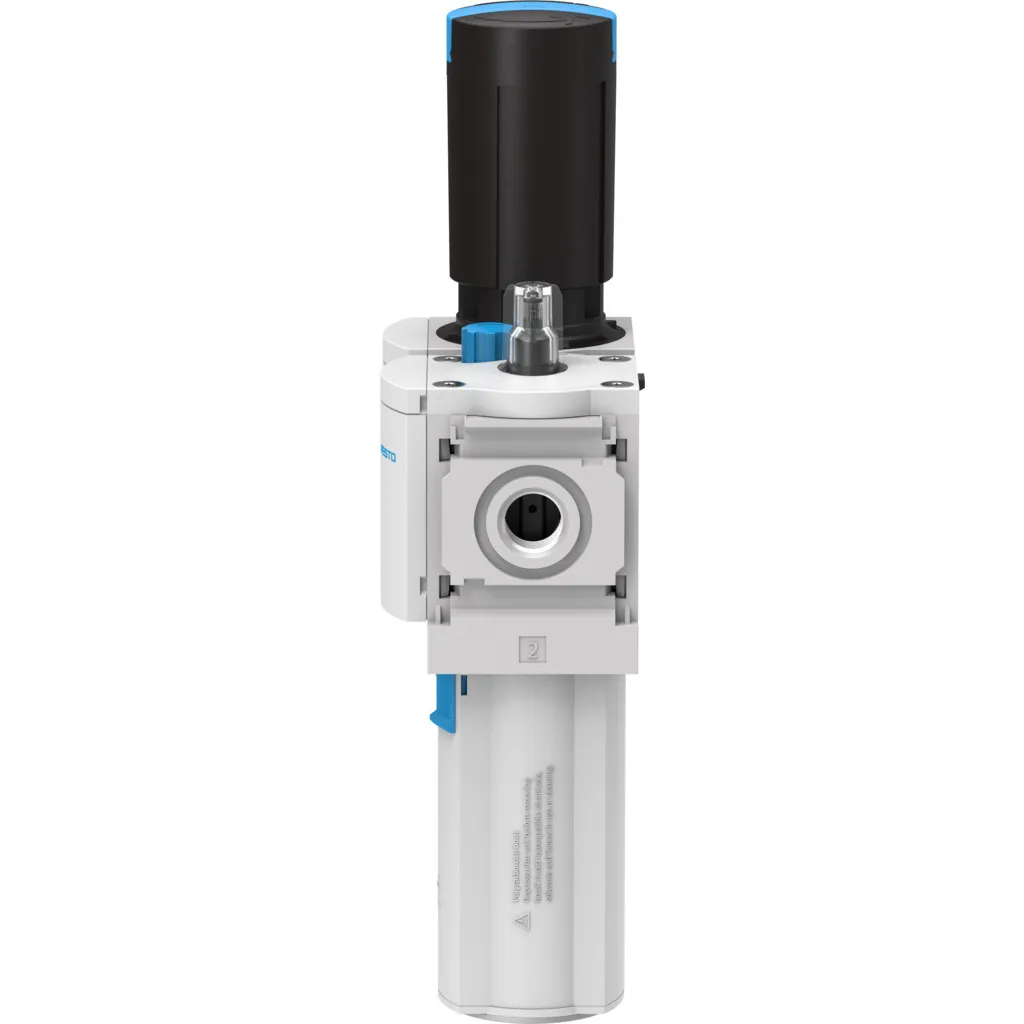

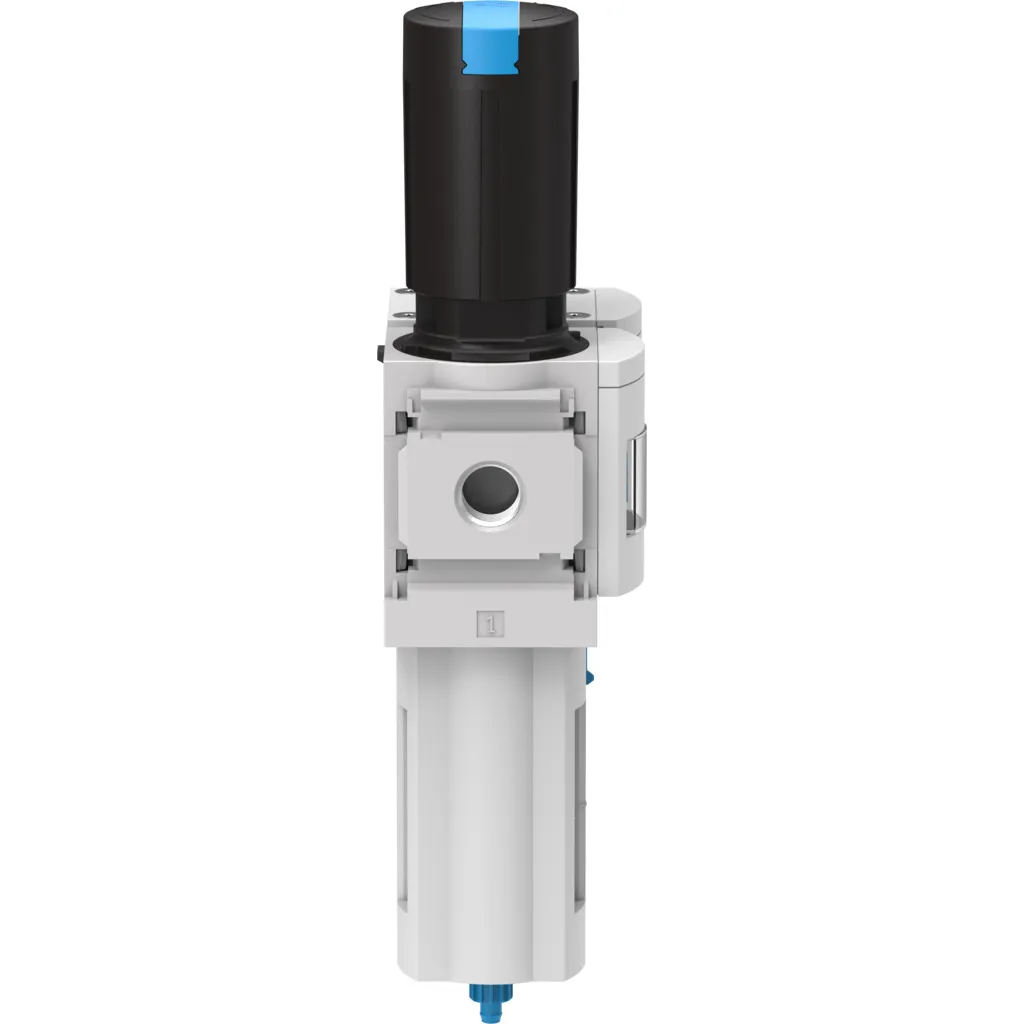

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.5 to 12 bar Pressure Range, MSB6-1/2-FRC10:J12M2

Part Number : MSB6-1/2-FRC10:J12M2

Brand :
Festo

An efficient air preparation unit with advanced filtering, regulating, and lubricating features. Equipped with a 1/2" female thread and a durable design, it ensures reliable performance in industrial setups.

View all

KWD 92.300

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC10:J12M2 integrates high-performance filtering, regulating, and lubricating functions. It provides a flow rate of 3600 l/min and supports a pressure regulation range of 0.5 to 12 bar. This unit is ideal for industrial systems requiring efficient air preparation.

Key Features

• Advanced filtering, regulating, and lubricating functions. • Flow rate of 3600 l/min with precise pressure regulation. • Designed for efficient air preparation in industrial setups.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 3600 l/min

Applications

• Suitable for industrial pneumatic systems requiring efficient air management. • Ideal for setups demanding high-performance air preparation.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC10 J12M2 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Fully automatic
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Integrated as metal bowl

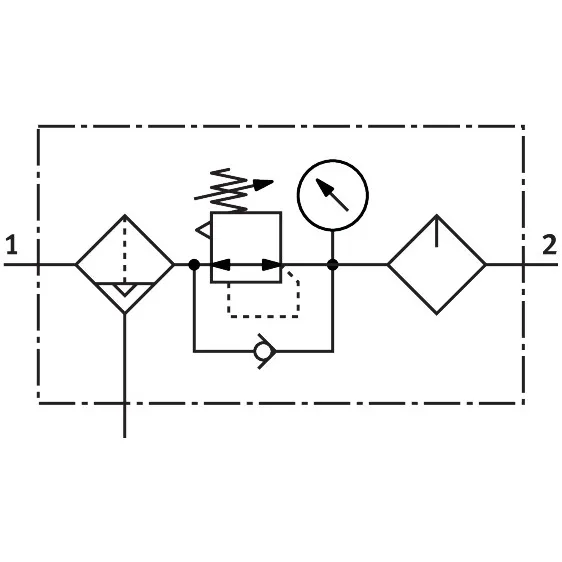

Symbol
991599
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
2 bar ... 12 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
3700 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1713 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
