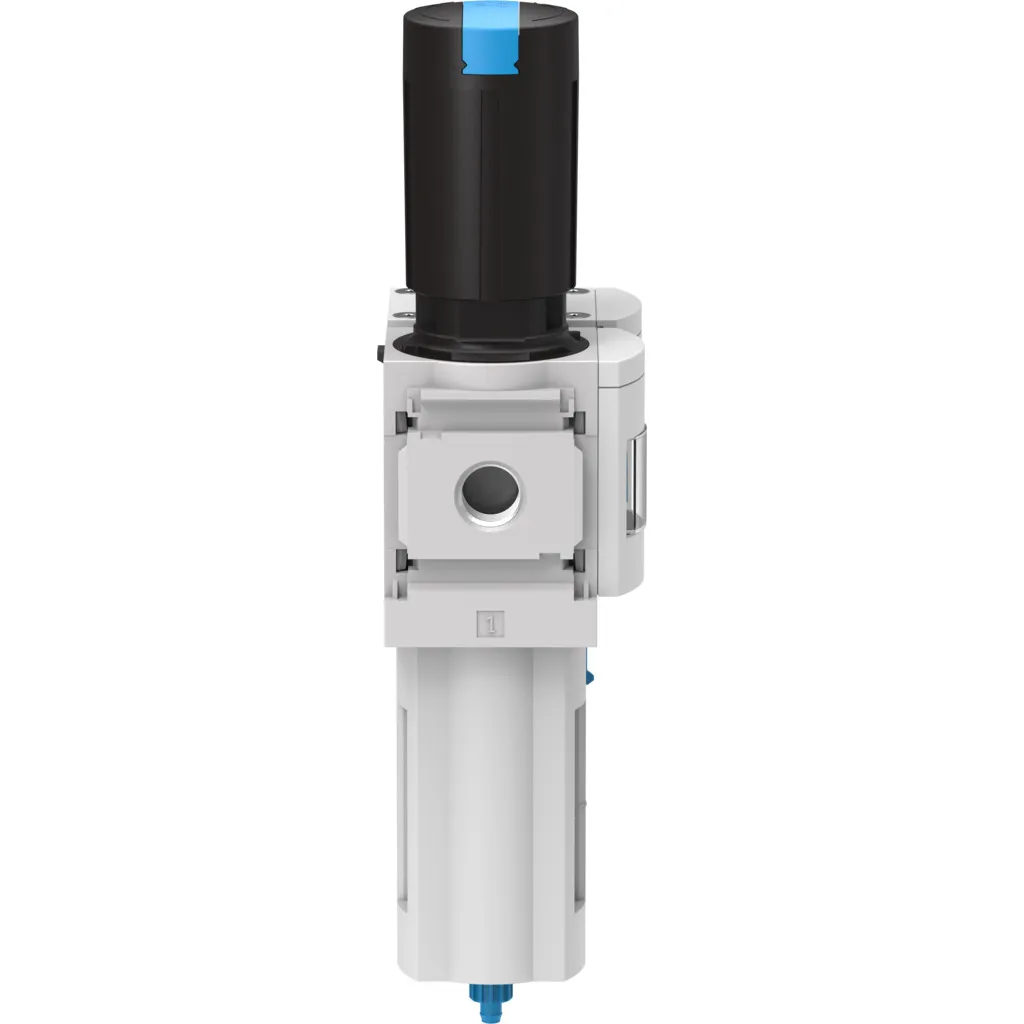

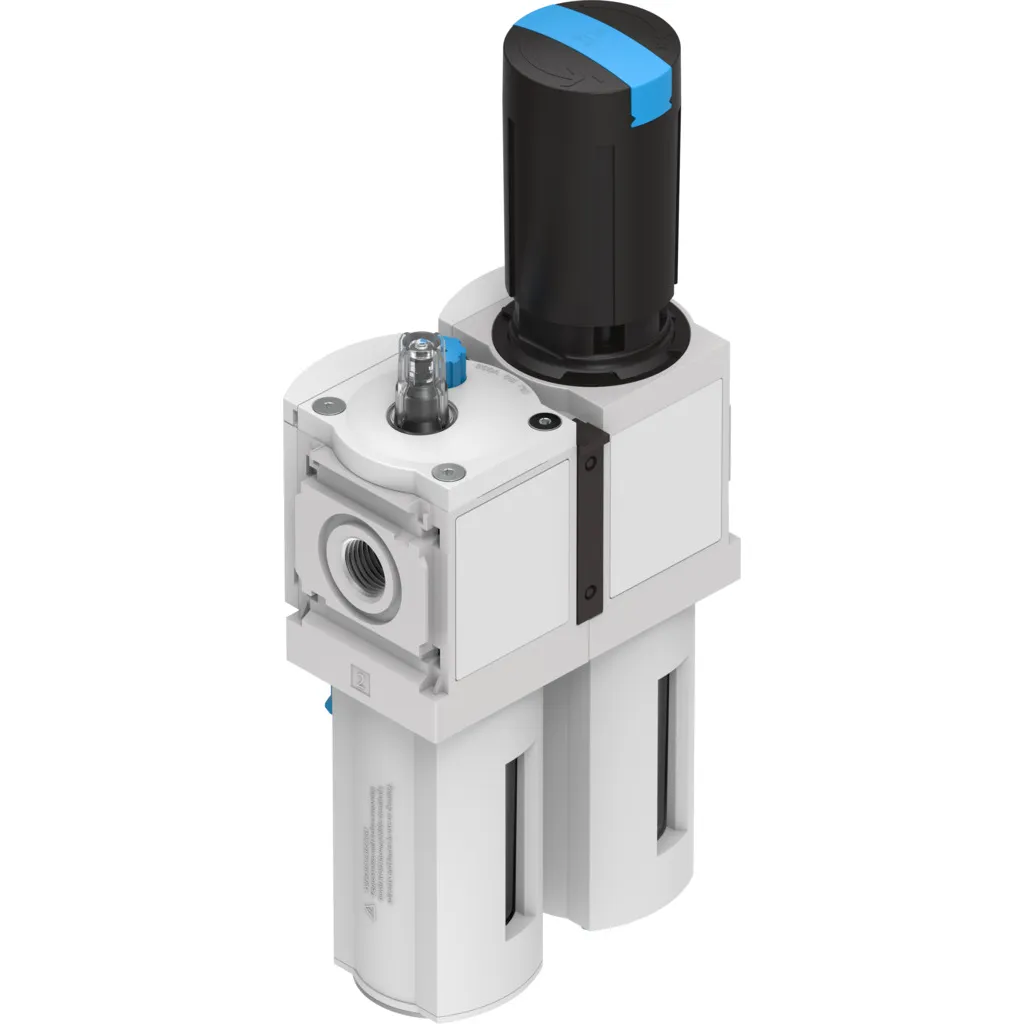

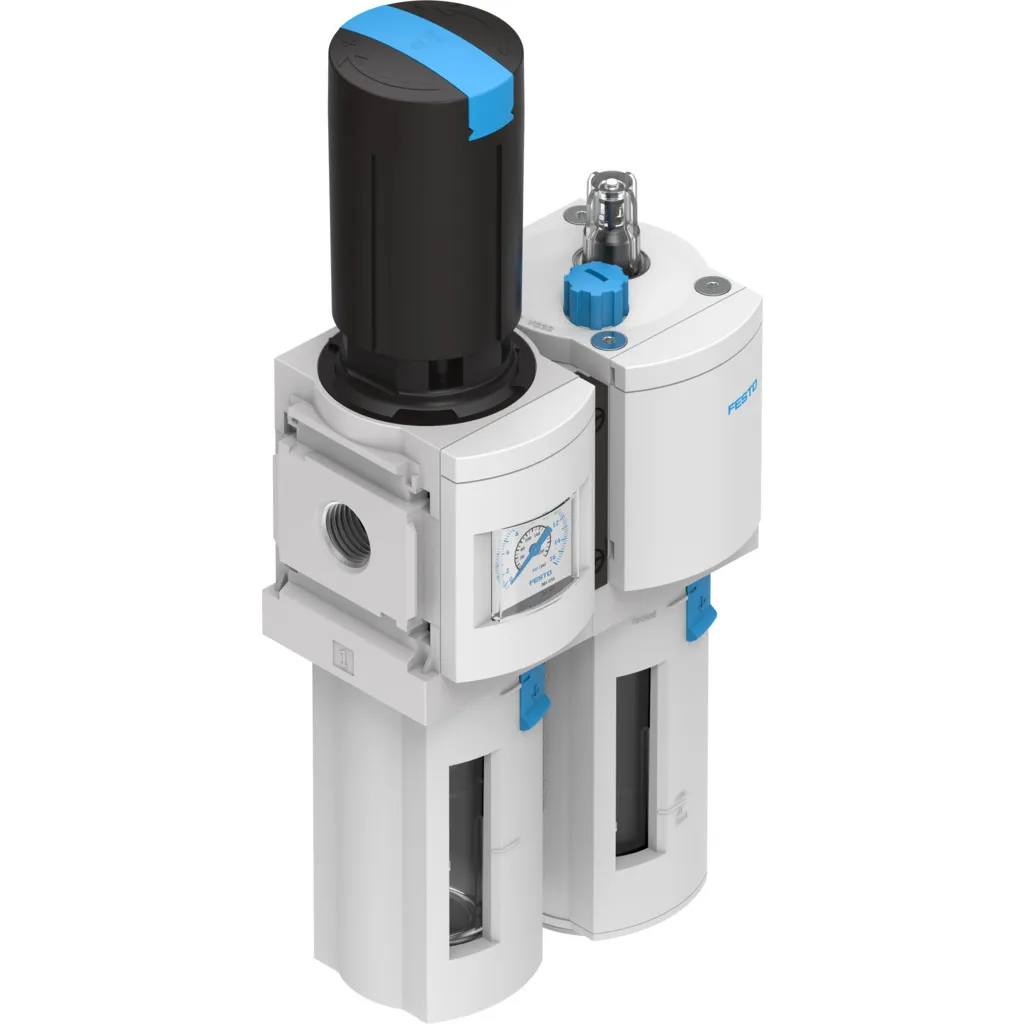

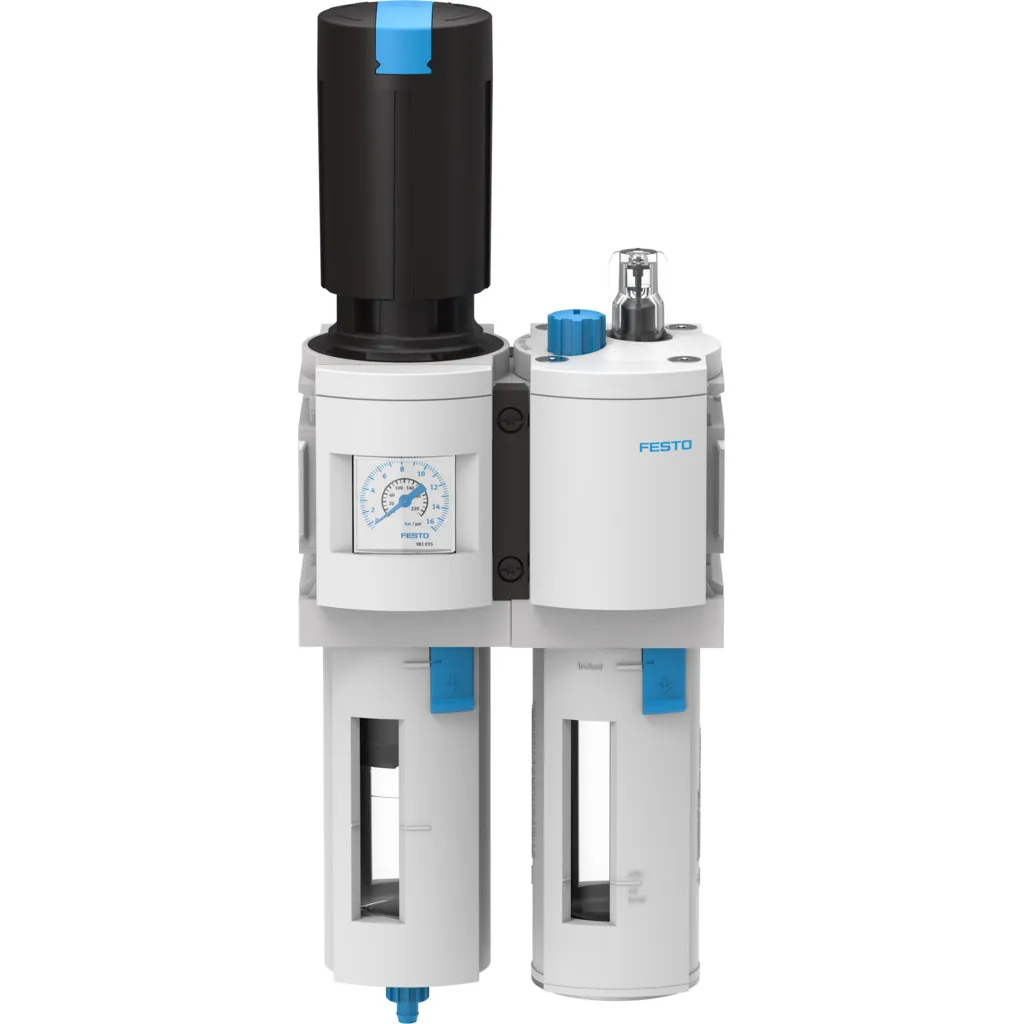

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.5 to 12 bar Pressure Range, MSB6-1/2-FRC1:J5M1

Part Number : MSB6-1/2-FRC1:J5M1

Brand :
Festo

A reliable air preparation unit that integrates filtering, regulating, and lubricating features seamlessly. With a 1/2" female thread and advanced design, it is perfect for maintaining consistent air quality in industrial setups.

View all

KWD 60.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC1:J5M1 provides efficient and consistent air preparation with filtering, regulating, and lubricating functions. Its high flow rate of 3700 l/min and advanced pressure control make it an excellent choice for industrial pneumatic systems. Built with durability in mind, it ensures long-lasting performance and reliability.

Key Features

• High-capacity unit with reliable filtering, regulating, and lubricating functions. • Flow rate of 3700 l/min for demanding pneumatic systems. • Built for industrial air preparation needs.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 3700 l/min

Applications

• Perfect for demanding industrial air preparation systems. • Suitable for automation tools and pneumatic environments.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC1 J5M1 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with integrated lock
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Plastic bowl guard

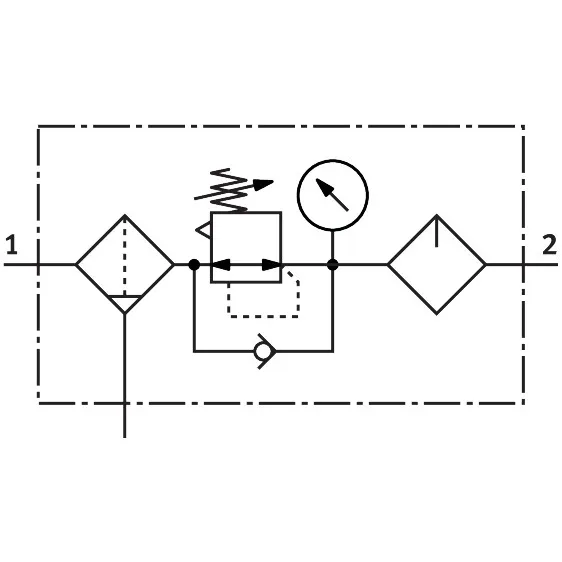

Symbol
991761
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
1.5 bar ... 20 bar
Pressure regulation range
0.3 bar ... 7 bar
Standard nominal flow rate
4800 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1495 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
