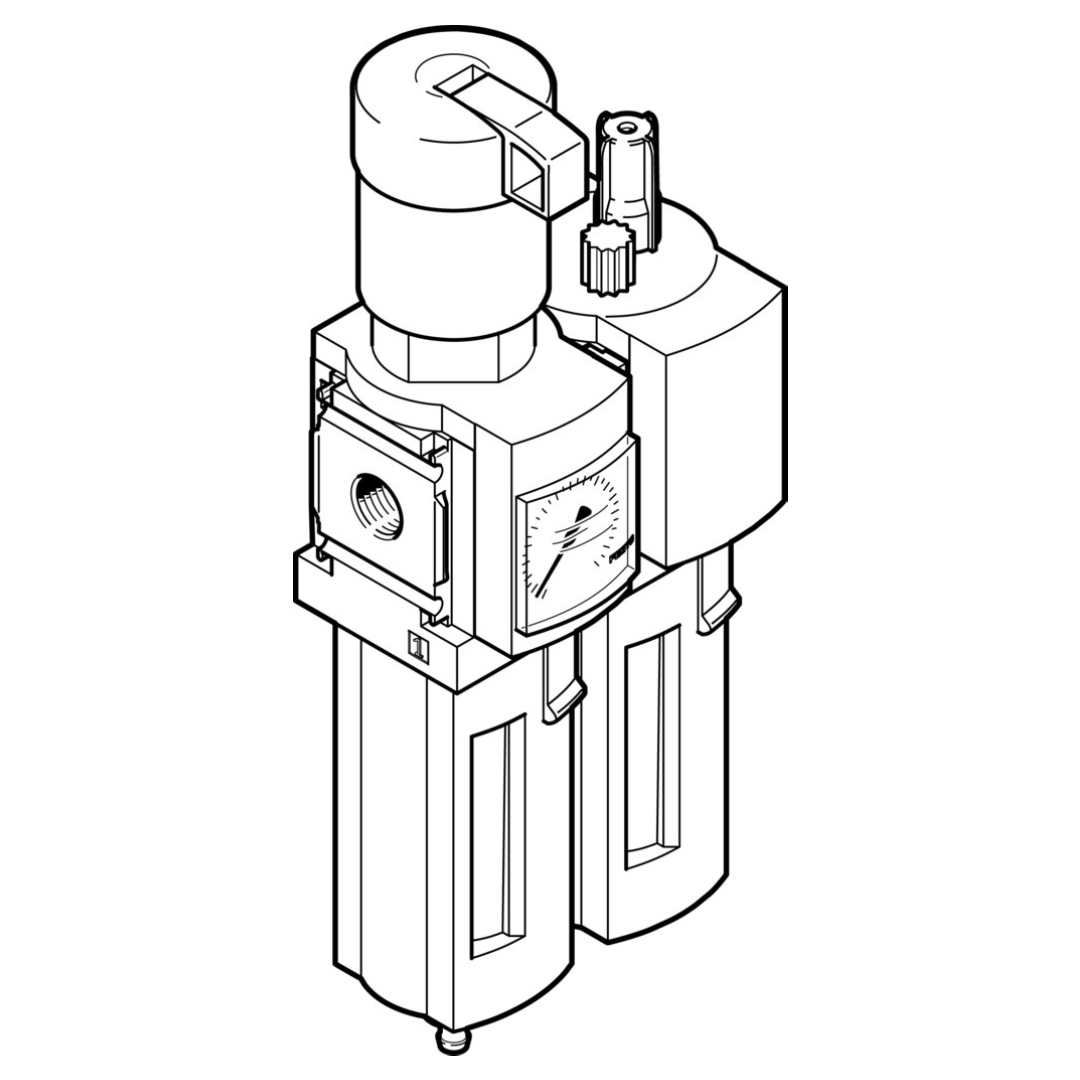

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/2", 0.3 to 7 bar Pressure Range, MSB6-1/2-FRC13:J120M1

Part Number : MSB6-1/2-FRC13:J120M1

Brand :
Festo

A secure and precise air preparation unit equipped with a lockable rotary knob for pressure regulation. With a flow rate of 1400 l/min and a 1/2" female thread, it offers unmatched control in industrial applications.

View all

KWD 60.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB6-1/2-FRC13:J120M1 offers secure and precise air preparation with advanced pressure regulation features. With a flow rate of 1400 l/min and a lockable rotary knob, it is perfect for industrial setups requiring reliable and secure air systems.

Key Features

• Secure unit with lockable controls. • Provides a flow rate of 1400 l/min for industrial environments. • Designed for precise air preparation needs.

Technical Specifications

• Connection Type: 1/2" Female Thread • Pressure Regulation Range: 0.3 to 7 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 1400 l/min

Applications

• Designed for secure air preparation in industrial systems. • Ideal for setups demanding reliable filtration and pressure control.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB6 1-2 FRC13 J120M1 Technical data.pdf

pdf
Download

Specifications

Size
6
Series
MS
Actuator lock
Rotary knob with detent, can be closed with accessories
Mounting position
Vertical +/-5°
Grade of filtration
40 µm
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge, Proportional standard mist lubricator
Controller function
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
Bowl guard
Plastic bowl guard

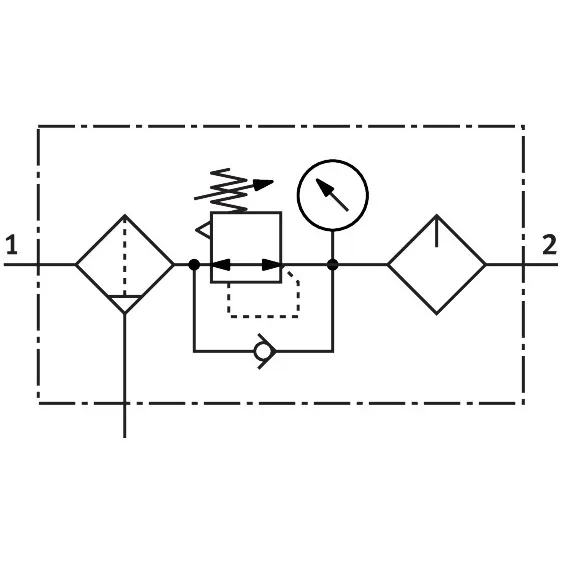

Symbol
991761
Pressure gauge or Pressure display
With pressure gauge
Operating pressure
0.8 bar ... 18 bar
Pressure regulation range
0.5 bar ... 7 bar
Standard nominal flow rate
4800 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-], Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
1495 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material housing
Die-cast aluminium
Material bowl
PC
