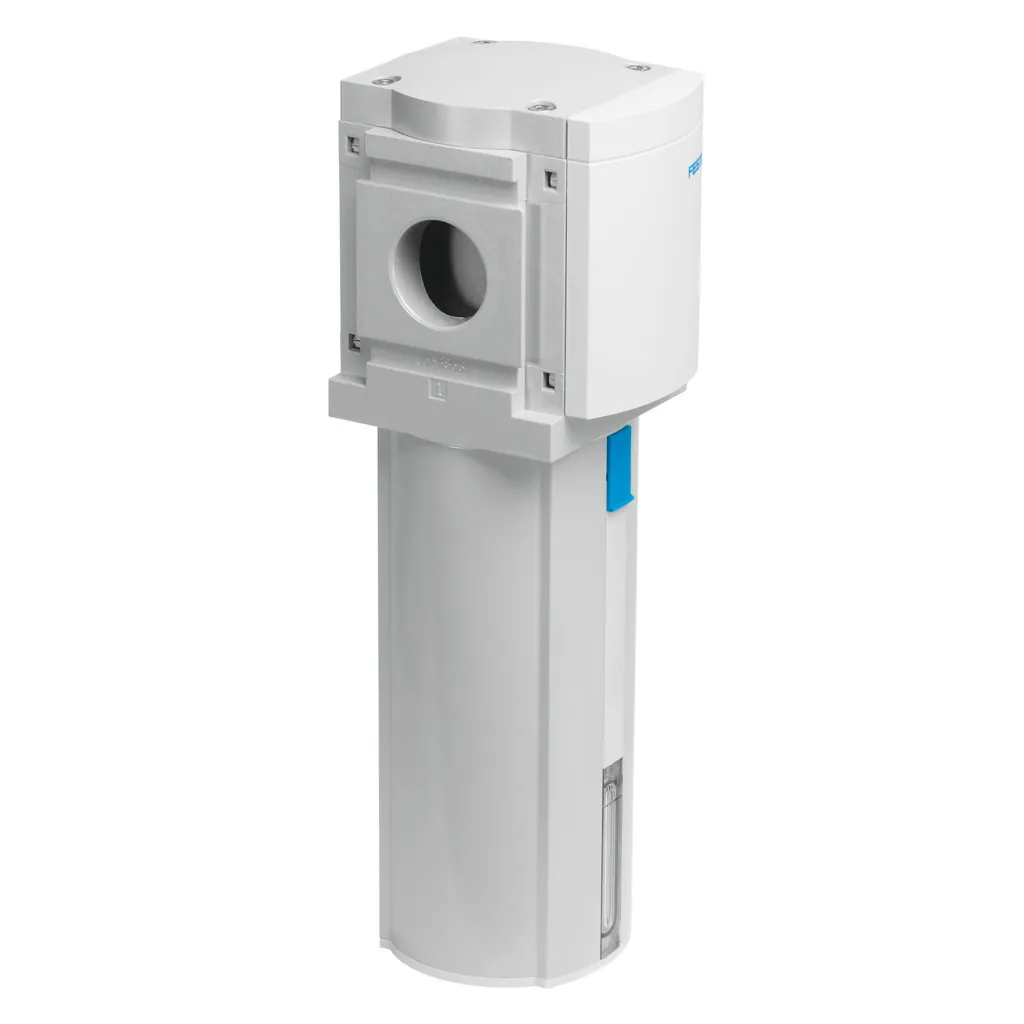

Festo Compressed Air Filter, Internal Port, Operating pressure 2 to 12 bar, MS12-LF-G-EUV

Part Number : MS12-LF-G-EUV

Brand :
Festo

Highly durable compressed air filter designed for industrial use and efficient air filtration.

View all

KWD 156.400

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MS12-LF-G-EUV compressed air filter delivers consistent and reliable air filtration for industrial environments. With a sintered bronze filter element and robust construction, it ensures long-lasting performance. This model operates with an optimal pressure range, making it suitable for varied industrial applications.

Features

• High-strength sintered bronze filter • Robust and durable construction for extended life • Optimized for industrial environments

Specifications

• Size: 12 • Series: MS • Operating pressure: 2 bar to 12 bar • Material housing: Die-cast aluminum • Material bowl: Wrought aluminum alloy

Applications

• Suitable for industrial manufacturing processes • Designed for pneumatic automation systems

Downloads

Filters MS-LF-LFM-LFX, MS series.pdf

pdf
Download

MS12-LF-G-EUV Technical data.pdf

pdf
Download

MS12-LFR Operating Instructions.pdf

pdf
Download

Specifications

Size
12
Series
MS
Mounting position
Vertical +/-5°
Grade of filtration
40 µm
Condensate drain
Fully automatic; Manual, non-detenting
Design
Sintered filter with centrifugal separator
Bowl guard
Integrated as metal bowl
Degree of condensate separation
>75 %
Symbol
991519
Operating pressure
2 bar ... 12 bar
Standard nominal flow rate
12500 l/min ... 16000 l/min
Operating medium
Compressed air (ISO 8573-1:2010), Inert gases
Note on operating and pilot medium
Ester oil < 0.1mg/m³ (ISO 8573-1:2010 [-:-:2])
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS conformity
VDMA24364-B1/B2-L
Storage Temperature
5 °C ... 60 °C
Air purity class at output
Compressed air (ISO 8573-1:2010 [7:8:4])
Media temperature
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Pore size
40 µm
Service-life value
≥1000 hrs
Product weight
7000 g
Type of mounting
In-line installation; Via mounting bracket
Pneumatic connection, port 1
Internal
Pneumatic connection, port 2
Internal
Material covering
PA
Material seals
NBR
Material filter
Sintered bronze
Material housing
Die-cast aluminium
Material bowl
Wrought aluminium alloy
Material screen
PC
