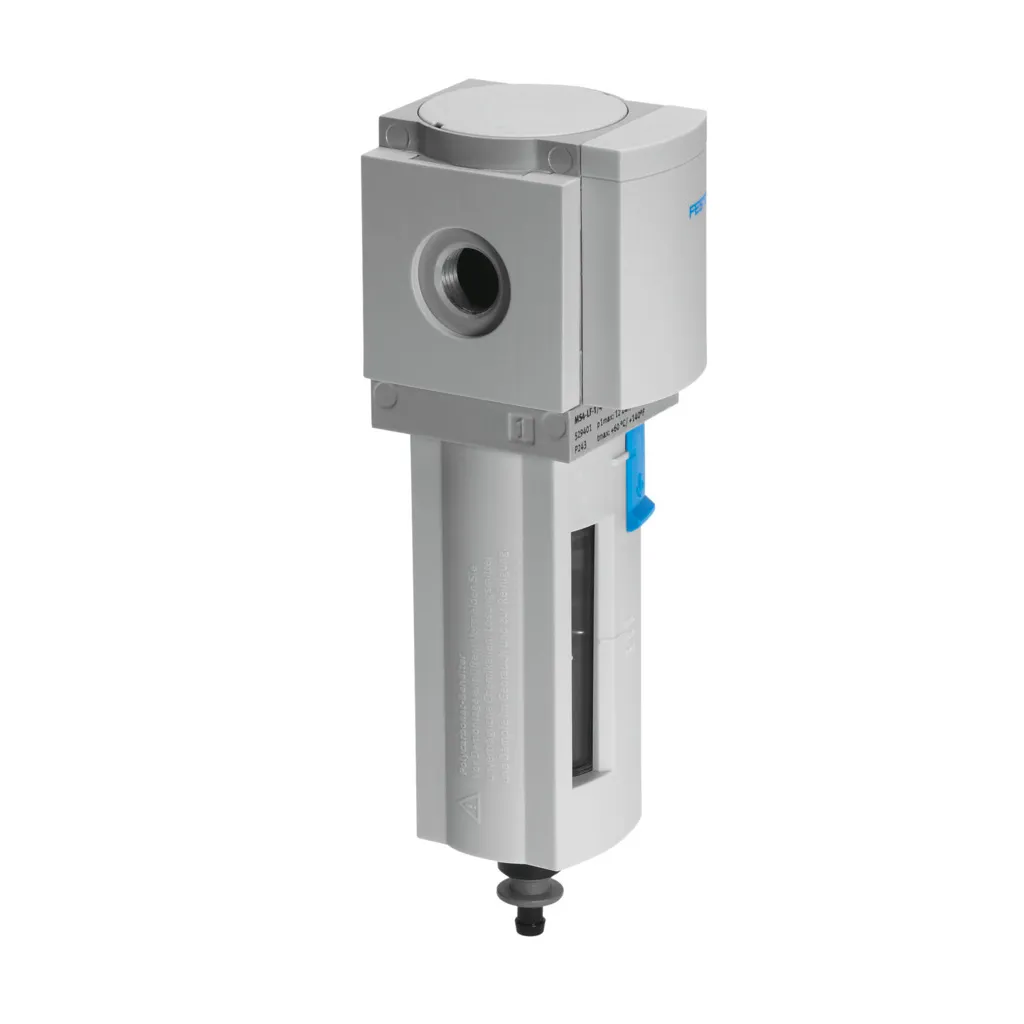

Festo Compressed Air Filter, G1/2, Operating pressure 0-20 bar, MS6-LF-1/2-CRM-Z

Part Number : MS6-LF-1/2-CRM-Z

Brand :
Festo

The Festo MS6-LF-1/2-CRM-Z compressed air filter features a G1/2 pneumatic connection and operates within a pressure range of 0-20 bar. Ideal for high-performance industrial applications.

View all

KWD 19.400

Quantity
Description
Specifications
Downloads
Related products

Description

This model is engineered with a durable G1/2 pneumatic connection and an operating pressure range of 0-20 bar. It ensures superior filtration performance, making it suitable for precision air handling in various industrial environments.

Product Overview

The MS6-LF-1/2-CRM-Z is engineered to deliver exceptional filtration performance, featuring a G1/2 connection and a 0-20 bar pressure range.

Key Features

Durable G1/2 connection Operating pressure: 0-20 bar Reliable performance for industrial applications.

Applications

Manufacturing processes requiring clean and filtered air with high reliability.

Downloads

Filters MS-LF-LFM-LFX, MS series.pdf

pdf
Download

MS6-LF-1-2-CRM-Z Technical data.pdf

pdf
Download

MS4_6-LFR_LR_Op_Ins.pdf

pdf
Download

MS4_6_Assembly_Instruction.pdf

pdf
Download

Specifications

Size
6
Series
MS
Mounting position
Vertical +/-5°
Grade of filtration
5 µm
Condensate drain
Manually rotating
Design
Sintered filter with centrifugal separator
Bowl guard
Plastic bowl guard
Degree of condensate separation
>75 %
Symbol
00991519
Operating pressure
0 bar ... 20 bar
Standard nominal flow rate (standardised to DIN 1343)
3200 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Corrosion resistance class CRC
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:8:4]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pore size
<5 µm
Product weight
600 g
Type of mounting
Either: In-line installation With accessories
Pneumatic connection, port 1
G1/2
Pneumatic connection, port 2
G1/2
Note on materials
RoHS-compliant
Material seals
NBR
Material filter
PE
Material housing
Die-cast aluminium
Material bowl
PC
Material separating plate
POM
