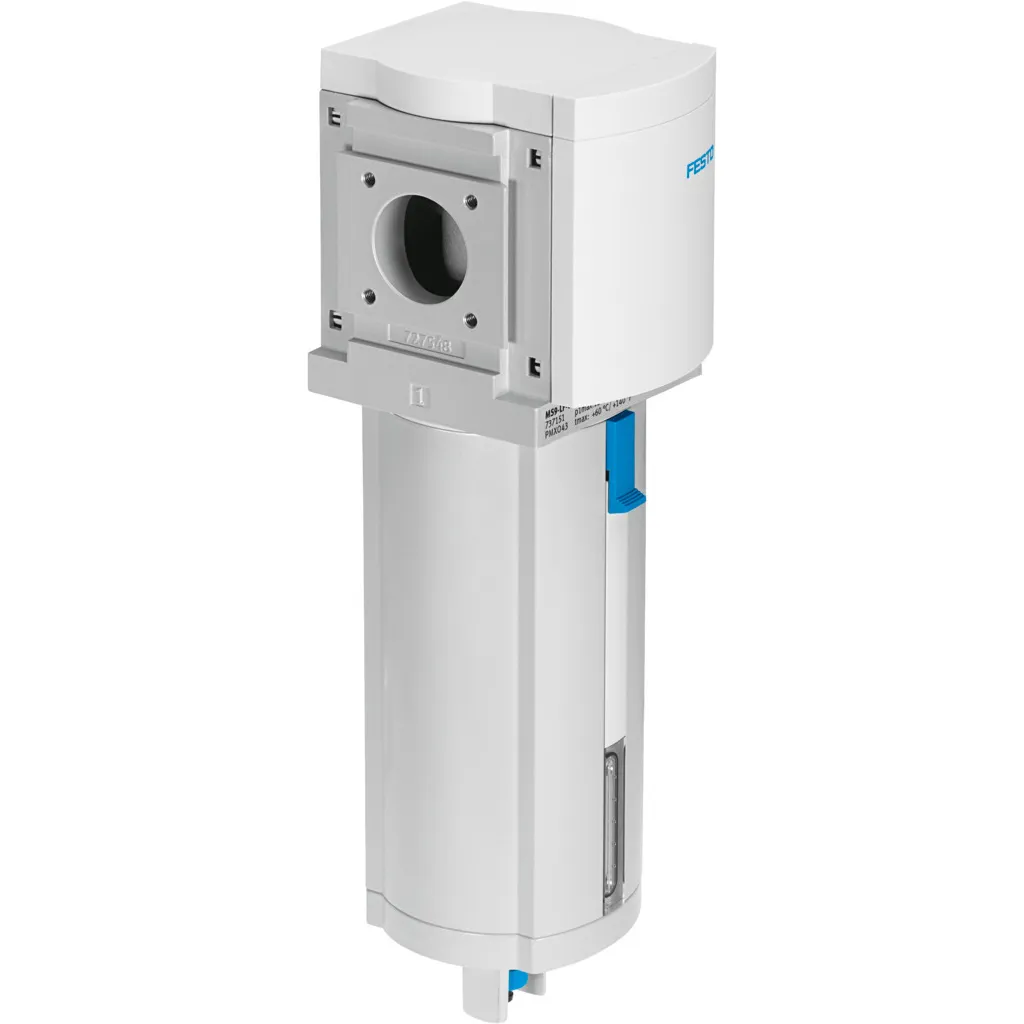

Festo Compressed Air Filter, 5 µm, Operating Pressure 2 to 12 bar, MS9-LF-G-CUV

Part Number : MS9-LF-G-CUV

Brand :
Festo

Advanced compressed air filter with a 5 µm filtration grade, fully automatic condensate drain, and an operating pressure range of 2 to 12 bar. Designed for automated industrial air systems.

View all

KWD 74.500

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MS9-LF-G-CUV offers advanced air filtration capabilities with its 5 µm filtration grade and fully automatic condensate drain. Designed to operate within a pressure range of 2 to 12 bar, this filter is perfect for automated air systems, ensuring clean and consistent air quality for demanding applications.

Key Features

• Filtration grade: 5 µm • Operating pressure: 2 to 12 bar • Fully automatic condensate drain • Low-maintenance and efficient

Technical Specifications

• Operating temperature: -10°C to +60°C • Connection size: G1/2 • ISO 8573-1:2010 compliance

Applications

• Ideal for industries requiring automated air filtration systems • Manufacturing and high-demand operations

Downloads

Filters MS-LF-LFM-LFX, MS series.pdf

pdf
Download

MS9-LF-G-CUV Technical data.pdf

pdf
Download

MS9-LFR Operating Instructions.pdf

pdf
Download

MS9-LFR Assembly Instructions.pdf

pdf
Download

Specifications

Size
9
Series
MS
Mounting position
Vertical +/-5°
Grade of filtration
5 µm
Condensate drain
Fully automatic
Design
Sintered filter with centrifugal separator
Degree of condensate separation
>75 %
Symbol
991520
Operating pressure
2 bar ... 12 bar
Operating medium
Compressed air to ISO 8573-1:2010 [7:9:-] Inert gases
Corrosion resistance class CRC
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
5 °C ... 60 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:8:4]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pore size
5 µm
Product weight
2000 g
Type of mounting
Either: In-line installation With accessories
Material covering
PA-reinforced
Material spin disc
POM
Material filter carrier
POM
Note on materials
RoHS-compliant
Material sub-base
Die-cast aluminium
Material mounting bracket
Die-cast aluminium
Material filter
PE
Material housing
Die-cast aluminium
Material module connector
Die-cast aluminium
Material bowl
Wrought aluminium alloy
Material cup seal
NBR
Material screen
PA
Material separating plate
POM
