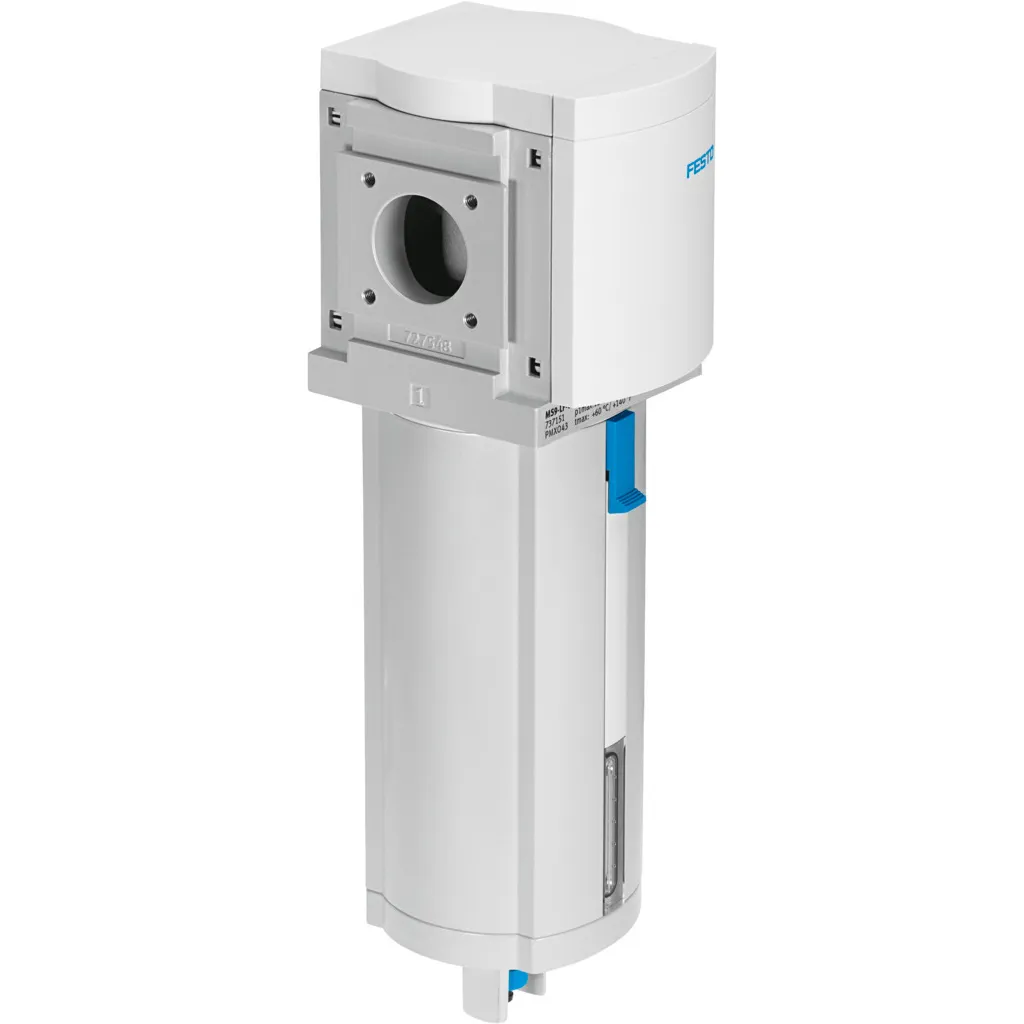

Festo Compressed Air Filter, 5 µm, Operating Pressure 0 to 20 bar, MS9-LF

Part Number : MS9-LF

Brand :
Festo

Reliable compressed air filter with a 5 µm filtration grade, manually rotating condensate drain, and an operating pressure range of 0 to 20 bar. Ensures consistent air quality in industrial settings.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MS9-LF is a reliable compressed air filter designed for industrial use. Featuring a 5 µm filtration grade and a manually rotating condensate drain, it ensures effective filtration and operates efficiently within a pressure range of 0 to 20 bar. Its sturdy design guarantees long-term performance.

Key Features

• Filtration grade: 5 µm • Operating pressure: 0 to 20 bar • Manually rotating condensate drain • Durable and efficient design

Technical Specifications

• Operating temperature: -10°C to +60°C • Connection size: G1/2 • ISO 8573-1:2010 compliance

Applications

• Suitable for industrial compressed air systems • Ensures reliable and clean air

Downloads

Filters MS-LF-LFM-LFX, MS series.pdf

pdf
Download

MS9-LF Technical data.pdf

pdf
Download

MS9-LFR Operating Instructions.pdf

pdf
Download

MS9-LFR Assembly Instructions.pdf

pdf
Download

Specifications

Size
9
Series
MS
Mounting position
Vertical +/-5°
Grade of filtration
5 µm ... 40 µm
Condensate drain
Fully automatic Manually rotating Semi-automatic
Design
Sintered filter with centrifugal separator
Degree of condensate separation
>75 %
Operating pressure
0 bar ... 20 bar
Standard nominal flow rate (standardised to DIN 1343)
6000 l/min ... 16000 l/min
Approval
c UL us - Recognized (OL)
CE mark (see declaration of conformity)
To EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity)
To UK EX instructions
Explosion protection certification outside the EU
EPL Db (GB) EPL Gb (GB)
Explosion protection
Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
ATEX category gas
II 2G
ATEX category dust
II 2D
Explosion ignition protection type for gas
Ex h IIC T6 Gb X
Explosion ignition protection type for dust
Ex h IIIC T60°C Db X
Explosion ambient temperature
-10°C <= Ta <= +60°C
Operating medium
Compressed air to ISO 8573-1:2010 [-:9:-] Compressed air to ISO 8573-1:2010 [7:9:-] Inert gases
Corrosion resistance class CRC
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:8:4] Compressed air to ISO 8573-1:2010 [7:8:4]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pore size
5 µm ... 40 µm
Product weight
2000 g ... 2400 g
Type of mounting
Either: In-line installation With accessories
Material covering
PA-reinforced
Material spin disc
POM
Material filter carrier
POM
Note on materials
RoHS-compliant
Material sub-base
Die-cast aluminium
Material mounting bracket
Die-cast aluminium
Material filter
PE
Material housing
Die-cast aluminium
Material module connector
Die-cast aluminium
Material bowl
Wrought aluminium alloy
Material cup seal
NBR
Material screen
PA
Material separating plate
POM
