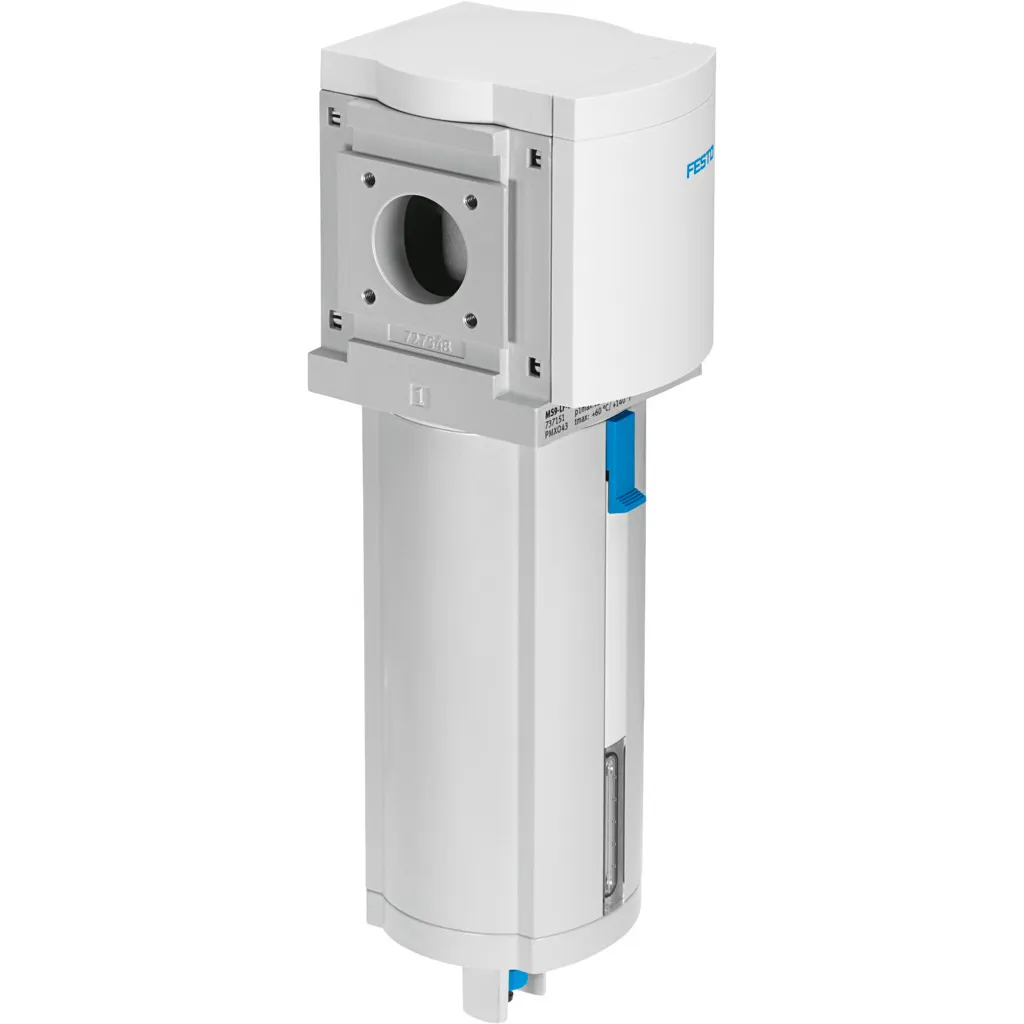

Festo Compressed Air Filter, 40 µm, Operating Pressure 0 to 20 bar, MS9-LF-G-EUM

Part Number : MS9-LF-G-EUM

Brand :
Festo

Heavy-duty air filter featuring a 40 µm filtration grade, a manually rotating condensate drain, and an operating pressure range of 0 to 20 bar. Ideal for demanding industrial environments.

View all

KWD 62.600

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MS9-LF-G-EUM is a heavy-duty air filter engineered for industrial use. Featuring a 40 µm filtration grade and a manually rotating condensate drain, it provides reliable filtration at pressures ranging from 0 to 20 bar. Its durable construction ensures optimal performance in challenging environments.

Key Features

• Filtration grade: 40 µm • Operating pressure: 0 to 20 bar • Manually rotating condensate drain • Rugged design for industrial use

Technical Specifications

• Operating temperature: -10°C to +60°C • Connection size: G1/2 • ISO 8573-1:2010 compliance

Applications

• Suitable for automotive, construction • Heavy-duty industrial air systems

Downloads

Filters MS-LF-LFM-LFX, MS series.pdf

pdf
Download

MS9-LF-G-EUM Technical data.pdf

pdf
Download

MS9-LFR Operating Instructions.pdf

pdf
Download

MS9-LFR Assembly Instructions.pdf

pdf
Download

Specifications

Size
9
Series
MS
Mounting position
Vertical +/-5°
Grade of filtration
40 µm
Condensate drain
Manually rotating
Design
Sintered filter with centrifugal separator
Degree of condensate separation
>75 %
Symbol
991519
Operating pressure
0 bar ... 20 bar
Operating medium
Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Corrosion resistance class CRC
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:8:4]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pore size
40 µm
Product weight
2000 g
Type of mounting
Either: In-line installation With accessories
Material covering
PA-reinforced
Material spin disc
POM
Material filter carrier
POM
Note on materials
RoHS-compliant
Material sub-base
Die-cast aluminium
Material mounting bracket
Die-cast aluminium
Material filter
PE
Material housing
Die-cast aluminium
Material module connector
Die-cast aluminium
Material bowl
Wrought aluminium alloy
Material cup seal
NBR
Material screen
PA
Material separating plate
POM
