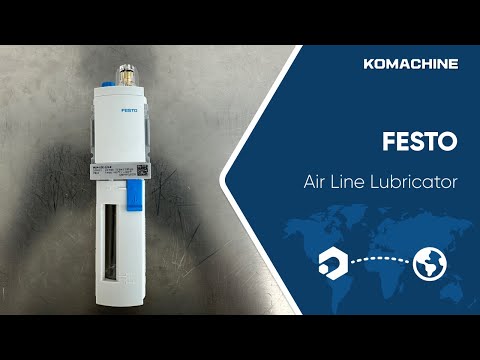

Festo Air Lubricator, G1/4, Operating pressure upto 12 bar, MS4-LOE-1/4-U

Name: Festo Air Lubricator G1/4 Operating pressure upto 12 bar MS4-LOE-1/4-U
Brand: Festo
SKU: MS4-LOE-1/4-U
Rating: 5 (1 reviews)

Part Number : MS4-LOE-1/4-U

Brand :

An air lubricator with G1/4 connection and operating pressure of 1 bar to 12 bar, optimized for pneumatic applications.

View all

KWD 25.000

Quantity

Description

Specifications

Downloads

Description

The Festo Air Lubricator MS4-LOE-1/4-U is engineered for consistent and efficient lubrication in pneumatic systems. It comes with a G1/4 connection, ensuring secure integration and reliable performance. This air lubricator is designed to work seamlessly under a pressure range of 1 bar to 12 bar and is ideal for demanding industrial environments.

Product Overview

The Festo Air Lubricator MS4-LOE-1/4-U is designed to ensure reliable lubrication for pneumatic systems. It supports smooth operation and enhances the longevity of pneumatic components, making it an ideal solution for industrial applications.

Technical Specifications

This lubricator operates within a pressure range of 1 bar to 12 bar and features a G1/4 connection type for secure attachment. Its robust and compact design makes it highly durable, suitable for industrial environments.

Applications

The MS4-LOE-1/4-U is perfect for pneumatic systems requiring consistent lubrication. Its compact design ensures suitability for operations with limited space and under varied pressure conditions.

Downloads

Lubricator MS4-LOE.pdf

pdf

Download

MS4-LOE-1-4-U Technical data.pdf

pdf

Download

MS4_6-LOE_Operating_Instructions_1.pdf

pdf

Download

MS4_6-LOE_Operating_Instructions_2.pdf

pdf

Download

MS Series .pdf

pdf

Download

Specifications

Size

Series

Mounting position

Vertical +/-5°

Design

Proportional standard mist lubricator

Max. oil capacity

36 cm³

Bowl guard

Integrated as metal bowl

Symbol

991532

Operating pressure

1 bar ... 12 bar

Min. flow rate for lubricator function

40 l/min

Standard nominal flow rate (standardised to DIN 1343)

2200 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Storage Temperature

-10 °C ... 60 °C

Suitable for use with food

See supplementary material information

Media temperature

-10 °C ... 60 °C

Oil viscosity

ISO VG 32

Ambient temperature

-10 °C ... 60 °C

Product weight

354 g

Type of mounting

Either: In-line installation With accessories

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Note on materials

RoHS-compliant

Material housing

Die-cast aluminium

Material bowl

Die-cast aluminium Wrought aluminium alloy

Material screen
