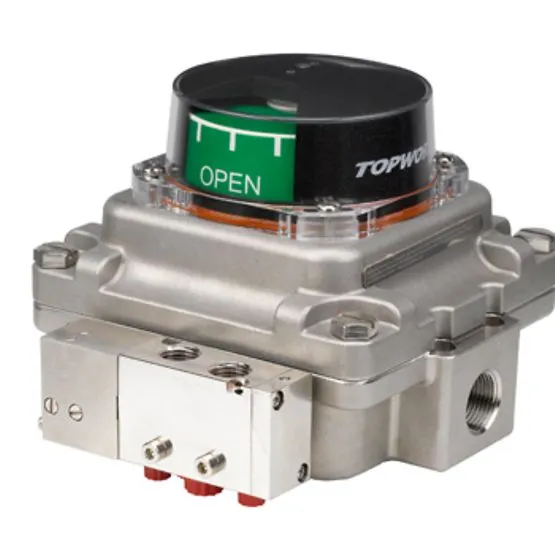

Emerson Topworx TX-Series Discrete Valve Controller Model TXS with various position sensors, integral solenoid valves, and bus networks in a composite resin enclosure

Brand :
Topworx

Emerson Topworx TX-Series Discrete Valve Controller Model TXS with various position sensors, integral solenoid valves, and bus networks in a composite resin enclosure - A high-performance and reliable solution for industrial applications, offering advanced control and durability.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Topworx TXS delivers outstanding value by providing full functionality in a compact, direct mount enclosure. Our TX-Series switchboxes deliver outstanding value by providing full functionality in compact, direct-mount enclosures. Available with a variety of position sensors, integral solenoid valves, and bus networks, the TX-Series is suitable for use in all hazardous areas and carry IECEx, ATEX, and UL certifications. The GO Switch offering in the TX- Series line offers the same reliability as existing GO Switches with improved features and benefits. The 36 GO Switch will offer the option of 2 or 4 switch configurations for the TX and TV Enclosures. Integrated solenoid valves are optional in the 2-switch configuration for even more control.

Features

• Direct Mount Composite Resin • Intrinsically Safe and suitable for all environments • Variety of Bus Networks and Sensor Options • Perfect for Non-Incendive Applications • Low profile compact design • Impact resistant highly visable display

Downloads

Brochure Discrete Valve Controllers.pdf

pdf
Download

manual-tx-series-valve-controllers-Topworx-en-82920.pdf

pdf
Download

quick-start-guide-tx-series-Topworx-en-82478.pdf

pdf
Download

Specifications

Environmental Extremes
Operating temperatures from -76°F/-60°C to +175°F/80°C
Enclosure Options
Aluminum, Composite, Stainless Steel
Ingress Protection
Type 4, 4X, IP66/67
Bus Networking Options
AS-Interface, Profibus, GO Switch, Proximity, P+F, Mechanical
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless Steel Shaft and Fasteners
Operating Conditions
Flameproof/Explosion Proof, Class I Div 1 & 2, Class II Div 1 & 2
Temperature Range
Tamb -50°C to 100°C
