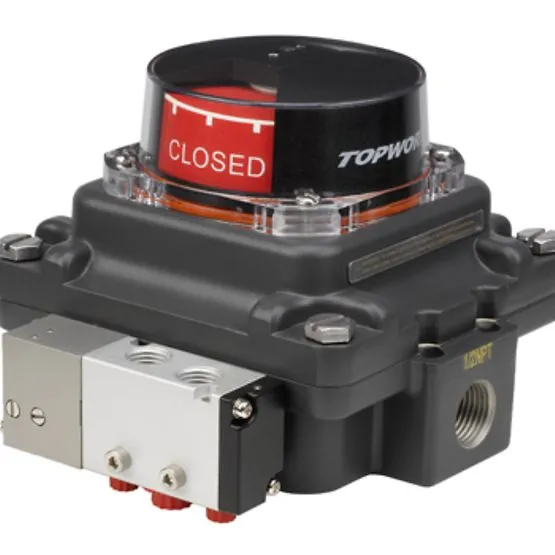

Emerson Topworx TX-Series Discrete Valve Controller Model TXP, direct-mount aluminum enclosure, with various position sensors, integral solenoid valves, and bus networks

Brand :
Topworx

Emerson Topworx TX-Series Discrete Valve Controller Model TXP, direct-mount aluminum enclosure, with various position sensors, integral solenoid valves, and bus networks - A high-performance and reliable solution for industrial applications, offering advanced control and durability.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Topworx TXP Switchbox delivers outstanding value by providing full functionality in a compact direct mount enclosure. Our TX-Series switchboxes deliver outstanding value by providing full functionality in compact, direct-mount enclosures. Available with a variety of position sensors, integral solenoid valves, and bus networks, the TX-Series is suitable for use in all hazardous areas and carry IECEx, ATEX, and UL certifications. The GO Switch offering in the TX- Series line offers the same reliability as existing GO Switches with improved features and benefits. The 36 GO Switch will offer the option of 2 or 4 switch configurations for the TX and TV Enclosures. Integrated solenoid valves are optional in the 2-switch configuration for even more control.

Features

• Direct Mount Aluminum Enclosure • Flameproof/Intrinsically Safe/Explosion Proof and Non-Incendive • Variety of Bus Networks and Sensor Options • Color coded twist-set cams provide the easiest adjustment • Low profile compact design • Impact resistant highly visable display

Downloads

Brochure Discrete Valve Controllers.pdf

pdf
Download

brochure-Topworx-txp-sales-sheet-Topworx-en-82904.pdf

pdf
Download

manual-tx-series-valve-controllers-Topworx-en-82920.pdf

pdf
Download

quick-start-guide-tx-series-Topworx-en-82478.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless Steel Shaft and Fasteners
Enclosure Options
Aluminum, Composite, Stainless Steel
Bus Networking Options
AS-Interface, Profibus, GO Switch, Proximity, P+F, Mechanical
Visual Display
Impact resistant polycarbonate, intuitive colors (Green/Red), pre-adjusted to 90°
Pilot Valves
Low Power Solenoid, Single Coil, 1.0 Cv
Operating Conditions
Flameproof/Explosion Proof, Class I Div 1 & 2, Class II Div 1 & 2
Temperature Range
Tamb -65°C to 100°C
Ingress Protection
II2GD, IP66/67, Type 4X
