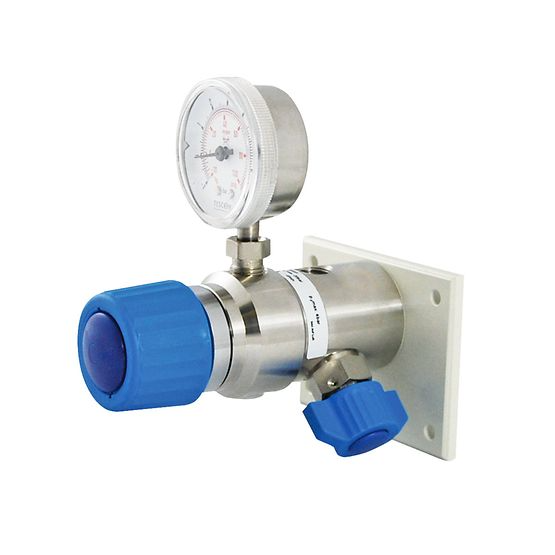

Emerson Tescom Ultra High Purity MiniLabo2 Regulator, Made with durable Stainless Steel, Maximum Inlet Pressure: 580 psig / 40.0 bar Maximum Outlet Pressure: 22, 58, 145 psig / 1.5, 4.0, 10.0 bar

Brand :
Tescom

Ultra High Purity MiniLabo 2 is a point-of-use regulator for high purity applications with a compact, modular ergonomic design. All connections are 1/4" Internal VCR for reduced leak rates. Ideal for use in high purity applications, reduces line pressure to working pressure, laboratory, research & development and analyzer applications.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM Ultra High Purity MiniLabo 2 is a point-of-use regulator for high purity applications with a compact, modular ergonomic design. All connections are 1/4" Internal VCR for reduced leak rates. Ideal for use in high purity applications, reduces line pressure to working pressure, laboratory, research & development and analyzer applications. The Emerson TESCOM Ultra High Purity MiniLabo2 Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Minimized internal volume • All connections are 1/4"" Internal VCR for reduced leak rates • Compact and economical design • Ease of use by ergonomic handwheels • Pressure regulator and 1/4 turn shut-off valve integrated in one body • Includes low pressure gauge and a wall mounting plate • Suitable for gases up to purity 6.0

Downloads

TESCOM_ Ultra High Purity MiniLabo2 Regulator.pdf

pdf
Download

Specifications

Pressure rating
Maximum Inlet Pressure: 580 psig / 40.0 bar Maximum Outlet Pressure: 22, 58, 145 psig / 1.5, 4.0, 10.0 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316L Stainless Steel Diaphragm: Elgiloy / Hastelloy Seat Valve: PCTFE Pressure Reducer: PTFE
Leakage Rate Against Atmosphere
10-8 mbar l/sec He each connection
Flow Rate
1-200 LPM based on Nitrogen
Operating Temperature
-4°F to 158°F / -20°C to 70°C
Port Size & Type
Inlet and Outlet: 1/4 High Purity Internal Connection (HPIC) designed for use with 1/4 swivel VCR (or compatible fittings) Gauge: 1/4 Internal VCR
Weight (approximate)
2.7 lbs / 1.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
