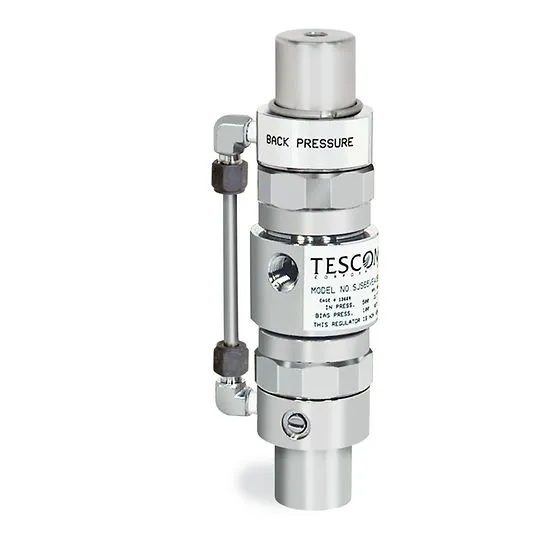

Emerson Tescom SJS Pressure Regulator for Mechanical Pumps, Made with durable Stainless Steel, Pressure Reducing, Teflon Backpressure, Vespel

Brand :
Tescom

SJS Series is excellent for use on dual mechanical pump seal systems to help control fugitive emissions, prolong seal life, increase safety, and reduce seal maintenance costs. The SJS is commonly used with the 42MW Series instrument isolator.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM SJS Series is excellent for use on dual mechanical pump seal systems to help control fugitive emissions, prolong seal life, increase safety, and reduce seal mainteEmerson TESCOMce costs. The SJS is commonly used with the 42MW Series instrument isolator. The Emerson TESCOM SJS Pressure Regulator for Mechanical Pumps is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Maintains accurate differential pressure when incorporated into a double seal system • Tracks upsets in system pressure and decreases downtime by increasing seal life • NACE compatible version available: Modification number -01 • Available with optional 42MW Welded Diaphragm Instrument Isolator

Downloads

TESCOM_ SJS Pressure Regulator for Mechanical Pumps_datasheet_2.pdf

pdf
Download

Specifications

Body Material
316 Stainless Steel
Seat Material
Pressure Reducing: Teflon Backpressure: Vespel
Friction Sleeve Material
Inner: Teflon Outer: 316 Stainless Steel
Operating Temperature
-40°F to 165°F / -40°C to 74°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.12
Weight (without gauges)
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
