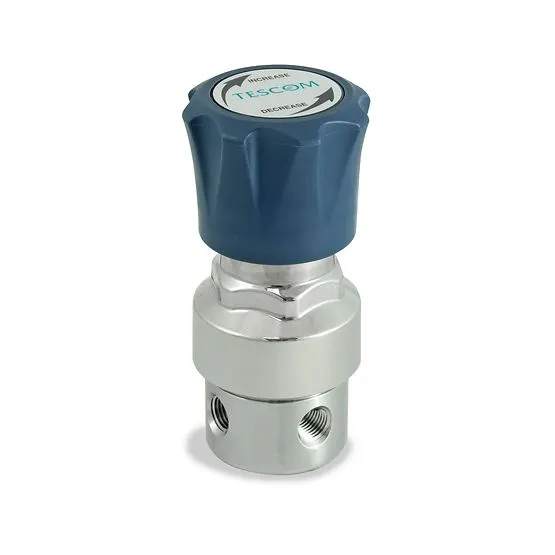

Emerson Tescom SG1 Single Stage Regulator, Made with durable 316 Stainless Steel or Brass, 15, 25, 50, 125, 250 psig/103, 172, 345, 862, 1724 kPa1.0, 1.7, 3.4, 8.6, 17.2 bar

Brand :
Tescom

SG1 Series is a compact, lightweight high purity single-stage regulator for specialty and industrial gas flows of less than 10 SCFM / 283 SLPM. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. Suitable for laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications. This regulator is also ideal for process analyzer gases, metal fabrication and specialty and industrial gas cylinders.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

Emerson TESCOM SG1 Series is a compact, lightweight high purity single-stage regulator for specialty and industrial gas flows of less than 10 SCFM / 283 SLPM. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. Suitable for laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications. This regulator is also ideal for process analyzer gases, metal fabrication and specialty and industrial gas cylinders. The Emerson TESCOM SG1 Single Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Cartridge valve design incorporates a 10 micron filter that protects the regulator seat and makes service simple • Optional neoprene diaphragm provides exceptional sensitivity for precise pressure control

Downloads

TESCOM_ SG1 Single Stage Regulator_datasheet_2.pdf

pdf

Specifications

Outlet Pressure Ranges
15, 25, 50, 125, 250 psig103, 172, 345, 862, 1724 kPa1.0, 1.7, 3.4, 8.6, 17.2 bar
Body Material
316L Stainless Steel, Nickel-Plated Brass
Seat Material
PCTFE, Polyimide Per ASTM D 6456-99 Type II Class 1M (Meldin 7021 or Vespel SP-21)
Seal
Teflon or Buna-N
Diaphragm
316 Stainless Steel or Neoprene
Filter
10 micron nominal sintered Bronze10 micron nominal sintered 316 Stainless Steel
Remaining Parts
Brass, 300 Series Stainless Steel
Port Size & Type
Inlet & Outlet: 1/4 NPTFAccessories: 1/4 NPTF
Operating Temperature
PCTFE Seat: -40°F to 140°F / -40°C to 60°CPolyimide Seat: -40°F to 250°F / -40°C to 121°C
Flow Capacity
Cv = 0.06, 0.2
Load Type
Spring only
Weight
2.4 lbs / 1.1 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
