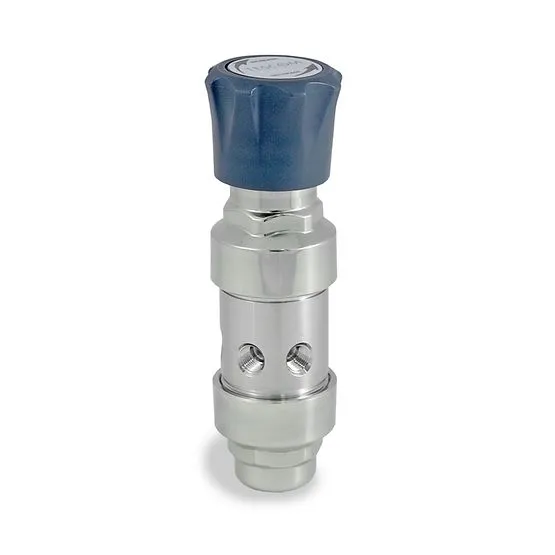

Emerson Tescom SG 2 Series Two Stage Regulator Industrial, Stainless Steel & Nickel-Plated Brass Construction

Brand :
Tescom

SG2 Series is a compact, lightweight, high purity two-stage cylinder regulator for specialty, flammable and industrial gas flows of less than 4 SCFM / 112 SLPM. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. User-friendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly. Suitable for Laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications. This regulator is also ideal for process analyzer gases, metal fabrication and specialty and industrial gas cylinders.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM SG2 Series is a compact, lightweight, high purity two-stage cylinder regulator for specialty, flammable and industrial gas flows of less than 4 SCFM / 112 SLPM. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. User-friendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly. Suitable for Laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications. This regulator is also ideal for process analyzer gases, metal fabrication and specialty and industrial gas cylinders. The Emerson TESCOM SG 2 Series Two Stage Regulator Industrial is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Cartridge valve design incorporates 10 micron filter to protect the regulator seat and makes service simple • Optional neoprene diaphragms provide exceptional sensitivity for precise pressure control • User-friendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly.

Downloads

TESCOM_ SG 2 Series Two Stage Regulator Industrial_datasheet_2.pdf

pdf
Download

Specifications

Body Material
Stainless Steel, Nickel-Plated Brass
Seat Material
PCTFE, Polyimide Per ASTM D 6456-99 Type II Class 1M (Meldin 7021 or Vespel SP-21)
Diaphragm Material
316 Stainless Steel, Neoprene
Filter Material
10 micron nominal sintered Bronze 10 micron nominal sintered 316 Stainless Steel
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
Teflon or Buna-N
Remaining Parts
Brass, 300 Series Stainless Steel
Operating Temperature
PCTFE Seat: -40°F to 140°F / -40°C to 60°CPolyimide Seat: -40°F to 250°F / -40°C to 121°C
Port Size & Type
Inlet & Outlet: 1/4 NPTFAccessories: 1/4 NPTF
Flow Capacity
Cv = 0.06
Weight
4.0 lbs / 1.8 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
