Emerson Tescom Regulus 4 Dual Stage Regulator, Made with lightweight Aluminum

Brand :
Tescom

Regulus 4 dual-stage pressure reducer, with an integrated relief valve, is extremely sensitive (mbar range) for gas purity up to 5.0. Ideal for use as an in-line pressure reducer. Suitable for non-corrosive gases, oxygen service and commonly used in production testing.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

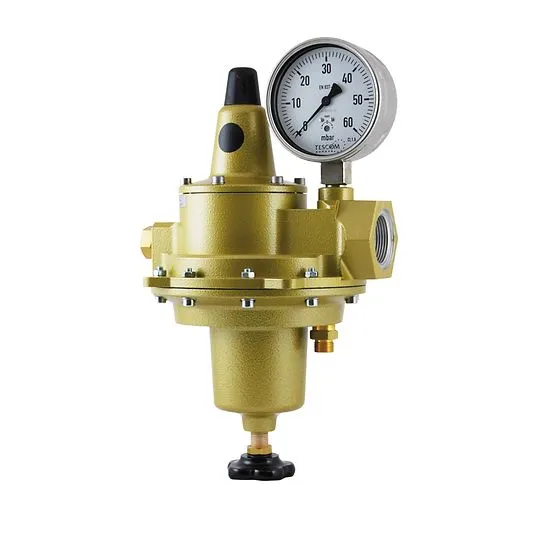

Emerson TESCOM Regulus 4 dual-stage pressure reducer, with an integrated relief valve, is extremely sensitive (mbar range) for gas purity up to 5.0. Ideal for use as an in-line pressure reducer. Suitable for non-corrosive gases, oxygen service and commonly used in production testing. The Emerson TESCOM Regulus 4 Dual Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Regulation in mbar range • Dual-stage for constant outlet pressure • Accurate pressure regulation • High flow up to 1200 SLPM (air) • Integrated relief valve

Downloads

TESCOM_ Regulus 4 Dual Stage Regulator.pdf

pdf

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: Aluminum Diaphragm: Butyl Rubber with PTFE coating Seat: NBR
Port Size & Type
Inlet Adapter: M16 x 1.5Body: G 3/4 Outlet: G 1 1/4Gauge: G 1/2Relief valve: L12, DIN 3853 (M18x1.5 + cone)
Operating Temperature
-4°F to 158°F / -20°C to 70°C
Fluid Media
Non corrosive gases up to gas purity 5.0 (99.999 Vol %)
Nominal Flow Rate
Max. 72 (m3/h air)
Weight
9.3 lbs / 4.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
